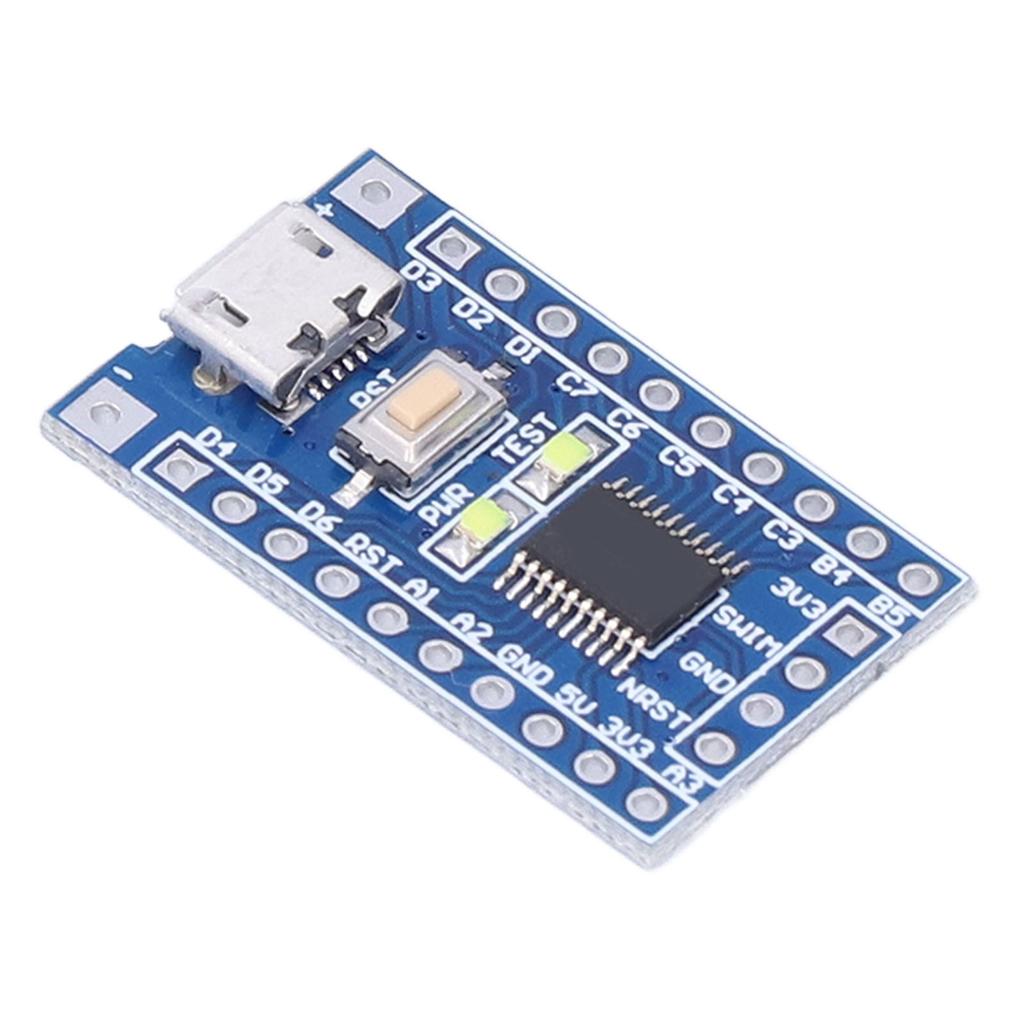

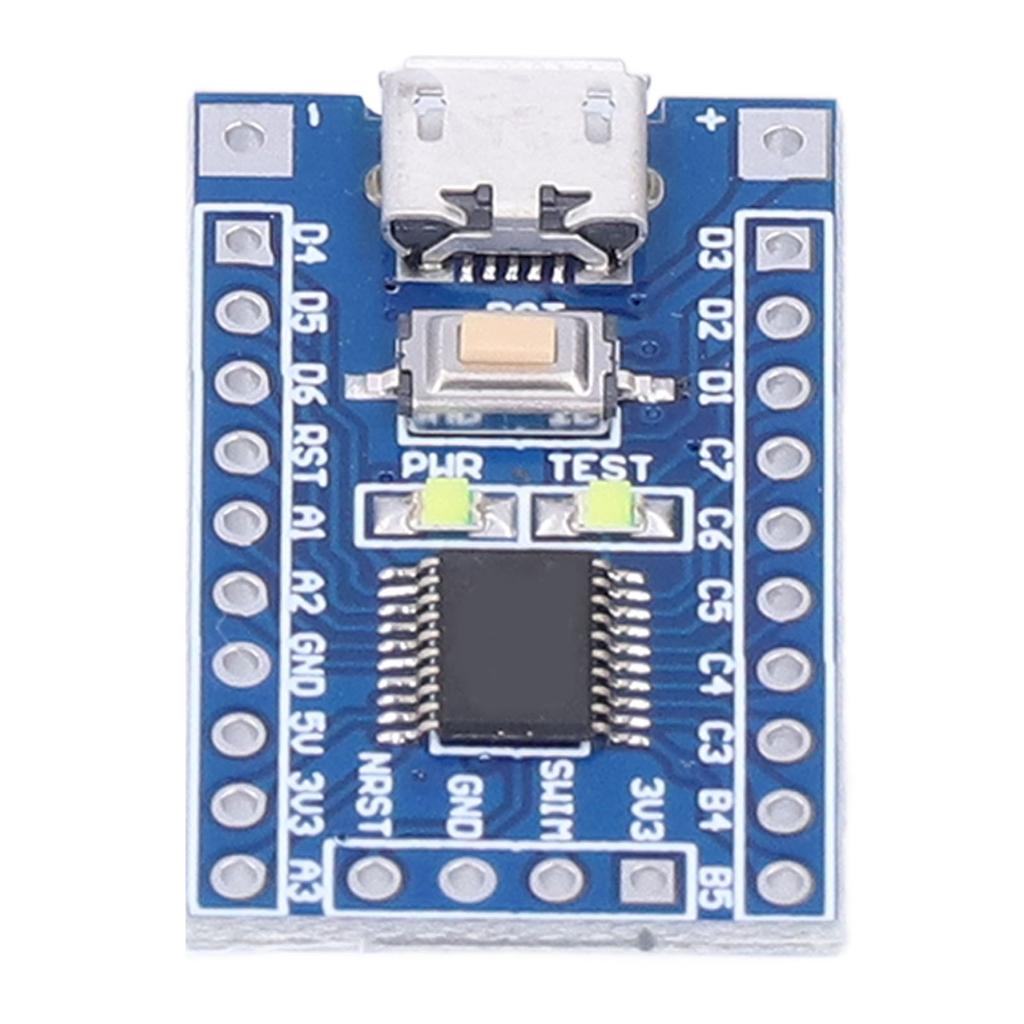

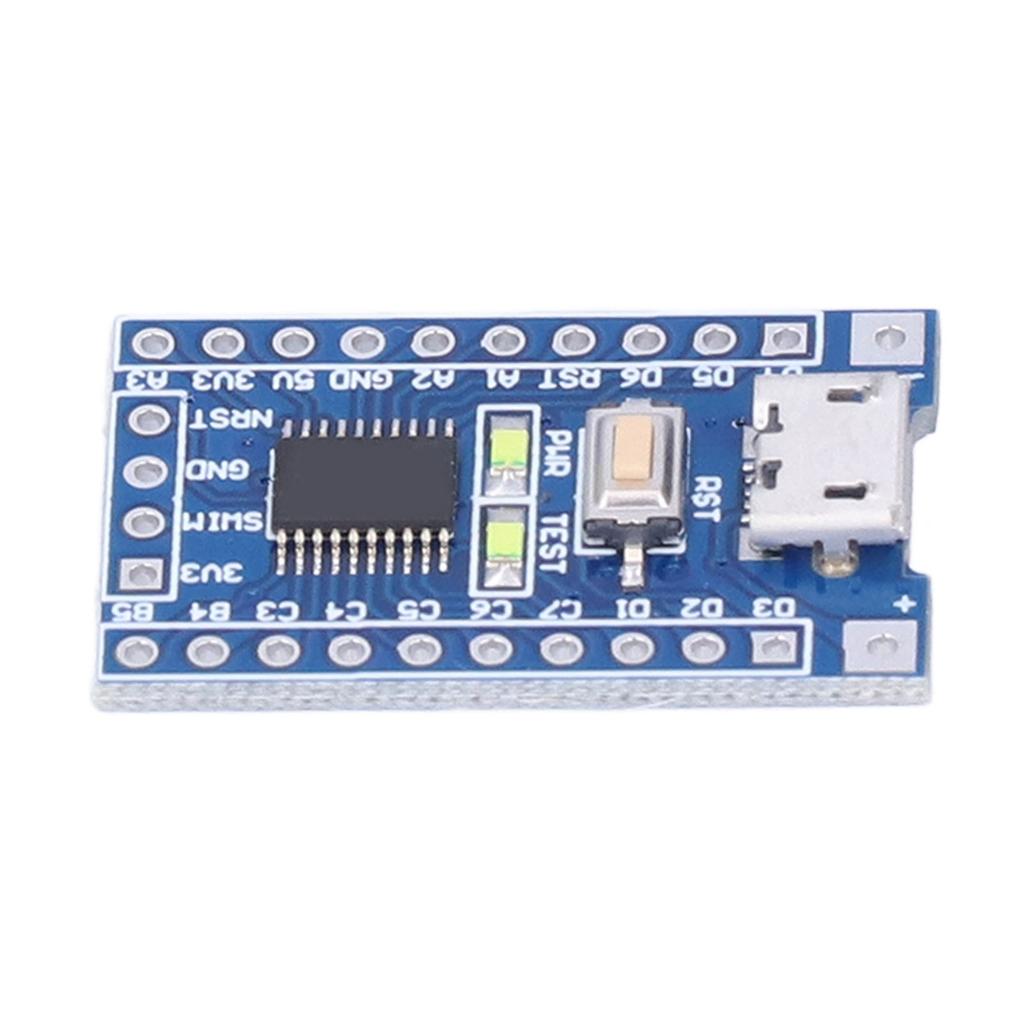

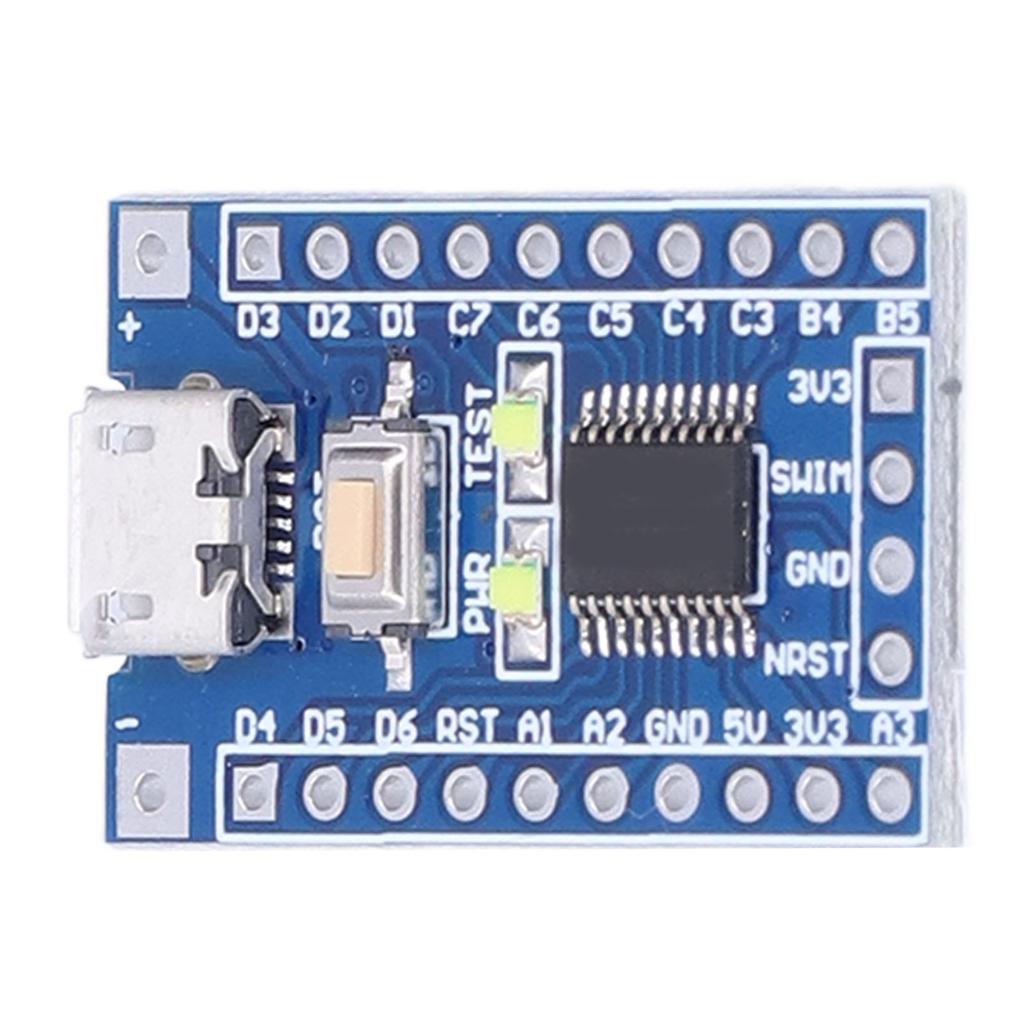

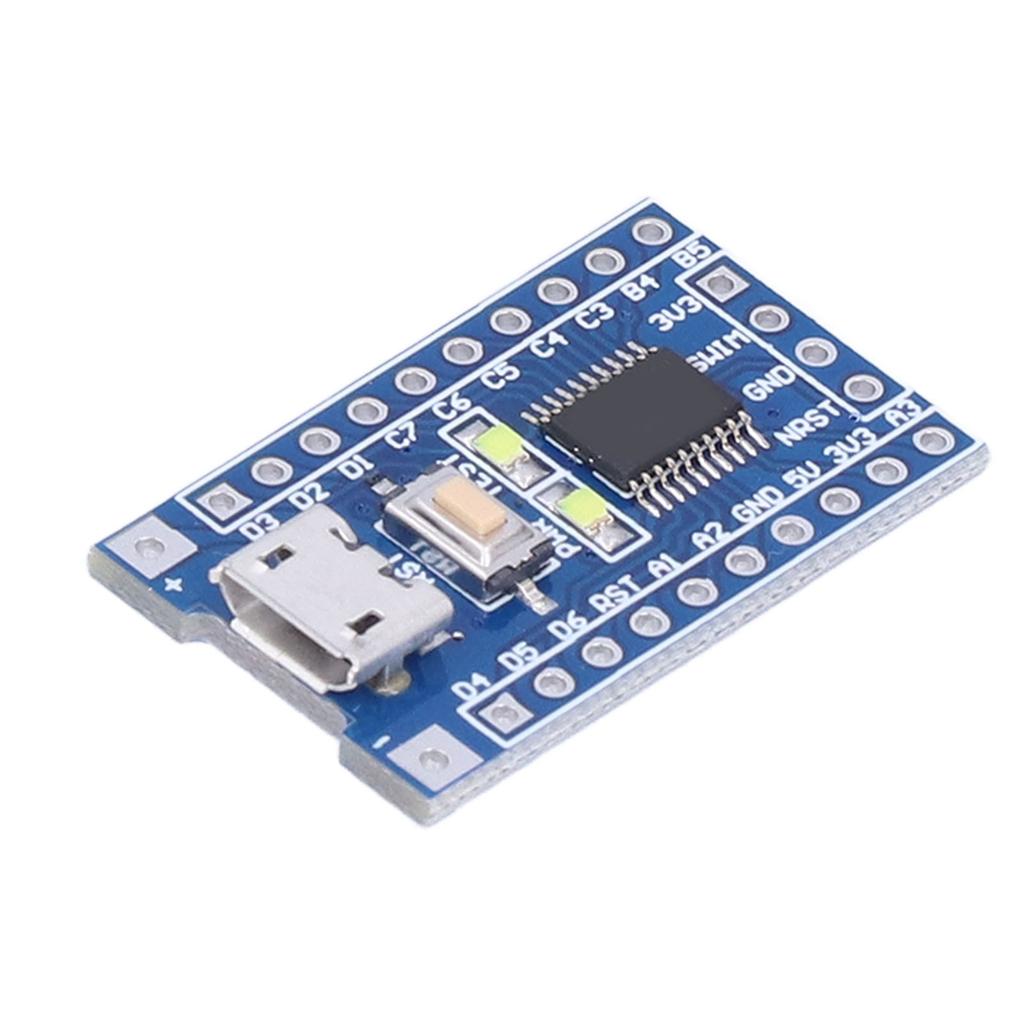

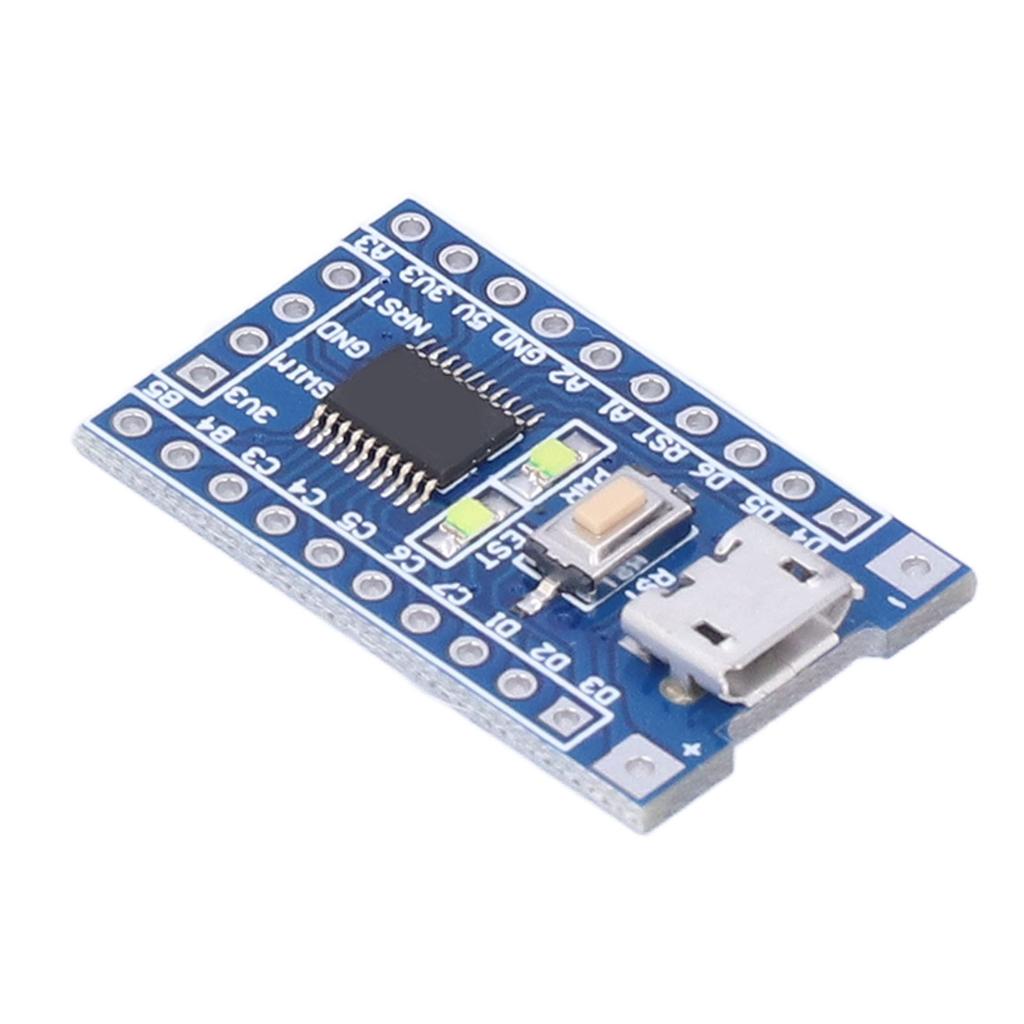

Feature:
1. Power Supply: The development board is powered by Micro USB and is compatible with for Android smart phone data cables.
2. Easy Control: Using STM8S103F3P6 as the the main control IC, also enables easy connection with 12C, IRDA, LIN, SPI, UART.
3. Simple Using: You can use the 2.54 row of pins or the pad on the board to take power. When using the pad to take power, the input voltage range is 4.5V?15V, and 3.3V can be output to the outside through the pin at the same time. 5V row The pin is connected to the input power of the module.
4. Practical Use: s out all the pins, and marks the pin label, with a reset button, power indicator, and program demonstration indicator.
5. Debugging Mode: Supporting SWIM debugging mode, also supports undervoltage detection, POR, PWM, WDT, very useful.
Specification:
Item Type: Development Board
Core Size: 8bit
Speed: 16MHz
Connection: 12C, IRDA, LIN, SPI, UART, US ART.
Peripheral Equipment: Undervoltage detection, reset, POR, PWM, WDT
IO Number: 16
Program Storage Capacity: 8KB (8kx8)
Program Memory Type: Flash can be erased and written for 10,000 times.
EEPROM Capacity: 640 x 8
RAM Capacity: 1KX8
Voltage Power (VCC VDD): 2.95V~5.5V
Data Converter: A D5x10B
Oscillator Type: Internal
Working Temperature: 40 celsius 85 celsius .
.

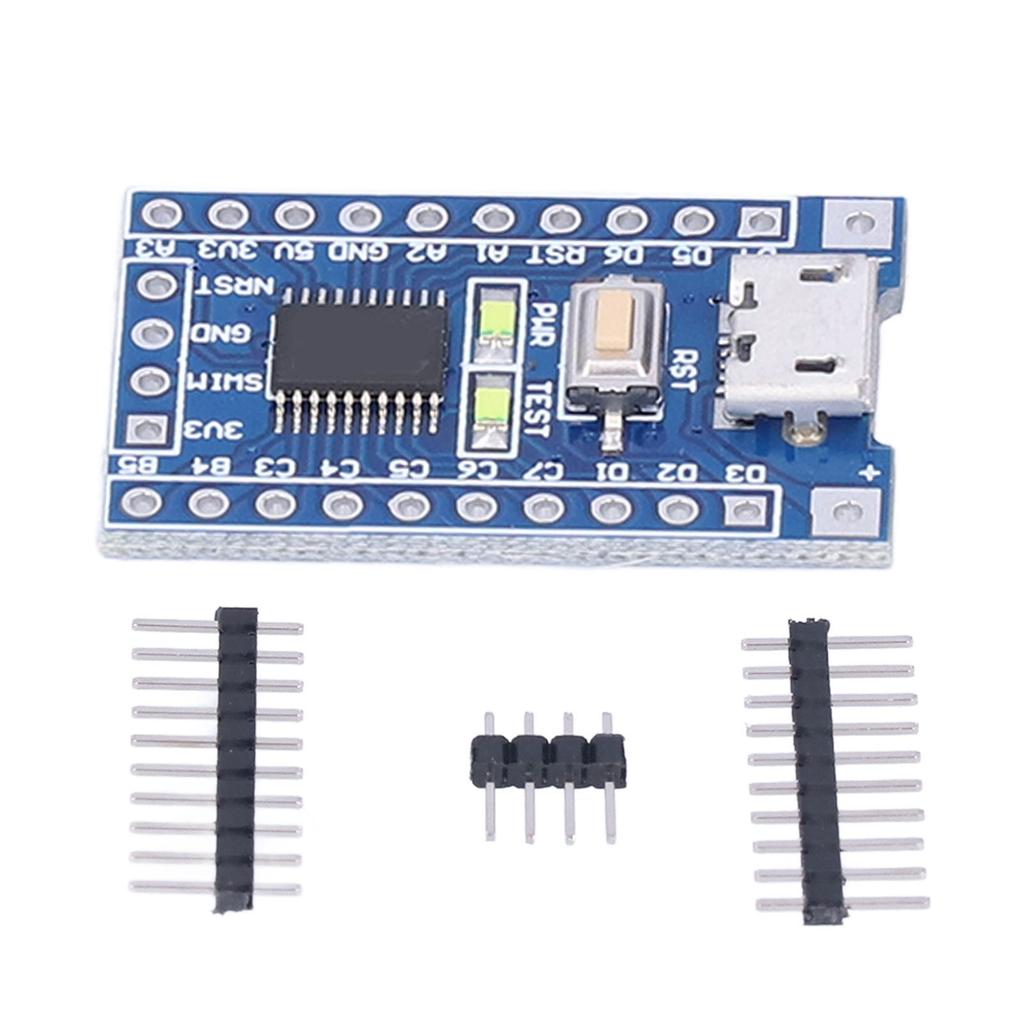

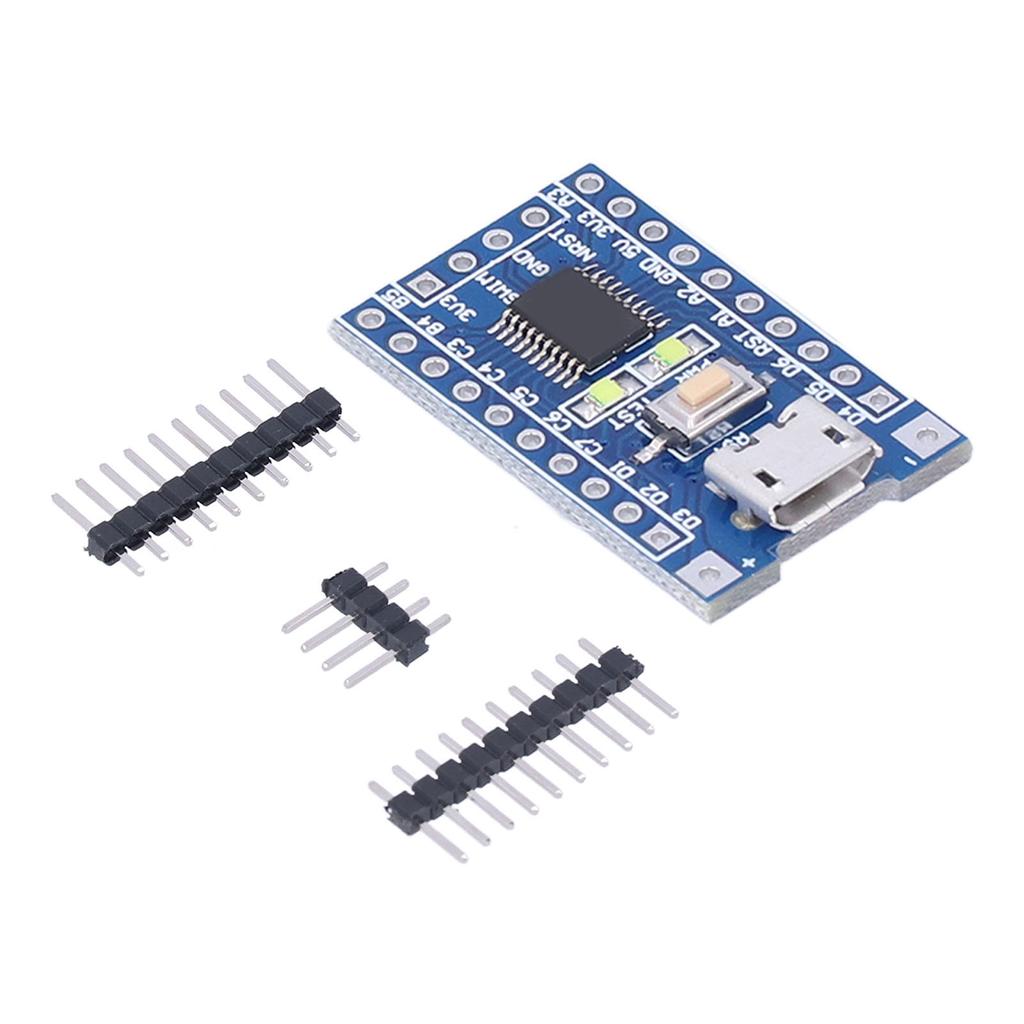

Package List:
1 x Development Board3 x Pin HeaderPower Supply: The development board is powered by Micro USB and is compatible with for Android smart phone data cables.
Easy Control: Using STM8S103F3P6 as the the main control IC, also enables easy connection with 12C, IRDA, LIN, SPI, UART.
Simple Using: You can use the 2.54 row of pins or the pad on the board to take power. When using the pad to take power, the input voltage range is 4.5V?15V, and 3.3V can be output to the outside through the pin at the same time. 5V row The pin is connect
Practical Use: s out all the pins, and marks the pin label, with a reset button, power indicator, and program demonstration indicator.
Debugging Mode: Supporting SWIM debugging mode, also supports undervoltage detection, POR, PWM, WDT, very useful.
