Dc 12V 11Kv High Voltage Coil Igniter Mister Fogger Sprayer Igniter Electric Arc High Voltage Pulse Generator Coil Module

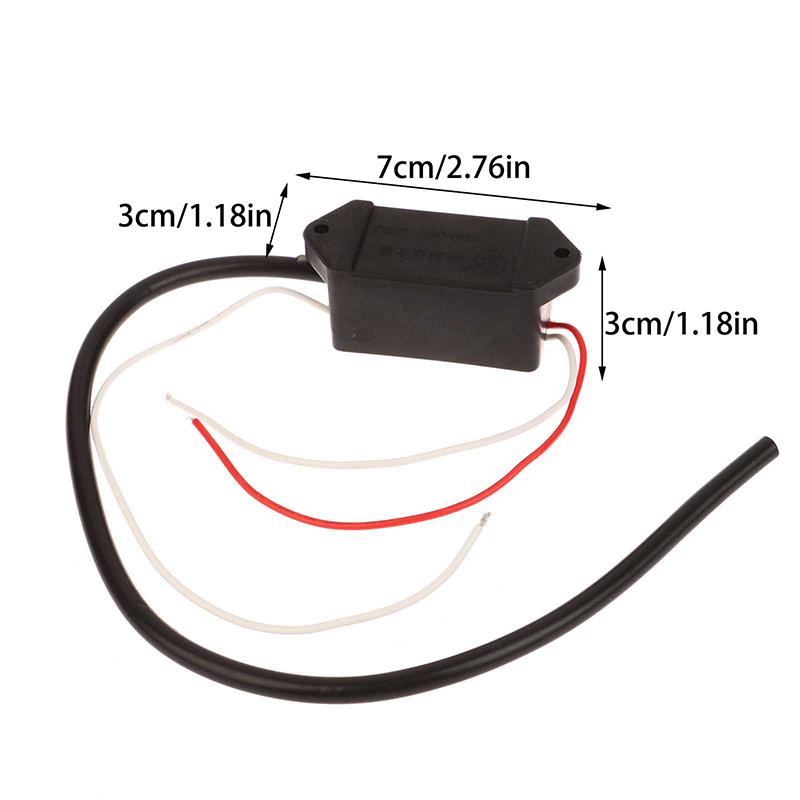

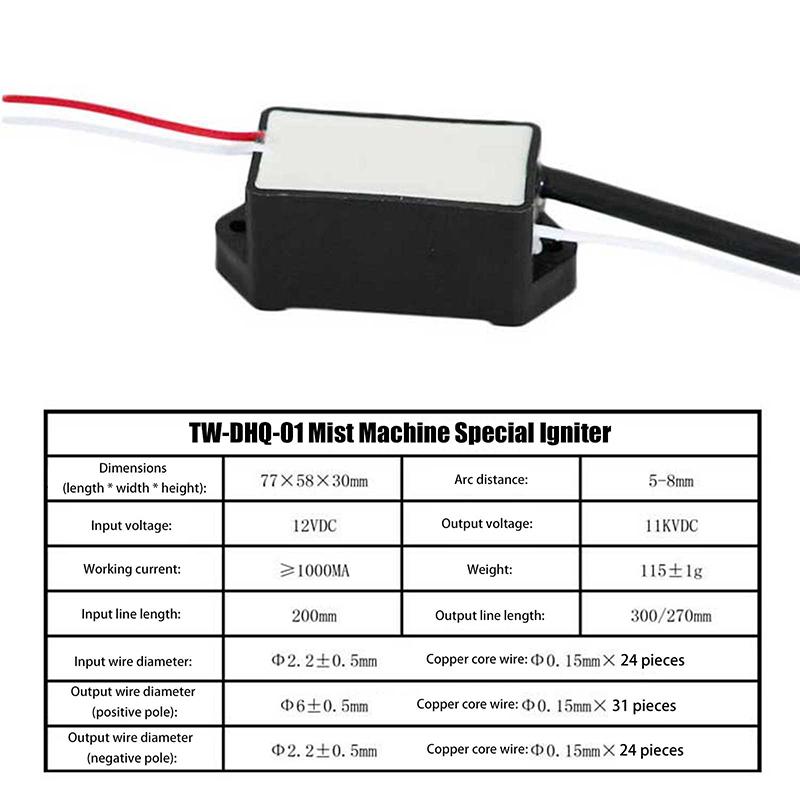

Description: This module is a finished module of high voltage negative-ion generator. It can output high voltage pulse current, small size and high efficiency. The input voltage is DC12V and will output 11KV high voltage. It can be used for fogger, electric salute, gas stove, etc. The peripheral circuit is simple, simply connect to switch and battery, and the discharge intensity is great. Specifications: Input Voltage:12VDC Output Voltage:11KVDC Arc Distance:5-8mm Working Current:≥1000 mA Input Wire Diameter:2.2±0.05 mm Output Wire Diameter:6±0.5 mm(Live); 2.2±0.5 mm(GND) Input Wire Length:200 mm Output Wire Length:270 mm(GND); 300 mm(Live) Input Wire Color:Red(positive), White(negative) Material:Plastic Size:70X30X30mm Package Included: 1 x High Voltage Generator Note: 1. Please note that the photo does not show actual size please refer to Description for size details. 2. Please allow differences due to manual measurement thanks. 3. Due to the difference between different monitors the image may not reflect the actual color of the item. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
