Battery Included : No
High-concerned chemical : None
Voltage range : Other
Origin : Mainland China
Model Number : Battery Capacity Indicator
DIY Supplies : Electrical

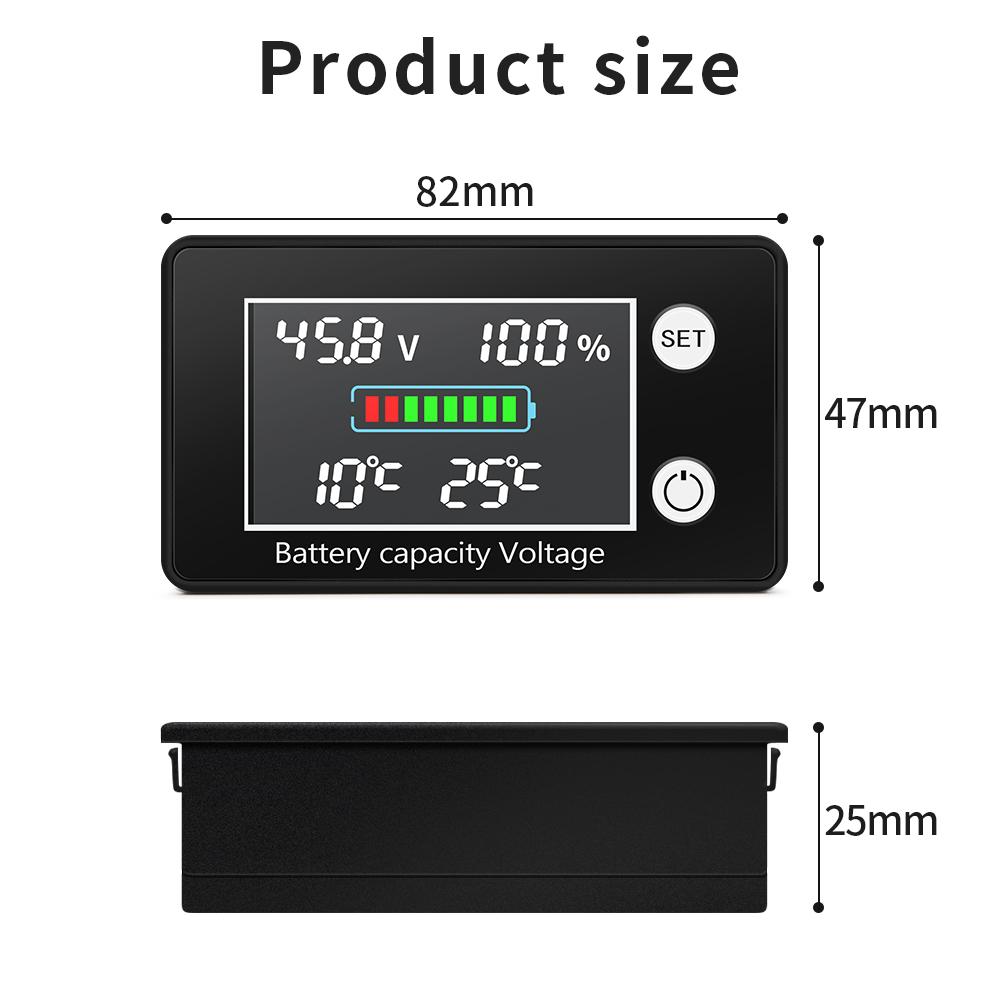

Dimensions : 82*47*25mm
Operating Temperature : - 20 ℃ to 110 ℃
Accuracy Class : High
Power Supply : DC
Display Type : Digital Only

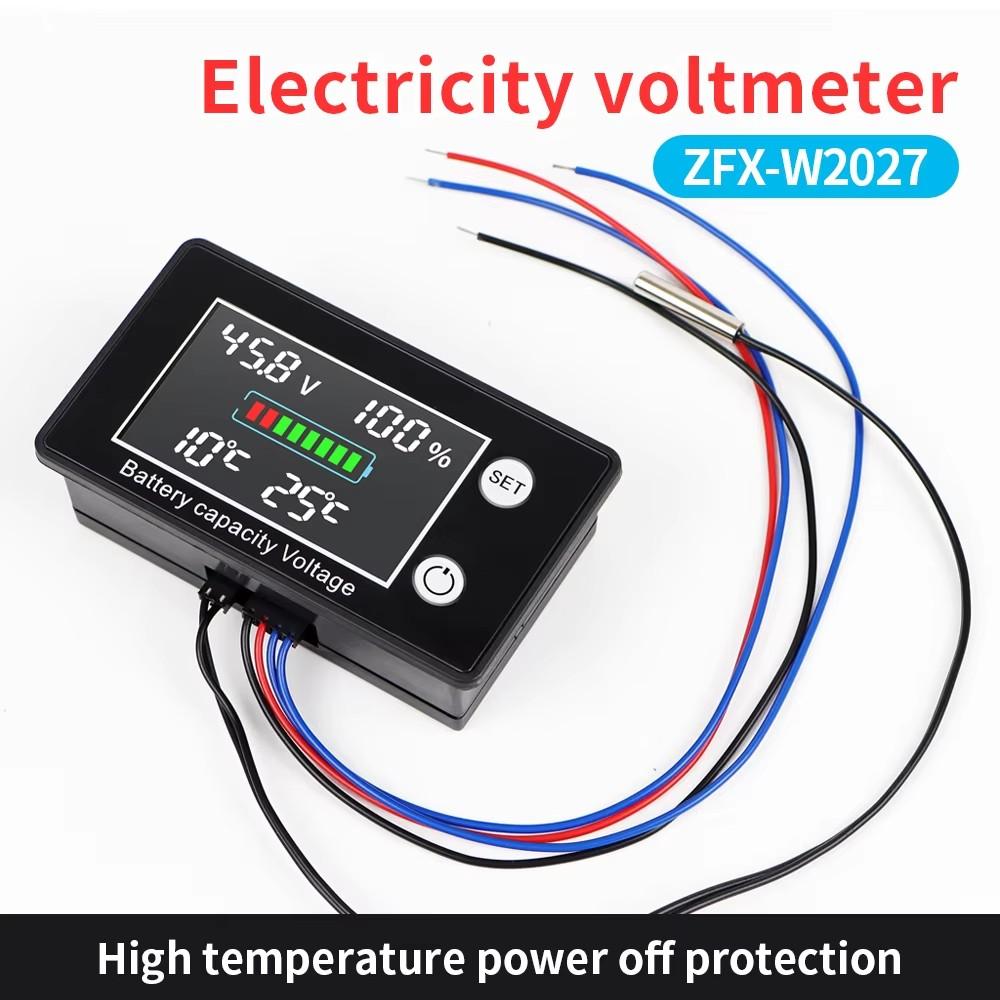

Lead-acid Lithium LiFe PO4 Voltage Gauge Battery Meter DC10V-100V Voltmeter Battery Capacity Indicator with Temperature Control
Features:
1.HD digital display LED screen

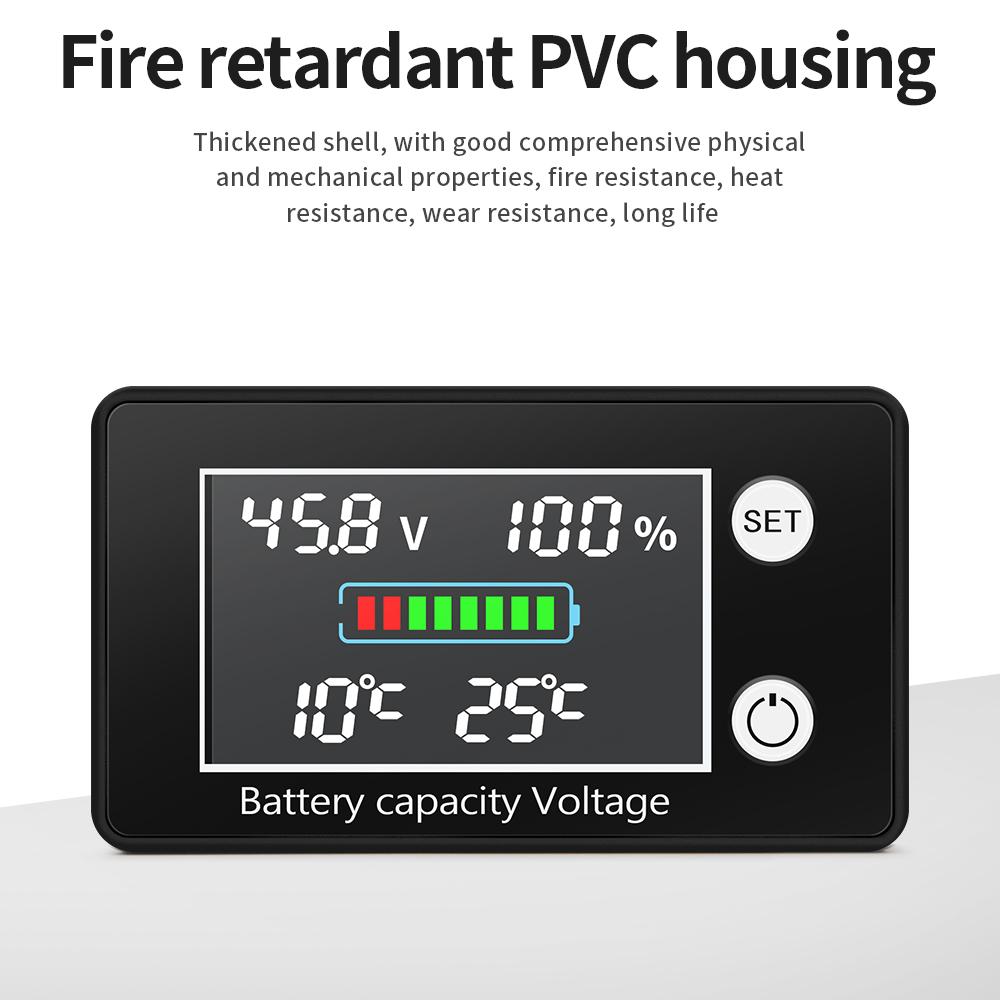

2.With thickened shell, it has a long service life of heat resistance and wear resistance
3.Multiple sensor combinations
4.One screen multiple display: cycle display voltage/battery percentage/temperature
5.Applicable to a variety of batteries: lithium ternary battery/lead-acid battery/lithium iron phosphate battery
Parameters:
1.Working voltage: DC10-100V
2.Working mode; Three kinds, ternary lithium battery L1 measures 03-S to 23-S strings (power-off memory), lead-acid battery L2 measures: DC12V, 24V, 36V, 48V, 60V, 72V, 84V (power-off memory),
The measurement of lithium iron phosphate battery L3 ranges from 03-S to 27-S (power-off memory).
3.Maximum output power: 100W
4.Temperature control range: - 20 ℃ to 110 ℃
5.Measurement error: ± 1 ℃
6.Sensor: 3435 10K 1%
7.Data protection: Yes
8.High pressure and low pressure alarm: yes (DC0V-100V)
9.High and low temperature alarm: yes (- 40 ℃~99 ℃)
10.Working environment: the environment with temperature of - 35 ℃ to 60 ℃, humidity of<85% RH, no corrosion and no strong electromagnetic interference
11.Opening size: 75mm * 43mm * 22mm
Package include:
1x Voltmeter
1x Sensing line
