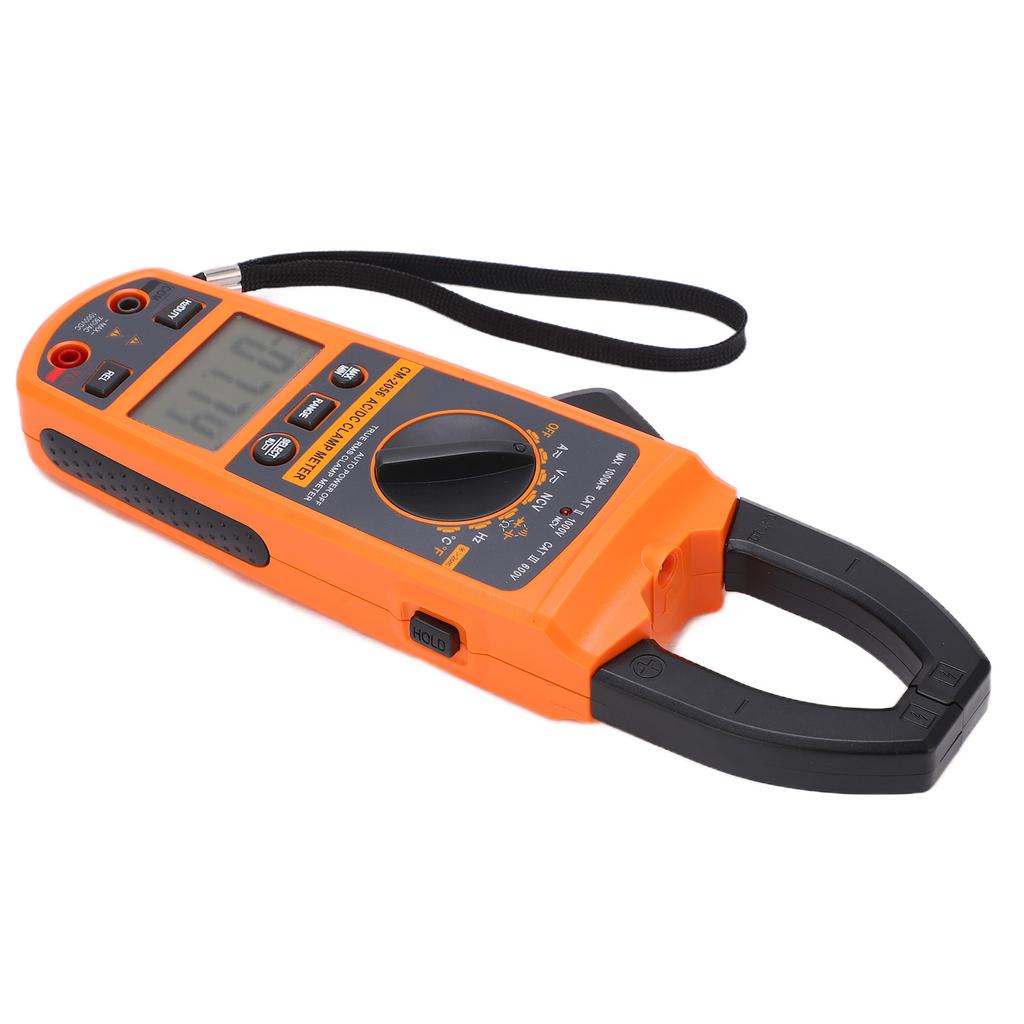

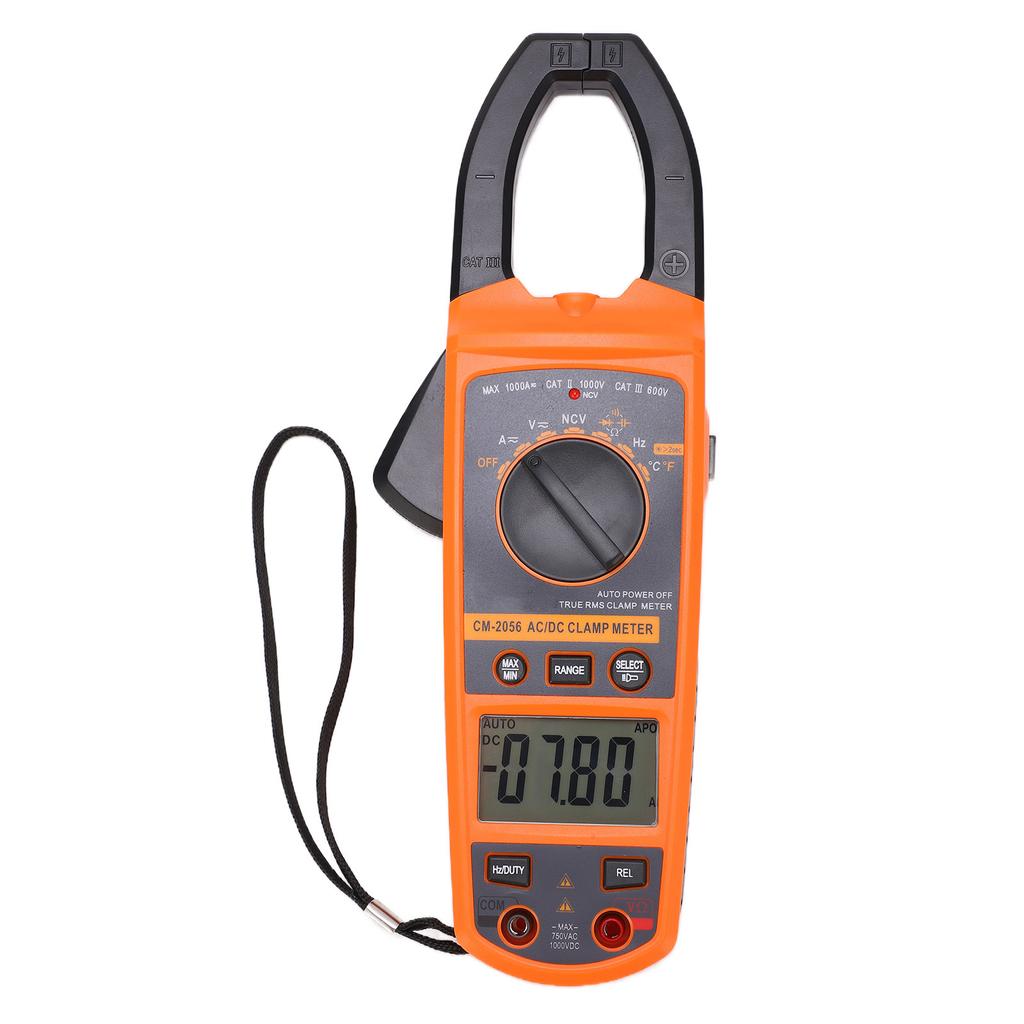

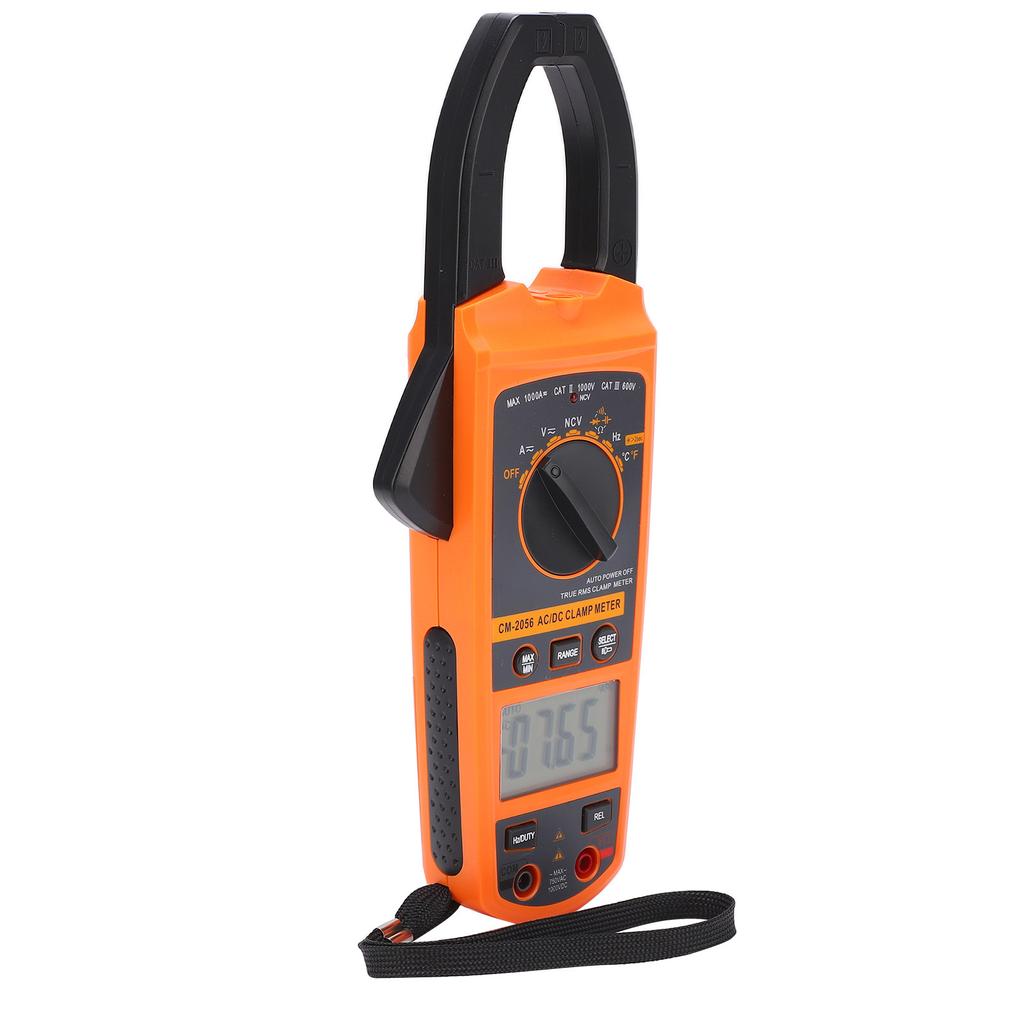

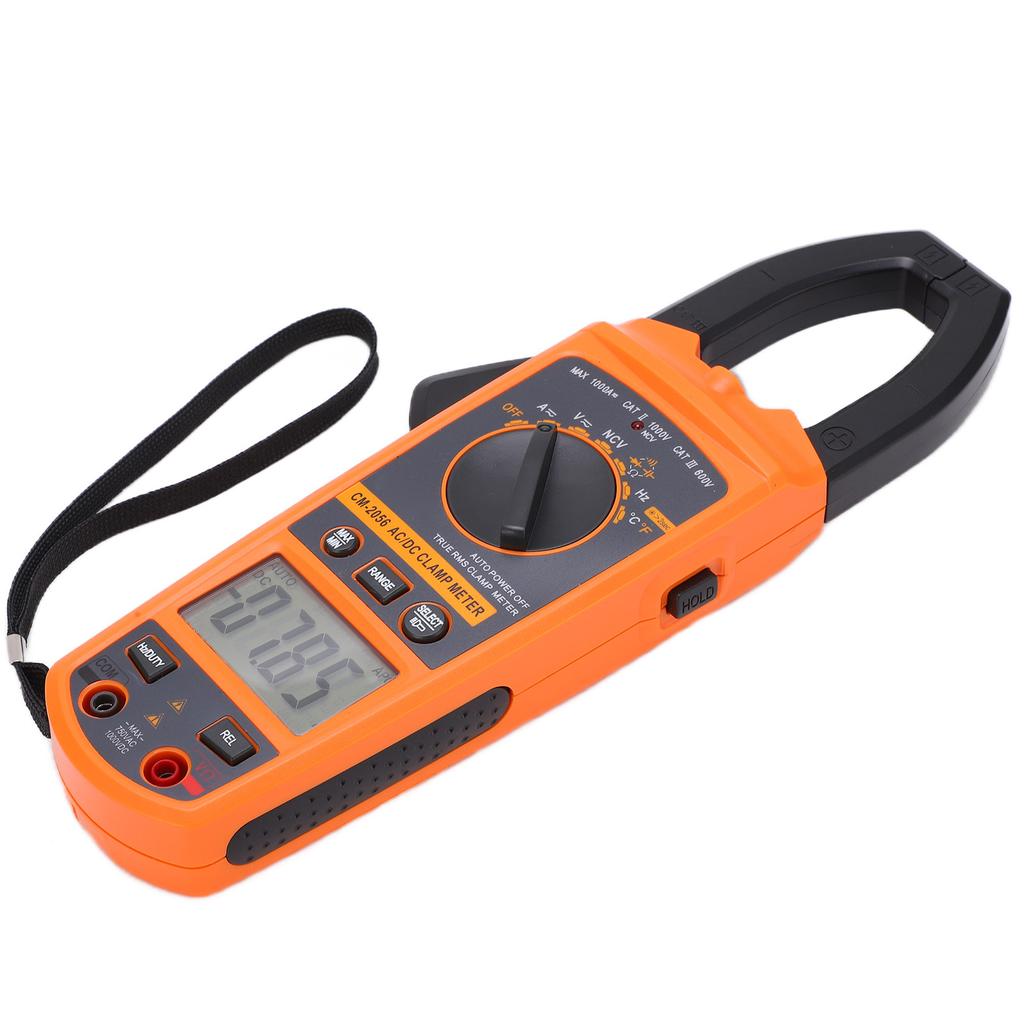

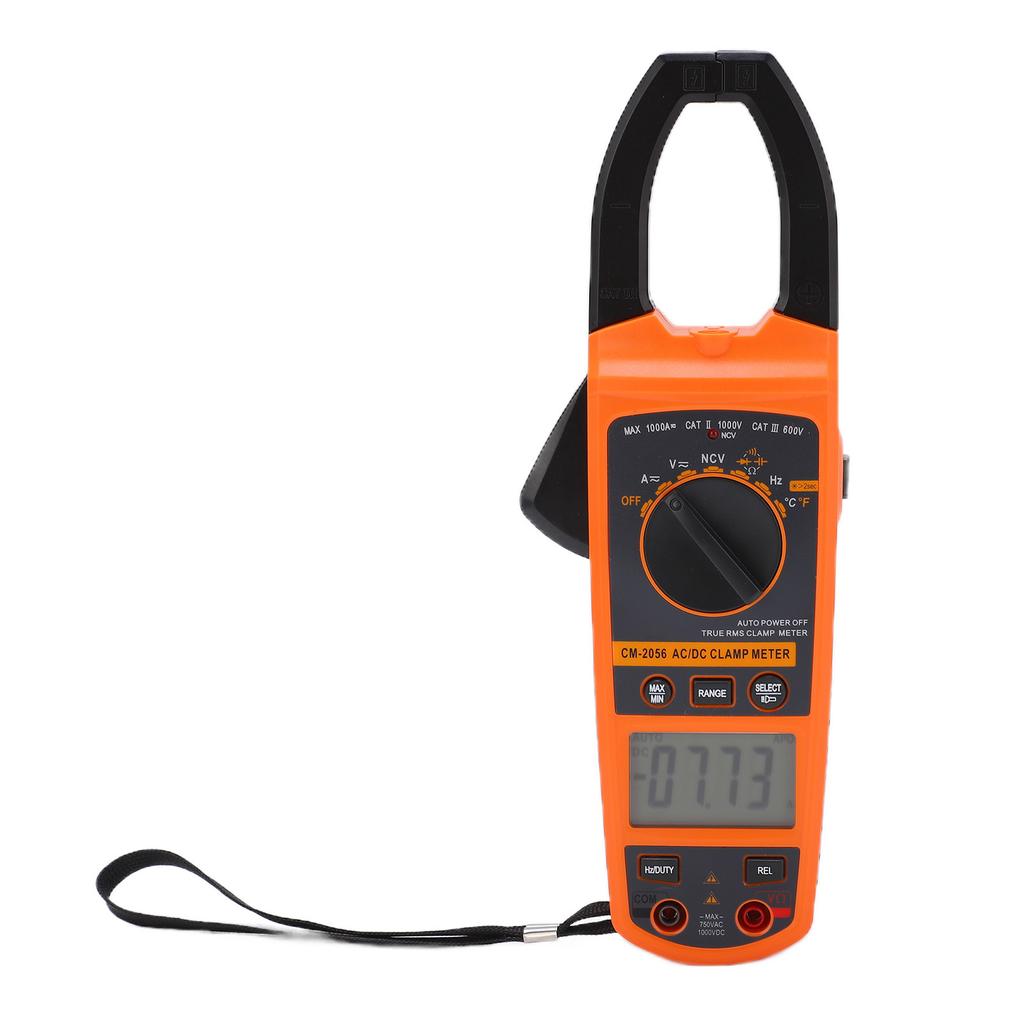

CM‑2056 1000A Digital Clamp Ammeter Automatic Multifunctional Current Multimeter for Outdoor

Feature: 1. The measurement is accurate, and the jaws are closed without gaps, reducing the interference of the magnetic field to the measurement, and the measurement accuracy is extremely high. 2. It is safe to use, clamp head illuminating, convenient to measure in the dark environment, meter pen insert hole, smooth fastening, good insertion and removal, improve the measurement safety. 3. The 52mm caliber digital clamp meter is specially designed for users in complex and demanding wire maintenance and circuit inspection services. 4. The multi function multimeter can measure multiple ranges at the same time, making the measurement no longer single, time saving and labor saving, and ultra clear LCD backlight display, clear writing, no ghosting, and convenient reading. 5. Lightweight and portable, non contact voltage test, visual alarm, easy to use, full‑function protection, strong anti interference ability. Specification: Item Type: Digital Multimeter Material: ABS Model: CM 2056 Power supply: 6F22 1 x 9V (not included) Purpose: Electricity numerical test DC voltage Range Accuracy Resolution 400mV + (1.0percent 5) 0.1mV 4V + (0.5percent +5) 1mV 40V 10mV 400V 100mV 1000V + (1.0percent +5) 1V AC voltage Range Accuracy Resolution 4V + (0.8percent +5) 1mV 40V 10mV 400V 100mV 750V + (1.0percent +5) 1V DC Current Range Accuracy Resolution 40A + (1.5percent +5) 0.01A 400A 0.1mA 1000A 1A AC current Range Accuracy Resolution 40A + (1.5percent +5) 0.01A 400A 0.1mA 1000A 1A Resistance Range Accuracy Resolution 400 Ohm + (0.8percent +5) 0.1 Ohm 4k Ohm + (0.8percent +1) 1 Ohm 40k Ohm 10 Ohm 400k Ohm 100 Ohm 4M Ohm 1k Ohm 40M Ohm + (1.0percent +5) 10k Ohm Capacitance Range Accuracy Resolution 4nF + (5.0percent +10) 1pF 40nF + (2.5percent +5) 10pF 400nF 100pF 4uF 1nF 40uF 10nF 400uF + (5.0percent +10) 100nF 4mF 1uF 40mF 10uF Frequency Range Accuracy Resolution 10Hz + (0.5percent +4) 0.01Hz 100Hz 0.1Hz 1kHz 1Hz 10kHz 10Hz 100kHz 100Hz 1MHz 1kHz 10MHz 10kHz Temperature Range Accuracy Resolution ( 40 1000) celsius

less than 400 celsius + (1.0percent +5) 1 celsius

more than 400 celsius + (1.5percent +15) (0 1832) Fahrenheit

less than 750 Fahrenheit + (1.0percent +5) 1 Fahrenheit

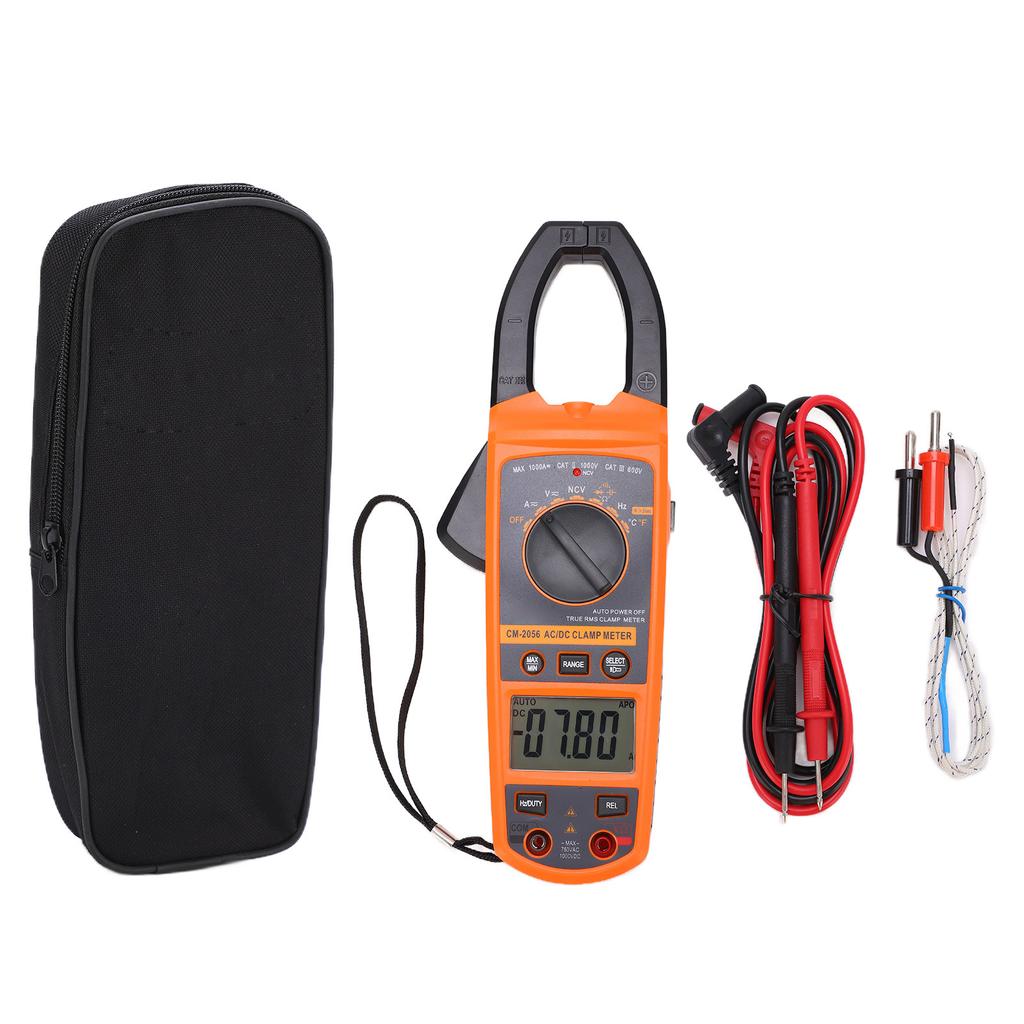

more than 750 Fahrenheit + (1.5percent +15) Special function CM 2056 True effective value √ NCV √ Diode test √ Continuity test Lower than 50 Ohm , higher than 400 Ohm , display OL Low battery indicator Approximately less than 2.4V Data retention Maximum minimum, data retention Duty cycle test √ Automatic shut down No operation for about 15 minutes Functional protection √ Flashlight √ Backlit display √ Input resistance 10M Ohm Sampling Rate 3 times sec AC frequency response Current 40 1kHz Voltage 40 2kHz Method of operation Automatic or manual measurement Maximum display 4000 Jaws open 52mm Power consumption Quiescent current about 2mA . Package List: 1 x Clamp Meter(Battery Not Included)2 x Test 1 x Thermal Contact1 x Tool Bag1 x Manual Note: When the meter is measuring, do not touch the unused input terminals of the test s
