Feature:
1. [1205M Programmable Motor Controller]: Designed to provide smooth, quiet, and economical motor speed and torsion control. As an updated version of the 1205 controller, it features programming capabilities through the 1313 4331 handheld programmer or 1314 PC programming station, allowing customization based on specific application needs. The programmer also provides diagnostic and testing functions.
2. [Various Applications]: The 1205M motor controller is an ideal solution for a range of electric vehicle applications, including industrial trucks, personnel carriers, material handling vehicles, and golf carts.
3. [Efficient and Quiet]: High frequency switching and ultra low voltage drops deliver high efficiency and silent operation. The use of push in connectors for control signals and plated solid copper bus for power connections facilitates simple installation and wiring.
4. [Compatibility]: Compatible with 2 wire potentiometers or voltage throttle valves. If the throttle line is open, the throttle fault protection circuit will disable the controller. If the key is turned on while using the accelerator, the high pedal disable function will prevent the controller from operating.
5. [Safety Guard]: Insert the braking diode into the controller. The thermal protection and compensation circuit provides a constant current limit within the operating range and during the under temperature over temperature reduction period. It will not suddenly lose power under any thermal conditions. The under voltage reduction function can prevent the battery voltage from being too low, including low voltage caused by external loads.

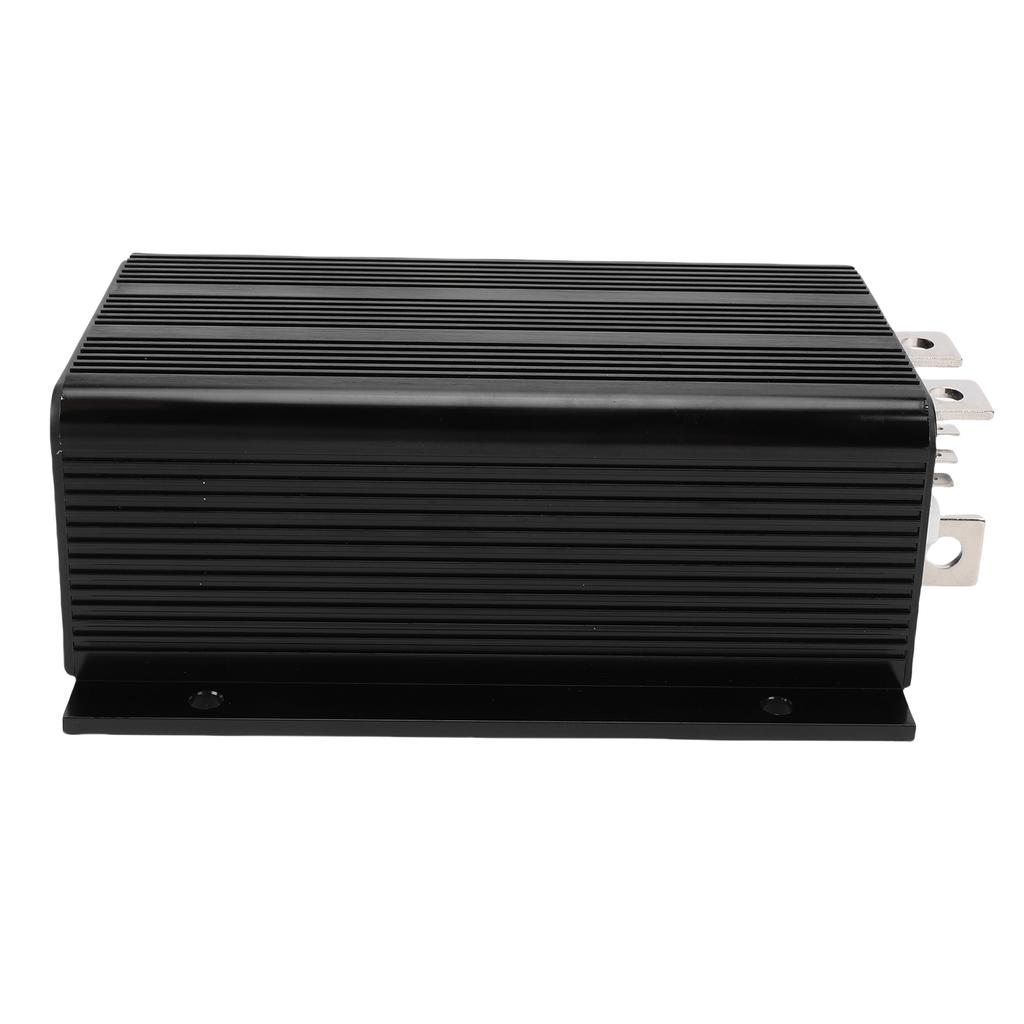

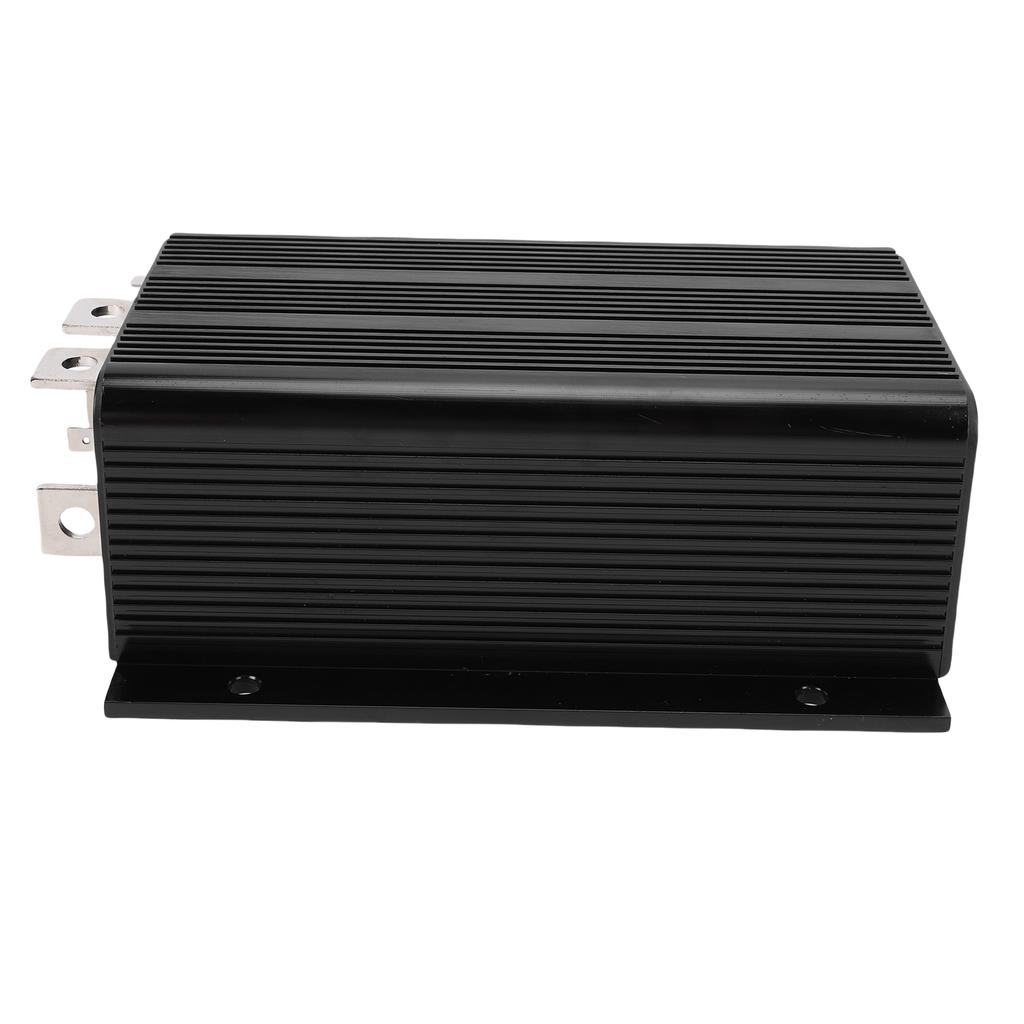

6. [Rugged Construction]: Built with a sturdy anodized aluminum extrusion casing that meets IP65 environmental sealing standards, ensuring stable performance in harsh environments.
Specification:

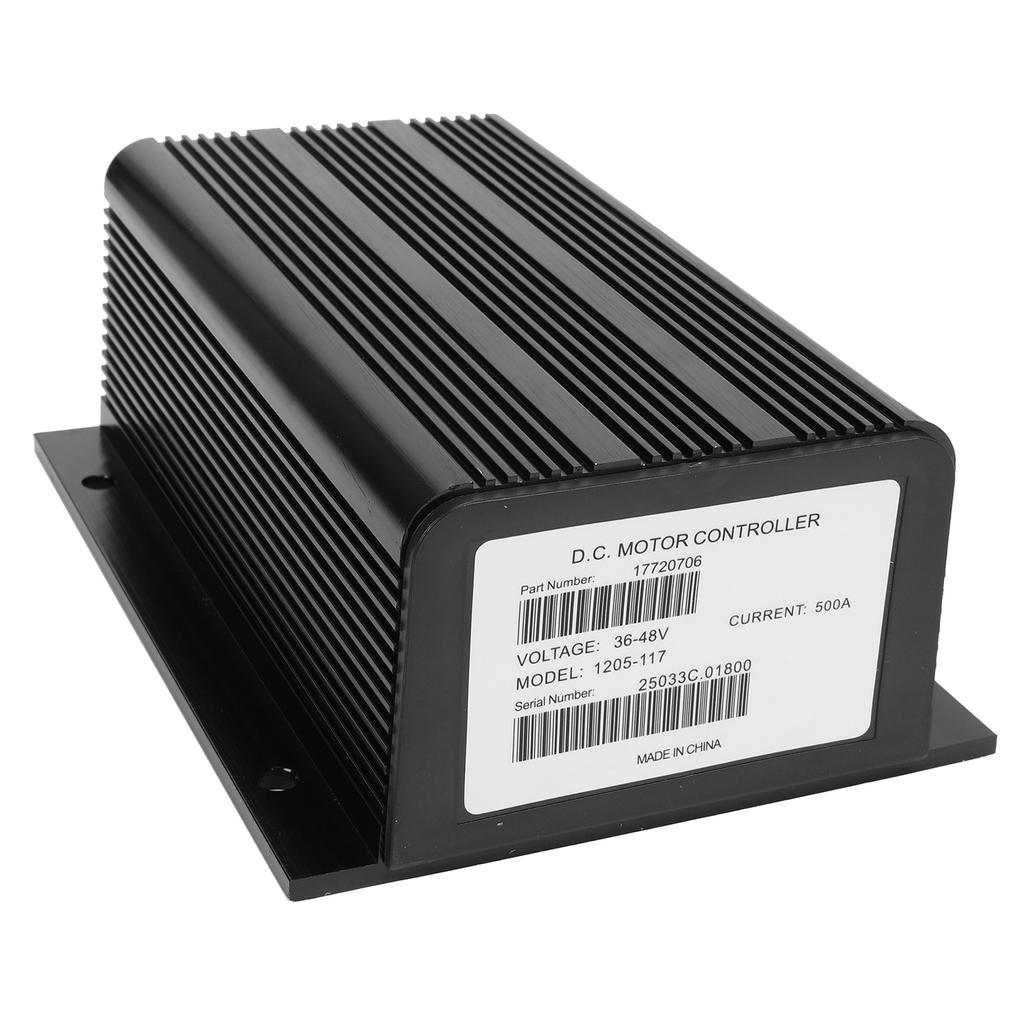

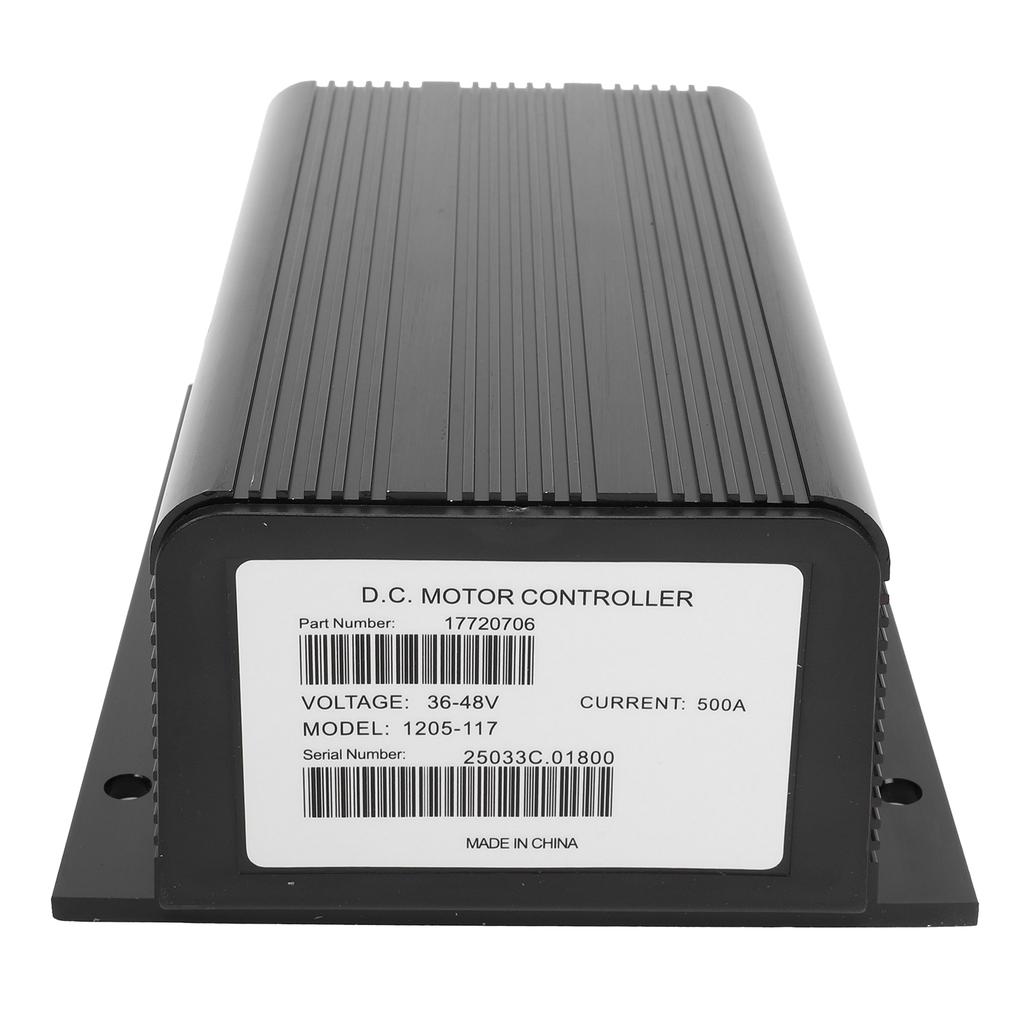

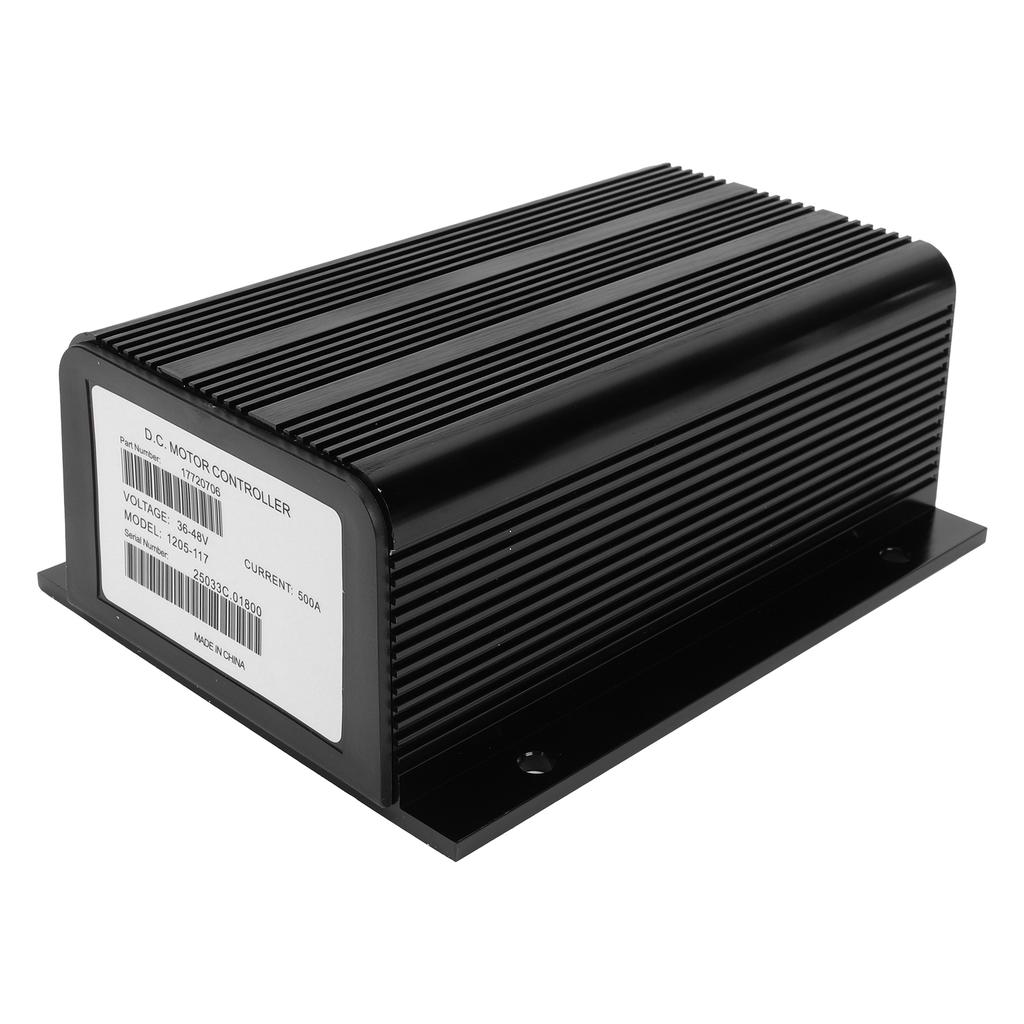

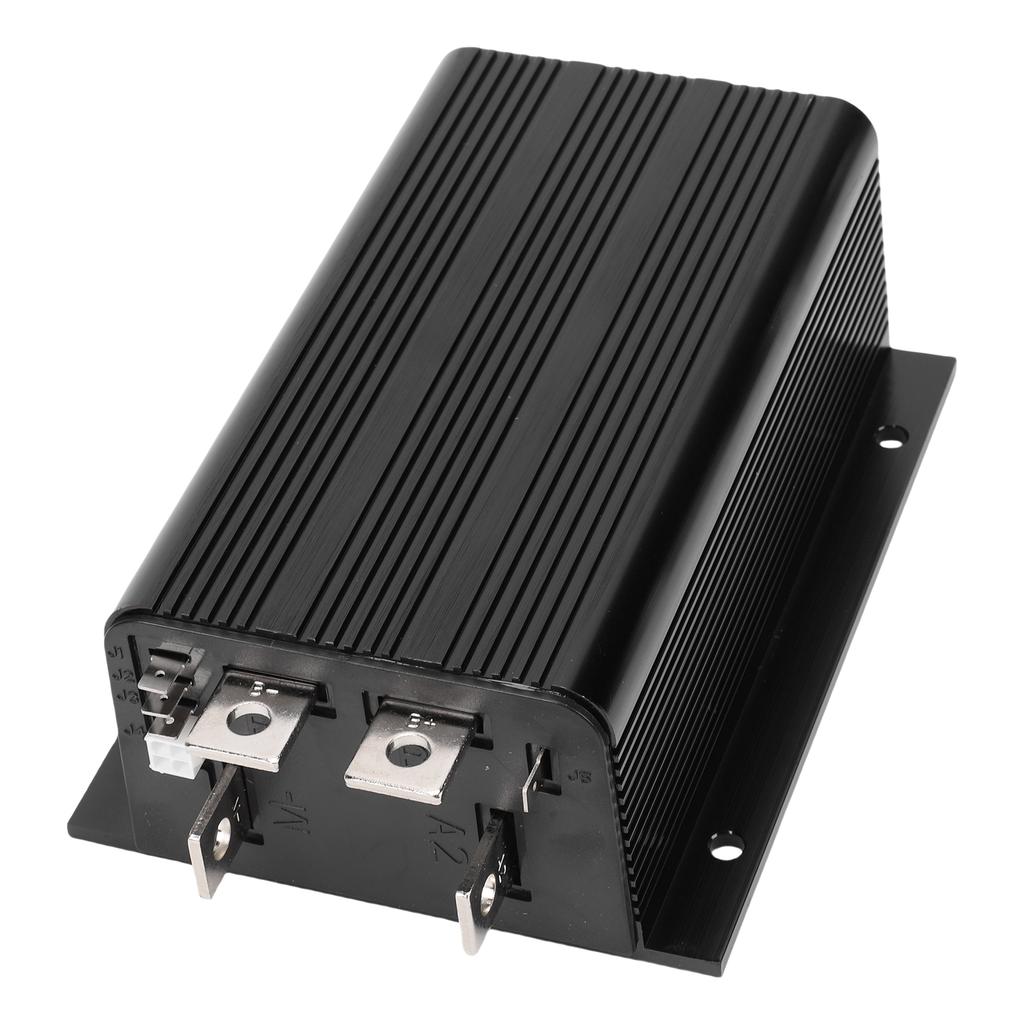

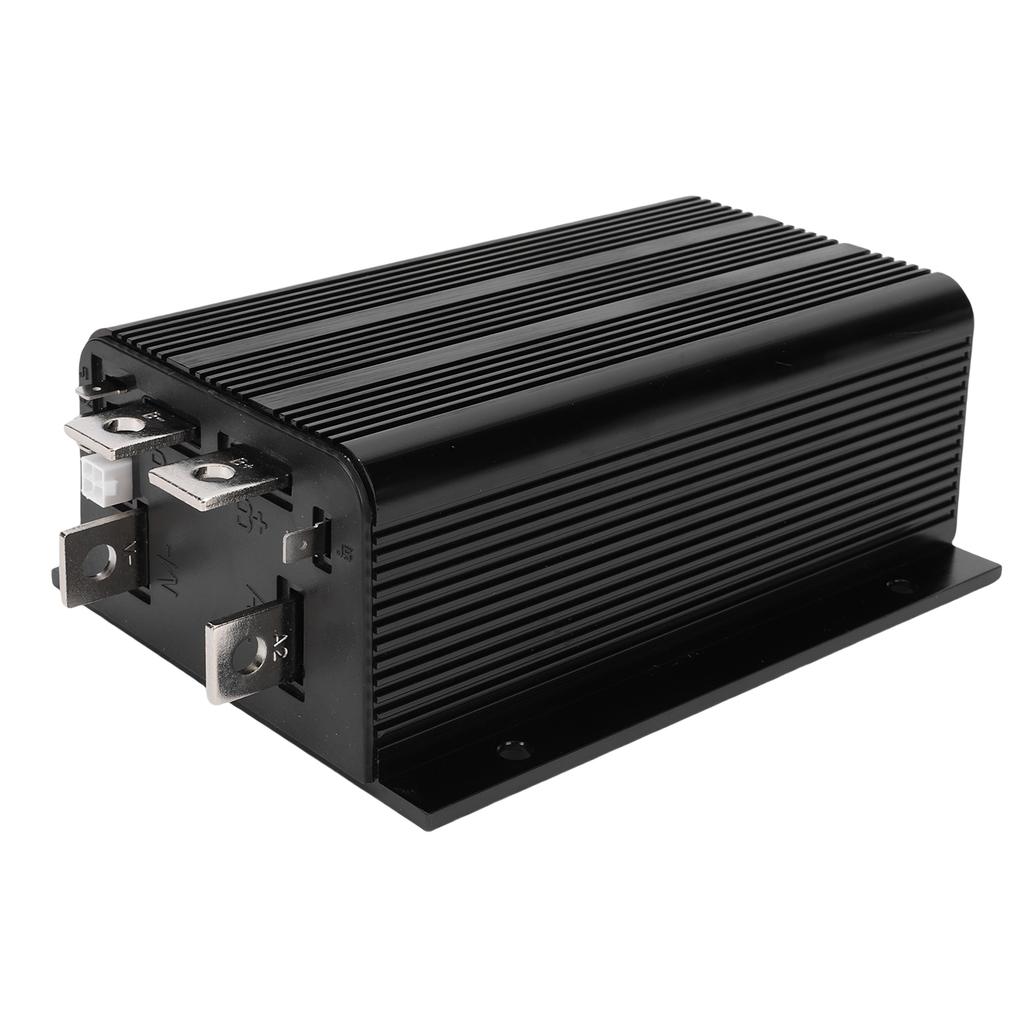

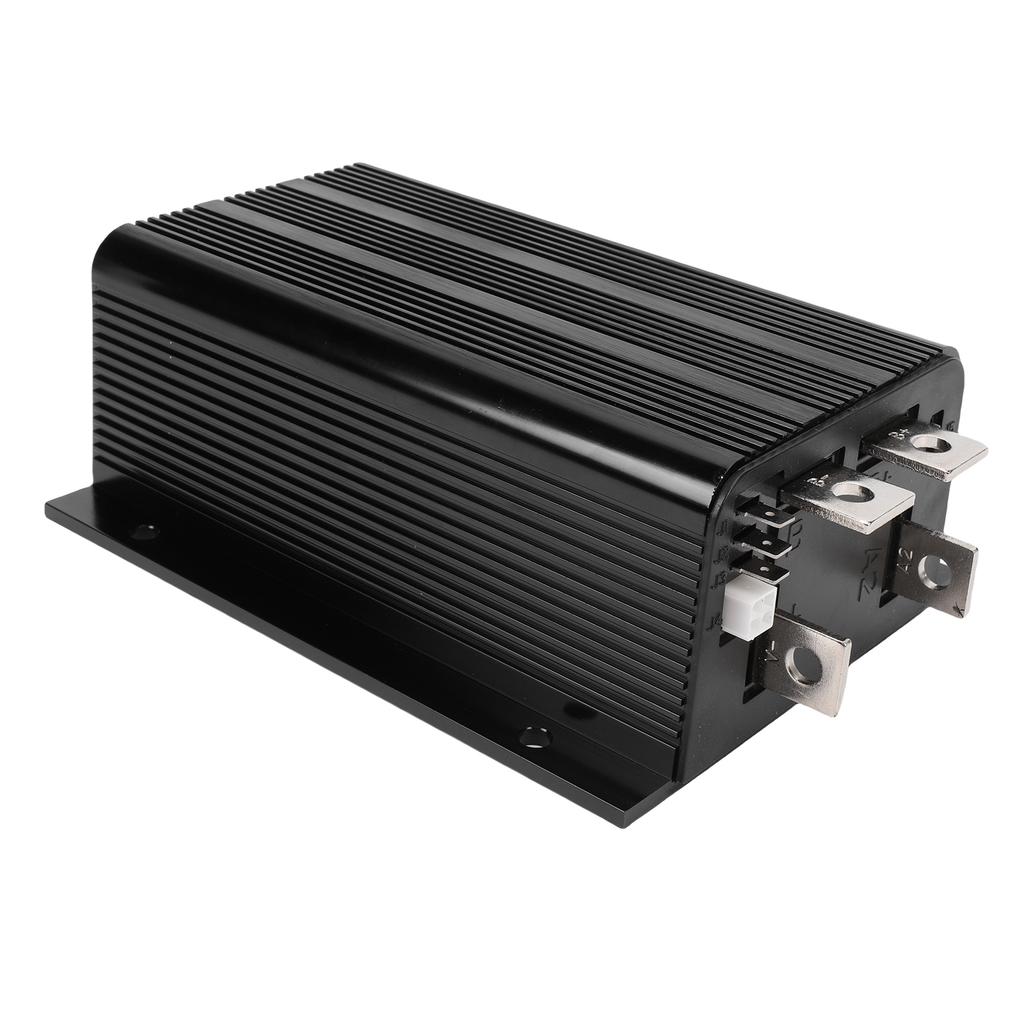

Item Type: Golf Cart Motor Controller
OE Part Number: 1205M 5601, 1205M 5603, 1205 117
Current: 500A
Fitment: Replacement for Curtis, can also be applied to forklifts, transport trucks and so on (If it is used on other vehicles, need to be programmed)
Detailed Parameters:
1 Minute Rated Current (A): 500amps
5 Minute Rated Current (A): 350amps
1 Hour Rated Current (A): 200amps
Plug Brake (A2 Bus): Yes
PWM Operating Frequency: 15.6kHz
Electrical Isolation from Heatsink (Min): 500 VAC
KSI Input Current (No Contactor Connected):
70mA, No Programmer Required
130mA with Programmer
Logic Input Current: <2mA
Status LED Output Current (Maximum): < 2 mAThese controllers can use 10 types of throttle:
Type 0: 2 wire potentiometer, 0 to 5k Ohm
Type 1: 2 wire potentiometer, 5k Ohm to 0
Type 2: Single ended 0 to 5V input
Type 3: 2 wire potentiometer, 4.6k Ohm to 0
Type 4: 2 wire potentiometer, 5.5k Ohm to 0
Type 5: 2 wire potentiometer, 1k Ohm to 0
Type 6: ITS input
Type 7: Single ended 6.3 to 10.6 V input
Type 8: Single ended 6 to 12 V input
Type 9: Single ended 3 wire potentiometer, 0 to 5k Ohm
Operating Temperature Range: 40 degrees C to 50 degrees C
Storage Temperature Range: 40 degrees C to 85 degrees C
Note: By default, the controllers we deliver are preset to 48V 500A 0 to 5k Ohm (Throttle Type = 0 ). To better apply the controller to your system, the buyer should confirm the battery system voltage and throttle type (0 to 5k Ohm , 5k to 0 Ohm , or 0 to 5V) with the seller.

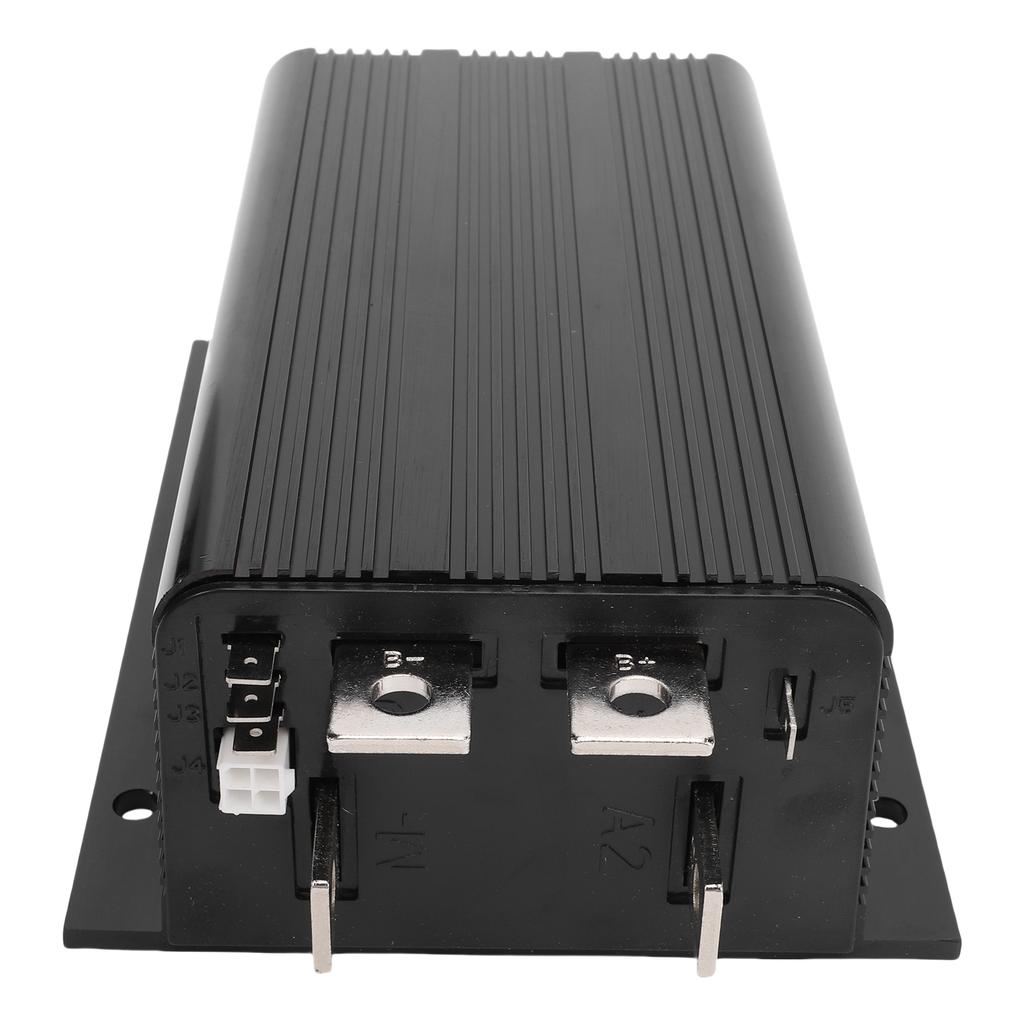

Note: The J5 terminal of the 1205M controller is deactivated by default. The wiring of the controller is the same as the old 1204M controller without the J5 terminal..
Package List:
1 x Golf Cart Motor Controller
Note:
Please double check the part number and fitment of your item, matching information is for reference only.
