Feature:
1. *Single Beam Infrared Sensor with high levels of anti RFI EMI capability.
2. *Anti glare up to 50, 000 LUX, to avoid the impact of glare or car lights.
3. *Sealed design to anti rain (fog), dust (worms) and other integrated weather, the detector sensitivity will increase automatically(AGC circuit).
4. *High power transmitter, sensitivity surplus degree up to 90percent .
5. *High power infrared receiver tube, low power process technology.
6. *Single Beam Infrared Sensor with high levels of anti RFI EMI capability. Anti glare up to 50, 000 LUX, to avoid the impact of glare or car lights.
7. *Sealed design to anti rain(fog), dust(worms) and other integrated weather, the detector sensitivity will increase automatically(AGC circuit).
8. *High power transmitter, sensitivity surplus degree up to 90percent . High power infrared receiver tube, low power process technology.
9. *Adjustable of beam interdiction period, to make it more flexible and adaptable. When interrupt, the relay output switch signal without voltage.
10. *Professional anti jamming optical housing.
11. *Adjustable of beam interdiction period, to make it more flexible and adaptable.
12. *When interrupt, the relay output switch signal without voltage. Professional anti jamming optical housing.
13. Single Beam Infrared Sensor with high levels of anti RFI EMI capability. Anti glare up to 50, 000 LUX, to avoid the impact of glare or car lights.
14. Sealed design to anti rain(fog), dust(worms) and other integrated weather, the detector sensitivity will increase automatically(AGC circuit).
15. High power transmitter, sensitivity surplus degree up to 90percent . High power infrared receiver tube, low power process technology.
Specification:
Note: It can work in distance between 2 meter to 15 meter, you can remove the lens cover when test in short distance to reduce the infrared focus.
Overview:

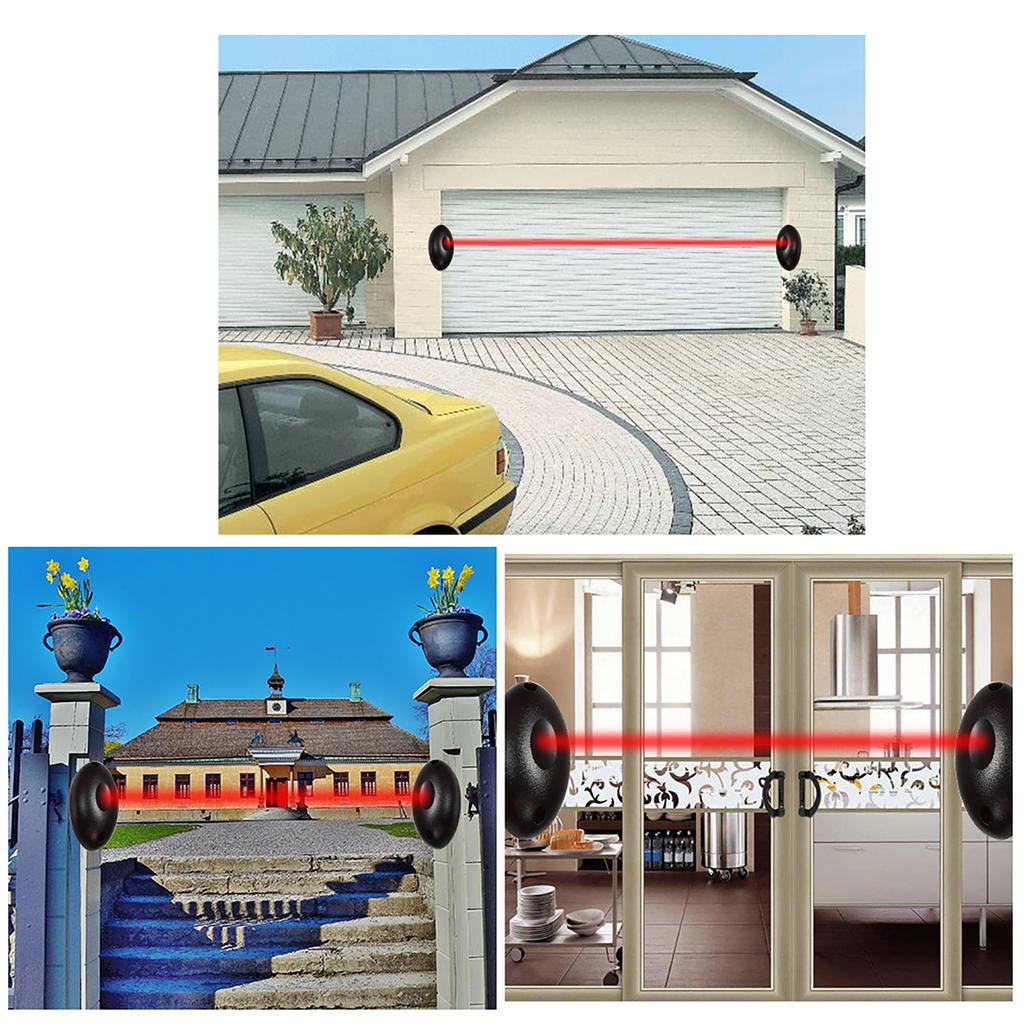

This is upgrade version of single beam sensor with latest LED light and more smt components compared with the old 3 lights handmade model, it's more stable and reliable. When interrupt the infrared, the relay will output switch signal, it can work for access control system, parking barrier, walking gate, vehicle gate and alarm system as body induction. It also can work as window, door and passageway anti burglar detection or used in museum anti theft.
Features:
*Single Beam Infrared Sensor with high levels of anti RFI EMI capability.

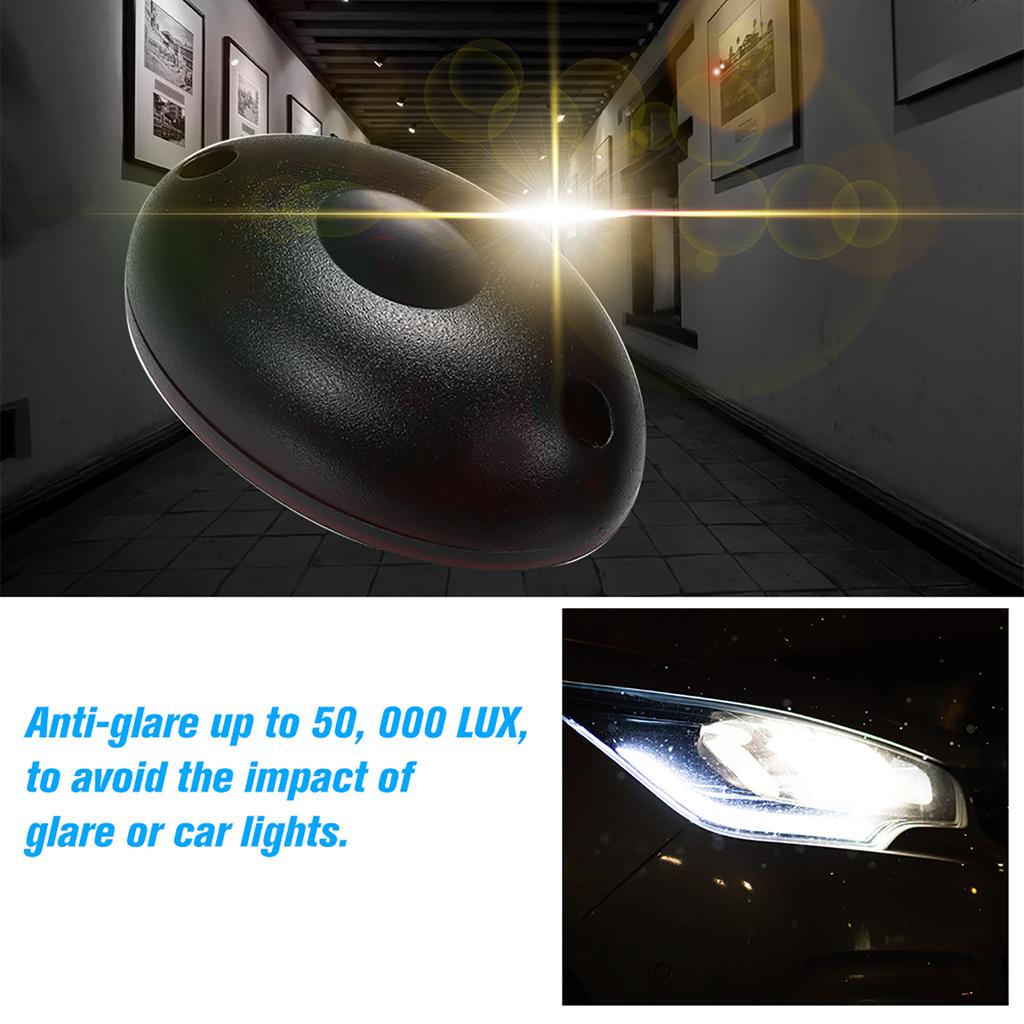

*Anti glare up to 50, 000 LUX, to avoid the impact of glare or car lights.
*Sealed design to anti rain(fog), dust(worms) and other integrated weather, the detector sensitivity will increase automatically(AGC circuit).
*High power transmitter, sensitivity surplus degree up to 90percent .
*High power infrared receiver tube, low power process technology.

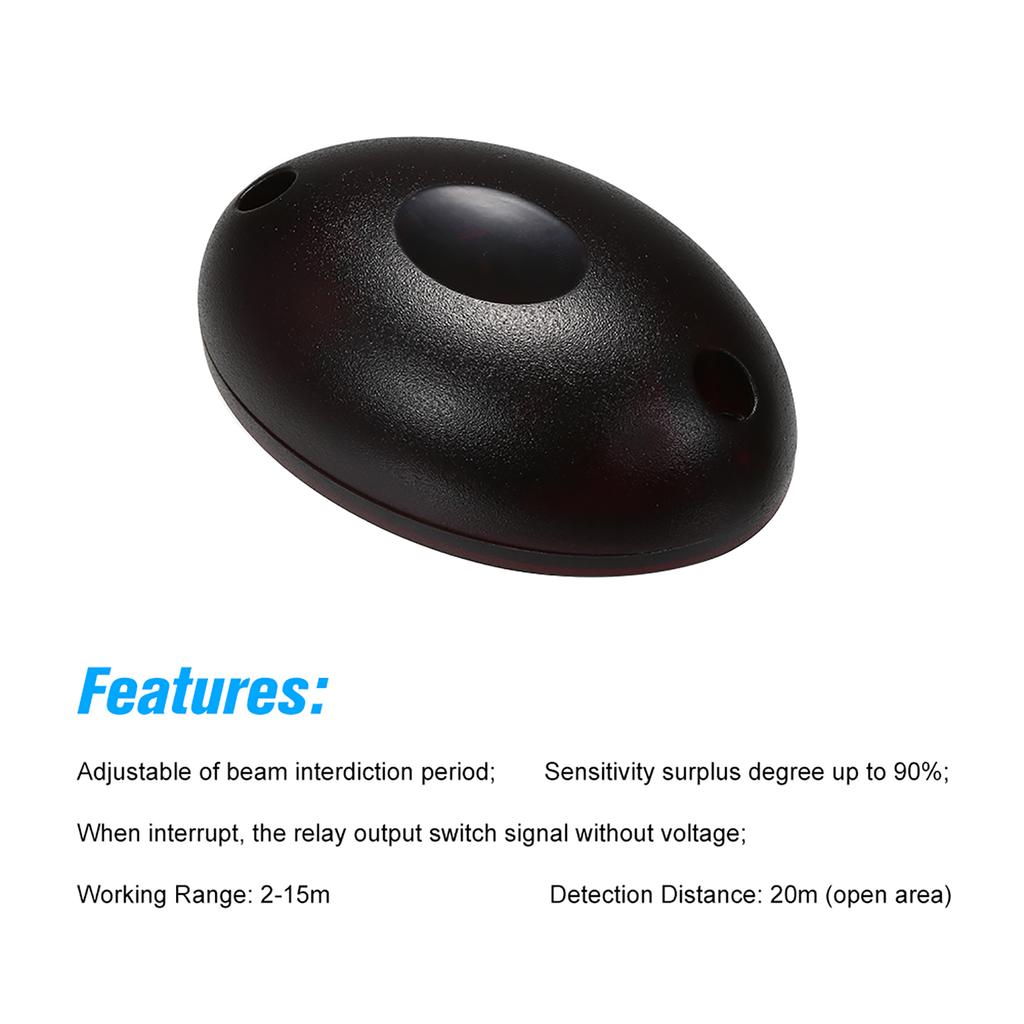

*Adjustable of beam interdiction period, to make it more flexible and adaptable.
*When interrupt, the relay output switch signal without voltage.
*Professional anti jamming optical housing.
Specifications:
Power Supply: 12V to 24V DC AC
Input: RX 15mA TX 30mA
Infrared Frequency: 1.92Khz
Wave Length: 940nm

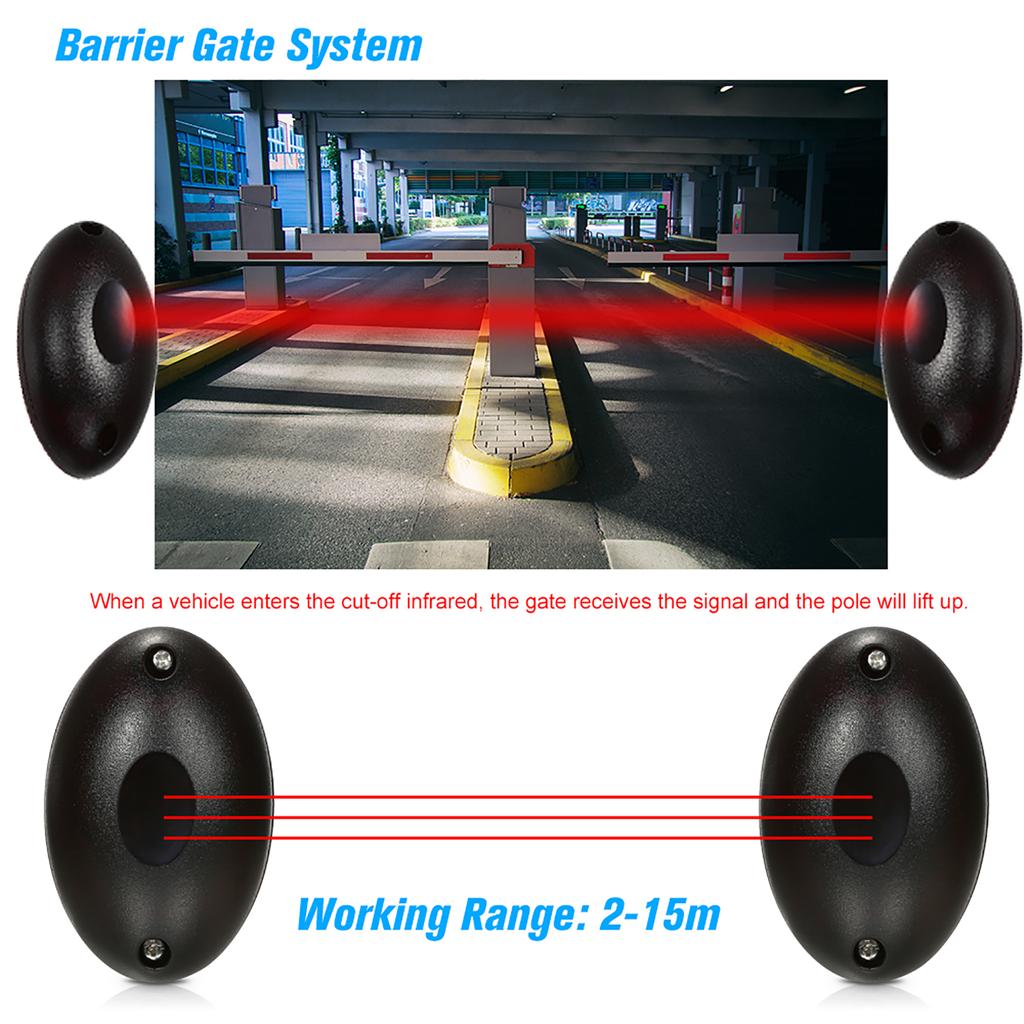

Working Range: 2 15m
Detection Distance: 20m (open area)

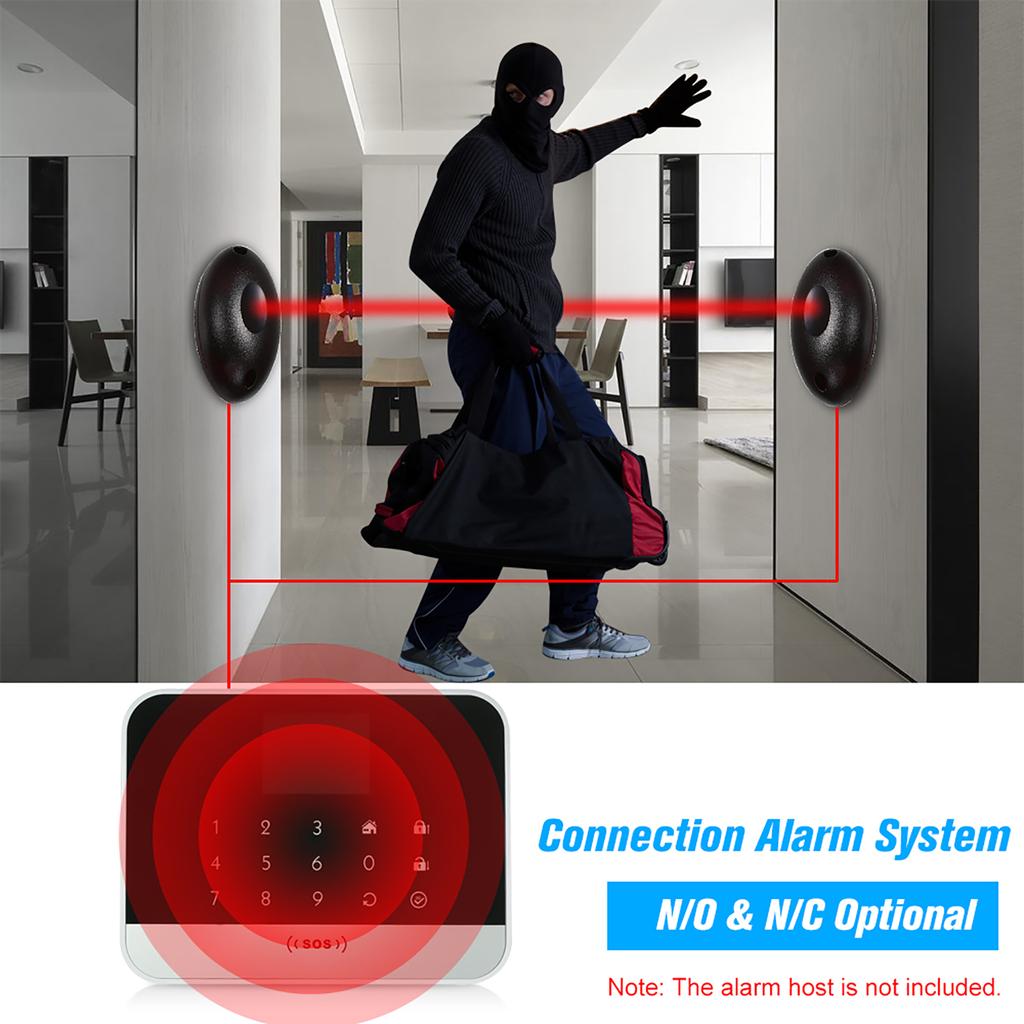

Switch: N O & N C Optional
Work With: Access Control System Parking Barrier Alarm System,etc.
Working temperature: 30°C to +50°C

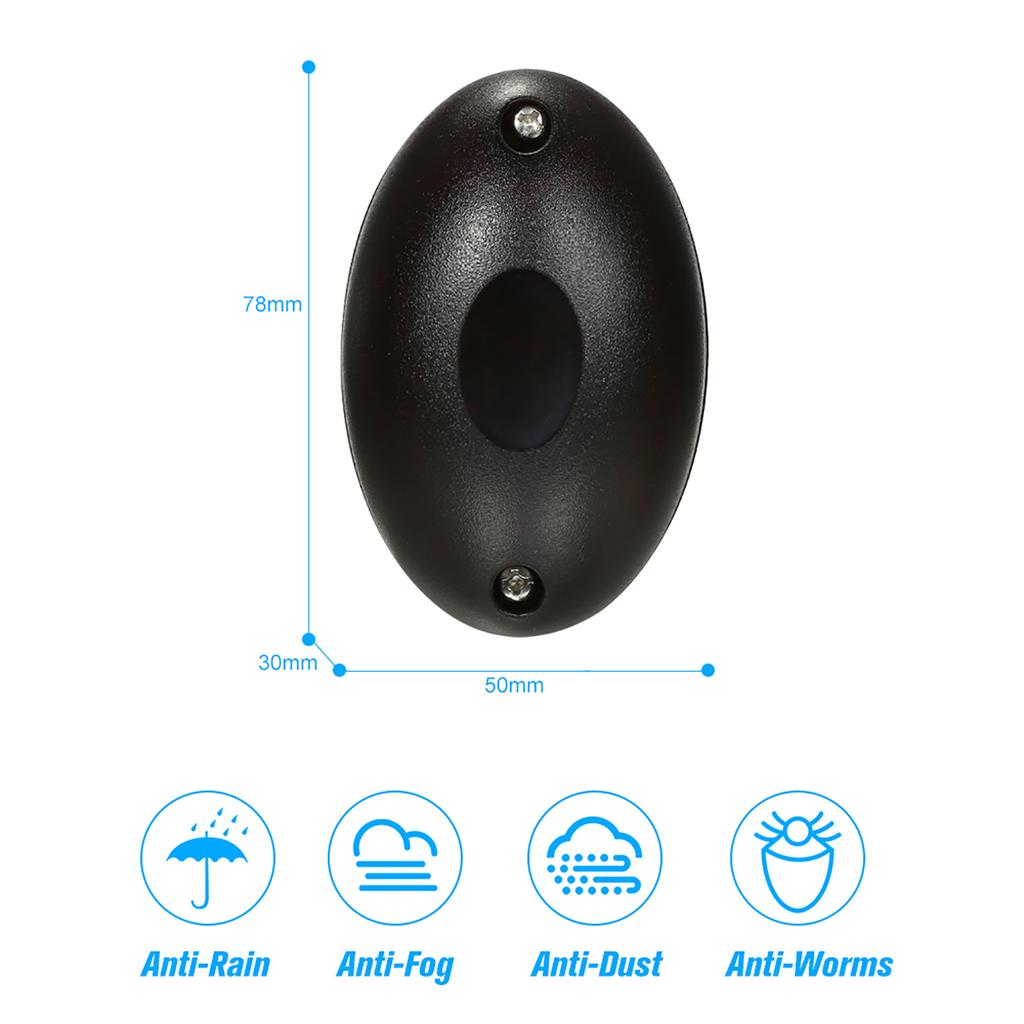

Item Size Each: 78 * 50 *30mm (D*W*H)
Item Weight(with case) Each: 36g
Package Information:
Package Size: Approx. 13.8 * 8.4 * 4.5cm 5.4 * 3.3 * 1.8in
Package Weight: Approx. 125g 4.4oz

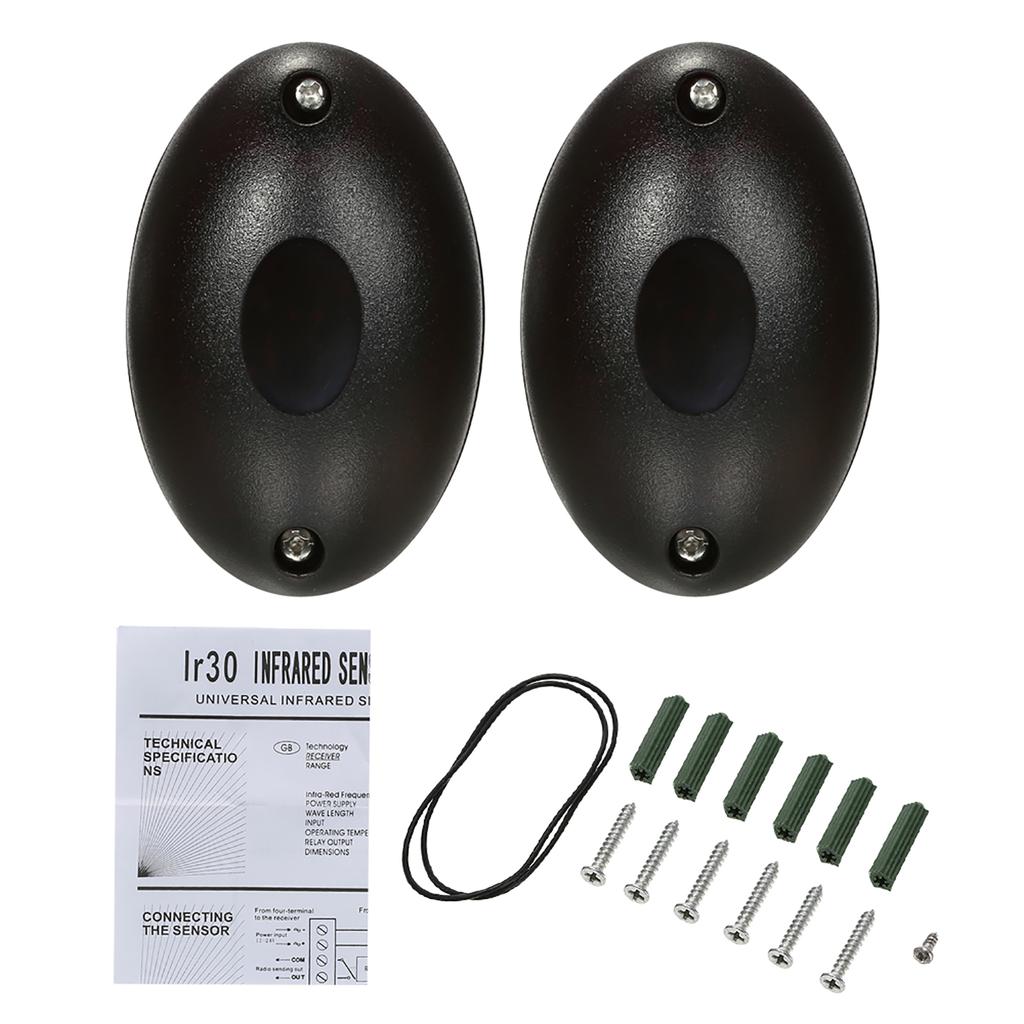

Packing List:
1 * Pair of Beam Sensor
1 * Set of Mounting Screws
1 * User Manual
Package List:
1 * Pair of Beam Sensor
1 * Set of Mounting Screws
1 * User Manual
