Features:
Suitable for scooters, wheelbarrows, torsion cars, balance cars and so on.
Wireless 2.4G remote control transmission to control. And the maximum distance can reach up to 8 meters.
Support 70 83 (8352) 90 hub motor.
Also have single dual motor drive ESC for belt motor.
Made of premium materials, solid, durable, can be used as a spare parts.
Specification:
Item Type: Electric Skateboard ESC Motor
Material: Plastic + stainless steel
Color: Black
Contoller:
Speed: Medium, high and low speed selection
Brake: Electromagnetic brake
One key forward reverse
Wireless 2.4G remote transmission control
Effective distance: 8 meters 26.25 feet
Rated Voltage: 24 36V (corresponding to 6s.7s 10s.12s battery pack)
Rated Current: 15A
Peak Current: 30A
Controller Characteristics: Low to high torque
Dual Mode Control: Hall hall free program automatic switching
Protection Function: Blocking rotation protection maximum peak current protection, overcurrent, overvoltage, overload current limit protection
Remote Control Battery: 400mAh 18650 Lithium Battery (Built in)
Options: T2 Single Drive 650W, T2 Dual Drive 1300W
Remote Control Size: Approx. 100x54x20 mm 3.94x2.13x0.79 inch
Model
Voltage
Controller
Power
Controller
Motor
Quantity
Motor
Type
Motor
Max.
Power
Motor
Max.
Rotate
Speed
Whether
Not
Connect
Holl
Motor
T2
Single
Drive
24
36V
650W
1
DC
Brushless
Motor
650W
3000
rpm
Can
Not
Connect
T2
Dual
Drive
24
36V
1300W
2
DC
Brushless
Motor
650W
3000 rpm
Can
Not
Connect
How to Use:
1. Code pairing
The control board and the remote control have been paired with the code in advance, no additional code pairing is required, and it can be used after turning on the code. If you need to re‑code the code after purchase, you can contact the customer service to obtain the code pairing tutorial.
2. Turn on and off
A. After the controller is powered on, click the red power switch connected to the controller, and the red light on the controller flashes to turn on the machine.
Turn on the power switch at the tail of the handheld remote control, the remote control indicator will light up and turn it on, and then connect the motor to work.
B. When shutting down, click the red power switch connected to the controller again to shut down
3. Wiring forward and reverse adjustment
The three thick wires of the motor are randomly connected with the three wires of the controller. When one connection method is forward rotation, the other connection method becomes reverse rotation.
The 5 thin wires on the motor are Hall wires, and some controllers can control the motor as well as without the motor Hall.
4. Power display
A. When the control panel is not turned on and the remote control is turned on by itself, the battery indicator on the remote control shows the battery level of the remote control (only displayed for 2 seconds)
B. When the control panel is turned on and the remote control is turned on and connected to the control panel, the battery indicator on the remote control shows the battery level.
5. Charging the remote control
The remote control is powered by the built in rechargeable battery, which can be directly charged with the 5V charger of ordinary mobile phones.
Package Included:

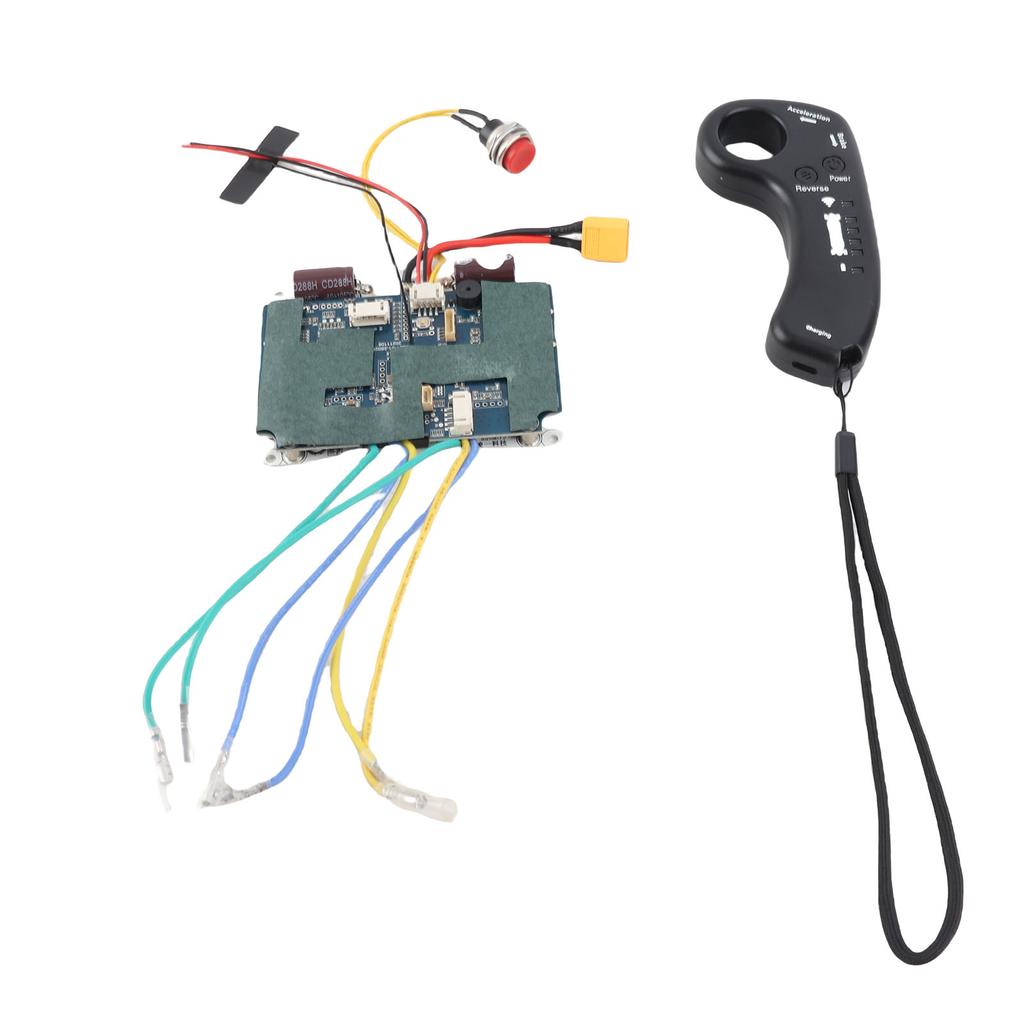

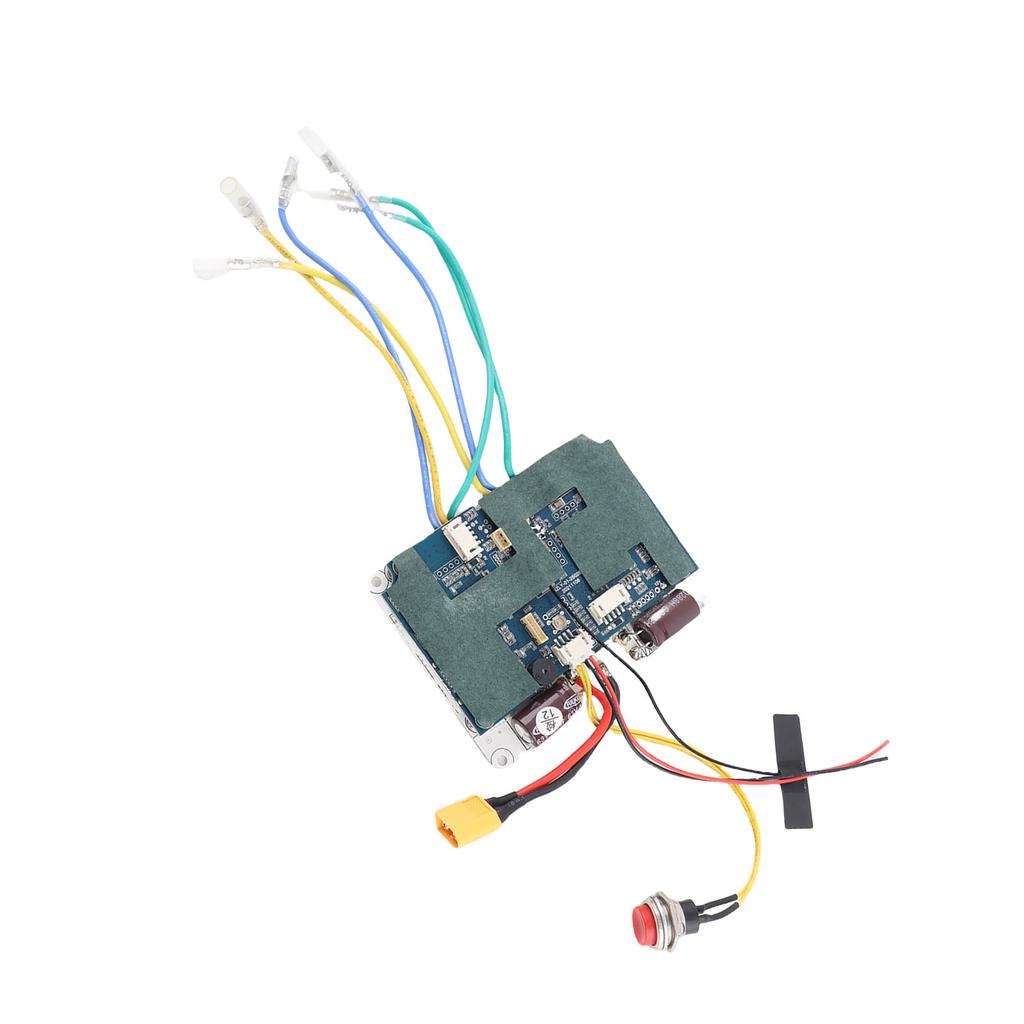

1 x Electric Speed Controller
1 x Remote Control Transmitter
Note:
The controller and the remote control have realized the code connection before delivery. You can use the remote control when you start up without extra code.
.
