Description:
- Application: center hole shaft and other parts of the end face machining.
- Cutting light, good chip, high hardness, help protect the body's tissues are worn prolong life
- High strength, tight adhesion between the substrate and the coating.
- Use: Prefabricated pinpoint hole machining, guide twist drill hole machining, reduce errors.
- The role of the central hole and the structure: Center hole is positioned based on the top surface of the workpiece shaft installed. 60 one with 60 cone on top of the center hole compatible; small hole in the end, to ensure the cone with the top cone with the apt, and can store a small amount of oil.
Specification:
- Material: HSS

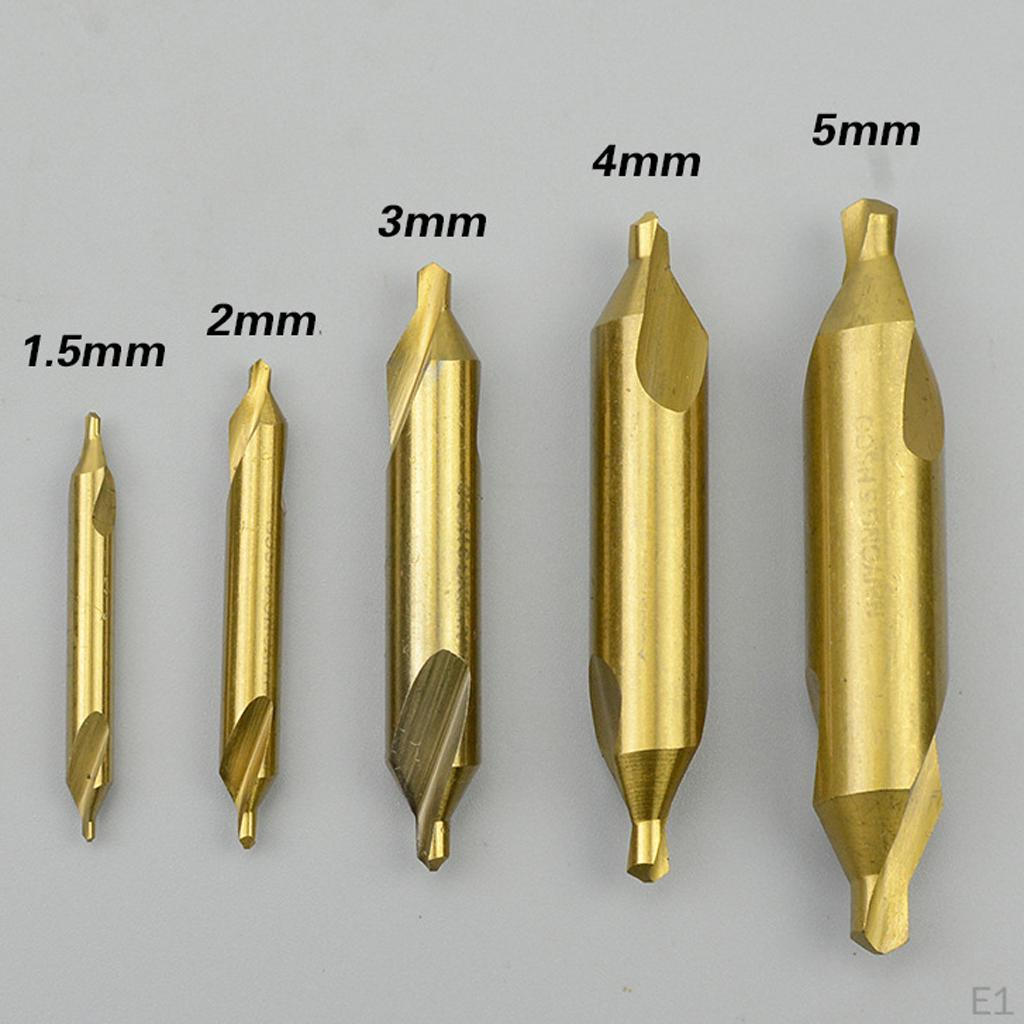

Size Chart:
1.5mm
Shank Diameter: Approx. 4mm/0.16inch
Length: Approx. 36.5mm/1.44inch
2mm
Shank Diameter: Approx. 5mm/0.20inch
Length: Approx. 41mm/1.61inch
3mm
Shank Diameter: Approx. 8mm/0.31inch
Length: Approx. 44.5mm/1.75inch
4mm
Shank Diameter: Approx. 10mm/0.39inch
Length: Approx. 57mm/2.24inch
Package Includes:

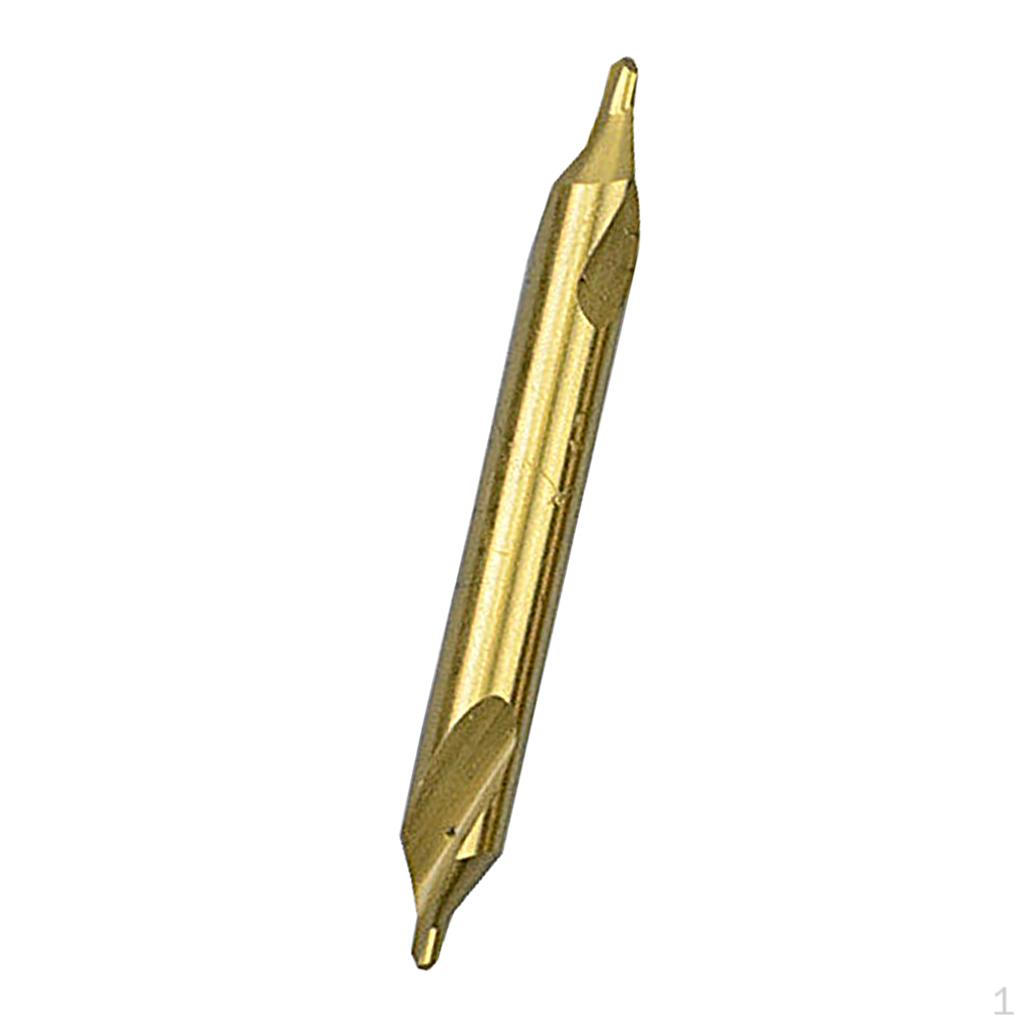

1 Piece Type A Titanium Center Drill
