- Inpute: 100V-240V AC; Output: Maximum 12v 3A 36W / 12V 5A 60W / 12V 10A 120W DC (optional)
- High Efficient: The power supply driver can withstand low operating temperature, and possess a long life. There is no cooling fan in the case, silent running, stable performance. Aluminum case with many holes makes heat dissipation more efficient
- Safe Features: The switching power supply has automatic over voltage cut-off, automatic thermal cut-off, overload cut-off, short circuit protection. No noise, the product possess high insulation strength and excellent insulation performance
- Reliable Performance: Undergoing a rigorous 100% total load burning test, this AC to DC converter proves its reliability and performance. Trust in its quality and performance after testing, and power your devices with confidence
- Widely Use: 12 volt power supply is Widely applied to industrial automation, LED display, CCTV, computer engineering, LED light bar, 3D printer, etc. Specifications:

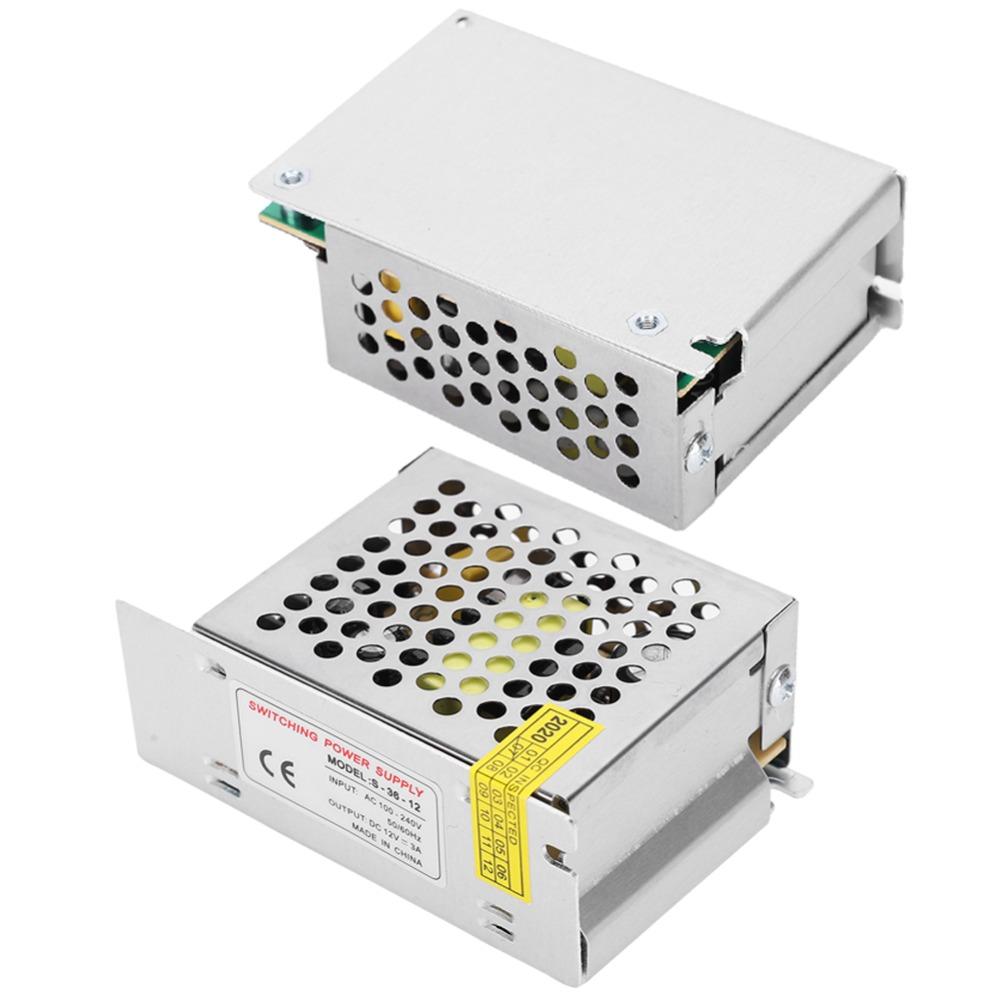

Item Type: Switch Power Supply Driver
Model: S-36-12 / S-60-12(S) / S-60-12(L) / S-120-12
Material: Aluminum alloy
Input Voltage:AC100-240V
Output: DC 12V
Output Current:3A / 5A / 5A / 10A
Power:36W / 60W / 60W /120W
Size:
S-36-12:85*58*33mm(3.35*2.28*1.30in)
S-60-12(S):85*58*33mm(3.35*2.28*1.30in)
S-60-12(L):110*78*36mm(4.33*3.07*1.42in)
S-120-12:129*99*40mm(5.08*3.90*1.57in)
Protection: Overload/overvoltage/short circuit
Connection:
L, N: AC power input
GND: DC power output "-"
V: DC power output "+"
+ V / ADJ: Adjust output voltage
Output voltage regulation range: ± 10%
Working Temperature: -40~65℃
Applicable To: Industrial automation, LED display, CCTV, computer engineering, LED light bar, 3D printer, etc.
Package List:
1 x Switch Power Supply Driver
Note:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
