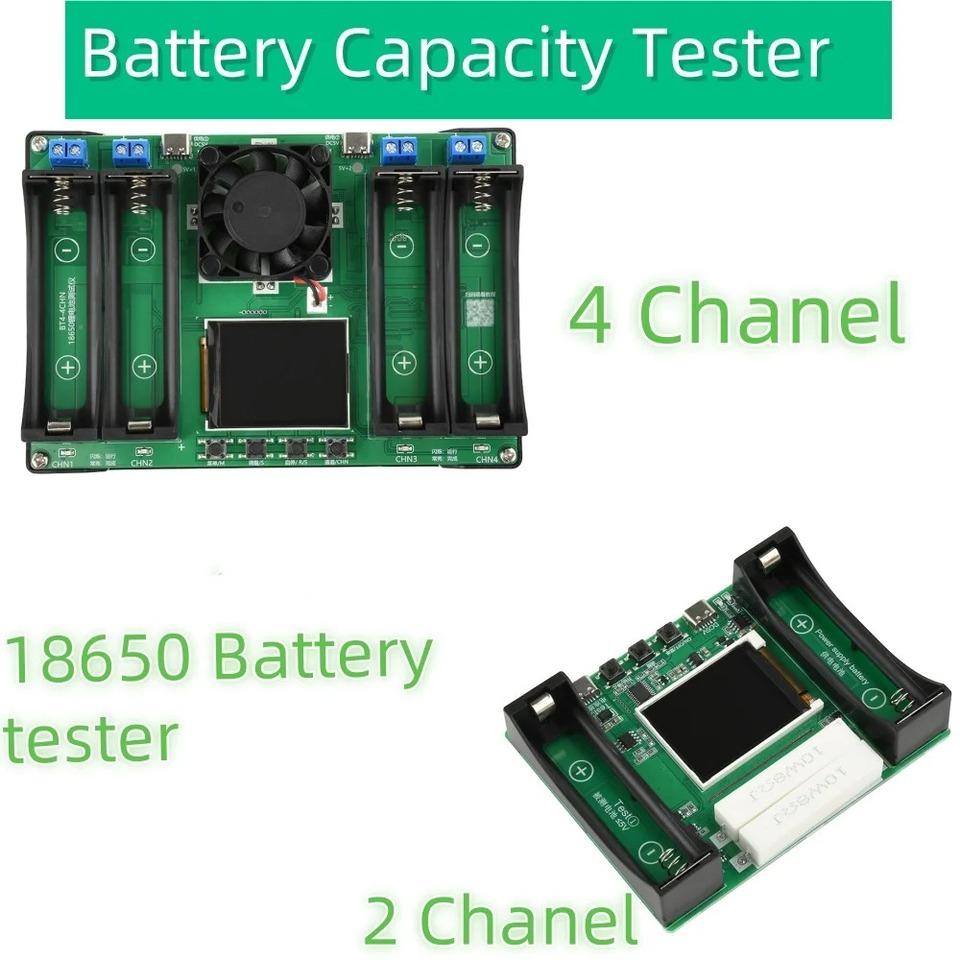

2/4 ports 18650 battery capacity Type-C test module mAh mAh digital display lithium battery measurement power detector tester
2/4 ports 18650 battery capacity Type-C test module mAh mAh digital display lithium battery measurement power detector tester Note:

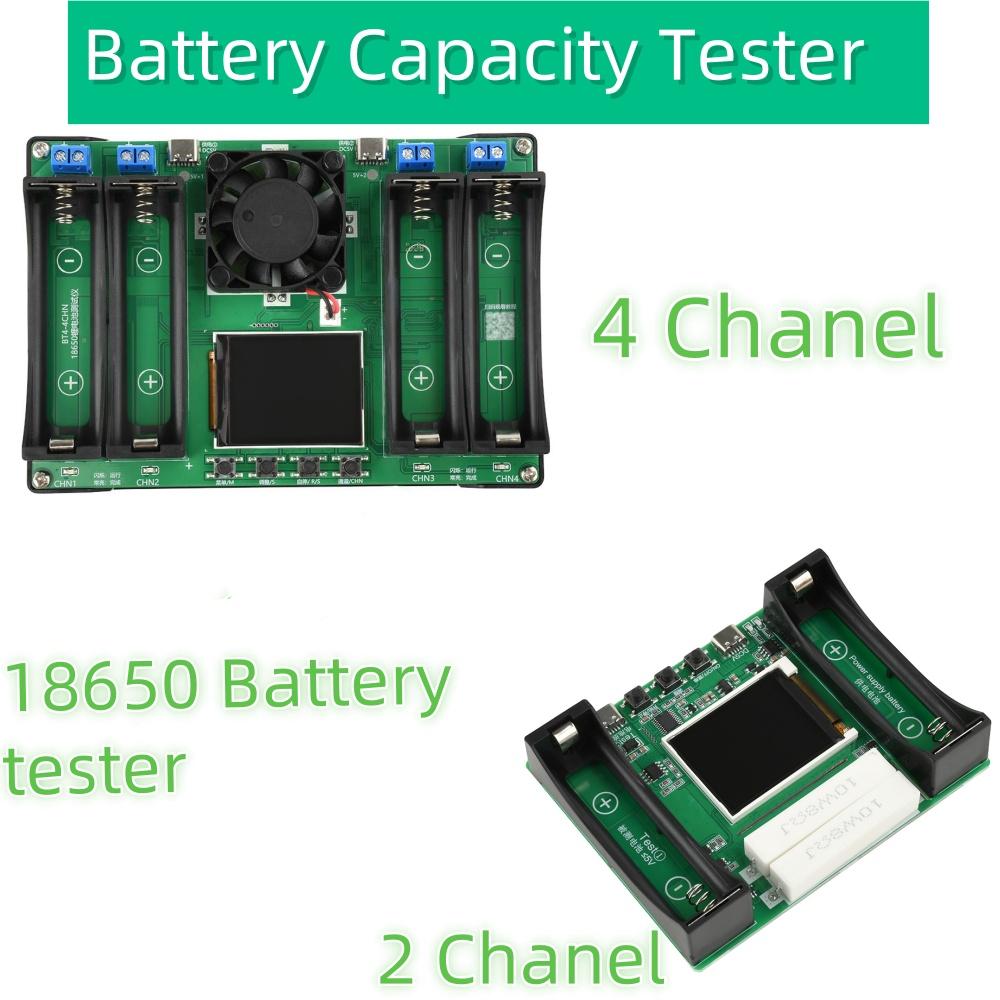

This product has 2 interfaces and 4 interfaces. Please choose the product you need when placing an order to avoid disputes after purchase. If you have any questions, please contact our customer service first. We will provide you with clear answers.

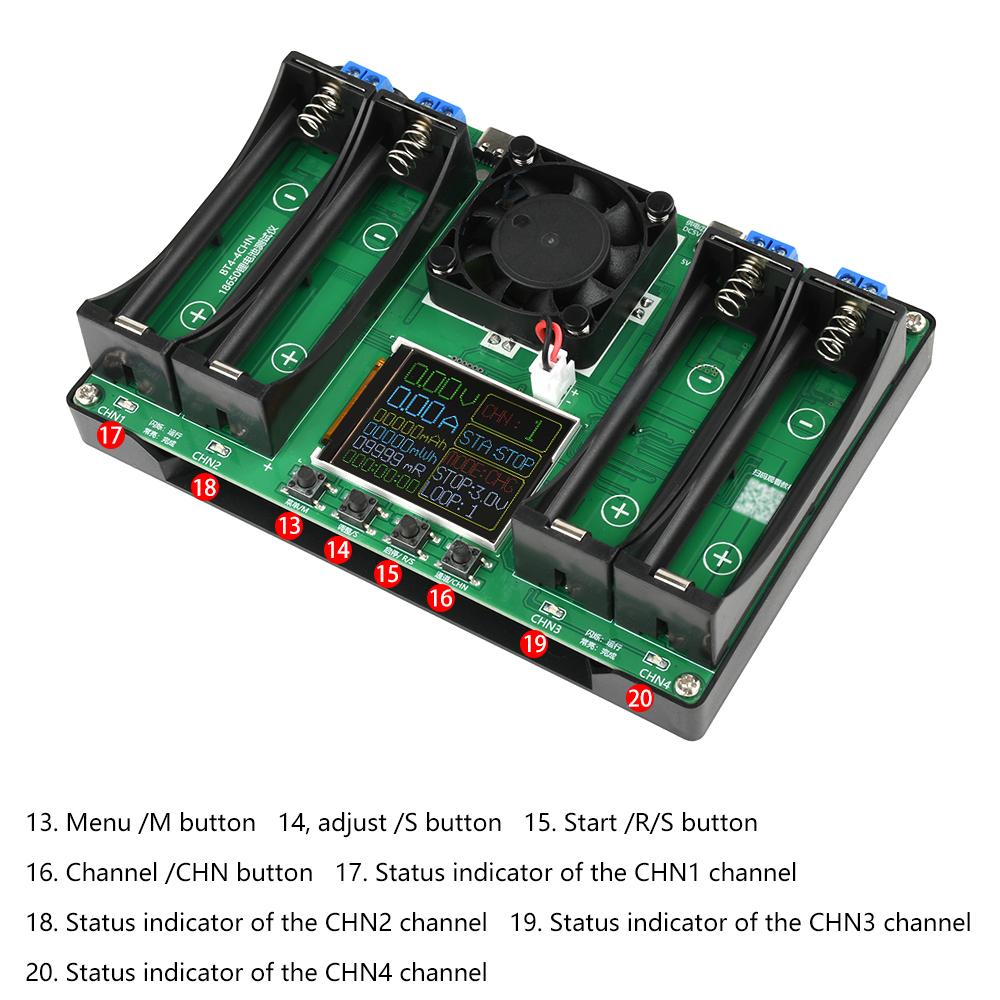

4-channel battery tester features.
The product supports four-channel capacity and internal resistance measurement
Supports individual charging, individual discharging, and up to 9 charging and discharging cycles in automatic mode
Each channel is independent, separately set, operates independently, without interference
18650 battery box uses a compact battery box, suitable for flat battery measurement
Fan active cooling supports over-temperature protection
Use DC double-wire method to test internal resistance
Note: Does not support charging of lithium iron phosphate batteries

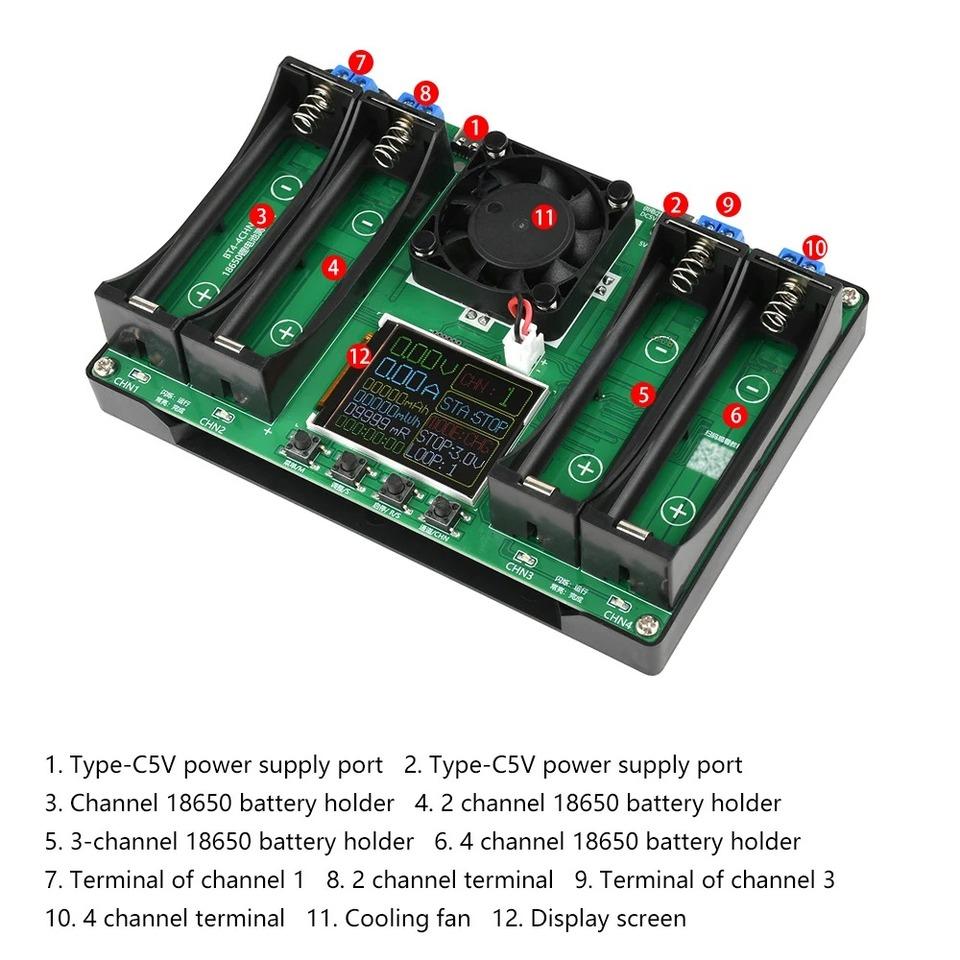

4-channel battery tester parameters.
Working voltage: DC 5V
Applicable batteries: Satisfy stop discharge voltage of 2.5 to 3.5V, 2.8V start to 4.2V fully charged applicable
Power interface: Two Type-C power interfaces (provide power and power cord)
System language: English/Chinese switchable
Test quantity: 4-channel charging and discharging measurement
Internal resistance measurement: Supported, using DC double-wire method to measure internal resistance
Charging function: Supported, fully cuts off charging (does not support charging of lithium iron phosphate batteries)
Discharging function: Supported, automatically stops when conditions are met, discharge current cannot be adjusted
Automatic charging and discharging: Supported, stops mode ends when battery is fully charged
Cycle charging and discharging: Supported, 1 to 9 cycles adjustable (only supported in automatic mode)
Status alarm: Supported
Cooling mode: Fan active cooling
Over-temperature protection: Supported
Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, a total of 11 levels adjustable
Discharge current: Maximum approximately 1 ampere current, cannot be adjusted, does not support independent conversion
Charging voltage: Controlled by special battery charging chip, maximum approximately 1 ampere charging, full charging voltage 4.2V
Power failure save: Only saves setting parameters, does not save measurement data

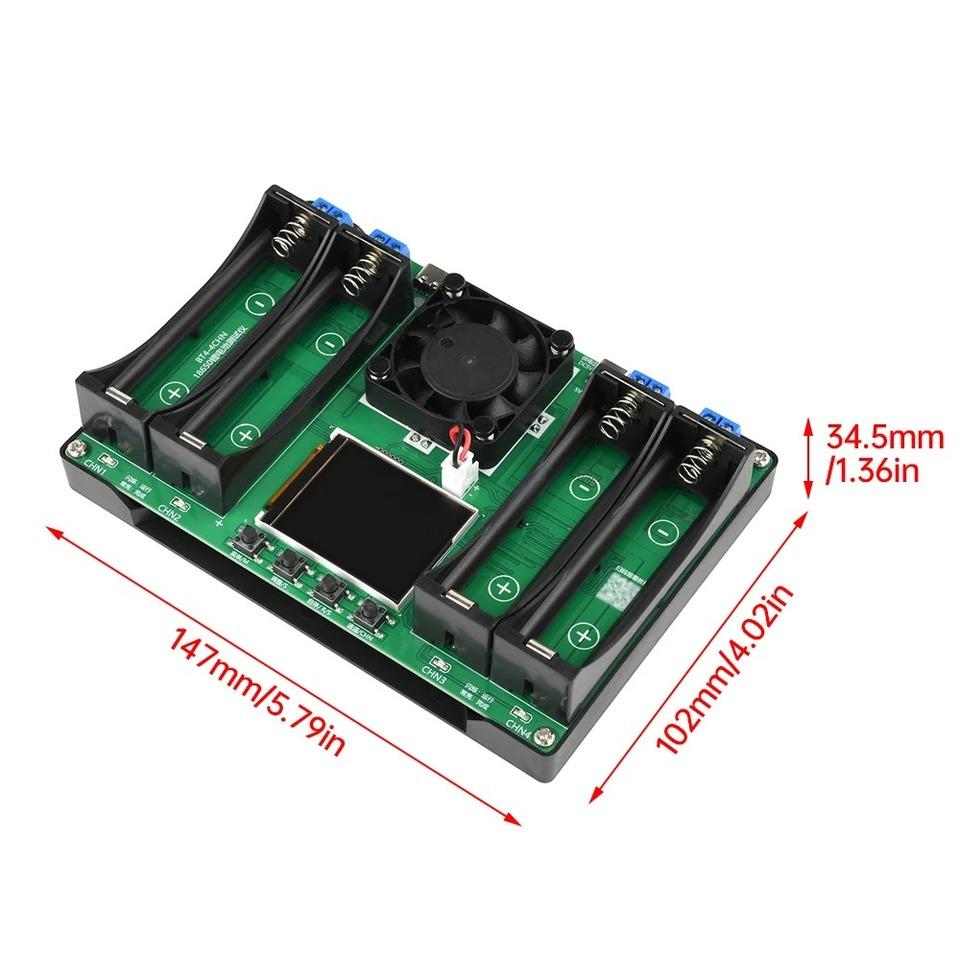

Product size: 150×103×36 mm
Packaging size: 182×112×50 mm 4-channel battery tester
4-channel battery testing kit list.
18650 battery capacity and internal resistance tester X1
Pliers X1

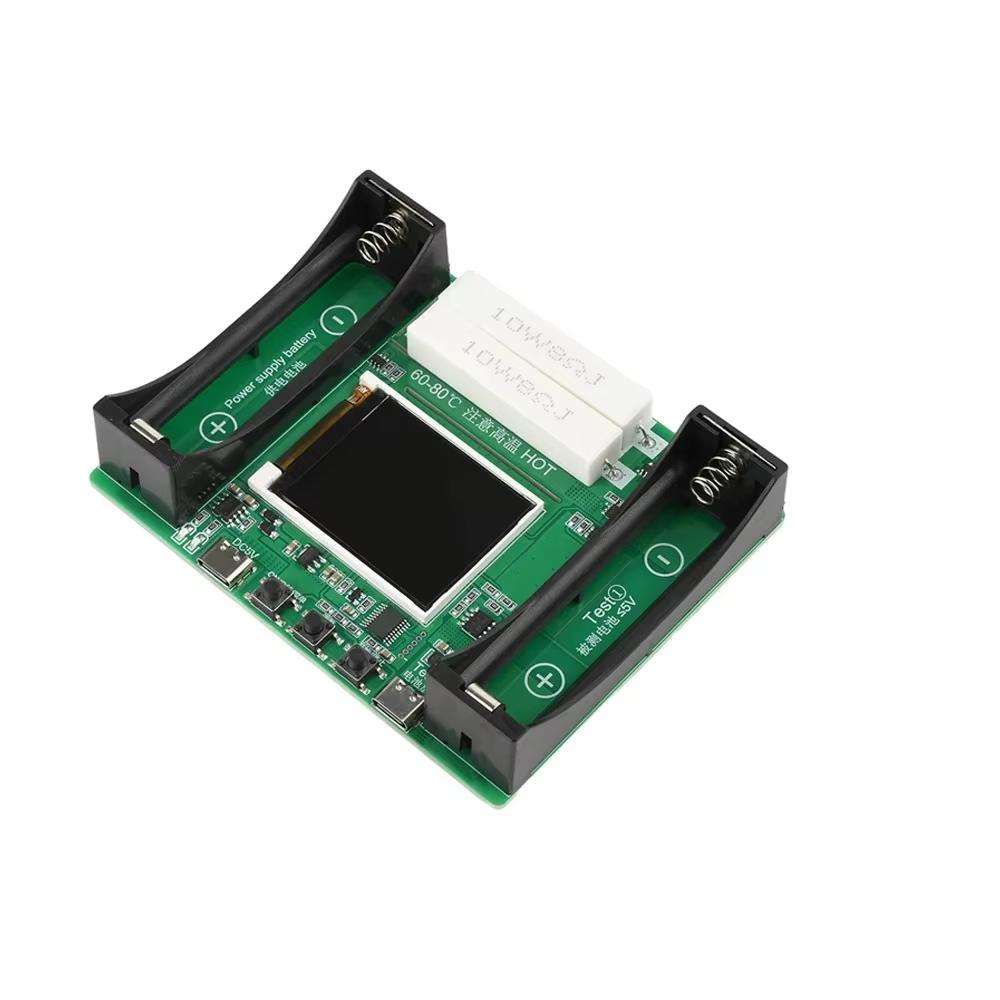

【Dual-channel product features】
- This product supports single-channel capacity and internal resistance measurement
- Supports individual charging and discharging, up to 9 charging and discharging cycles in automatic mode
- Stop and discharge voltage can be adjusted in 11 levels
Use two-wire DC method for internal resistance measurement, can switch to English or Chinese display
- Maximum charging and discharging current approximately 1A
- Supports DIY 21700 battery bracket

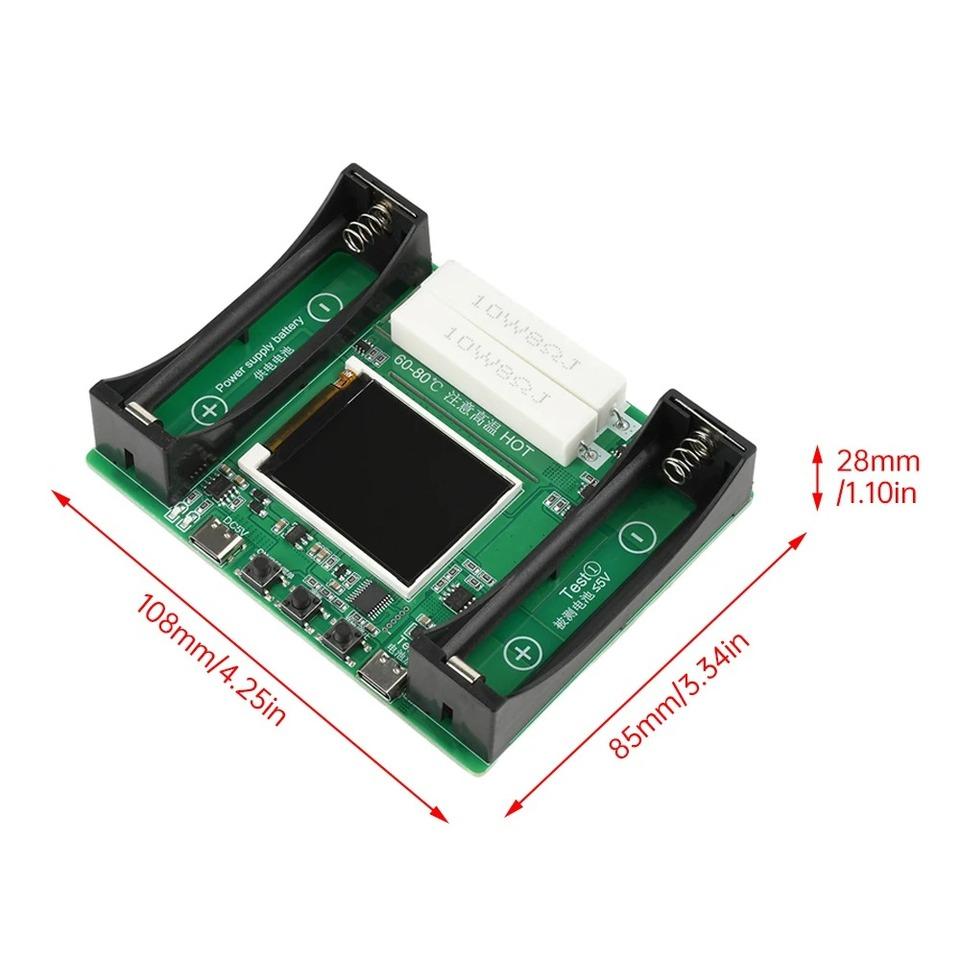

【Dual-channel product parameters】
Working power supply: DC 5V power supply or 18650 battery (please bring your own)
Applicable batteries: Satisfy stop discharge voltage of 2.5 to 3.5V, 2.8V start to 4.2V fully charged applicable Power interface: Type-C interface, power cable provided (C end is the phone cable)
System language: Chinese (default), English
Test quantity: Single-channel charging and discharging measurement (only applicable to the right battery position)
Internal resistance measurement: Supported, using the DC double-wire method to test internal resistance

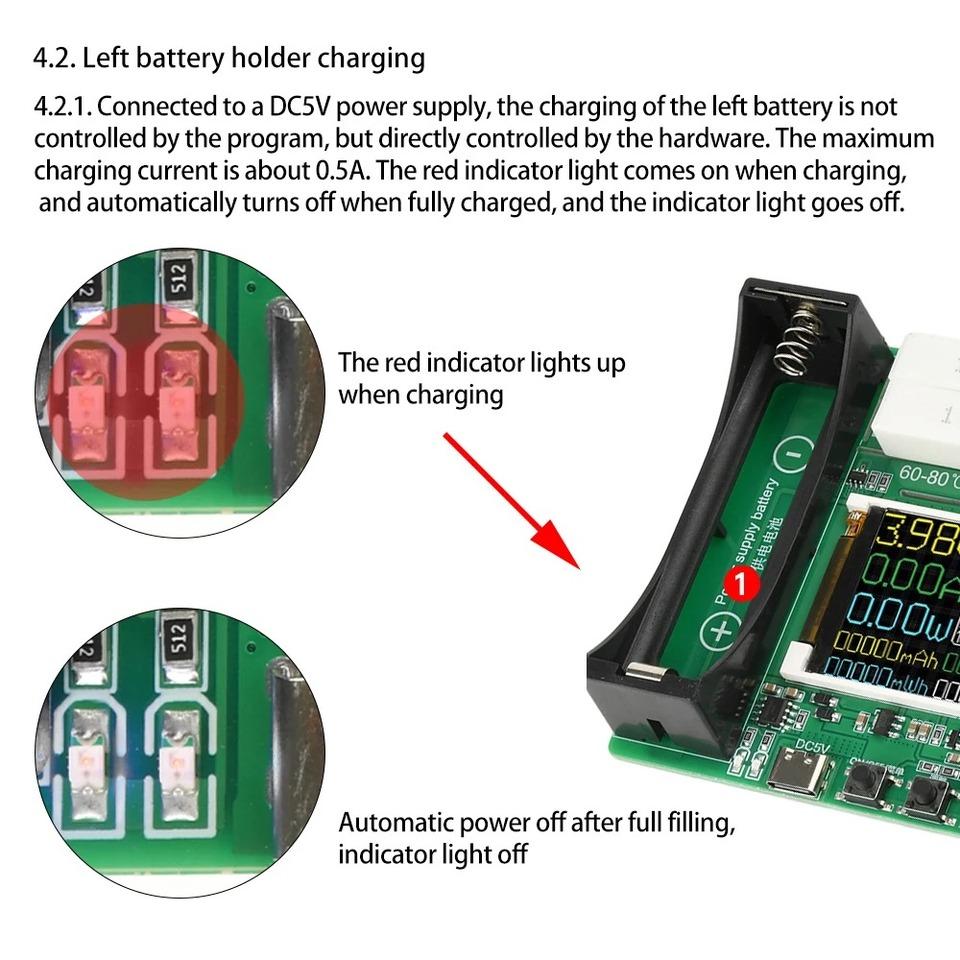

Charging function: Supported, fully cuts off charging automatically (lithium iron phosphate charging is not supported)

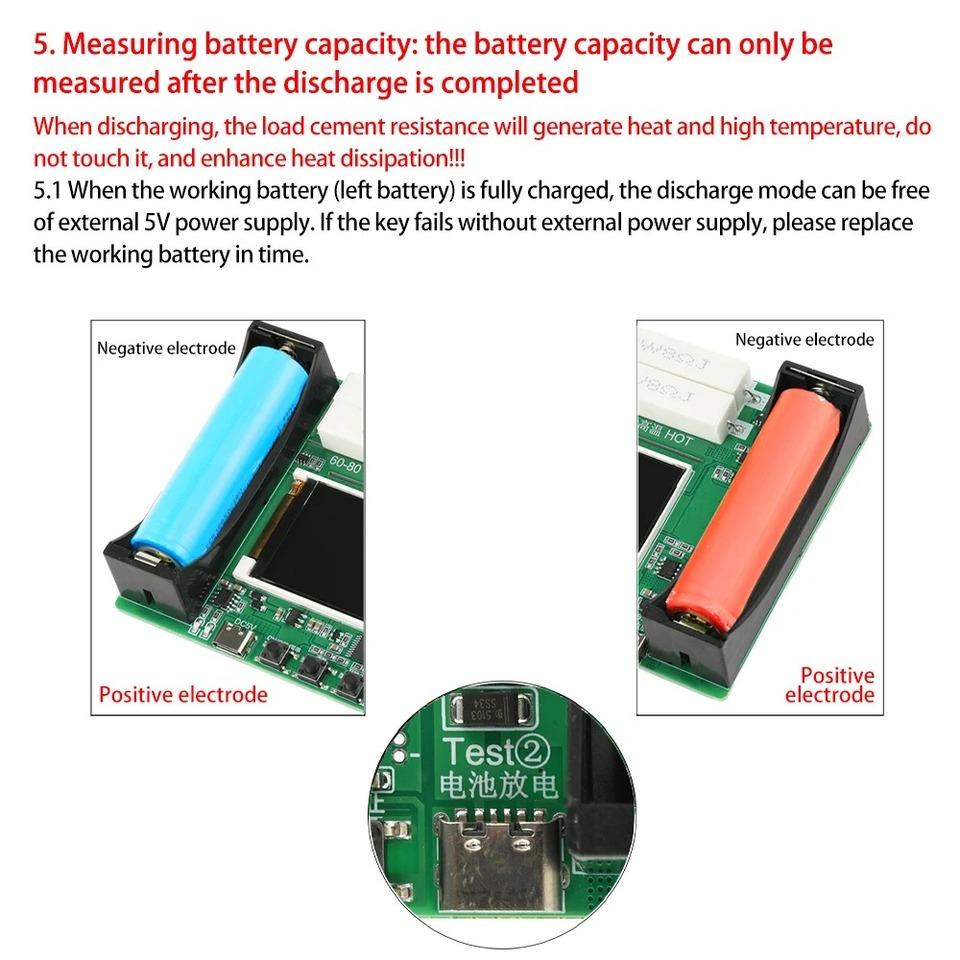

Discharging function: Supported, automatically stops when conditions are met, discharge current cannot be adjusted
Automatic charging and discharging: Supported, battery is fully charged when the automatic mode ends
Cycle charging and discharging: Supported, 1 to 9 cycles adjustable (only supported in automatic mode)
Status indication: Supported
Stop discharging voltage: 2.5 volts, 2.6 volts, 2.7 volts, 2.8 volts, 2.9 volts, 3.0 volts, 3.1 volts, 3.2 volts, 3.3 volts, 3.4 volts, 3.5 volts, a total of 11 levels adjustable
Discharge current: Bidirectional resistance, maximum value is volts. 1. The current voltage is not adjustable, and independent conversion cannot be achieved
Charging voltage: Dedicated battery charging
