Description:
- Regardless the throttle stick position, the motor will not spin after battery connected.
- Multiple procedure methods supported: transmitter stick, LED procedure Card.
- Compatible with Lipo and NiMH battery.
- Timing can be changed to be suitable for different brushless motors.
- Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
Specification:

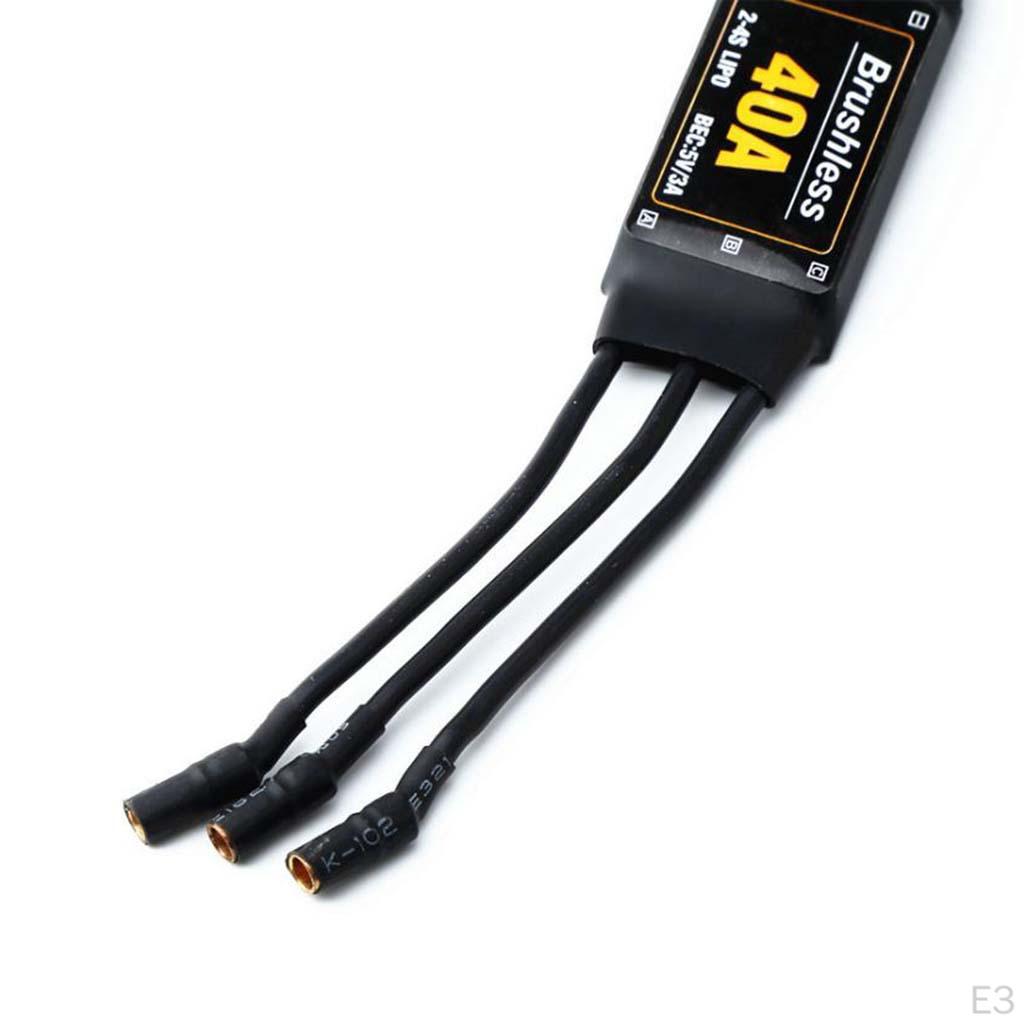

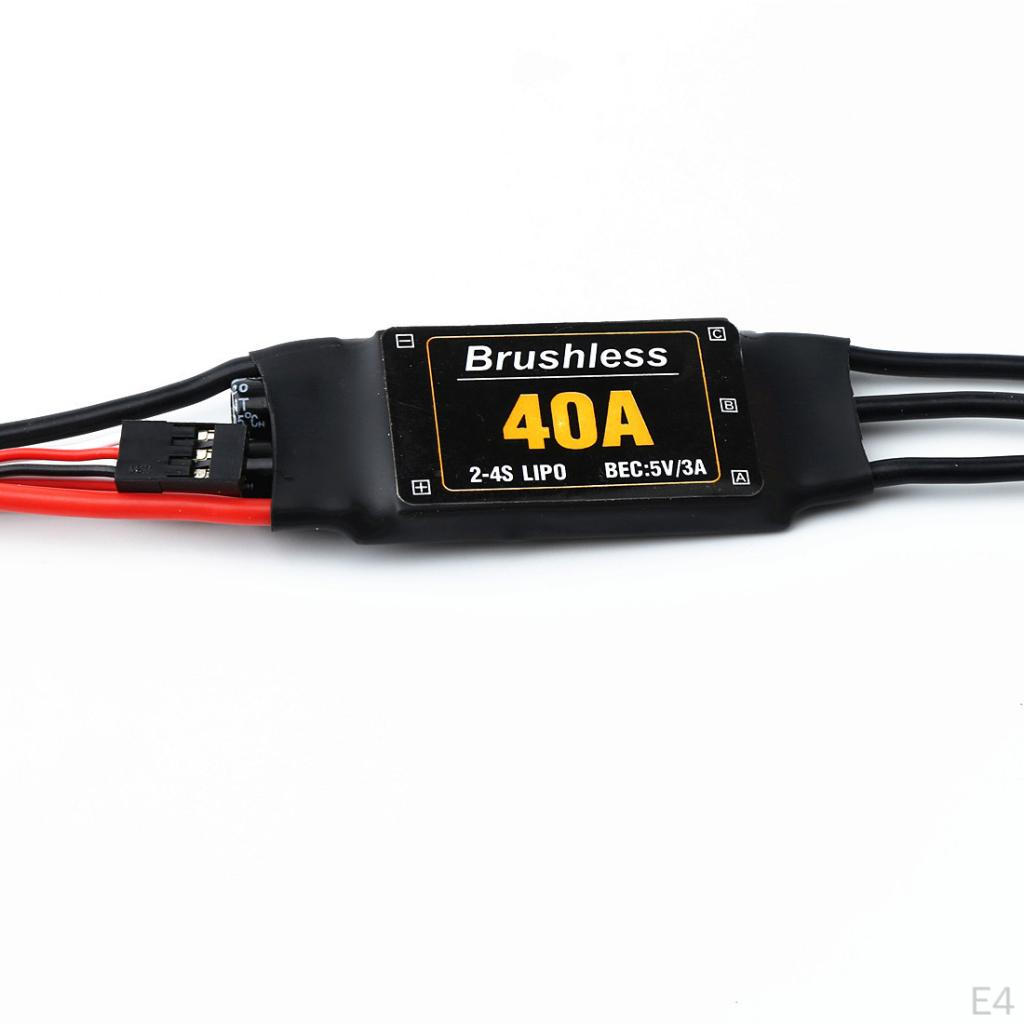

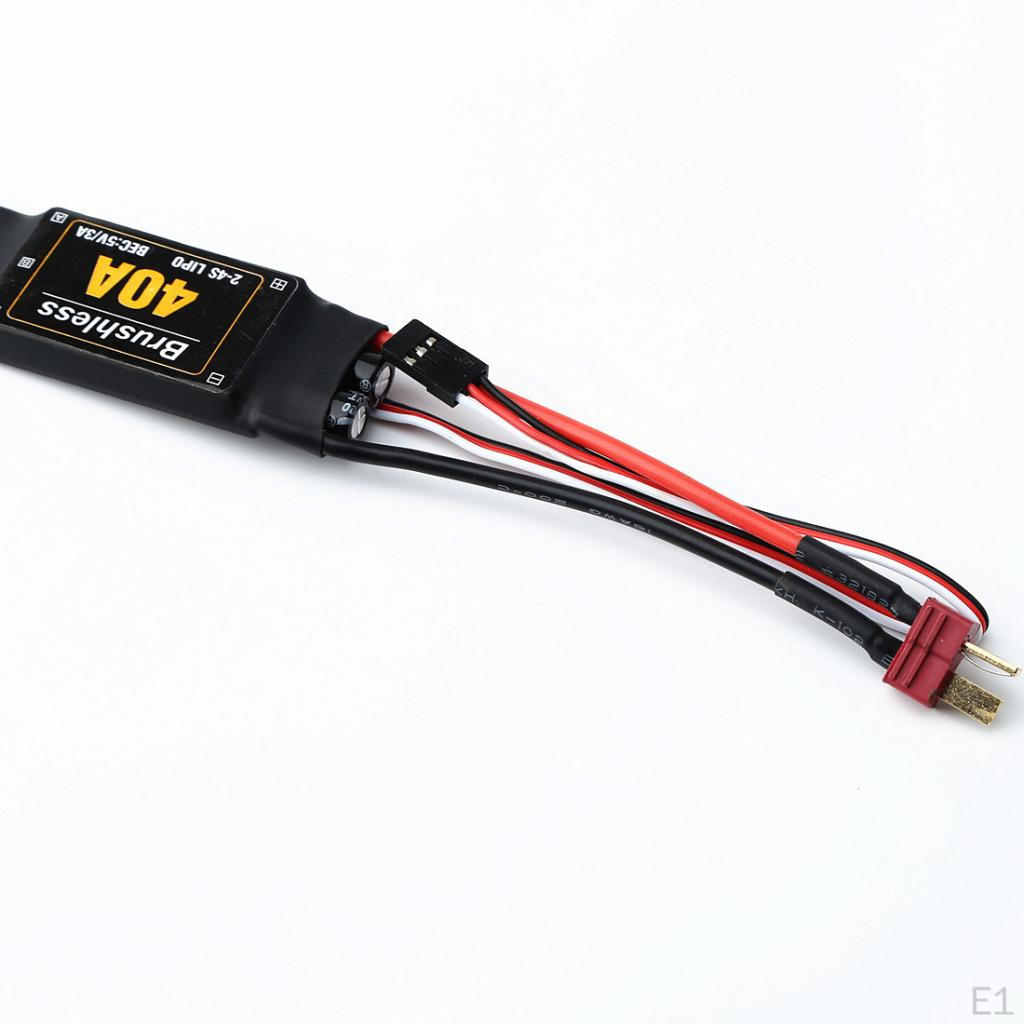

- 40A ESC Specifications:
- Current: 40A
- Output capacity: continuous current 40A, short-time current 55A (not less than 10 seconds)
- Power input: 2-4 lithium batteries(Not Included)
- BEC output: 5V@3A (linear regulator mode - linear mode)
- Maximum speed: 210,000 rpm for 2-pole motor, 7000 rpm for 6-pole motor, 35,000 rpm for 12-pole motor
- Size: Approx. 68x25x8mm/2.68x0.98x0.31inch
- 2217 Motor Specifications:
- Dimension: 27.8x32mm/1.09x1.26inch
- Weight: 68 g
- Shaft Diameter: 4 mm
- Accessories: 4.0mm prop adapter, motor mount, screws
- Prop Recommendation:
- 2217-1100KV: 11 or 10 inch props, eg. 1155, 1070, 1060, etc.
- 2217-1250KV: 9 inch props, eg. 9050, 9045, 9060, etc.
- 2217-2300KV: 6 inch props, eg. 6040, etc.

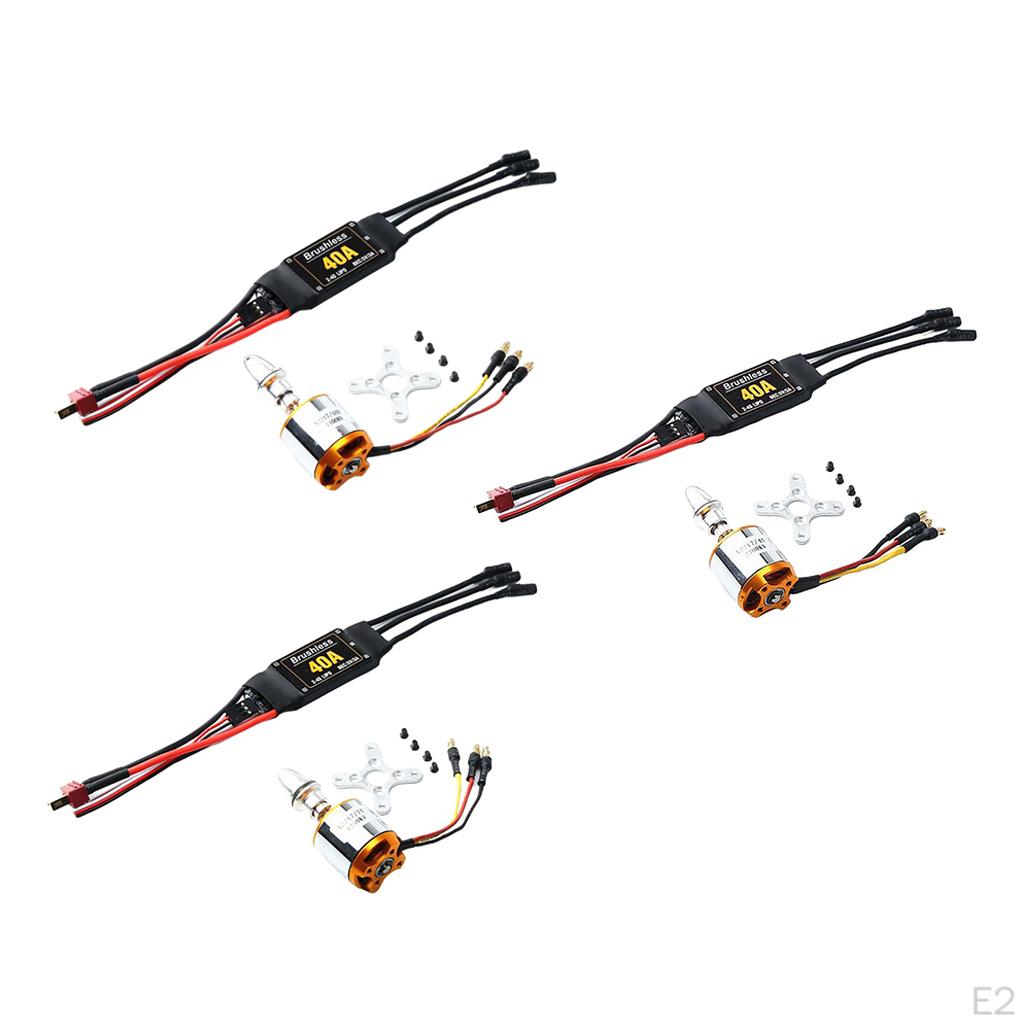

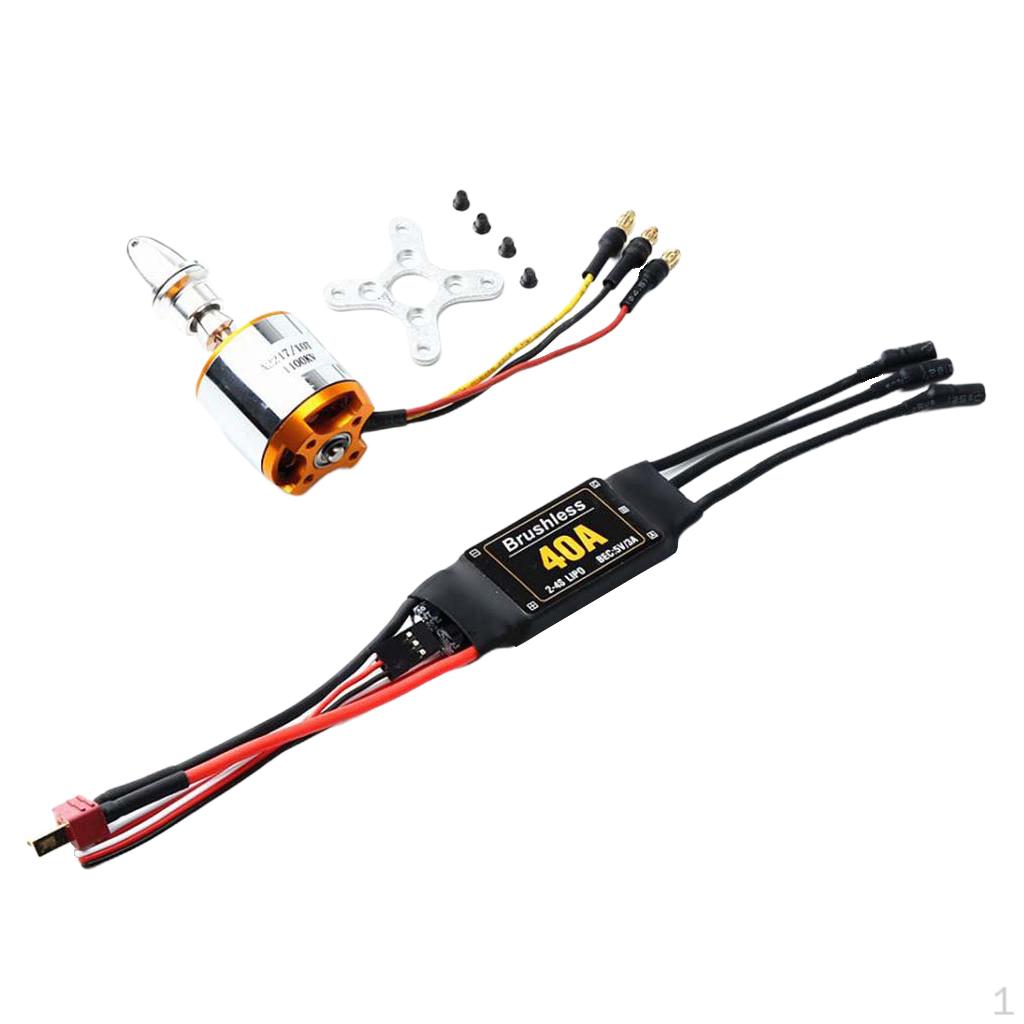

Package Includes:
1 Piece 40A ESC
1 Piece 2217 Brushless Motor
Note:
Please allow 1-3mm measuring deviation due to manual measurement.
Due to the different monitor and light effect,the actual color of the item might be slightly different from the color showed on the pictures.
