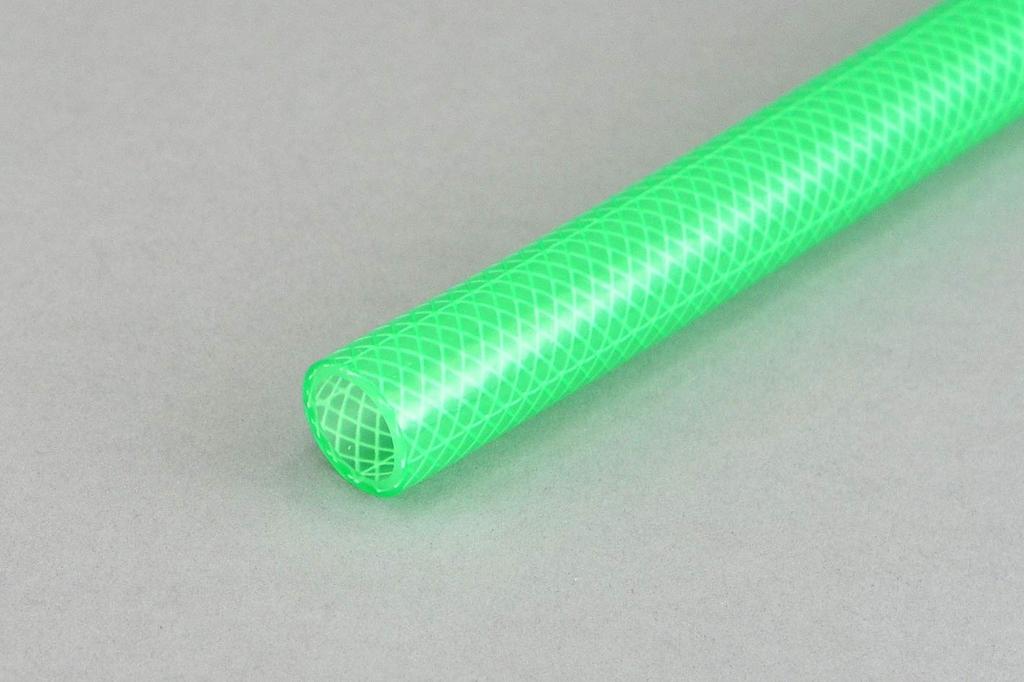

● High-pressure hose with braided reinforcement threads.
● Antibacterial hose prevents bacterial growth.
● Soft and cold-resistant, even in cold weather.
● Clear type allows for fluid visibility.
● Can be used with nozzles with water-stop function. *Size restrictions apply.
《Handling Precautions》
● Use the hose within the operating temperature range and below the maximum operating pressure. Failure to use below the maximum operating pressure may result in fluid leakage, hose disconnection, or hose rupture.
● Do not use hoses without a pressure-resistant thread marking for water-stopping functions.
● Always check the fluid compatibility of the hose before use. Incorrect use of an incompatible fluid may result in dissolution and rupture, resulting in personal injury or property damage. If you have any questions about the fluid you are using, please consult us in advance.
● With the exception of some products, this product is not suitable for use with drinking water or food-related products. The hose's odor may transfer to the water, causing discomfort and potentially secondary damage.
《Hose Installation》
● Do not use the hose in an excessively bent or twisted state. This may cause the hose to burst or become damaged.
● When connecting a hose to a nipple, insert it all the way in.
{Attaching Fittings}
● Do not use sharp fittings that may cut the inside of the hose, or fittings with scratches or rust on the nipple surface. This may cause the hose to burst or become disconnected.
● When inserting the hose into the nipple's barb, do not apply oil or heat the hose or the barb of the nipple over a fire. This may cause the hose to become disconnected. If you have difficulty inserting the hose, warm the hose in lukewarm water before inserting it.
● When securing the hose to the nipple, tighten the hose clamp so that it is centered over the barb of the nipple. This may damage the hose and cause it to burst.
● Tighten the hose clamp as necessary. Take care as hoses soften, especially at high temperatures.
● When removing the hose clamp, do not apply impact with a hammer or other object. This may damage the hose and cause it to burst.
● Do not use one-push fittings for tubes. This may cause the hose to burst.
● After assembling the hose with the fittings, permanent deformation of the resin may cause fluid leakage, fitting disengagement, or hose rupture. Please consult us regarding the material properties of fitting-type hoses.
● Our braided hoses are not bricking-processed like air-specific hoses. Using highly airtight fittings, such as Amac fittings, may cause the hose to break.
《Usage Precautions》
● When pressurizing, open and close the valve slowly to avoid applying impact pressure.
● Do not use a twisted or bent hose.
● Inspect the hose before use. Also, be sure to perform a regular inspection once a month. If any abnormalities are found during inspection, immediately discontinue use and replace with a new hose.
《Storage Precautions》
● Drain and store in a cool, well-ventilated place away from direct sunlight.
● Do not store in an extremely bent state.
● After use, close the main valve to release internal pressure and remove as much residue as possible. In particular, leaving the main valve open can cause a liquid leak, so please be sure to follow these precautions.
●Do not stack hoses in large quantities when storing or storing them.
{Disposal Precautions}
●Never burn them.
●Dispose of them according to local waste disposal regulations.

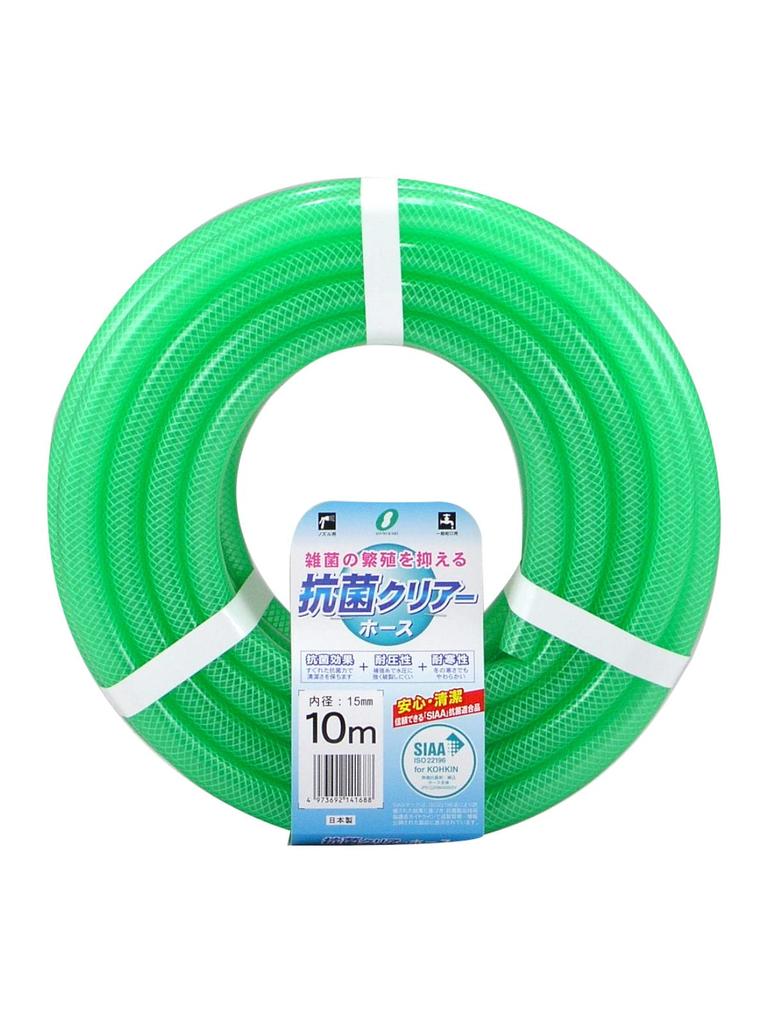

Size: Inner diameter 15mm x Outer diameter 19.5mm, Length 10m
Operating temperature range: 0-60°C (cold resistance, brittle temperature -44°C)
Maximum operating pressure: 0.77MPa at ambient temperature of 23°C, 0.6MPa at ambient temperature of 60°C
Material: PVC, polyester thread (Made in Japan)
Safe and reliable "SIAA" compliant
