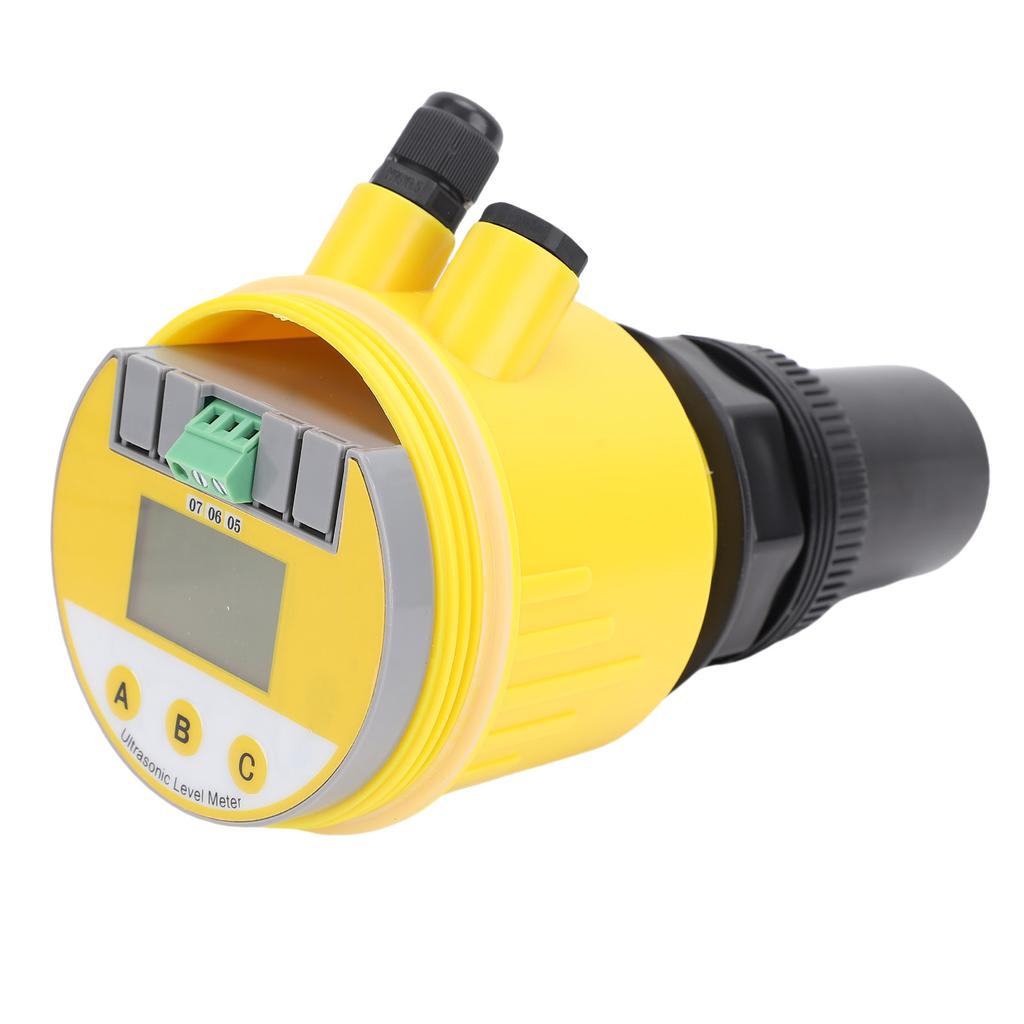

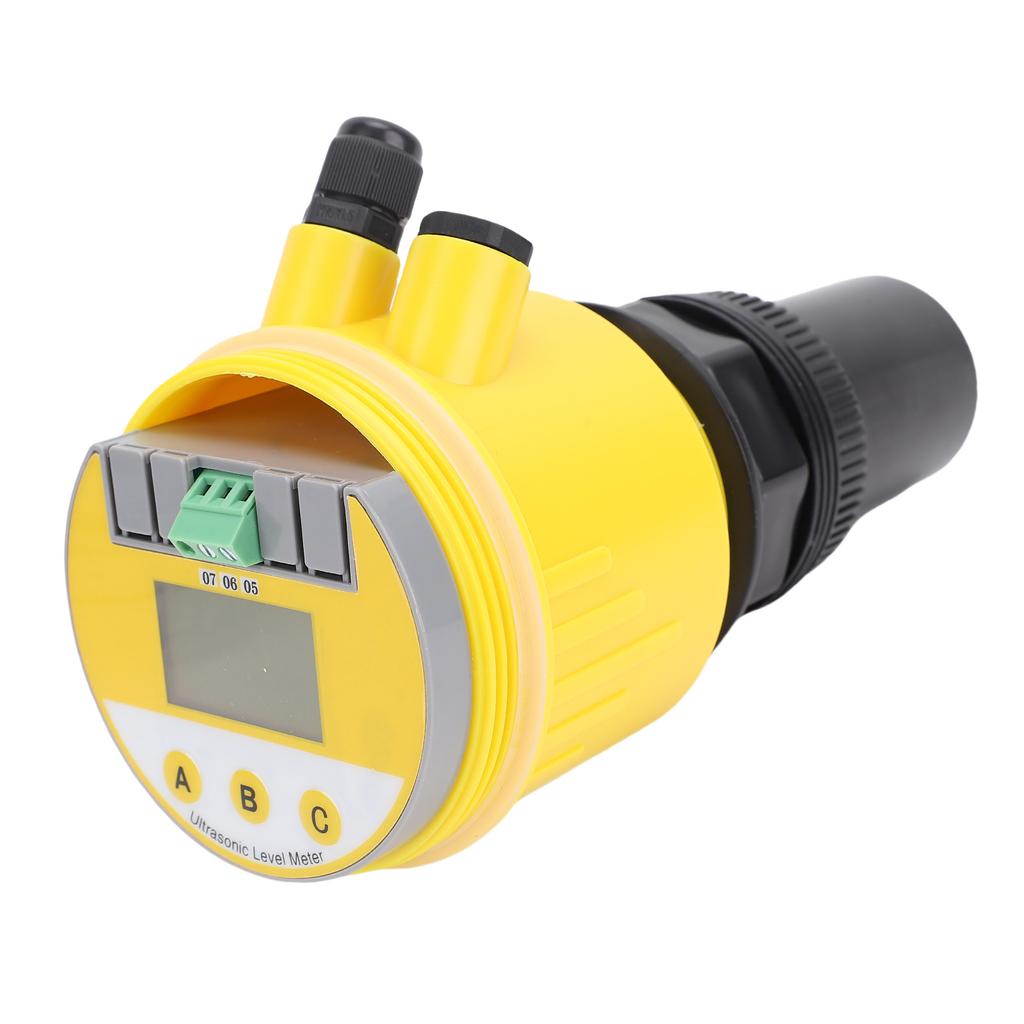

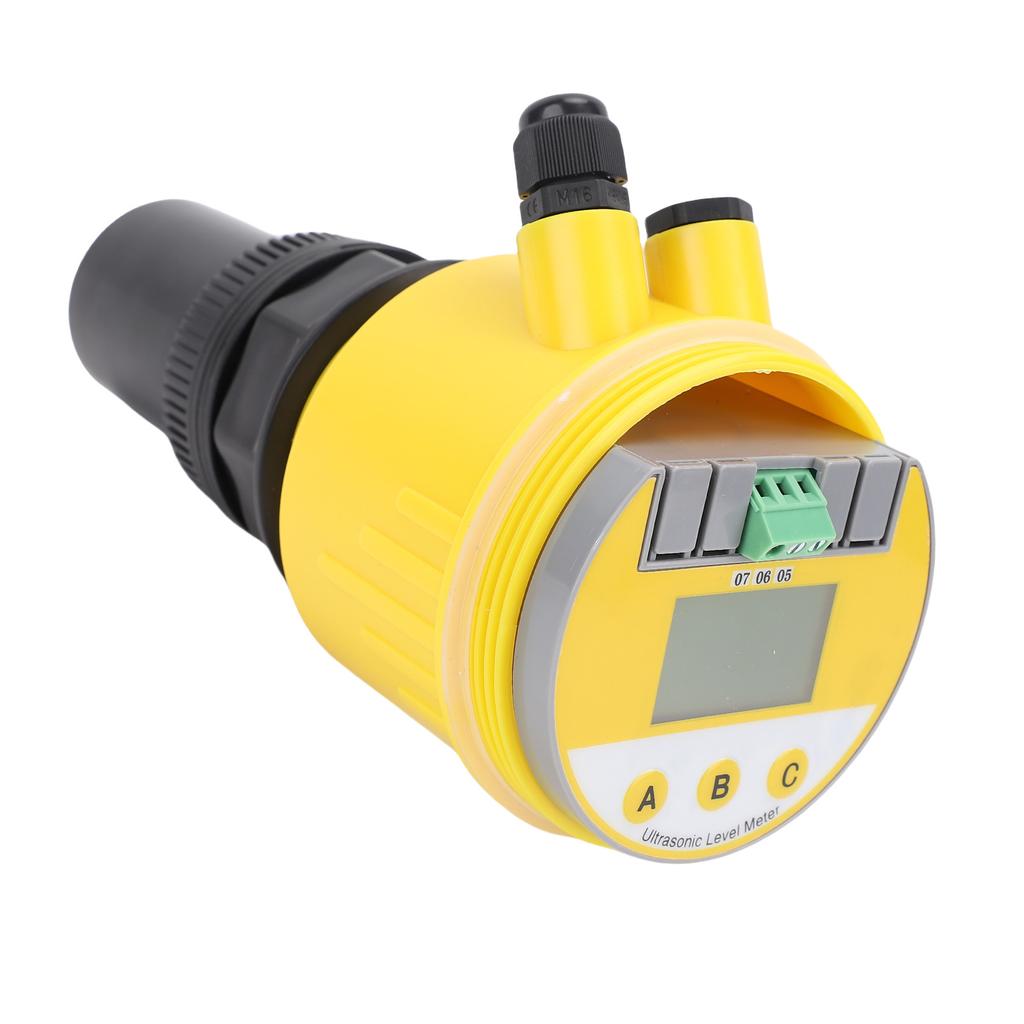

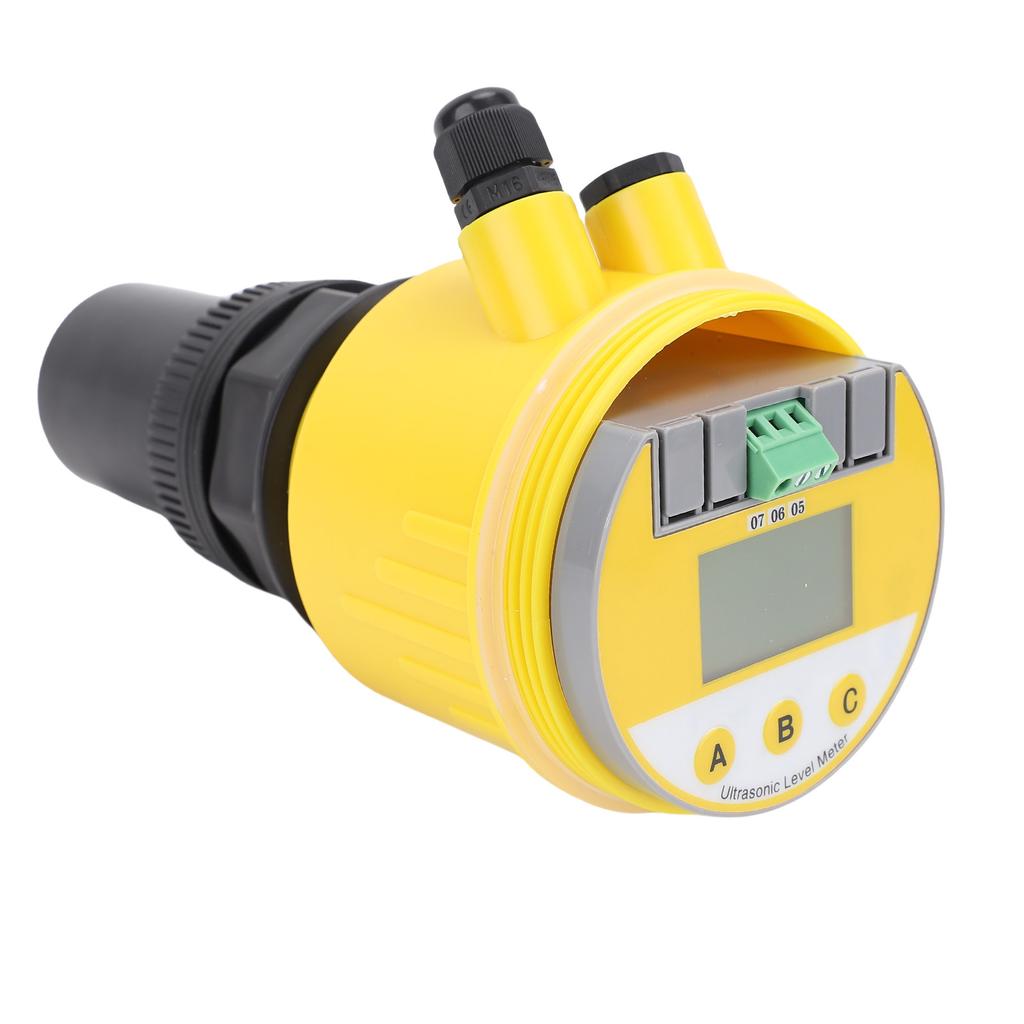

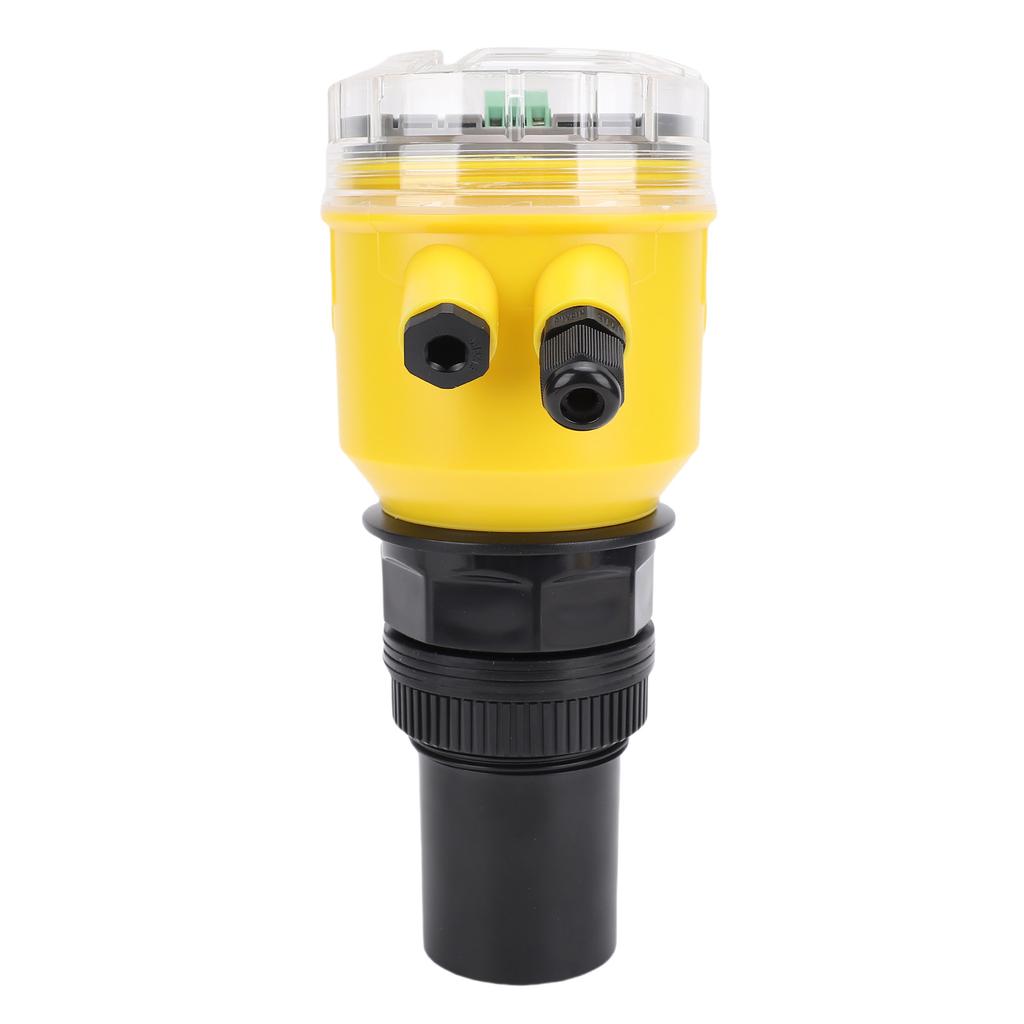

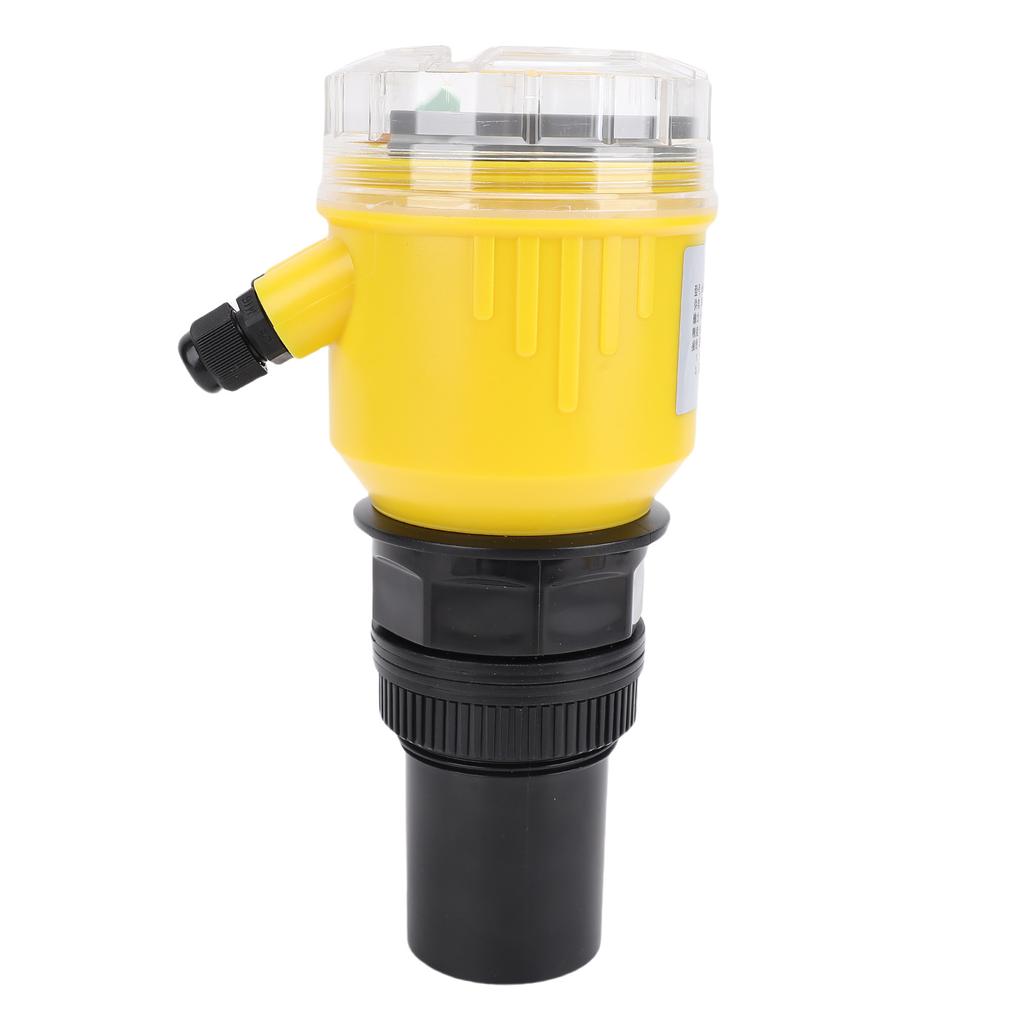

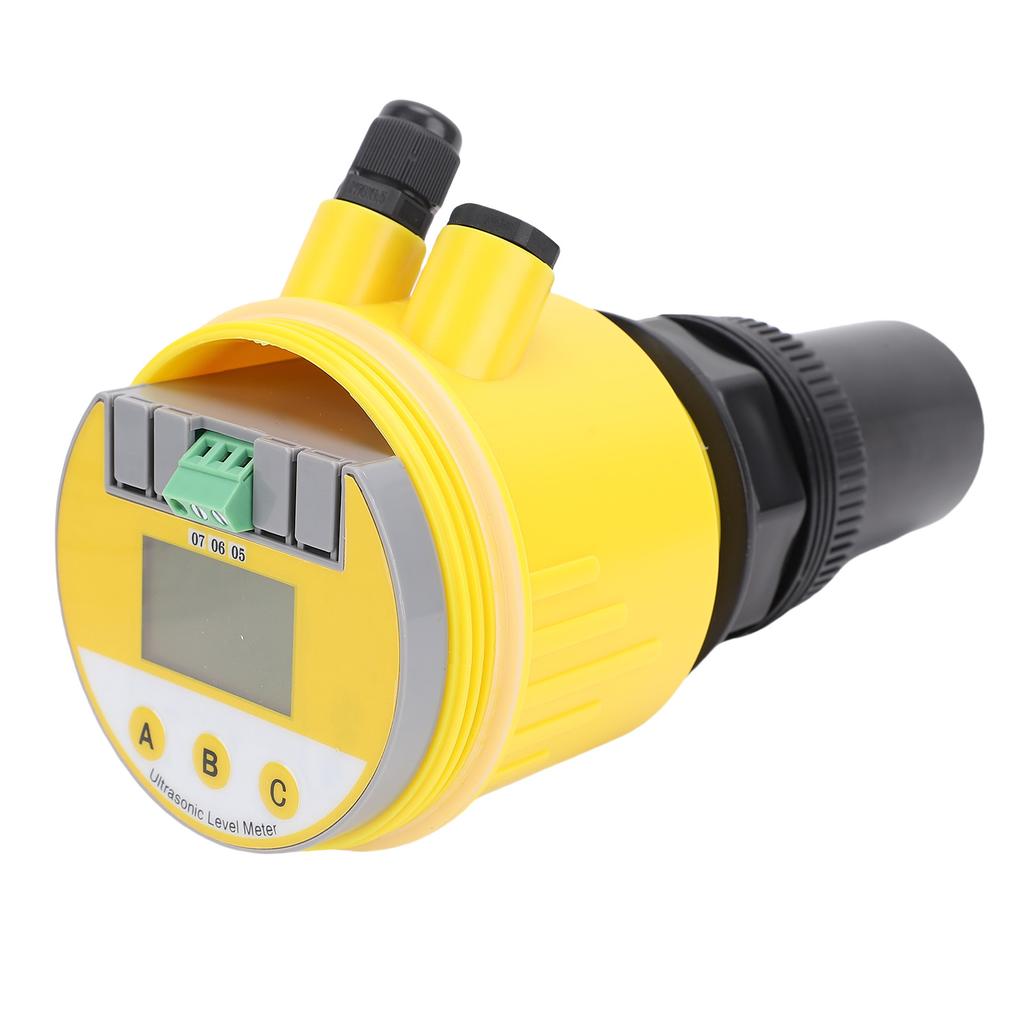

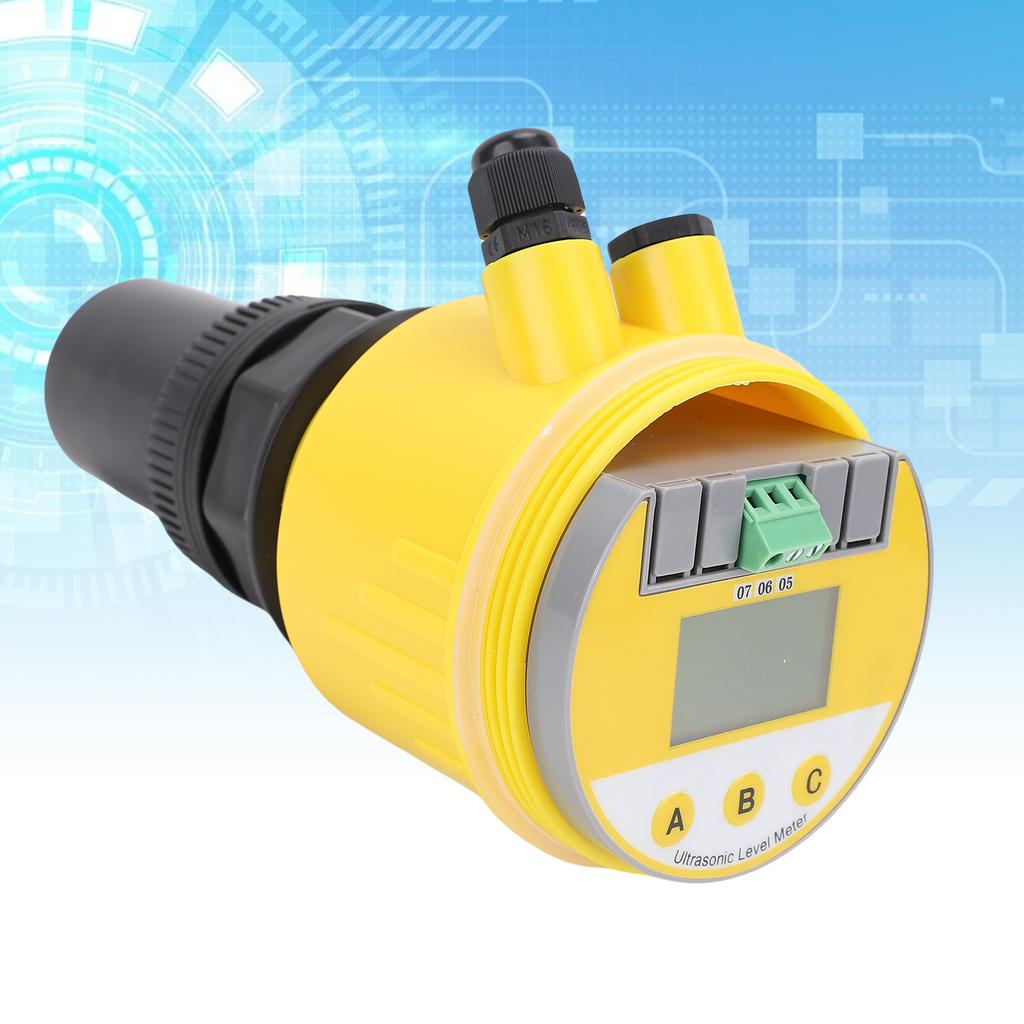

Meter: The meter realizes a digital and user friendly design concept. The digital meter features complete materialCelsiusliquid measurement, data transfer, and human machine communication functions.
Water Proof Housing: The LCD meter is equipped with an engineering plastic ABS water proof housing. The compact and sturdy design of the digital meter ensures the durability of the instrument.
Intelligent Meter: The main chip of the meter uses an industrial grade microcontroller, digital temperature compensation, wide voltage input, linear voltage regulation, and dozens of related dedicated integrated circuits.
Item Type: liquid meter
Model: 666RP
Material: ABS
Color: yellow
Voltage: 24V
Range: 0-10m
Blind zone: 0.5m
Accuracy: 0.5 percent
Display: LCD
Minimum display resolution: 1mm
Keyboard: three light touch keys
Output mode: 4-20mA
Electrical interface: M16X1.5 (two sets)
Mounting thread:
Inlet cable: inside the terminal block
Working environment: normal temperature, normal pressure
grade: IP65
Characteristic:
Celsiusliquid mode selection
The start and end of the output range are set arbitrarily
HART communication is available
With Settings function, support to factory Settings
With digital filtering, dynamic recognition
Application Fields:
Water and sewage treatment
Pumping station, collecting well, biochemical , sedimentation , etc.
Electric power, mining
Gray slurry pool, coal slurry pool, water treatment, etc.
Size: Approx. 233.47 x 96.5mm Celsius 9.19 x 3.8in
