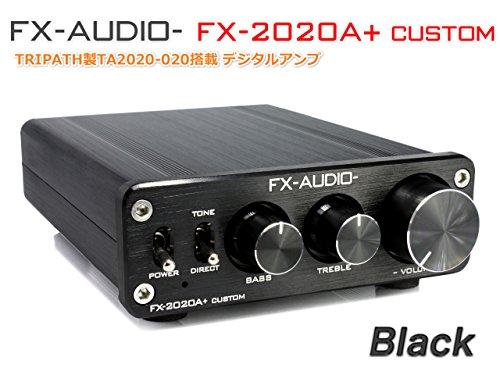

A masterpiece born to surpass the legendary "LP-2020A+ NFJ Special Edition, Ninth Lot"
With capabilities that pay homage to the globally successful LP-2020A, and artwork inherited from the FX202J, this is a thoroughbred of the TA2020 digital amplifier.
Experience the dynamism born from the tone control circuit and the delicate nuances of the TA2020—the beginning of a new legend—in FX-AUDIO-'s masterpiece, the "FX-2020A+ CUSTOM."
【Product Features】

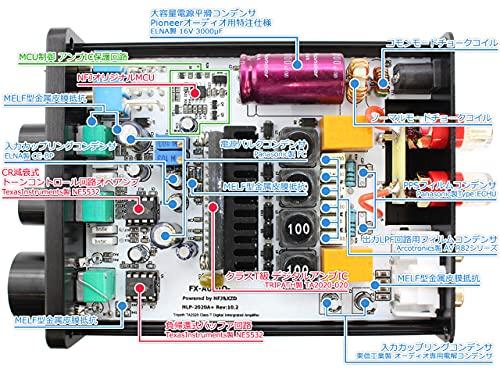

■ Equipped with the highly regarded Tripath "TA2020-020" digital amplifier IC!
■ Uses audio-grade electrolytic capacitors from Toshin Kogyo for input coupling.
■ Uses Vishay MELF-type resistors for the audio line resistors!
■ Uses a closed-magnetic inductor capable of handling high currents in the output LPF stage inductor!
Due to the extremely close spacing between components, a high-current, closed-magnetic-type inductor was adopted to minimize the influence between lines and maintain sensitivity.
■ High-quality metallized film capacitors used in the output LPF stage
Arcotronics/AV R82 250V/0.22μF (Made in Italy) metallized film capacitors are used in the output LPF stage.
■ Custom-made audio power supply smoothing capacitors implemented!
A large-capacity 3000μF (16V voltage rating) custom-made capacitor for audio is installed as the power supply smoothing capacitor.
Capacitors with sufficient capacity to suppress voltage fluctuations are also installed in each section.
■ Power filter mechanism implemented and power line tuning performed!
The power stabilization circuit from the power input to the IC is adjusted in multiple stages to achieve a clean power supply with high responsiveness, providing high-quality sound and powerful output.
■ Because it uses reused ICs, safety measures are taken without fail!
The TA2020 protection circuit improvement, also implemented in the FX202J, has been further enhanced with MCU control for even faster operation. It also addresses the threshold deviation issue that was a weakness of reused TA2020s, ensuring reliable IC protection.
[Notes]
・This product does not include an AC adapter or cable. Please provide your own AC adapter.
【Product Specifications】 Brand: FX-AUDIO-
Product Warranty Period: 6 months from the date of purchase
Digital Amplifier IC: Tripath TA2020-020
Maximum Output: 20W x 2ch (at 12V power input, 4Ω)
Compatible Speakers: 4Ω-16Ω

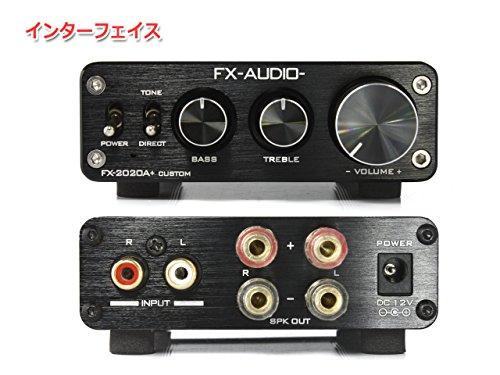

Input Terminal: Stereo RCA terminal (gold-plated)
Output Terminal: 2ch stereo speaker output (gold-plated speaker terminals compatible with banana plugs)
Functions: Tone control function (BASS/TREBLE), Tone direct function
Power Supply: DC12V, 2A or higher (power supply sold separately)
Power Connector: DC jack, outer diameter 5.5mm, inner diameter 2.1mm (center positive)
Accessories: Simple instruction manual

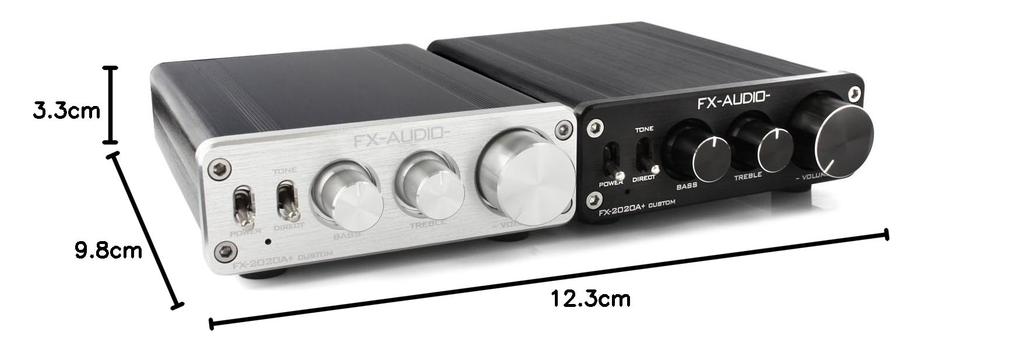

Dimensions: Height 33mm x Width 98mm x Depth 123mm (excluding protrusions)
Weight: 396g
*Specifications and design may change without notice due to improvements, etc.
Equipped with Tripath's 'TA2020-020' digital amplifier IC, achieving a maximum output of 20W + 20W.
Tone control function (BASS/TREBLE) and tone direct function.
Achieve even higher sound quality by replacing the operational amplifier (OPA627 recommended).
High-quality components are used without compromise.
AC adapter required (sold separately). DC12V/2A DC jack 5.5mm x 2.1mm (center positive).
