Sanwa PC700 Digital Multimeter

[Product Infomation] Brand : Sanwa Materials : Plastic, Metal

[Product Description]

This digital multimeter is designed for measuring low-voltage circuits. It can be connected to a PC (optional). It measures 6000 and 9999 counts. It supports true RMS (True RMS).

Measurement Specifications: DCV: 60mV/600mV/9.999V/99.99V/999.9V; ACV: 60mV/600mV/9.999V/99.99V/999.9V; DCA: 600μV/6000μV/60mV/600mV/6A/10A; ACA: 600μV/6000μV/60mV/600mV/6A/10A; Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

Capacitance: 60nΩ/600nΩ/6μV/60μV/600μV/6MΩ/25mF; Circumference: Frequency: 15Hz - 50kHz ● Logic Frequency: 5Hz - 1MHz ● Duty Cycle: 0% - 100% ● Continuity: Buzzer sounds at 20Ω - 300Ω or less, Open-Circuit Voltage: Approx. 1.2V ● Diode Test: Open-Circuit Voltage: Approx. 3.5V ・[General Specifications] ● Display: LCD ● 6000 & 9999 counts ● AC Detection: Average value method ● Built-in Fuse: 11A/1000V 20kA φ10 x 38mm, 0.4A/1000V 30kA φ6.3 x 32mm ● Power Supply: 1 x 6F22 (9V battery) ・● Dimensions/Weight (unit only): H175 x W80 x D40mm / Approx. 360g ● Dimensions/Weight (with holster): H184 x W86 x D52mm / Approx. 430g

Product Introduction

Product Introduction [Features]- Can be connected to a PC (requires option)- 6000 & 9999 counts- Compliant with IEC61010-01, CAT.III 600V, CAT.II 1000V- High-speed response bar graph- Equipped with data hold function and range hold function- Equipped with auto power save function- Measures voltage, frequency, resistance, current values, etc. of electrical circuits using test leads [Specifications]- DCV: 60m/600m/9.999/99.99/999.9V- ACV: 60m/600m/9 0.999/99.99/999.9V; DCA: 600μ/6000μ/60m/600m/6/10A; ACA: 600μ/6000μ/60m/600m/6/10A; Resistance: 600/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ; Capacitance: 60nΩ/600nΩ/6μ/60μ/600μ/6mΩ/25mF; Frequency: 15Hz to 50kHz; Logic Frequency: 5Hz to 1MHz; Duty Cycle: 0% to 100%; Continuity: Buzzer sounds at 20Ω to 300Ω or less Open circuit voltage approximately 1.2V. Diode test: Open circuit voltage approximately 3.5V. Built-in fuse: 11A/1000V IR20kA φ10×38mm, 0.4A/1000V IR30kA φ6.3×32mm. Power supply: 6F22 (9V battery) x 1. Size: 184x86x52mm. Weight: Approximately 430g. Accessories: Test leads, holster. From Amazon: A digital multimeter designed for measuring low-voltage circuits. Not only can it be used to measure small communications devices and home appliances, but it also has a wide range of additional functions that make it effective for various circuit analyses. 9999 count full-scale display. (ACV, DCV, Hz) ● Compliant with international standards IEC6101-01 CAT.III 600V and CAT.II 1000V ● Dual display function allows simultaneous display of "voltage and current values ​​and their frequency" or "AC and DC components of voltage and current" ● Frequency (multiple sensitivity options available) and a wide range of capacitor capacitance measurement functions ● Measurement data can be imported to a PC using the separately sold software (PC Link7) and the USB Optical Link USB PC Connection Cable (KB-USB7). Please read the following notice (disclaimer) carefully. ● Delivery times cannot be specified. Thank you for your understanding. See more

From Amazon

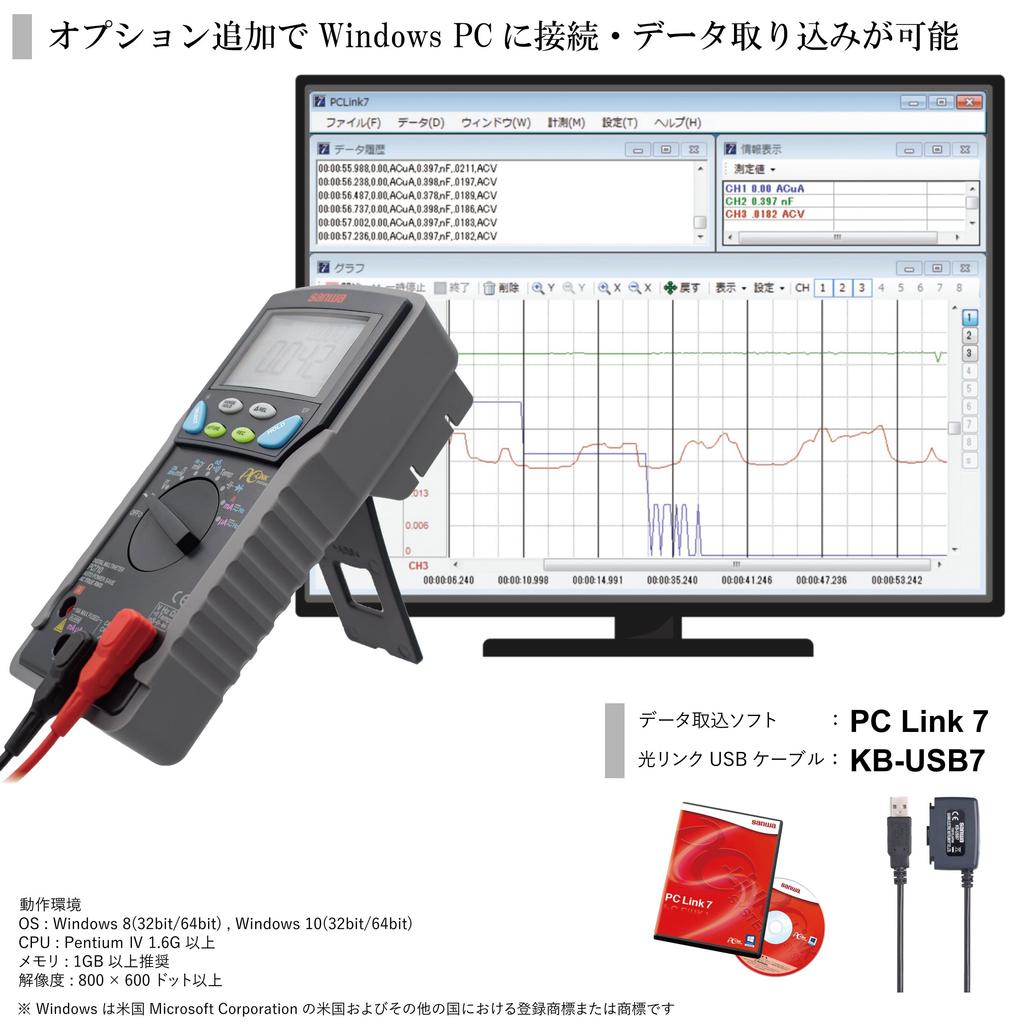

● Digital multimeter designed for measuring low-voltage circuits ● Powerful for measuring small communication devices and home appliances, as well as various circuit analysis applications with its diverse additional functions. ● 9999-count full-scale display. (ACV, DCV, Hz) ● Compliant with international standards IEC6101-01 CAT.III 600V and CAT.II 1000V ● Dual display function simultaneously displays "voltage/current values ​​and their frequency" or "AC and DC components of voltage/current" ● Frequency (multiple sensitivity settings available) and a wide range of capacitance measurement functions ● Measurement data can be imported to a PC using the optional PC Link7 software and the USB Optical Link USB PC Connection Cable (KB-USB7)

[Important Notes - For International Customers]

Thank you for purchasing this product. Please read the following important notes carefully before using this product overseas.

1. Legal and Safety Standards This product complies with Japanese safety standards. Before using this product in your country, please verify compliance with local legal and safety standards. Certain product categories (electronic devices, cosmetics, food, etc.) may require importing country certification.

2. Regarding Electrical Products [Voltage Compatibility] When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V). Using them with a different voltage may cause malfunction.

[Plug Type] Our products use Japanese plug types (Type A or Type B). Please use a conversion adapter if necessary.

[Important Notes Regarding Transformers and Adapters] A transformer adjusts the voltage to match the device's requirements. A conversion adapter only modifies the plug shape; it does not adjust the voltage. Using a conversion adapter without a transformer may damage the product.

[Liability] We are not responsible for any malfunctions or damage caused by improper use, such as operating the product without a transformer.

3. Language and Manual Product instructions and labels may only be in Japanese. You can download the English manual from our website.

4. Product Returns and Exchanges Please note that if you wish to return or exchange a product, you must submit a video of the product being unpacked.
