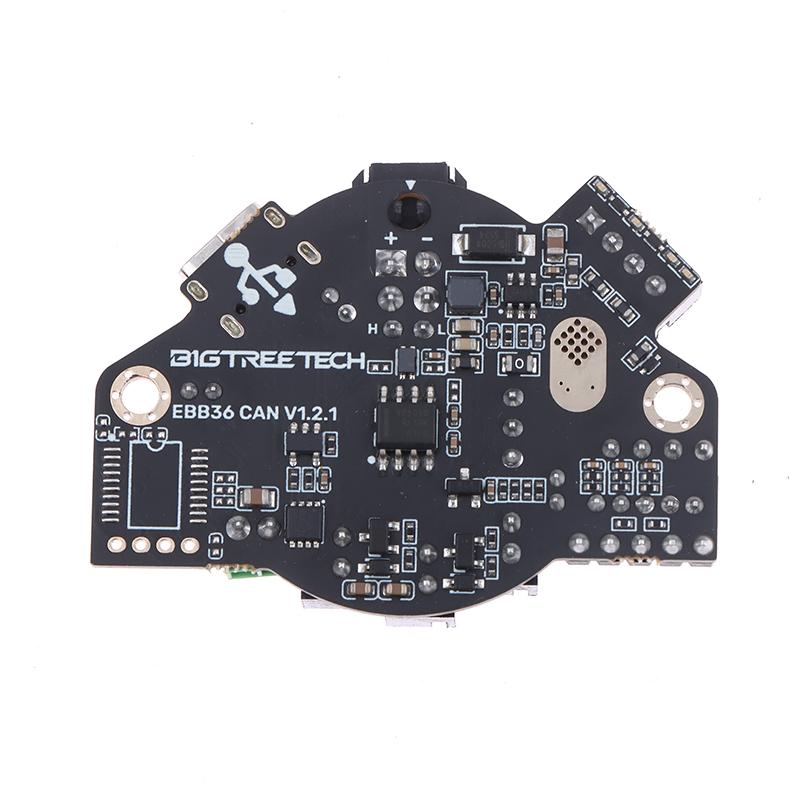

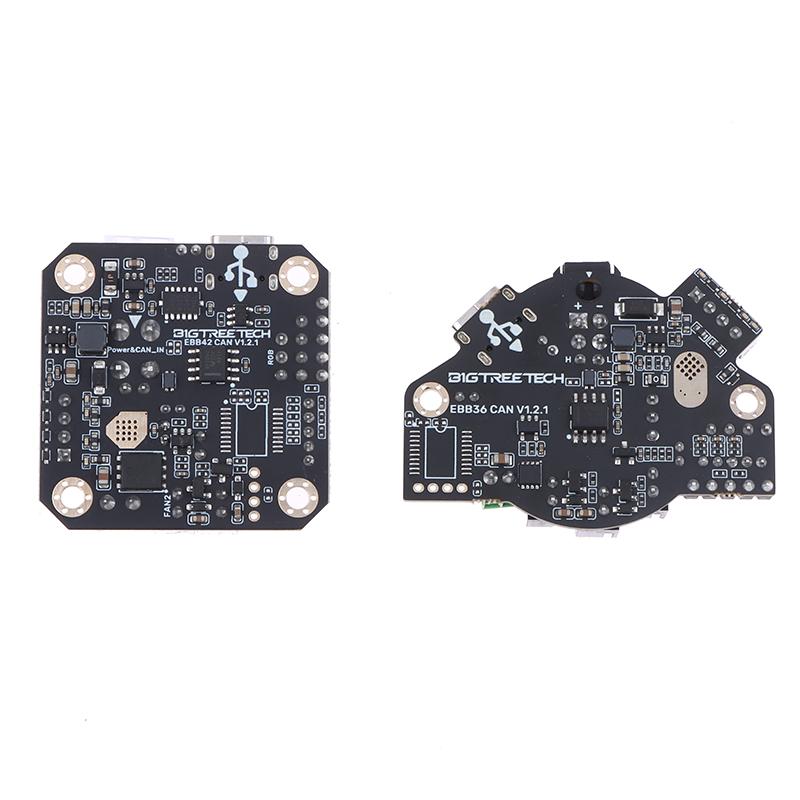

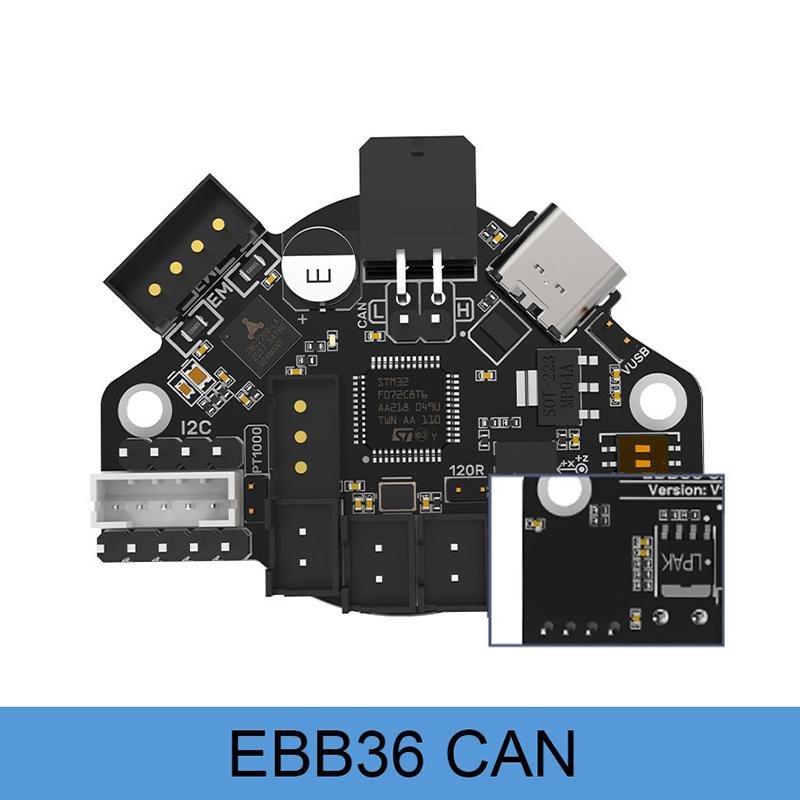

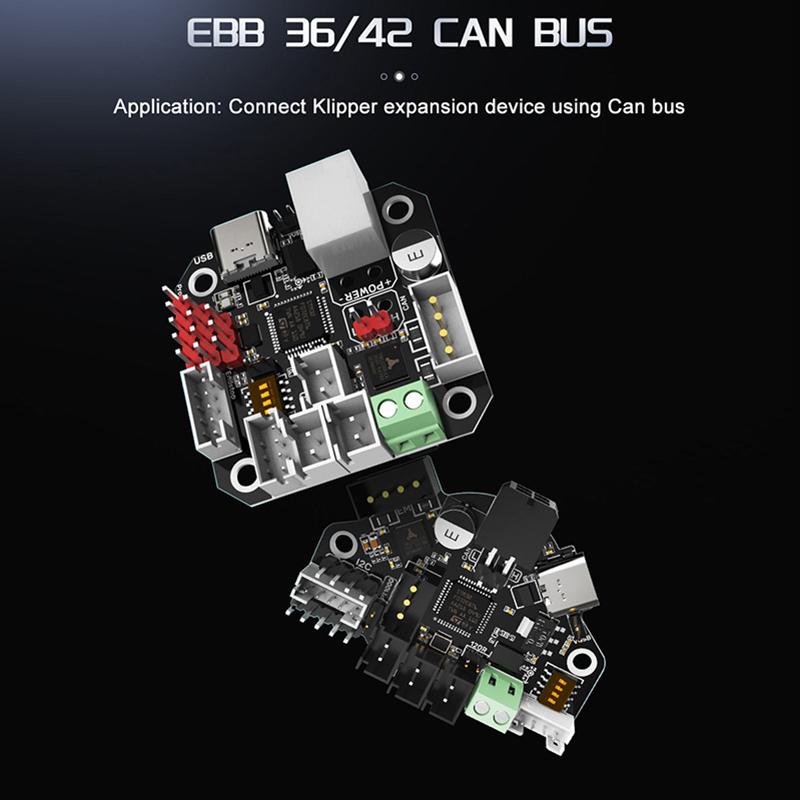

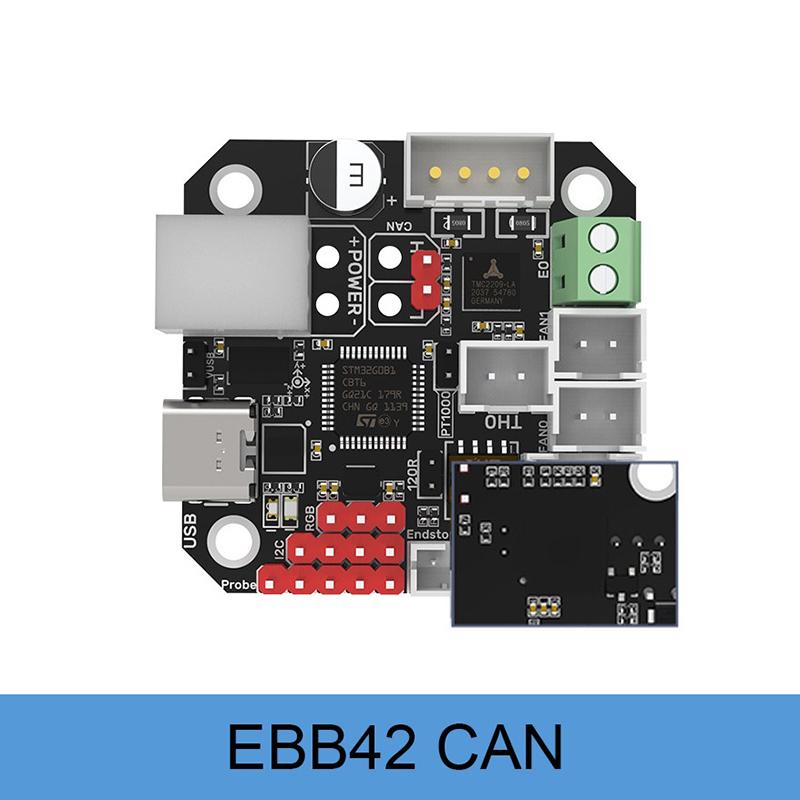

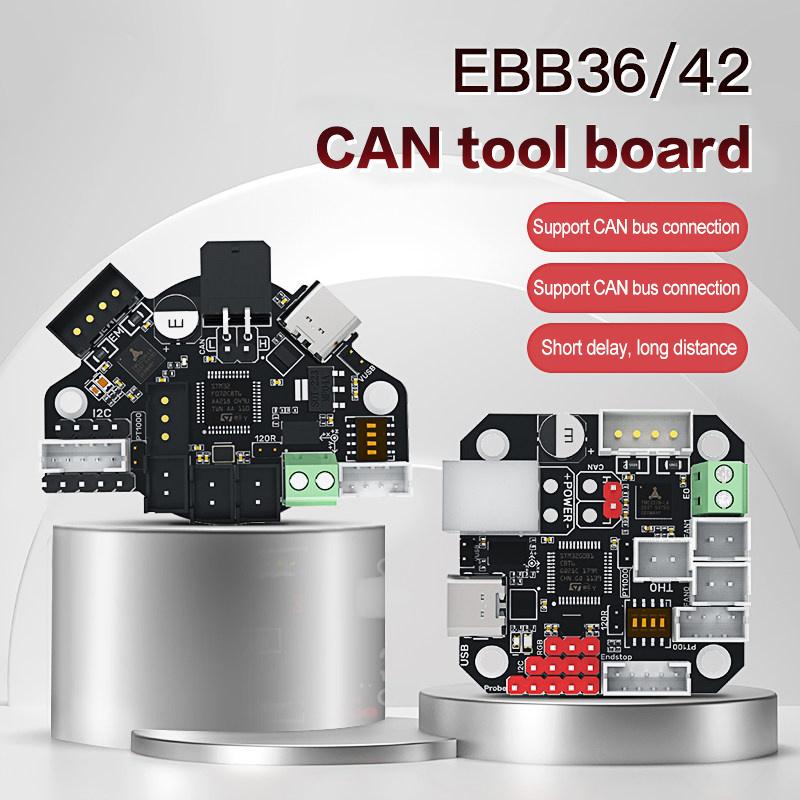

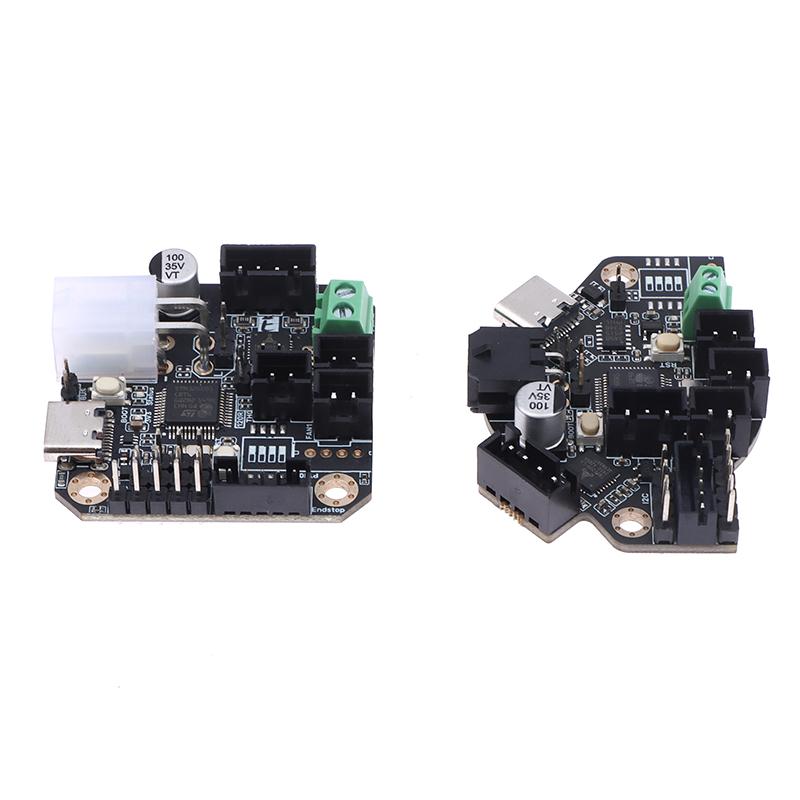

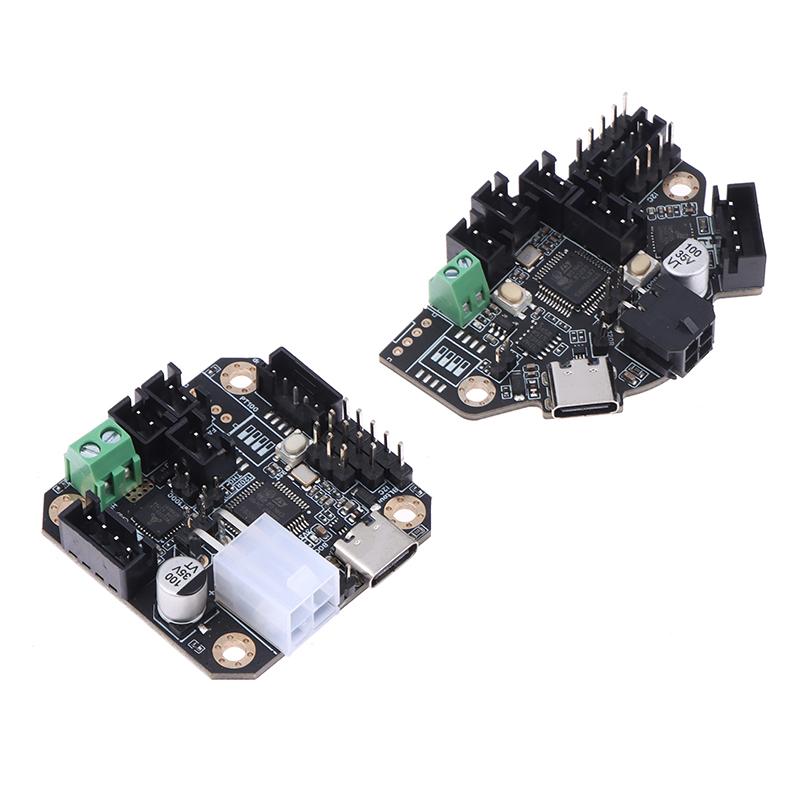

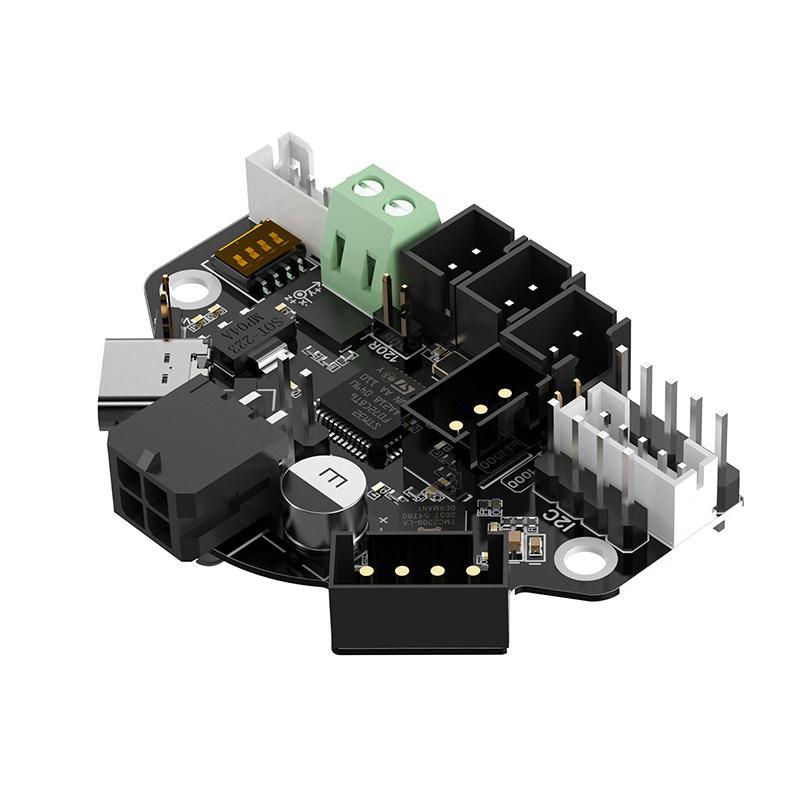

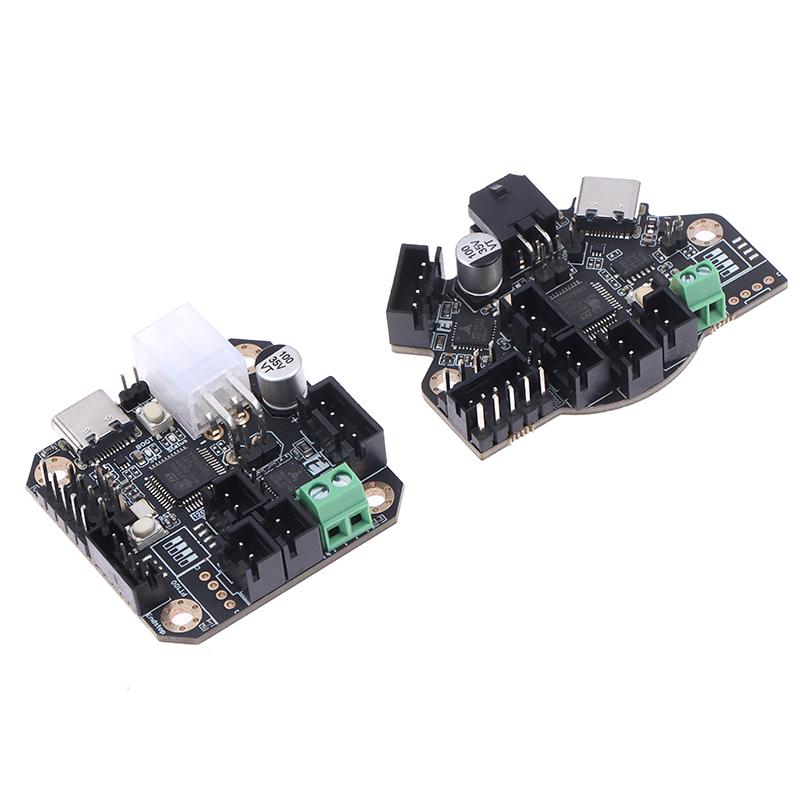

Ebb36 Ebb42 Can V1.2 Board Support Canbus Pt100 For Hotend Head Tool 36 Stepper Motor Ender3 3D Printer Part

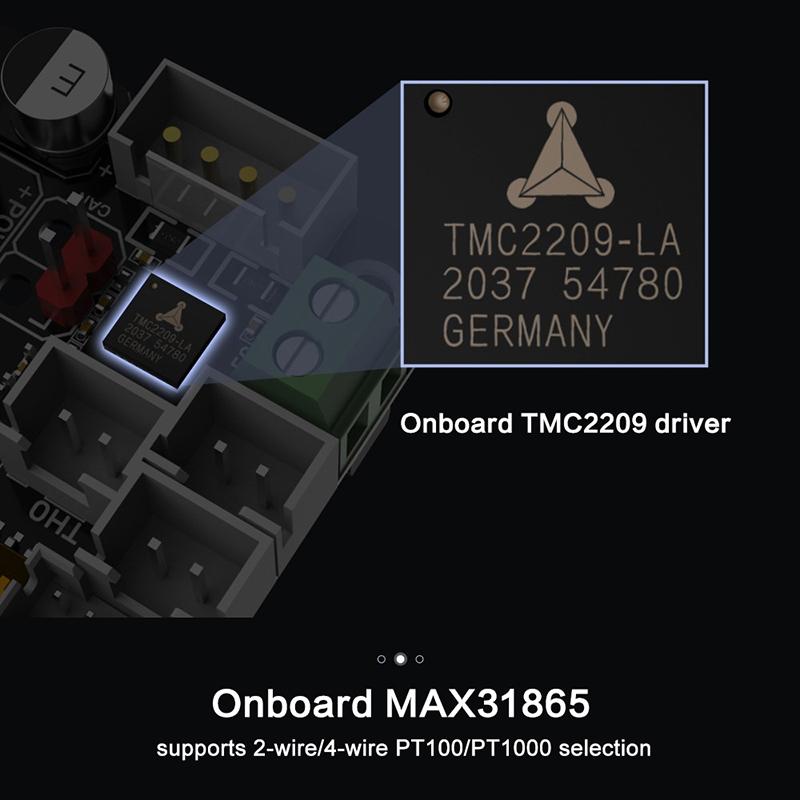

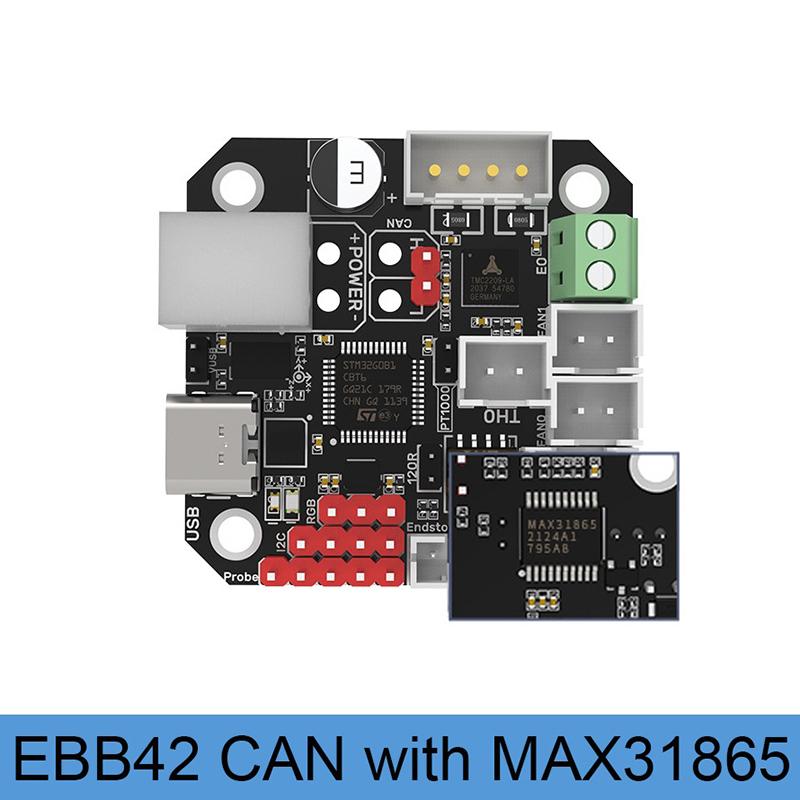

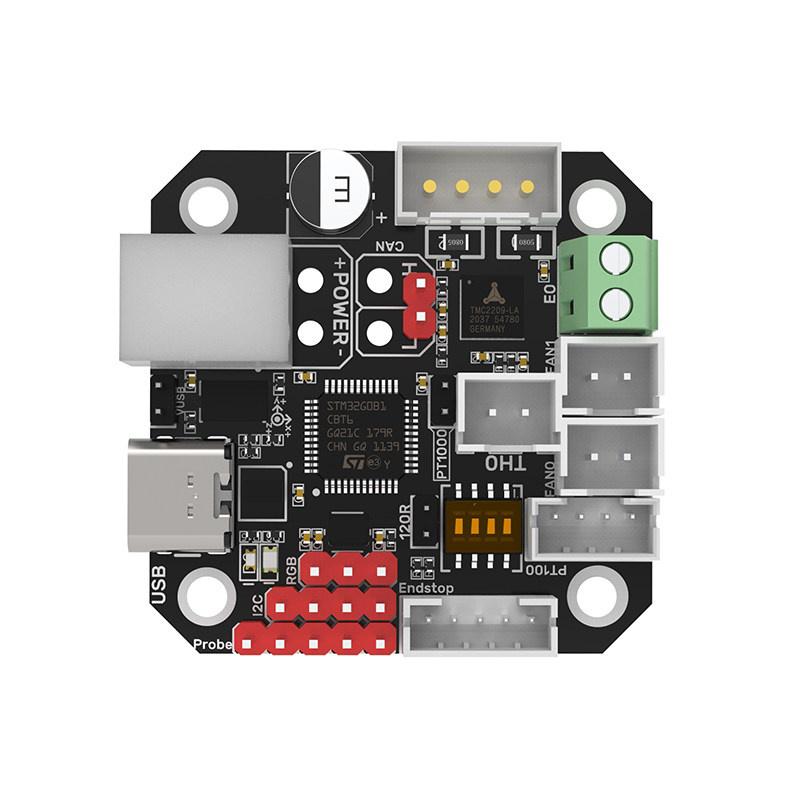

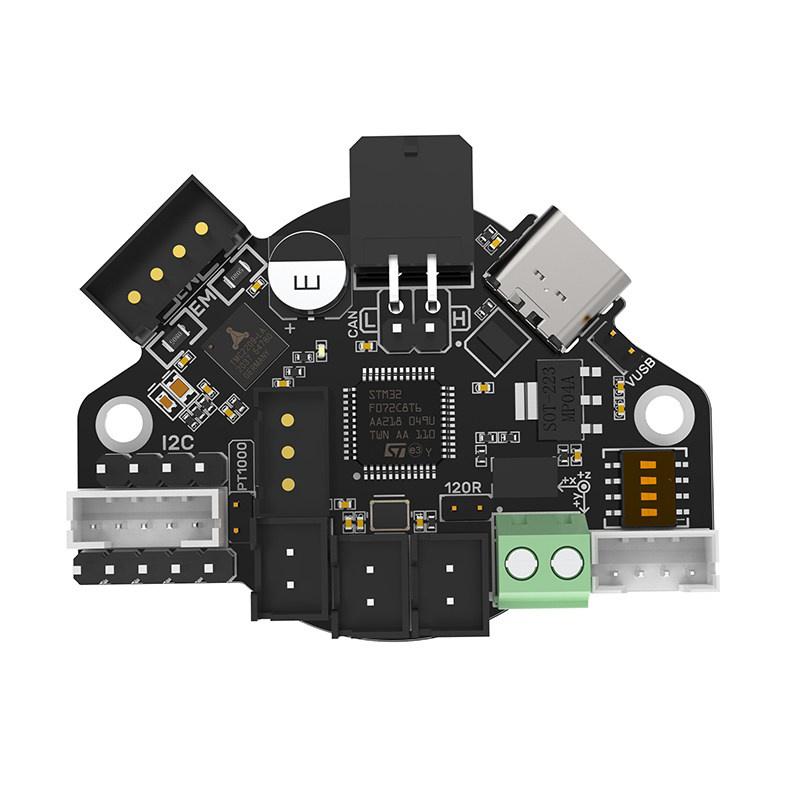

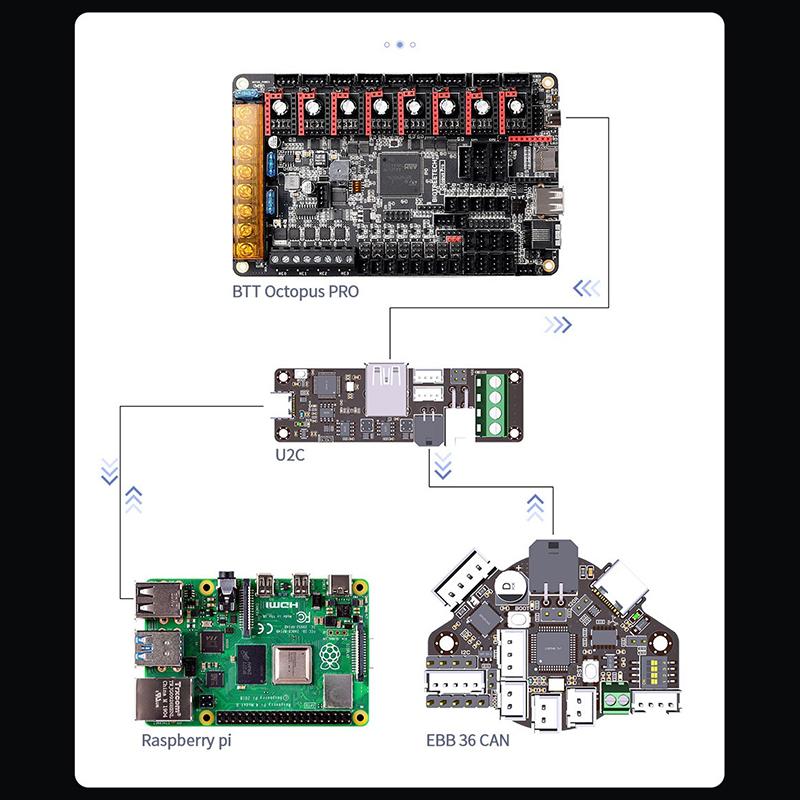

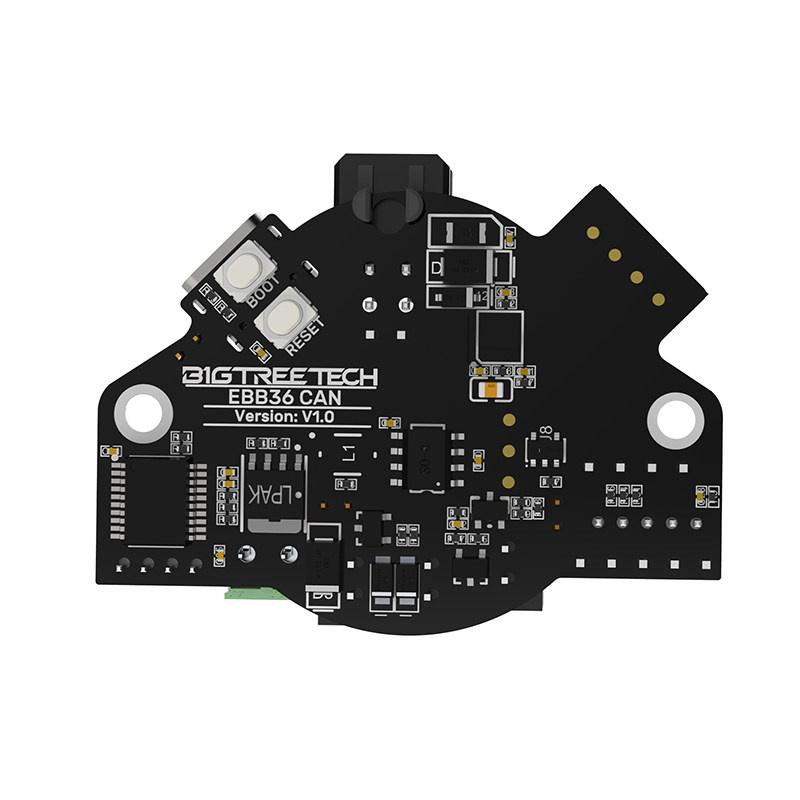

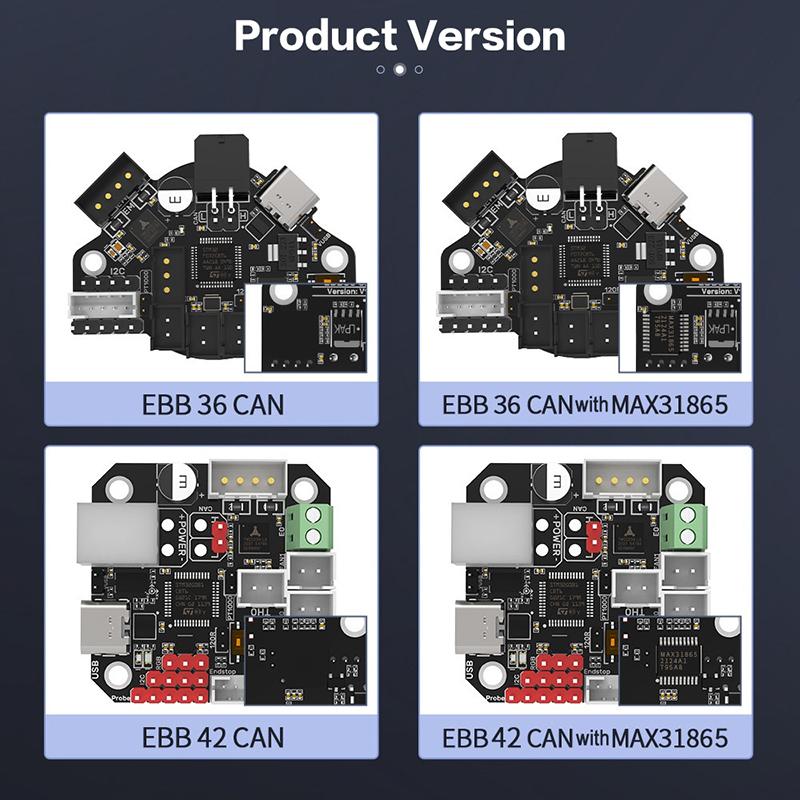

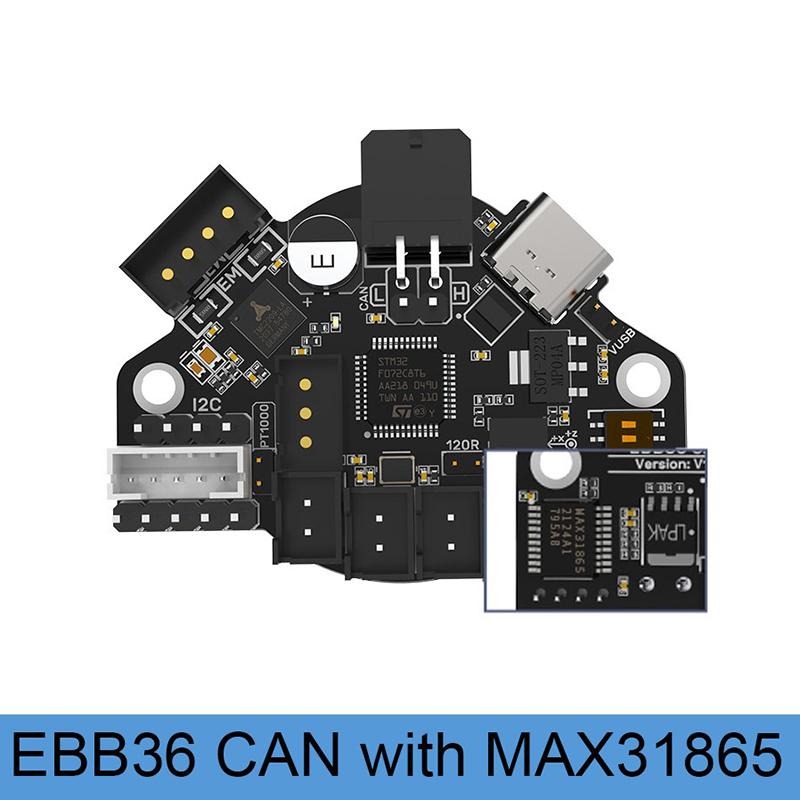

Description: 1. With BOOT and RESET buttons reserved, users can update the firmware via DFU mode by USB. 2. Added protection circuit on the thermistor avoids burning the main control chip caused by leakage current from the heating rod. 3. User can select the thermistor's pull-up resistors values through jumper wire, so as to support PT1000 (2.2K pull-up resistors), which makes it convenient for DIY. 4. Connect the USB witha jumper cap to get it power on, which effectively isolates the main control board DC-DC from USB 5V. 5. Reserved I2C interface allows for filament broke and clogged detection, and supports DIY functions. 6. Added anti-flyback diodes on the heating rod and fans' ports effectively protect the MOS tube from being burned due to reverse voltage. 7. Anti-reverse connection protection on the power interface prevents users from burning the motherboard when mistakenly connecting the reverse power line during DIY. 8. Onboard MAX31865 supports selecting 2-wire or 4-wire of PT100/ PT1000. 9. Supports communication via CAN or USB. The terminal resistor 120R of CAN can be selected throughthe jumper cap, and it reserves CAN expansion interfaces. 10. Equipped ESD protection chip on the USB port prevents the main control board from being broken down by the static electricity of the USB port. 11. The adaptor board is equipped with terminals, female reeds, double-way studs and screws, which are required accessories for DIY, greatly meeting the DIY needs of customers. Introduction of U2C: BIGTREETECH U2C is a USB to CAN bus module, which can convert the USB port of Raspberry Pi to the CAN bus, and connect 3D printing motherboard, BIGTREETECH EBB35/36/42 CAN and products through CAN bus. There are many different forms of CAN interfaces on the board, which are helpful to connect to different boards. CAN bus has many advantages in the field of industrial control, so our company has launched this USB to CAN module. The CAN bus has a long transmission distance, and a large number of nodes can be mounted on it, so the motherboard, EBB, and expansion boards can be mounted on the same CAN bus at the same time. Features: 1.Support CAN bus connection, long data transmission, strong anti-noise ability, strong -time performance and high reliability. 2.The surface of the PCB adopts the ENIG process. 3.The TYPE-C port is equipped with ESD protection to prevent static electricity from damaging the hardware. 4.Support firmware update for the motherboard through SWD or hardware DFU. 5.More than on CAN interface. Specification: Material: Metal Size: As shown in the picture Color: As shown in the picture Package Included:1Pc Note: 1. Please note that the photo does not show actual size please refer to Description for size details. 2. Please allow differences due to manual measurement thanks. 3. Due to the difference between different monitors the image may not reflect the actual color of the item. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
