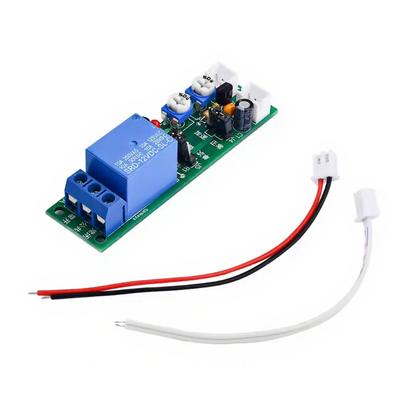

It is a timer relay module with high , stable and performance
Support 2 modes, mon mode(once) and cycle mode, and you can simply mode by adjusting the
There is a wide time range that you can set, both on time and off time are
Features:
It is a timer relay module with high , stable and performance.
Support 2 modes, mon mode(once) and cycle mode, and you can simply mode by adjusting the .
There are many voltage and time range for your choice, both on time and off time are .
It is great to control the reciprocating stroke, or repetitive power on and off for equipment and products burn-in test.
Widely used on timer operating equipment, machine repetitive test circuit, fish intermittent pump, etc.
Specifications:
Type: 5V,0-15minCelsius 5V,0-60minCelsius 12V,0-15minCelsius 12V,0-60minCelsius 24V,0-15minCelsius 24V,0-60min (Optional)
. Load Capacity: 10A250VAC, 10 0V
Size: 70*20mm Celsius 2.75*0.78
Time Error:
T1(the relay turn on delay time),T2(the relay turn off delay time)
Once Mode( OP3):
1. The module Power-on, When triggered the relay is , delay T1, and the relay disconnected.
2. When triggered on the delay process, again triggered, it will immediately interrupt the delay.
Cycle Mode( OP4):
1. The module Power-on, When triggered the relay is , delay T1,and the relay is disconnected, delay T2, the relay is again. Such cycle. T1 and T2 are set by two resistors, respectively.
2. When triggered on the delay process, again triggered, it will immediately interrupt the delay.
How to Set Time Quickly:
Time can be quickly set by measuring voltage(Uc) of resistor. Take a 5V 15min module as example. If Uc=2V, time=2VCelsius5V*15min=6min.
Package Includes: 1 x Timer Relay Module
