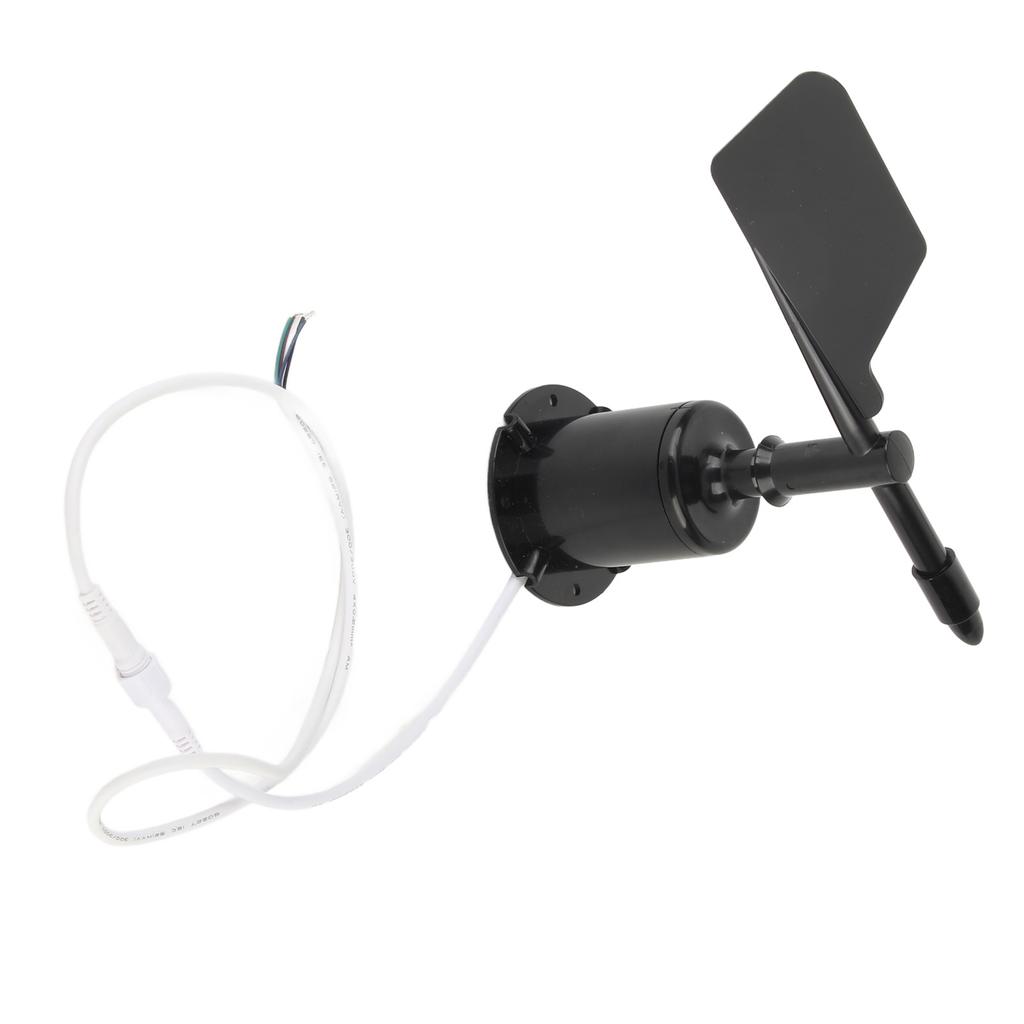

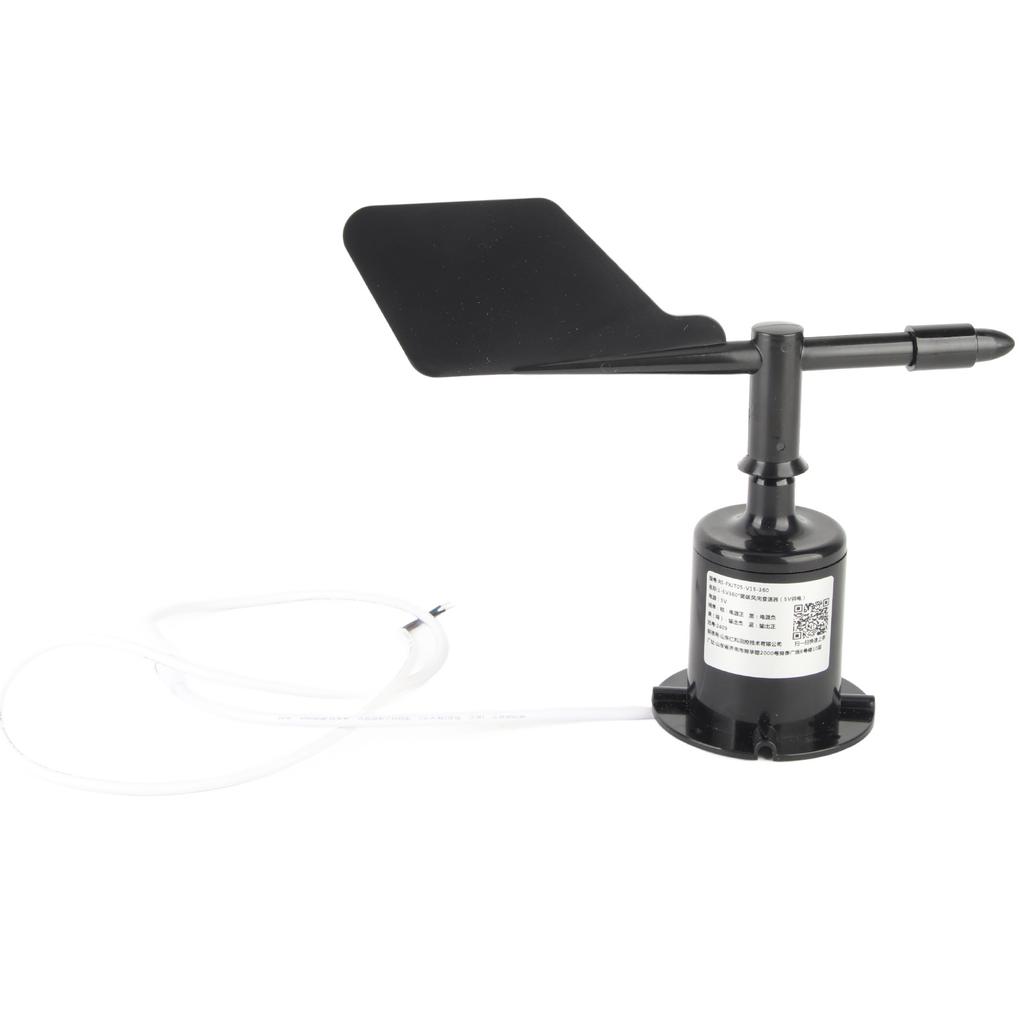

High performance bearings, small rotational resistance, accurate measurement.
Resistance to sun, high resistance, and cooperate with the internal bearing system the accuracy of information collection.
It is widely used in wind direction measurement of greenhouse, environmental , , ship, wharf, aquaculture and other environments.
Condition: Brand New
Item Type: Wind Sensor
: 0-5V 0.7m Patch Cord, 0-10V 0.7m Patch Cord, 1-5V(5V Power Supply), 0-2.5V(5V Power Supply), 0-3V(5V Power Supply)(Optional)
Material: PC
Color: Black

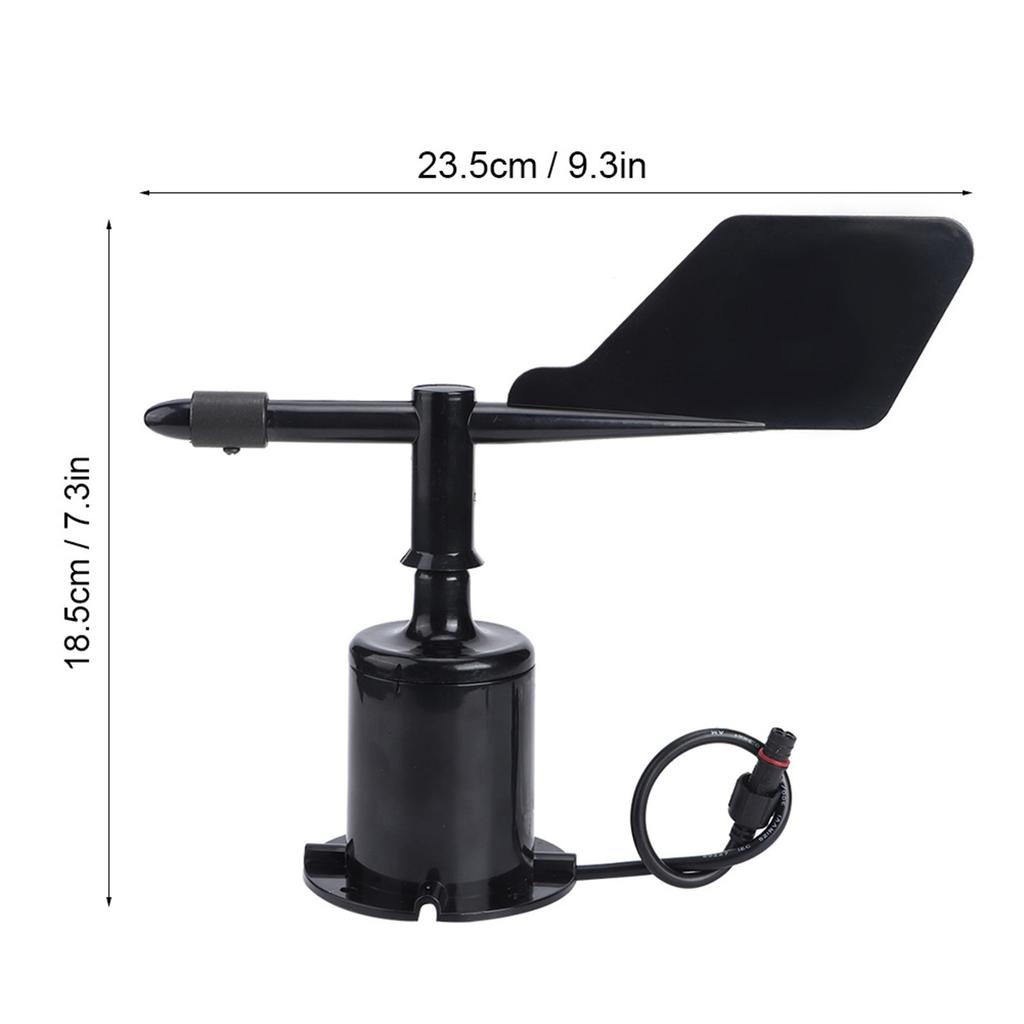

Size: Approx.23.5x18.5cm Celsius 9.3x7.3in
Weight: Approx.313gCelsius11oz
Application: Widely used in wind direction measurement of greenhouse, environmental , , ship, wharf, aquaculture and other environments.
Power Supply (Default): 10.30V
Transmitter Circuit Working Temperature: -20 celsius - + 60 celsius , 0% - 80%
Dynamic Response Speed: less than 0.5s
Power Supply Wiring: Wide voltage 10.30V power input
Electrical Wiring:
Wire color Description
Power supply Brown Power positive
Black Power negative
Output Blue Wind direction signal positive
Green Wind direction signal negative Common Problems and Solutions:
Symptom: No output or output error
Possible Reason:
1) PLC calculation error caused by incorrect range measurement. Please refer to the technical specifications in Part 1 for the measurement range.
2) The wiring is incorrect or the wiring is wrong.
3) The power supply voltage is incorrect.
4) The distance between the transmitter and the collector is too , causing signal disturbance.
5) The PLC acquisition port is damaged.
6) The equipment is damaged.
