This is an ATX motherboard featuring the Intel B860 chipset and compatible with Intel Core Ultra processors (Series 2).
●Form Factor: ATX
●Chipset: Intel B860
●CPU Socket & Supported CPUs: LGA1851, Intel Core Ultra (Series 2)
●Memory Sockets: 4x DDR5 UDIMM
●Supported Memory: DDR5 9200 XMP3.0 compatible
●Expansion Slots: 1x PCIe5.0 x16, 2x PCIe4.0 x16
●Storage: 3x M.2 (1x PCIe5.0x4, 2x PCIe4.0x4), 4x SATA3
●Video Output: 1x Thunderbolt 4 Type-C, 1x HDMI (2.1), 1x DisplayPort (1.4)

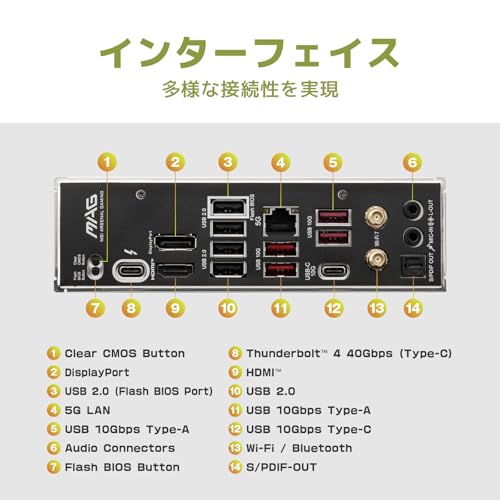

●USB (Rear): 1x Thunderbolt 4 Type-C, 1x USB3.2 Gen2 Type-C, 4x USB3.2 Gen2 Type-A, 4x USB2.0 Type-A
●USB (Front): 1x USB3.2 Gen2 Type-C, 2x USB3.2 Gen1 Type-A, 4x USB 2.0 Type-A
●Sound: 7.1ch HD Audio Codec
●Network: Wired LAN 1x 5GbE, Wireless LAN Wi-Fi 7, Bluetooth 5.4
●Supported OS: Windows 11 64bit
●Accessories: Quick Installation Guide, WiFi Antenna, EZ M.2 Clip II, EZ M.2 Clip II Remover, 1to2 EZ Conn-Cable (V1), EZ Front Panel Cable, SATA Cable
MB6681 Authorized Japanese Distributor Product, 3-Year Warranty
Equipped with an Intel B860 chipset, supporting Intel Core Ultra Processors (Series 2) CPUs and APUs. Supports DDR5 memory, enabling the creation of a high-speed system environment.

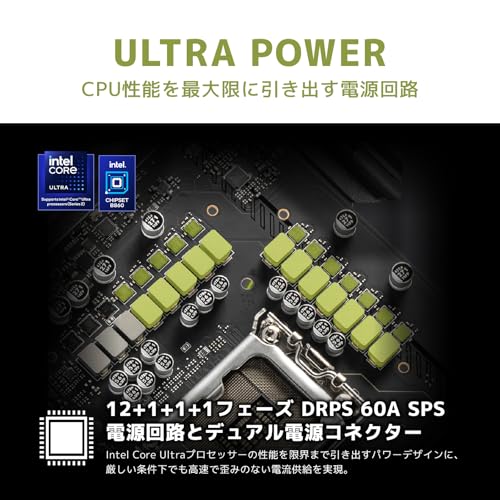

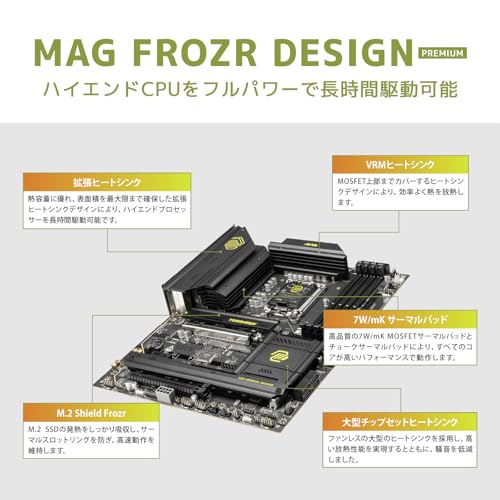

Equipped with a powerful 12-phase 60A SPS power circuit and a large VRM heatsink, it fully utilizes the performance of the latest CPUs.
It features Thunderbolt 4 Type-C, Wi-Fi 7 module, and 5G LAN, enabling high-speed and stable communication.
It supports four DDR5 memory slots and can achieve high-speed transfers of 9200+ MT/s when overclocked.
