Installation and operation instructions are available on our official video website.
This digital lock features a user-friendly design, includes only essential functions, and offers excellent cost performance.
It includes a vertical indoor unit and a set of three emergency release keys!

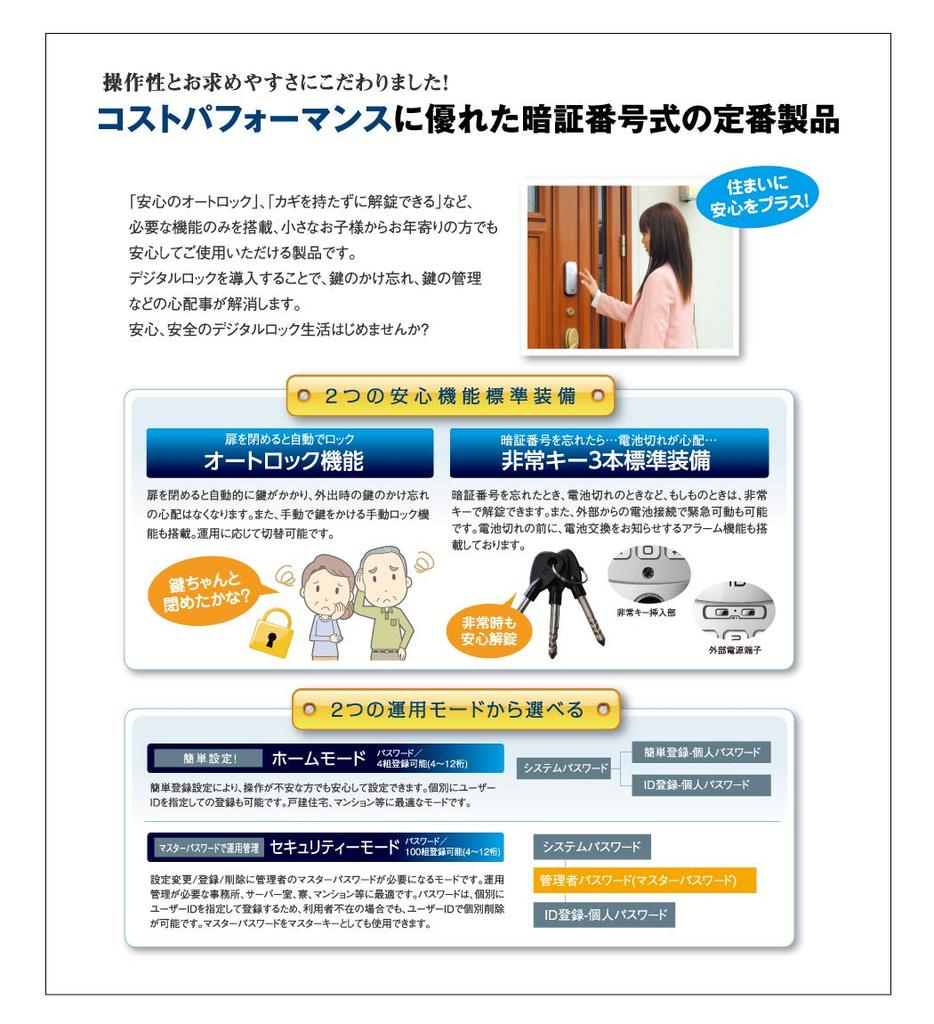

Even more convenient and easy to use! A standard PIN code lock product.

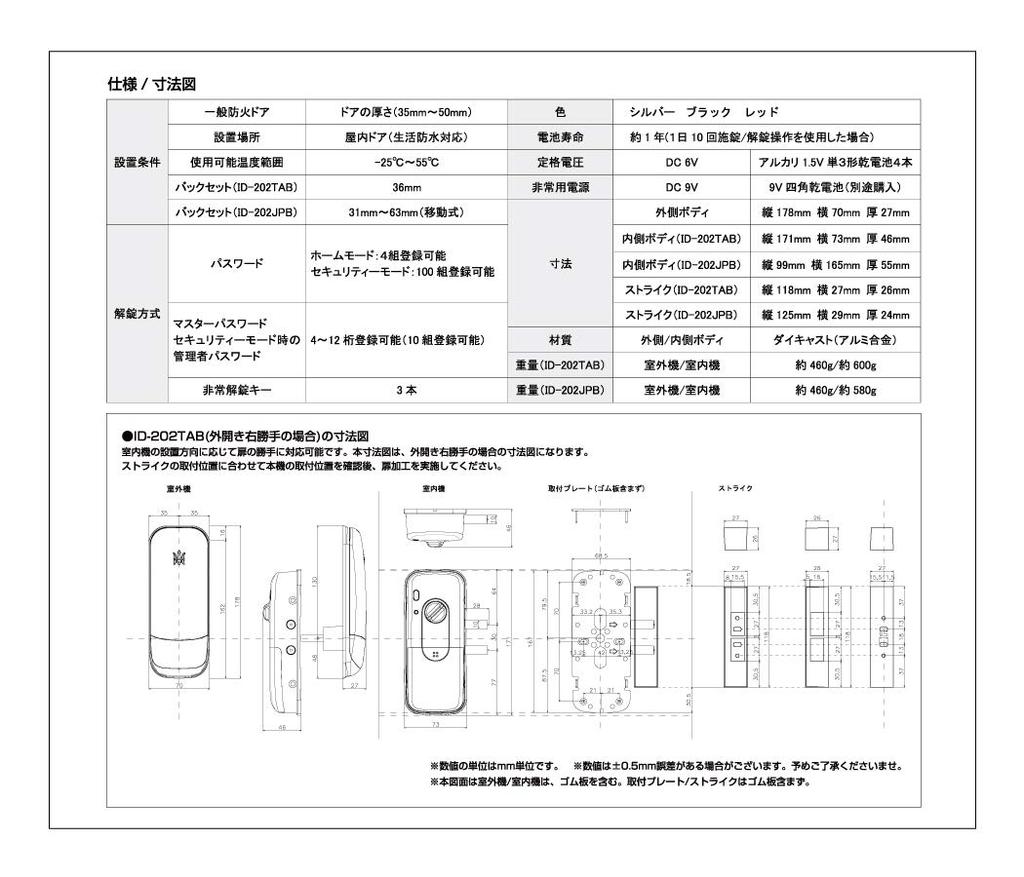

■Dimensions
Outdoor unit: 178mm (H) x 70mm (W) x 27mm (D)
Indoor unit: 171mm (H) x 73mm (W) x 46mm (D)
Strike plate: 118mm (H) x 27mm (W) x 26mm (D)
■Specifications
Installation Requirements
Backset: 36mm
Door thickness (35mm-50mm)
Indoor door (waterproof)
Operating temperature range: -25℃ to 55℃
■Unlocking Method
◯Password (4-12 digits)
Home mode: 4 passwords can be registered
Security mode: 100 passwords can be registered
◯Emergency release key
*Requires drilling holes in the door.
*Please be sure to check if this product can be installed on your door before purchasing.

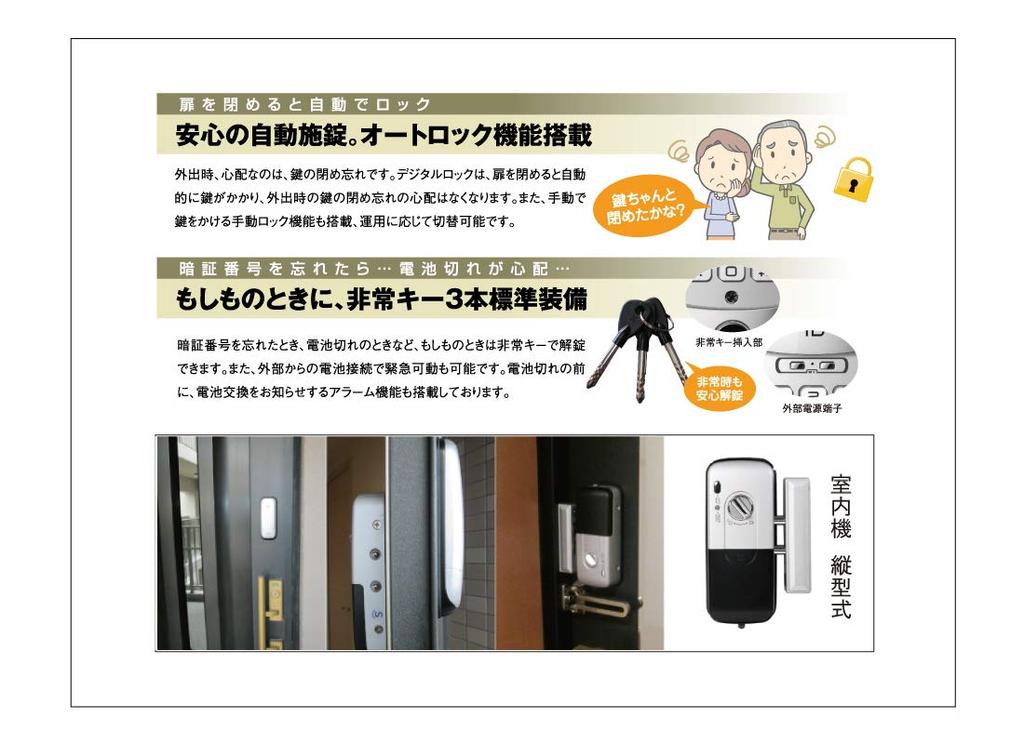

Automatic lock function when the door is closed
Cost-effective combination lock

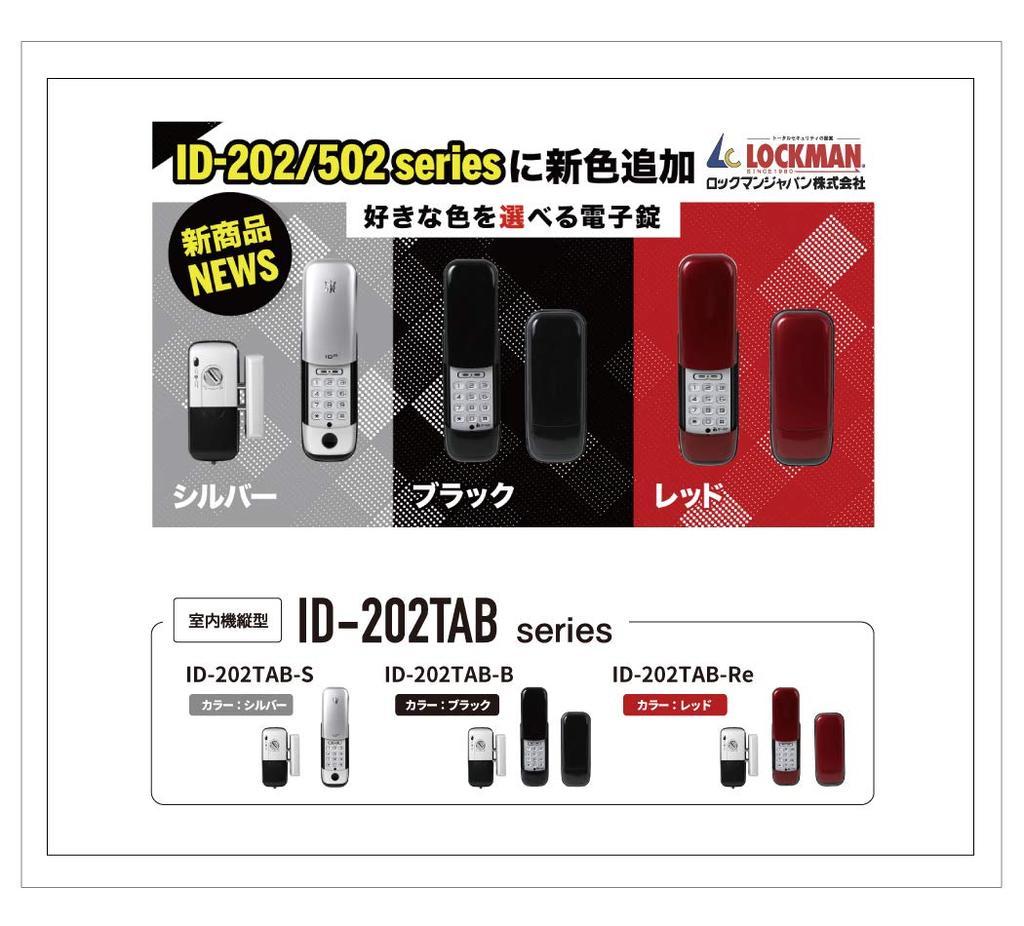

Indoor unit vertical type: Indoor unit size 171 x 73 x 46 mm
Equipped with 3 emergency unlocking keys as standard for use in emergencies
Unlocking method: Combination lock / Emergency key
