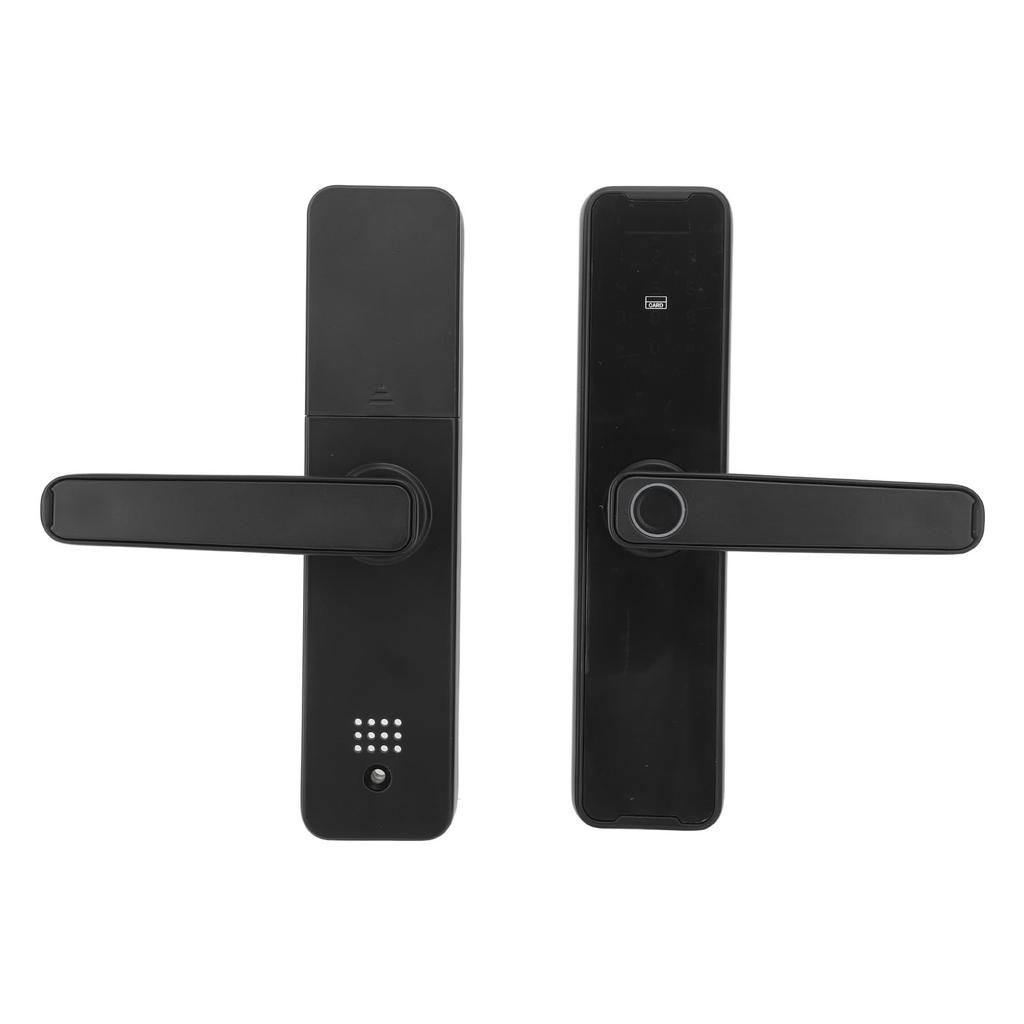

ZJchao Intelligent Smart Waterproof Design Fingerprint Lock Swipe Card Key Password Electronic Lock for Wooden Doors with Handle Fingerprint Lock Elec

1. Thoroughly Tested: The smart lock has been tested for high and low temperatures, vibration, and aging, making it suitable for harsh environments. 2. Power-On Self-Test: Intelligent recognition function module, quick option functions such as fingerprint, password, and swipe card. 3. Add and Remove Users: Adding and removing users employs an easy-to-use number-based management system. 4. Fingerprint Card Password Electronic Lock: Doors can be opened using fingerprints, cards, or passwords. 5. Waterproof Design: The intelligent fingerprint lock is waterproof and moisture-proof.

Spec: Item Type: Intelligent Lock Product Material: ABS, Aluminum, Stainless Steel Weight: Approx. 1641g / 3.6 lbs Power Supply: 4.5V-6.5V (4 x AAA batteries) (Shipped without batteries) Normal Static Current: ≤55 microamperes (Battery life may exceed 1 year) Operating Current: ≤250mA (Powerful operating capability) Number of Door Opening Fingerprints: ≤500 Number of Door Opening Cards: ≤100 Number of Door Opening Passwords: ≤100 Number of Door Opening Remotes: ≤9 Resolution: 500 DPI Rejection Rate: ≤0.15% False Recognition Rate: ≤0.00004% Operating Temperature: -10℃ to 60℃ Relative Humidity: 20% to 93% Applications: Doors, PVC Doors, Metal Doors

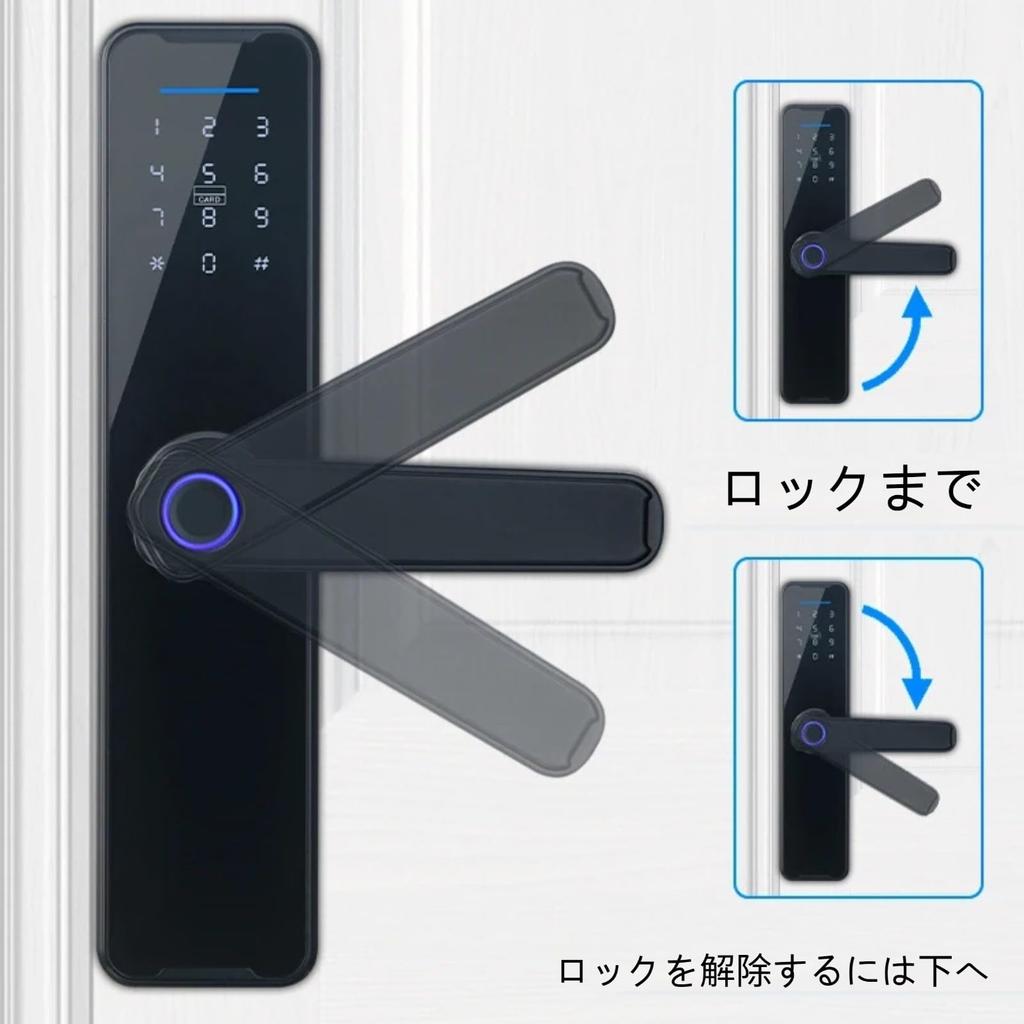

How to Use: Determining the direction the door opens: Stand outside the door and facing the door: Left-side door hinges open to the left, right-side door hinges open to the right. When installing, adjust the orientation of the handle and tongue to match the direction the door opens. When installing a lock body that reverses direction, the angled tongue should be at the top and the corner tongue at the bottom, with the angled surface of the angled tongue facing the closing direction. Otherwise, you will need to adjust the direction of the angled tongue. The adjustment method is as follows: 1. Place the lock body with the tongue tilted downwards. (Figure 2) 2. Firmly push the angled tongue under the side plate and rotate the limit block 180° downwards. (Figure 2) 3. Push the angled tongue into the hole in the angled tongue. (Figure 3)

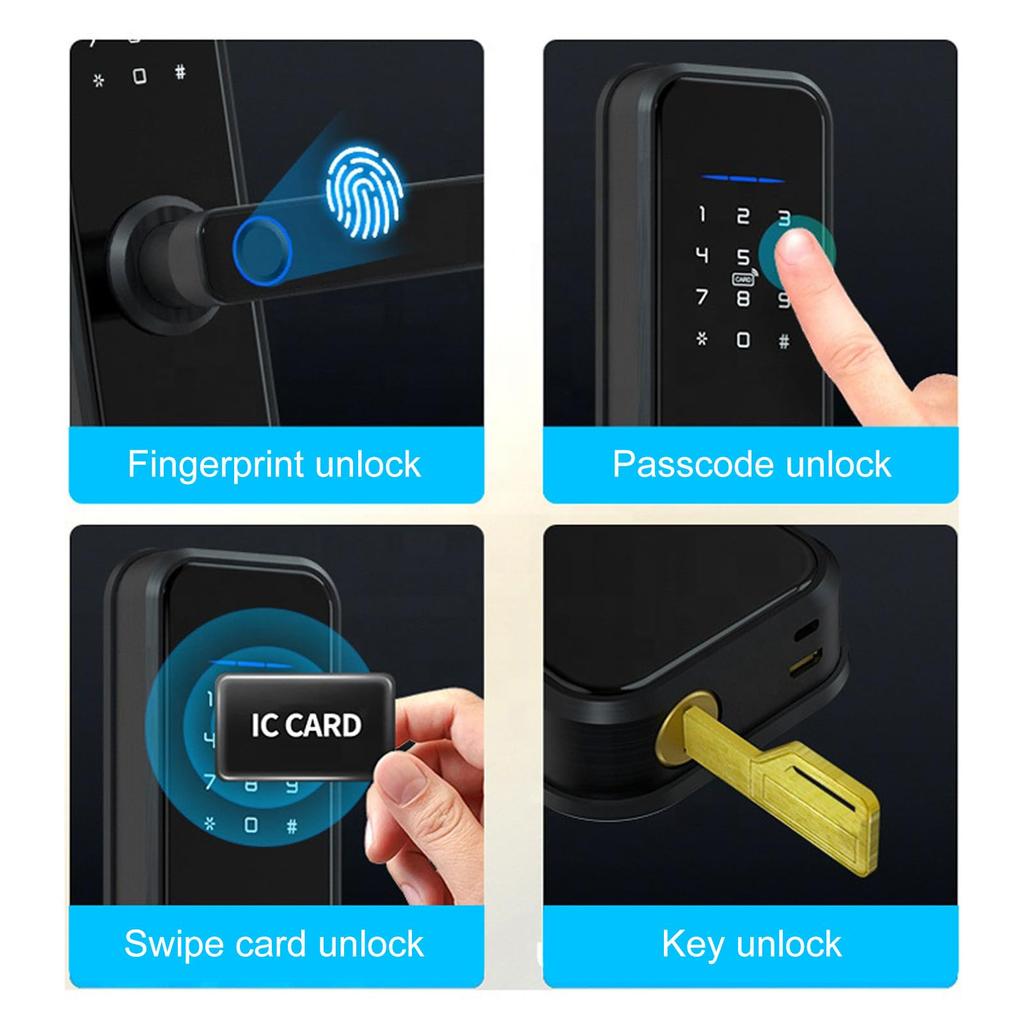

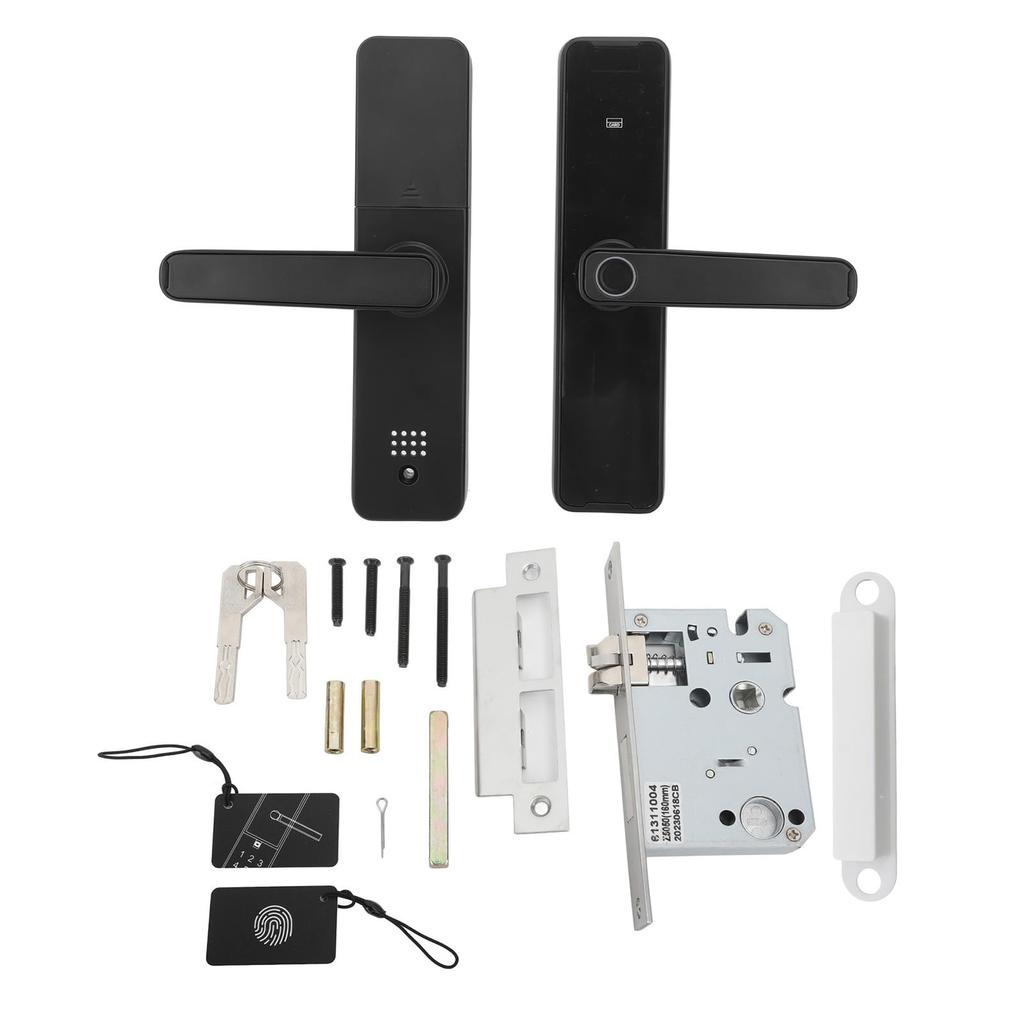

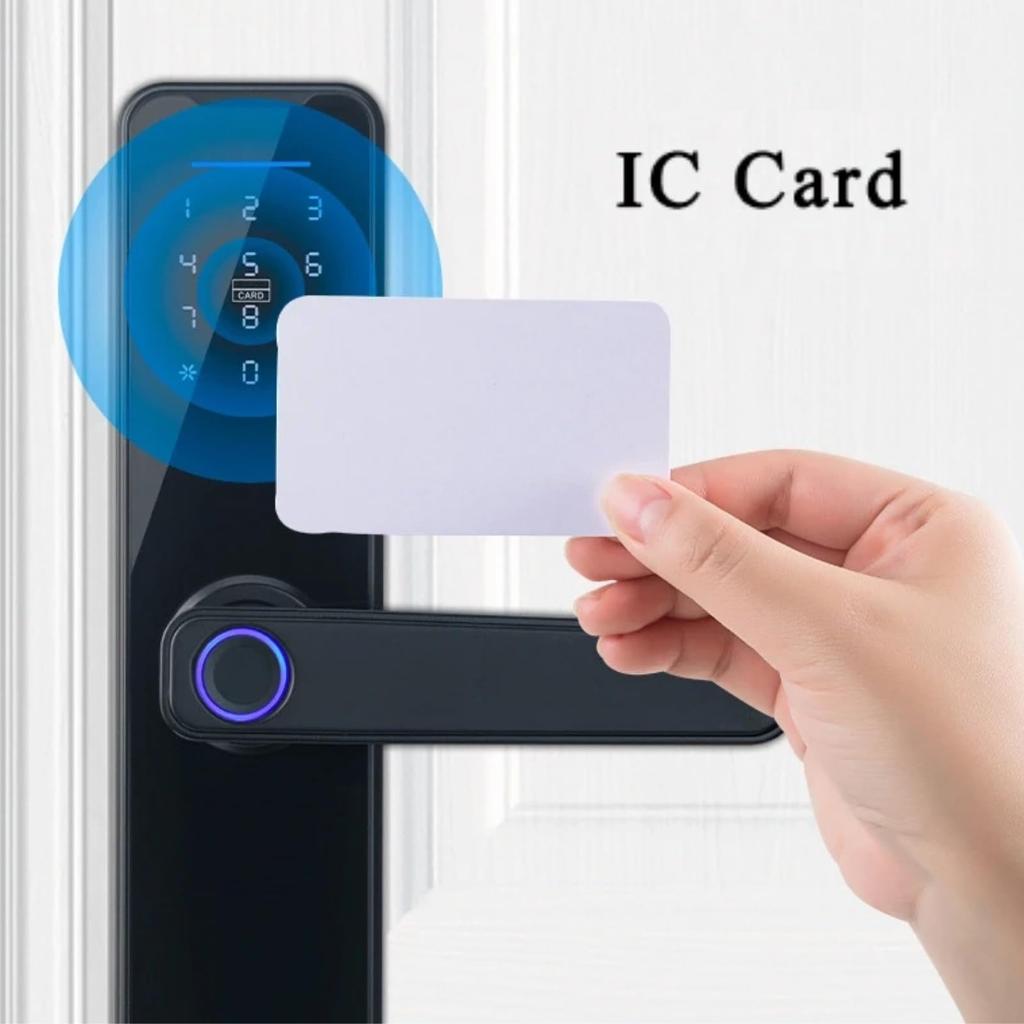

Package List: Smart Door Handle x 2 Manual x 1 Cardboard x 1 Locking Tongs x 1 Keys x 2 Screws x 4 Accessories x 6 IC Cards x 2 Waterproof Design: This intelligent fingerprint lock is waterproof and moisture-proof. Fingerprint Card Password Electronic Lock: Allows you to open doors using fingerprints, cards, or passwords.

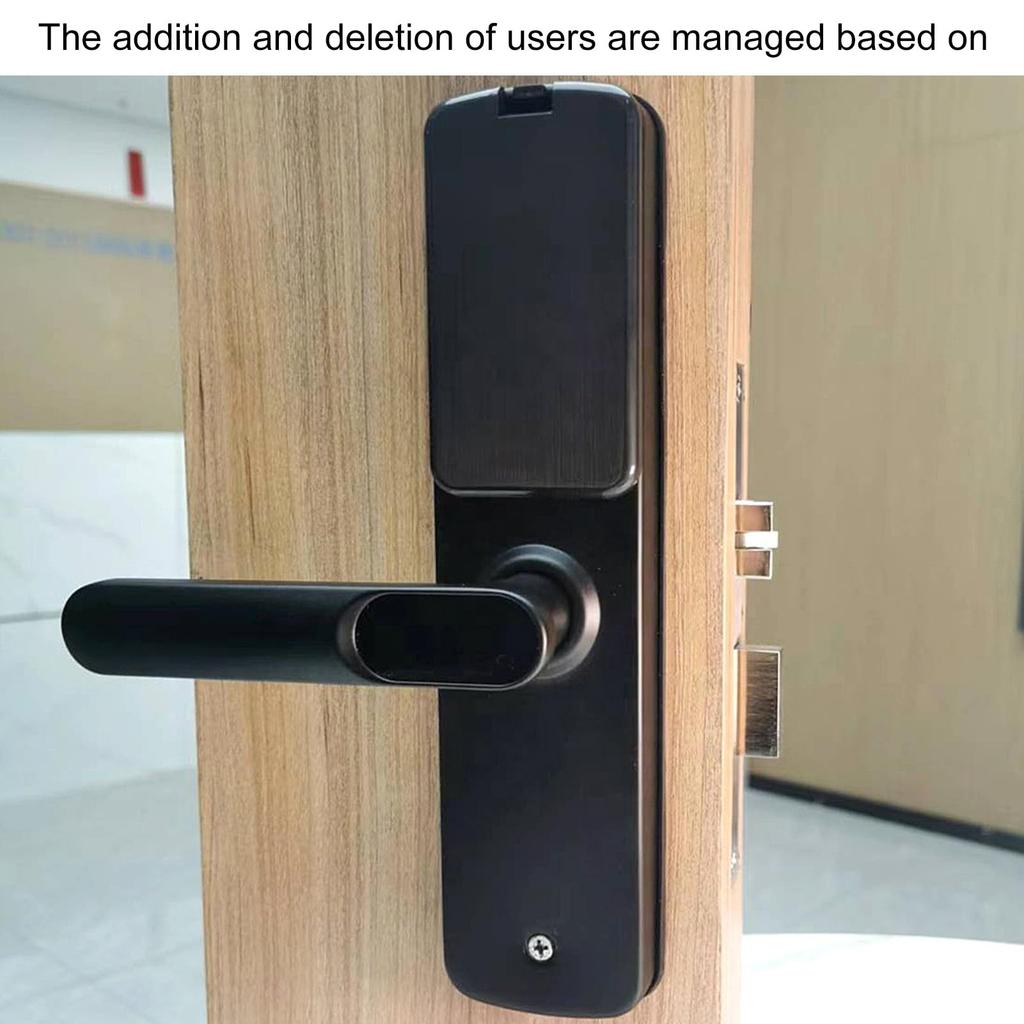

Adding and Removing Users: User addition and removal employs an easy-to-use number-based management system.

Intelligent Smart Fingerprint Lock for Wooden Doors, Swipe Card Key Password Electronic Lock. Adjustable accessories can be fitted to accommodate various thicknesses of glass doors, frameless/framed glass doors, single/double doors, and left/right doors.

Thoroughly Tested: This smart lock is tested against high and low temperatures, vibration, and aging, making it suitable for harsh environments. It boasts superior durability with ultra-low energy consumption, long battery life, and a reserved USB emergency charging interface.

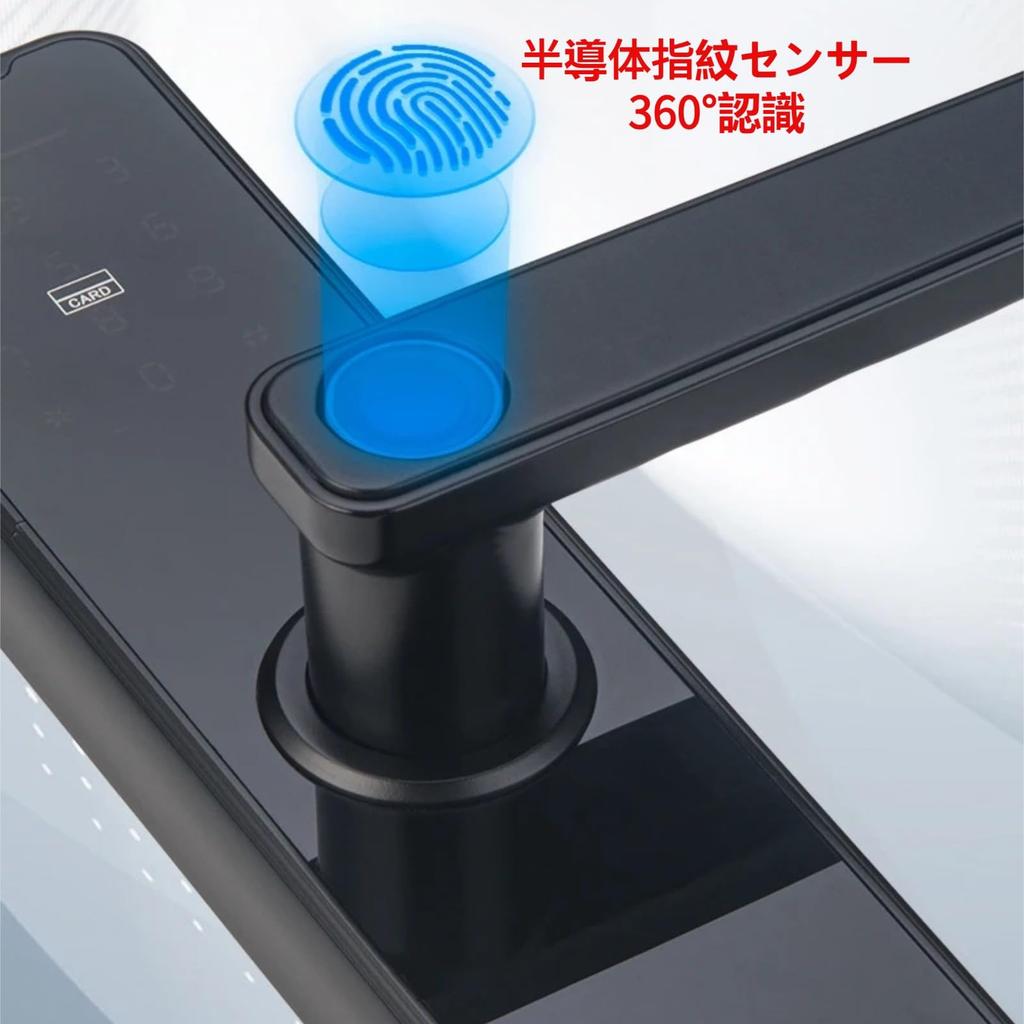

Power-On Self-Test: Smart lock with handle, intelligent recognition function module, and quick options such as fingerprint, password, and swipe card.
