■Product Introduction

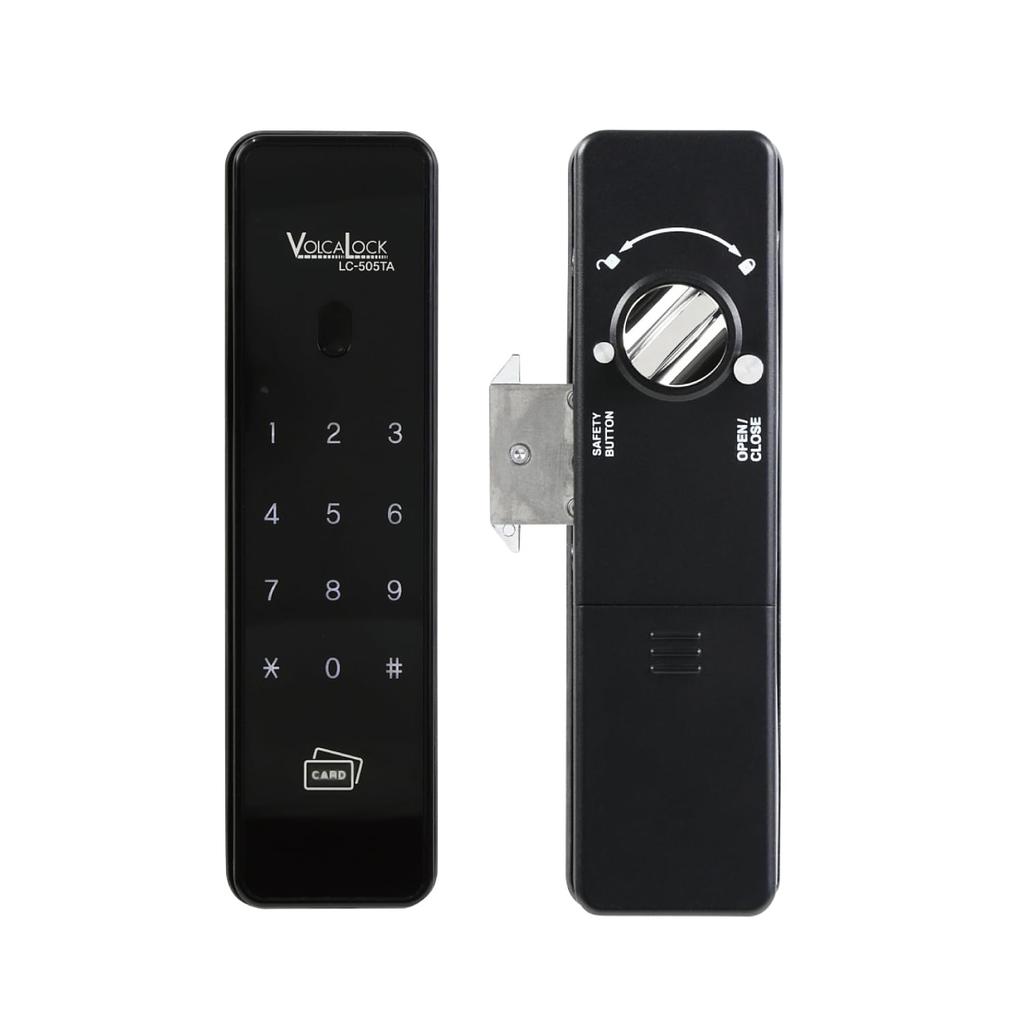

The LC-505TA series, equipped with a history function, comes in two types: the "LC-505TA-H" for sliding doors and the "LC-505TA-D" for inward-opening and outward-opening doors.
This battery-operated auto-lock system offers cost-effective solutions for security, information leakage prevention, key management, and unauthorized duplication prevention.
Unlocking and locking history can be downloaded via USB, eliminating the need for an internet connection and monthly running costs.
While door modification is required, no electrical or wiring work is necessary for installation.
With the increasing popularity of "auto-lock" and "unlockable with cards/PINs,"
this electronic lock is simple and practical, designed with only the essential elements for customers, without complex operations or functions.
Card key information registered in the unit can be copied to other units via USB memory. It is also recommended for use with multiple units.
The LC-505TA-H uses a "snap deadbolt" lock for sliding doors, while the LC-505TA-D uses a "long deadbolt" lock for inward-opening and outward-opening doors. Please select the model according to your door type.
Please feel free to contact us for product details and installation instructions.
■Features
○Unlocking Method: PIN code, card (Mifare/Felica), emergency key, external input
○Two models available: "LC-505TA-H" for sliding doors and "LC-505TA-D" for hinged doors only
○Automatic locking function when the door is closed

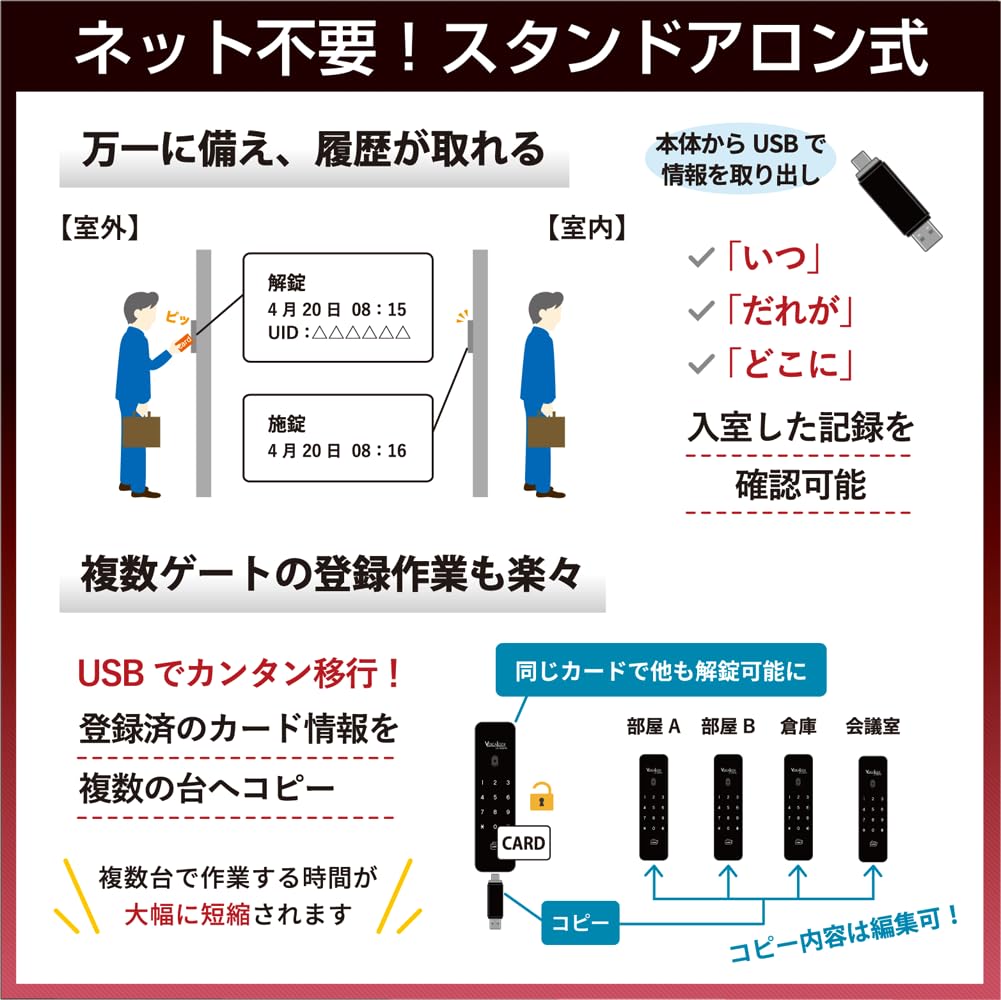

○No internet required! "History confirmation" and "data transfer" are possible using a USB memory stick
○Easy setup "Home Mode" and administrator privilege "Security Mode"
○Manual lock function and continuous unlocking function available for use in stores, etc.

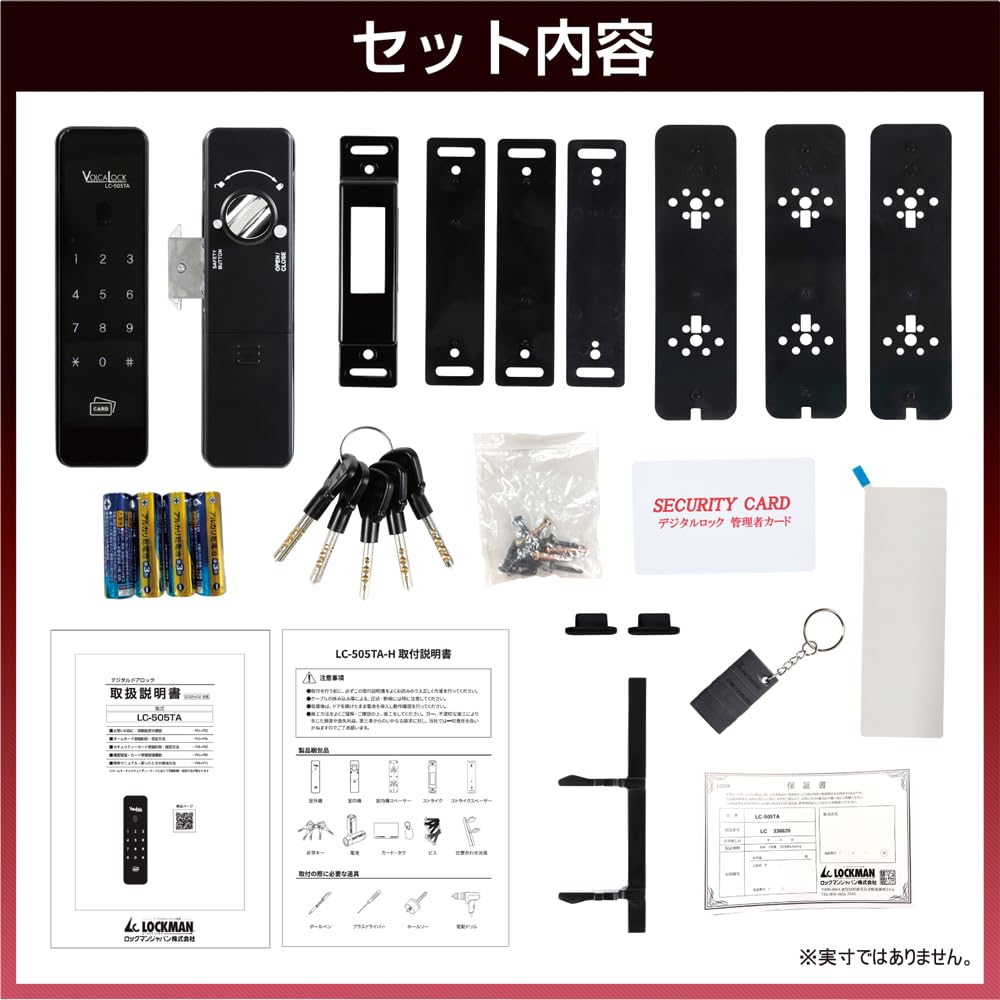

○Five emergency keys included as standard for unlocking in emergencies
○Various convenient functions such as silent mode and battery low notification function
*Please check our website for detailed information on functions.
■Applications
○LC-505TA-H is compatible with sliding doors. LC-505TA-D is compatible with hinged doors.
○Suitable for detached houses, hospitals, nursing homes, public facilities, student dormitories, warehouses, shops, etc.
○Equipped with an easy registration mode "Home Mode" and a security mode (administrator privilege mode) ideal for offices and management rooms.
Settings can be switched according to the application, such as entrance doors and office entrances.
○Ideal for new installations as well as for restricting access and managing access history to existing doors.
○Many customers install it for access restriction in lockers, changing rooms, and toilets.
■Caution
○No electrical work is required for installation, but drilling holes in the door is necessary. Please be sure to check before purchasing.
○Avoid installing in direct sunlight.
○LC-505TA-H uses a "snap deadbolt" for sliding doors, while LC-505TA-D uses a "long deadbolt" for inward-opening and outward-opening doors. Please select the model according to your door.
○ The LC-505TA-H is compatible with some outward-opening doors, but the clearance between the deadbolt and strike plate is narrow, making installation position adjustment critical. Depending on the strike plate's orientation, we recommend using the LC-505TA-D.
○ The LC-505TA-D is a long deadbolt type digital lock. Therefore, the deadbolt portion is always exposed.
○ Some products are not compatible with mobile payment systems or transportation IC cards. Please use them in conjunction with a dedicated card.
○ In the case of iPhones, unlocking is done using Apple Pay, which may result in unstable operation.
Please note that we do not provide support for Apple Pay registration.
Automatic lock function when the door is closed.
No internet required! USB memory allows for 'history confirmation' and 'data transfer'.
Equipped with 5 emergency keys as standard for unlocking in case of emergency.
Unlocking methods: PIN code, card (FeliCa/MIFARE), external input, emergency key.
"LC-505TA-H" is for sliding doors, "LC-505TA-D" is for hinged doors only.
