(Gold/Yellow)--USB C Power Meter TesterType-C USB Power Meter Tester Amp Volt Voltmeter Ammeter Detector Color LED Display PD 3.1 3.0 QC 2.0 3.0 Fast Charging Protocol
Features:
1. Comprehensive Protocol Support:Designed to test charging status and processes of USB-C devices, this USB C power meter tester supports a wide range of protocols including PD3.1 48V, PD2.0, PD3.0, PPS, OC2.0, QC3.0, FCP, SCPAFC, PE, DASH VOOC, and SuperVOOC, ensuring compatibility with chargers, cables, power banks, wireless chargers, laptops, smartphones, and more.
2. Professional Accuracy:Achieve measurement precision up to ±0.1%, comparable to professional-grade instruments. This DC voltage current meter for USB-C port testing provides reliable results, ensuring your devices are charged efficiently and safely.
3. Advanced Display Features:Equipped with six LCD native color display interfaces, the power bank phone charger tester monitors real-time voltage, current, capacity, power, and CPU temperature. It also records peak current/voltage/power and time, offering comprehensive insights into your device's charging performance.
4. Real-Time Monitoring:The real-time voltage and current curve page of this amp volt voltmeter ammeter detector allows you to observe fluctuations and changes during the charging process. For detailed analysis, pause and resume the curve with a long press of the confirmation button, enabling you to focus on specific time periods.
5. Enhanced User Experience:Featuring a gravity acceleration sensor, the display screen of this voltage current digital multimeter automatically rotates in four directions for optimal viewing. Easily check maximum voltage, current, and power values to determine the maximum charging capacity of your devices. Lock the screen orientation by pressing the confirmation button five times consecutively.
Specification:
Origin: Mainland China
Working voltage: DC 4.5~50V
Working current: 0~6A (short-term peak 12A)

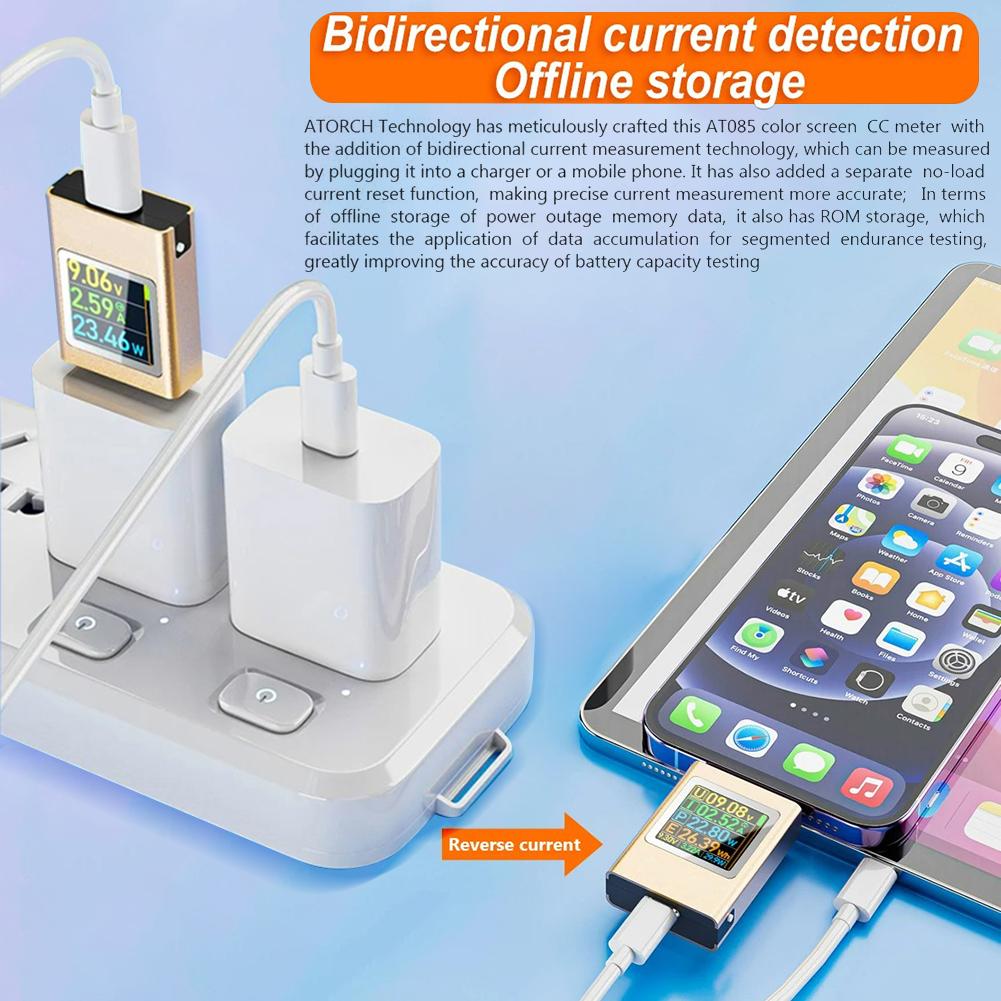

Bidirectional current: 12A bidirectional
Power display: 0~600W
Power display: 0~9999Wh
Capacity display: 0~99999mAh
Working temperature: 0~45℃/32~113℉
Sampling resistance: 0.001R
Power consumption: <0.15W
Interface type: C male and C female
Protocol communication: CC1 CC2 protocol transmission, D+D- data transmission
Temperature measurement: CPU temperature measurement
Power supply: 48V full voltage power supply
Capacity calculation: Calculate capacity based on power value
Power chip: DC-DC switching power supply
Control method: Double-key page turning
Curve function: Dual parameter curve can be paused/run
Electrical parameter recording: Real-time recording of voltage, current, power peak
Display: IPS high-definition color
Gravity sensor: Gravity rotation screen/supports locking direction
Size: 43.00x25.00x10.00mm/1.69x0.98x0.39inch
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.
ProductIncludedGold：1*USB C Power Meter TesterYellow：1*USB C Power Meter Tester
