Comprehensive Overview of LM2596 DC-DC Step-Down Voltage Regulator Module with Digital Display

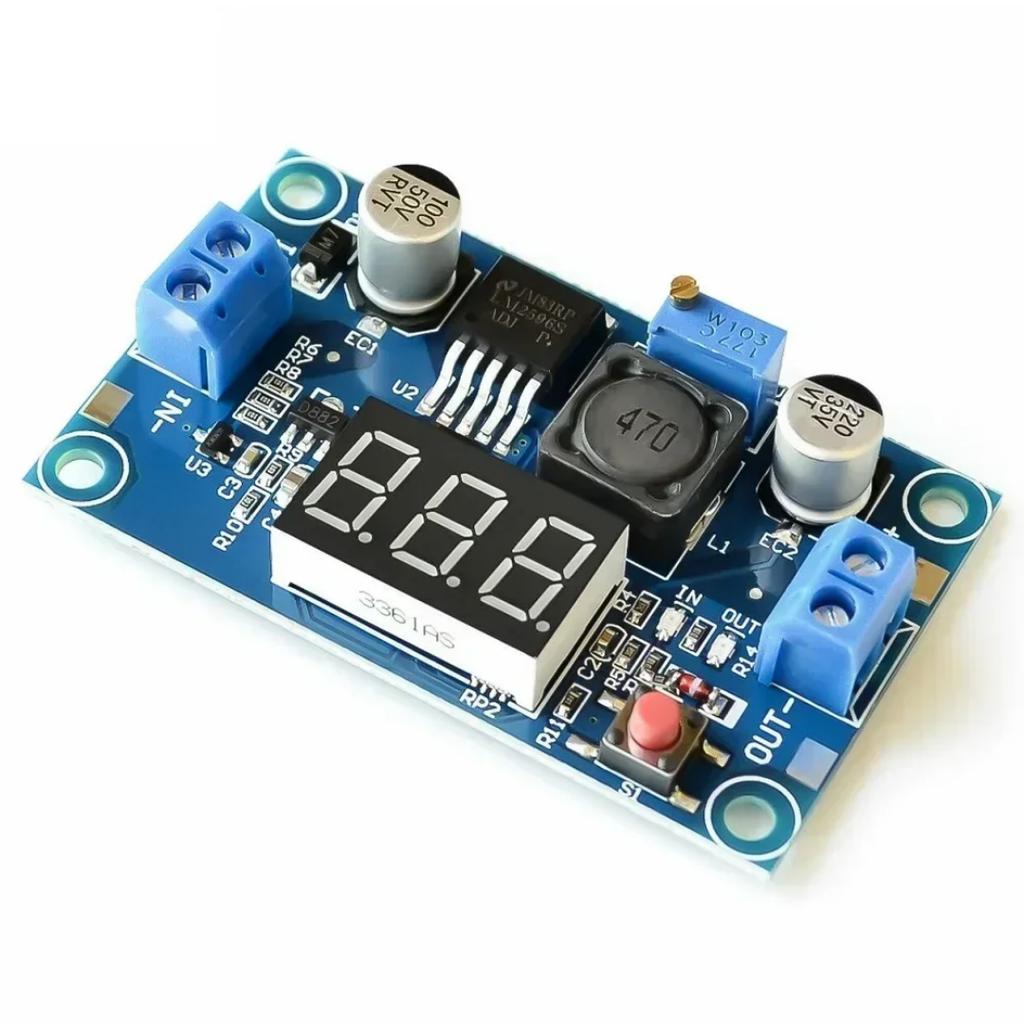

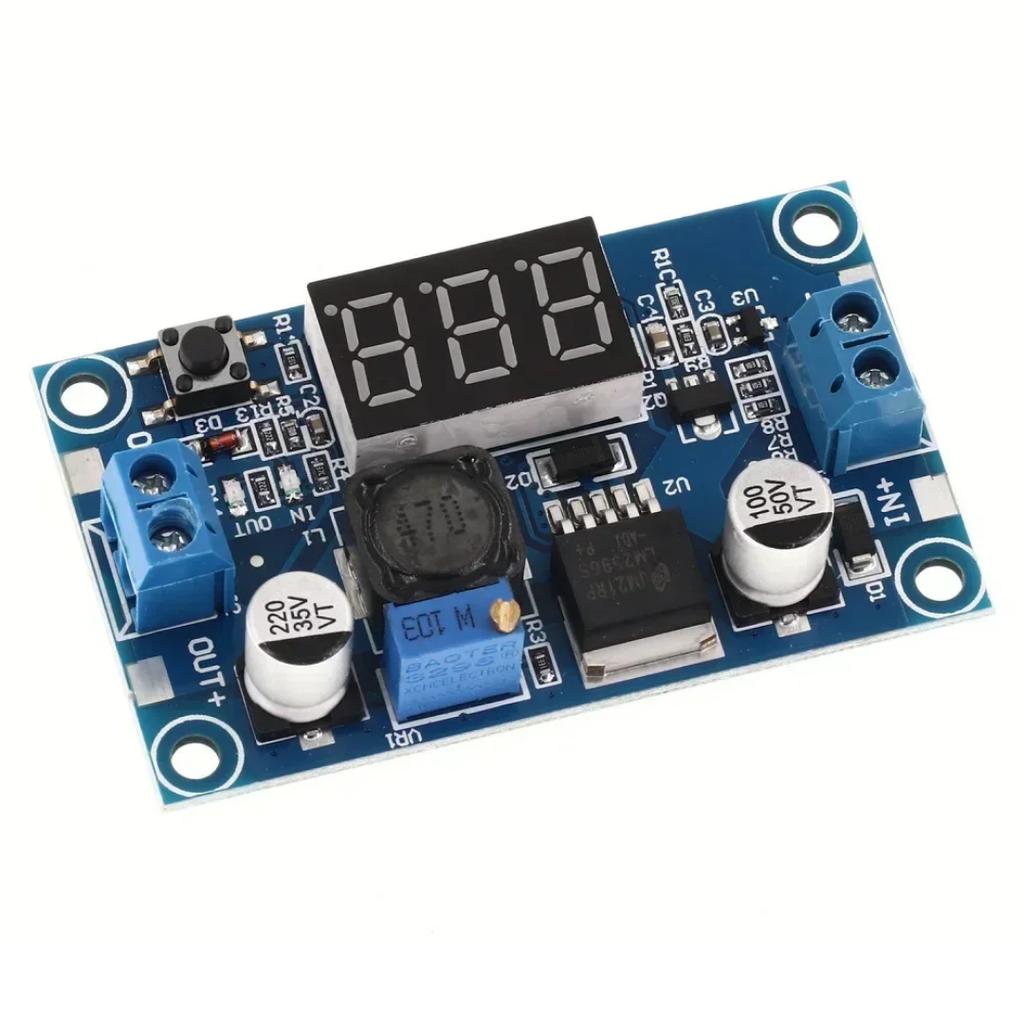

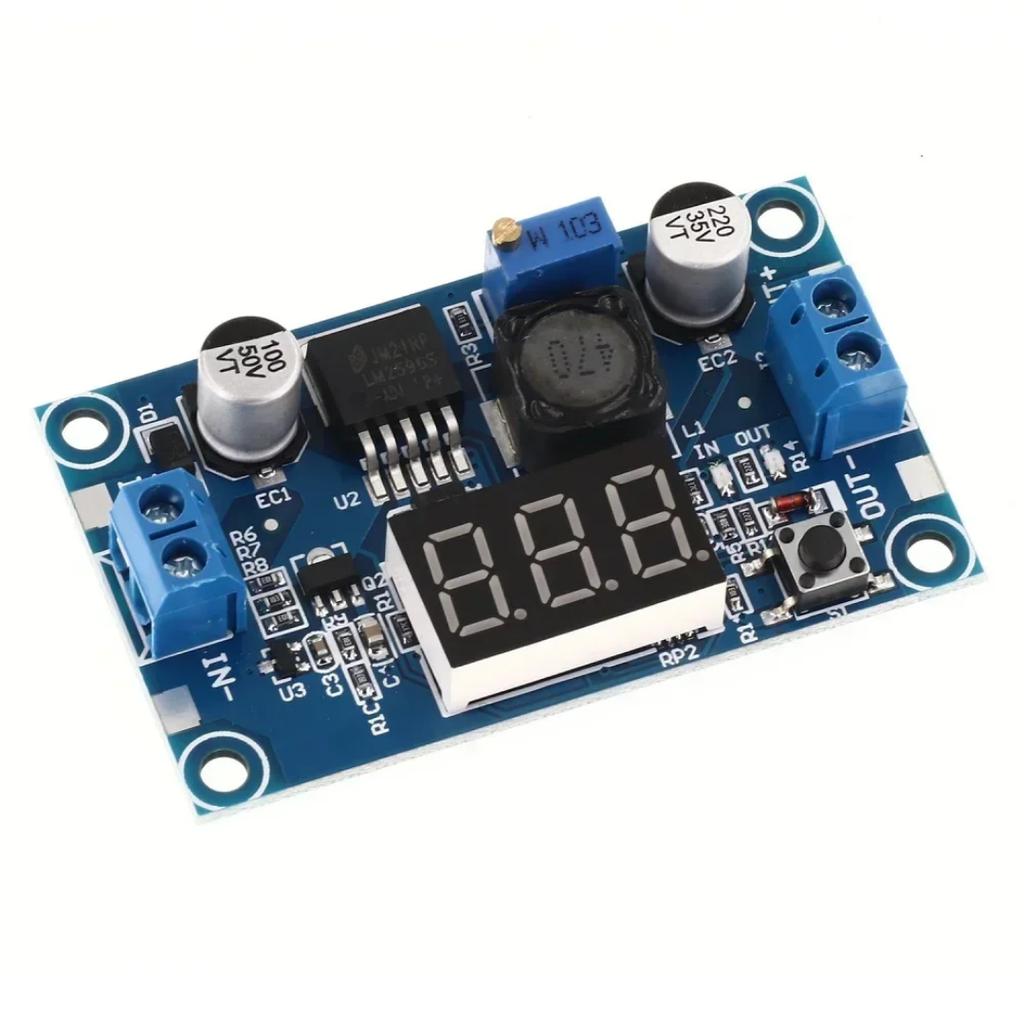

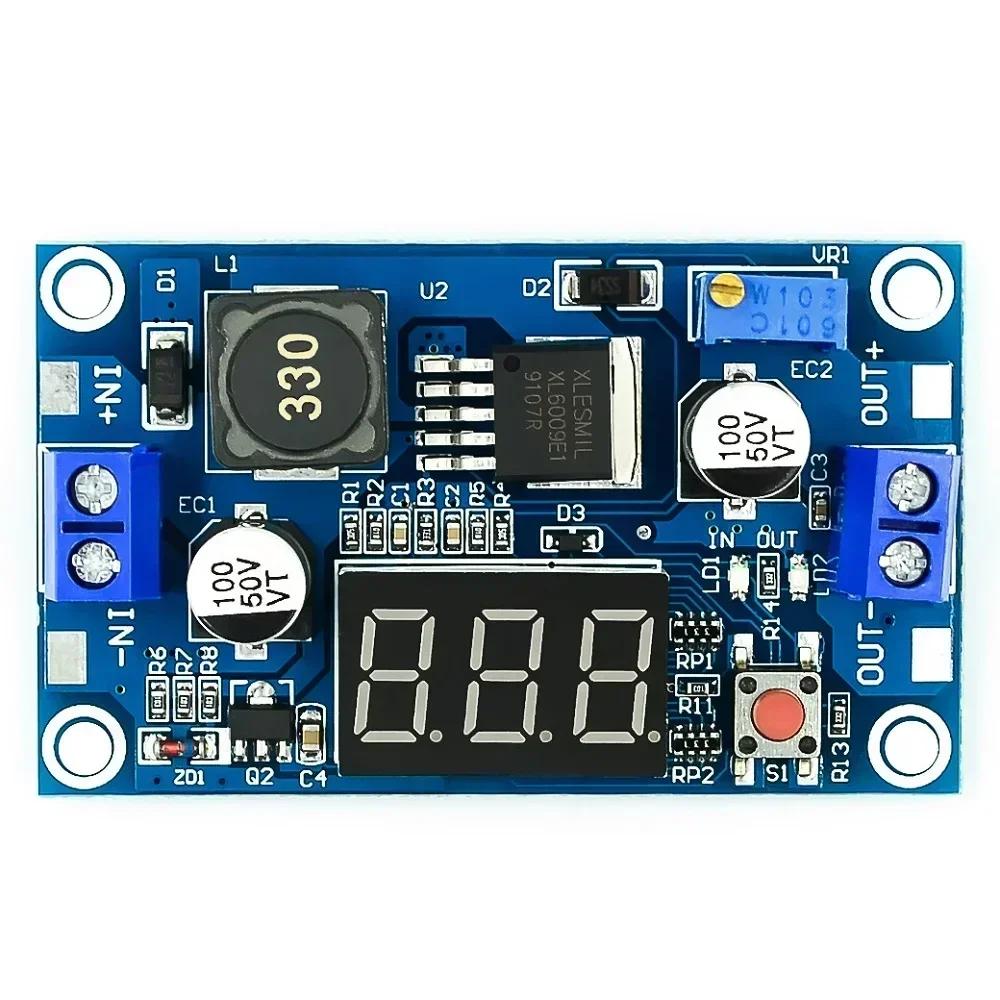

The image showcases a LM2596-based DC-DC step-down voltage regulator module, a highly versatile, cost-effective, and widely used power conversion solution for electronics hobbyists, embedded developers, and DIY enthusiasts. This module is designed to efficiently step down a higher DC input voltage to a stable, adjustable lower DC output voltage, making it an indispensable component for a vast range of electronic projects.
Core Hardware & Chip Specifications
At the heart of this regulator module is the LM2596 integrated circuit (IC), a industry-standard monolithic step-down voltage regulator from Texas Instruments. Renowned for its reliability and efficiency, the LM2596 supports a wide input voltage range of DC 4.0V to 40V, and can deliver a continuously adjustable output voltage from DC 1.25V to 37V, with a maximum continuous output current of 3A. The chip integrates a 150kHz fixed-frequency oscillator, a reference voltage source, and complete protection circuits including thermal shutdown and current limiting, ensuring safe and stable operation even under heavy load or fault conditions.
To enhance usability, the module is equipped with a high-precision 3-digit digital LED voltmeter, which displays real-time output voltage in 0.01V increments, allowing users to monitor and adjust the output voltage with extreme accuracy. A multi-turn blue potentiometer is provided for fine-tuning the output voltage, while a push-button switch offers convenient control for power or parameter adjustment.
Circuit Design & Interface Features
The module features a mature, optimized circuit layout with high-quality components to ensure long-term reliability:
Power Filtering: Large-capacity electrolytic capacitors (including a 100V/100µF input filter capacitor and a 35V/220µF output filter capacitor) effectively suppress power ripple and noise, delivering a clean, stable output voltage.
Inductor & Diode: A high-efficiency power inductor and a Schottky freewheeling diode work in tandem with the LM2596 to minimize power loss and maximize conversion efficiency, which can reach up to 92% under optimal conditions.
Terminal Interfaces: Blue screw terminals are used for input (IN+/IN-) and output (OUT+/OUT-) connections, enabling secure, solder-free wiring for easy installation and project integration.

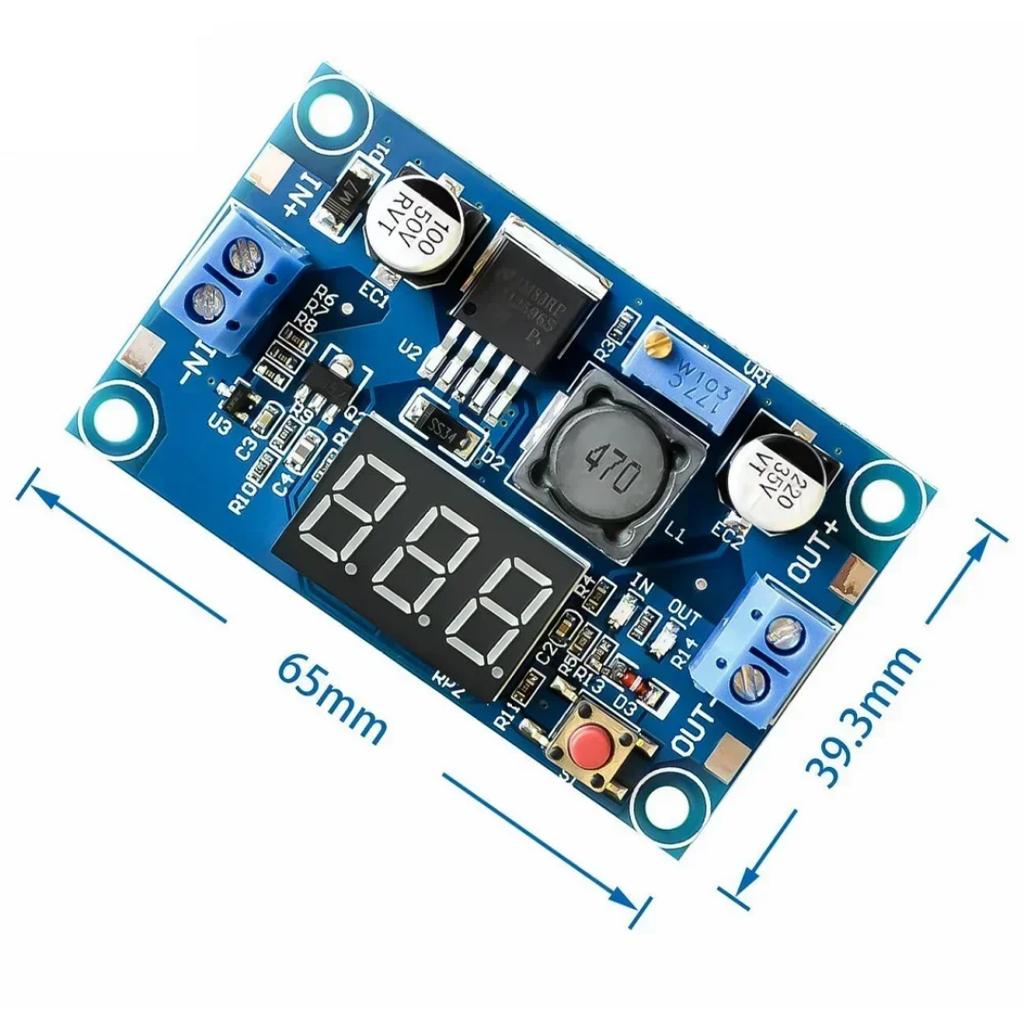

Mounting Holes: Pre-drilled mounting holes on the PCB allow for secure fixation in enclosures or project boxes, making it suitable for both prototyping and permanent installations.
Key Advantages & Application Scenarios
This LM2596 step-down regulator module offers several key advantages that make it a top choice for power conversion projects:
High Efficiency & Low Heat: The LM2596’s switching regulator design delivers far higher efficiency than linear regulators, significantly reducing power waste and heat generation, making it ideal for battery-powered devices.
Wide Compatibility: The broad input voltage range (4V-40V) makes it compatible with a wide variety of power sources, including 12V/24V car batteries, 9V/12V/24V wall adapters, and lithium battery packs.
Precise Voltage Control: The integrated digital voltmeter eliminates the need for external multimeters during voltage adjustment, ensuring precise output voltage for sensitive electronic components like microcontrollers, sensors, and LED strips.
Versatile Applications: The module is widely used in countless projects, including:
Powering Arduino, Raspberry Pi, and other microcontroller development boards
Regulating voltage for LED lighting systems and strip lights
Building battery-powered portable devices and DIY electronics
Converting car battery voltage for automotive electronics
Powering embedded sensors, IoT devices, and industrial control systems
Conclusion
In summary, the LM2596 DC-DC step-down voltage regulator module with digital display is a reliable, high-performance, and user-friendly power solution for electronic projects. Its combination of wide input/output range, high efficiency, built-in protection, and real-time voltage monitoring makes it an essential component for anyone working with electronics. Whether you are a beginner building your first DIY project, a hobbyist prototyping a new device, or an engineer developing an embedded system, this module provides the perfect balance of performance, reliability, and affordability, making it a timeless staple in the world of electronics.
