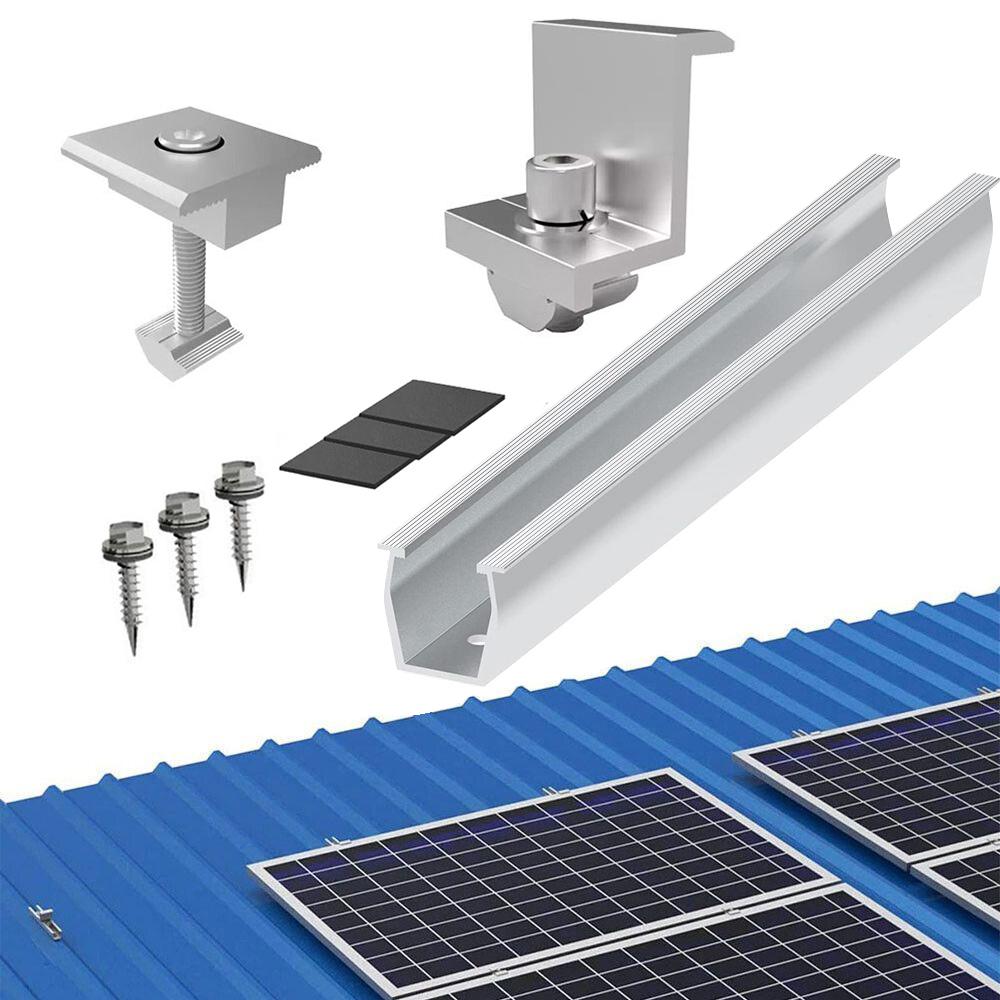

Clamp Rails Fastening Module Mounting PV Photovoltaic

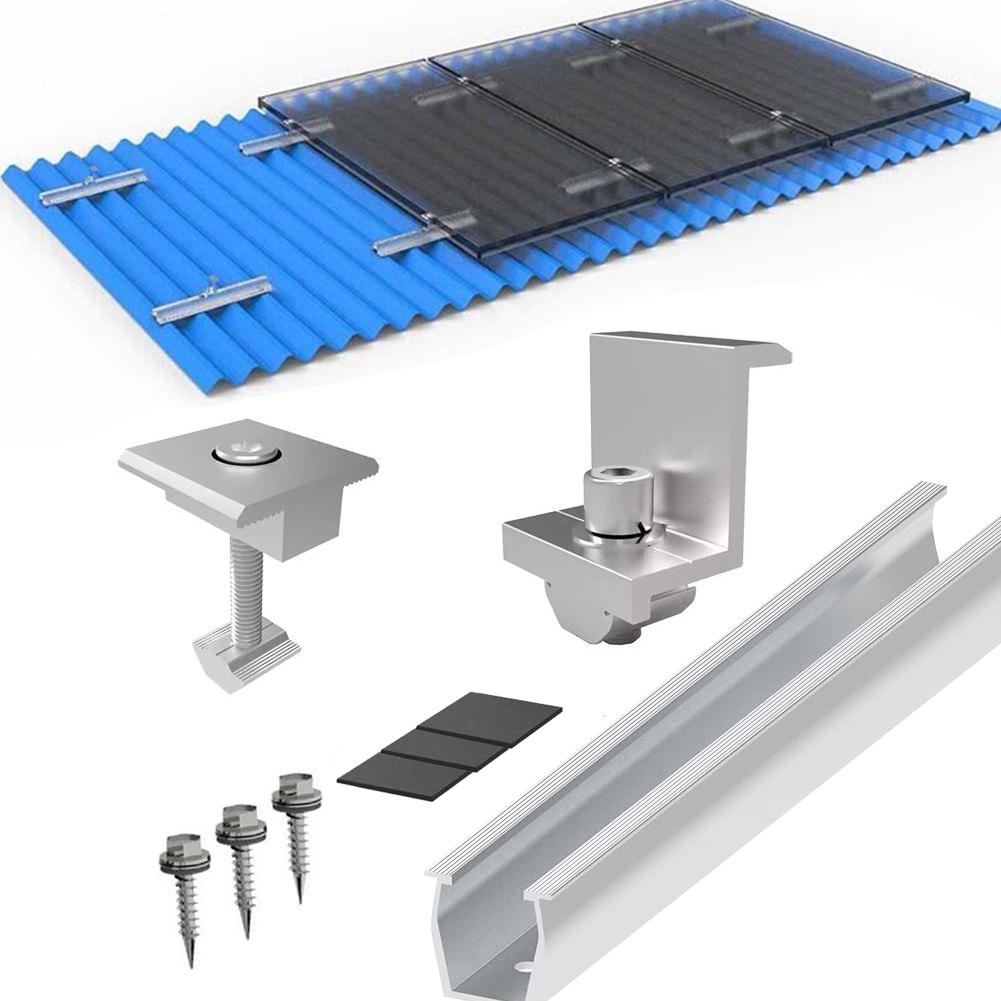

Features: * and *Application: for T20 short rail for trapezoidal sheet PV mounting. on trapezoidal sheet metal roofs with sheet metal outer skin. *Material for T20 profiles: aluminum alloy AL6005-T5, 1.00 KN *Requirement - trapezoidal sheet minimum sheet thickness steel 0.5mm / aluminum 1.00mm. *Good static load distribution. This type of installation reduces the suction effect on the outer skin of the roof covering by the weight of the PV . *No transport of long profile bars - adjusted to the bead spacing of the profile sheets. *The profile sections are pre-punched and covered with sealing tape.

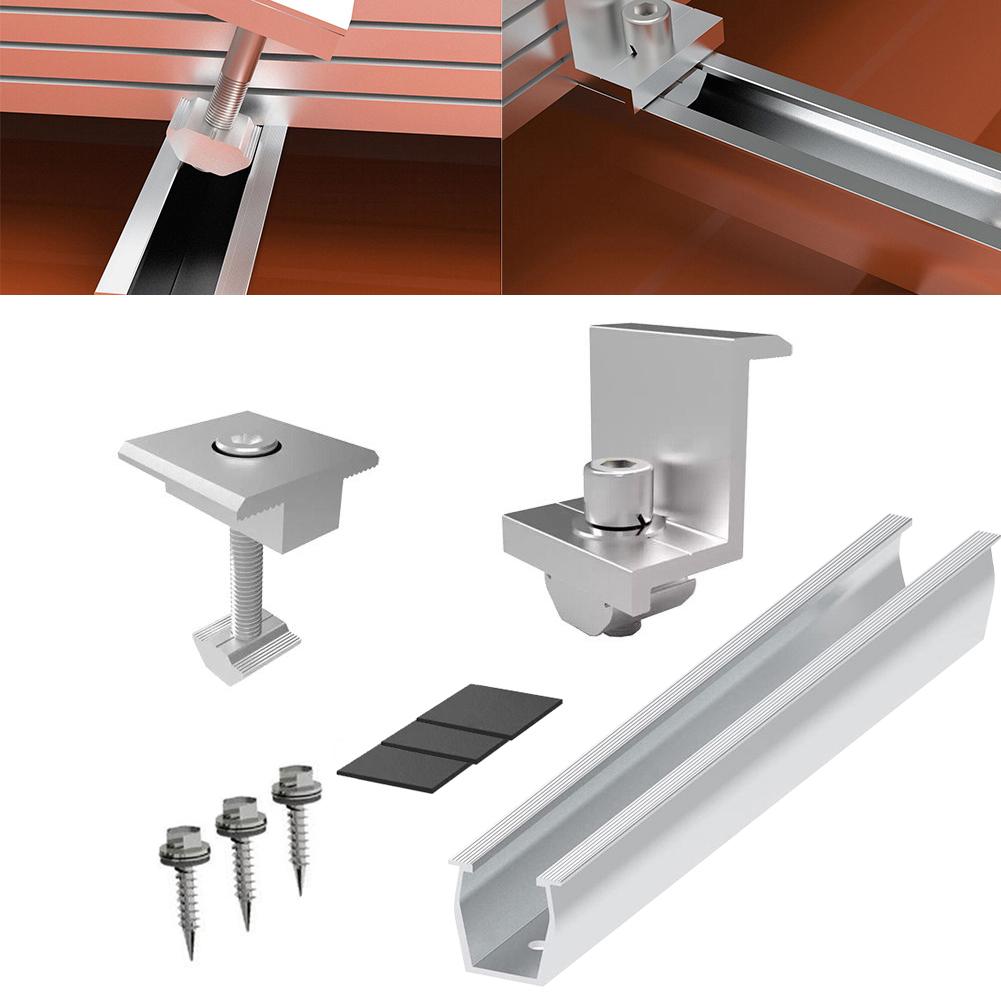

Assembly 1. Roof division depending on module dimensions 2. for Align the first row using a chalk line. 3. Place the for T20 holder in position, pre-drill with a Ø 5.00 mm sheet metal drill and with 4 blind rivets. Alternatively: with thin sheet metal screws without pre-drilling. 4. Place the next rows using a wooden template. After 10 rows check the direction again with a piece of string.

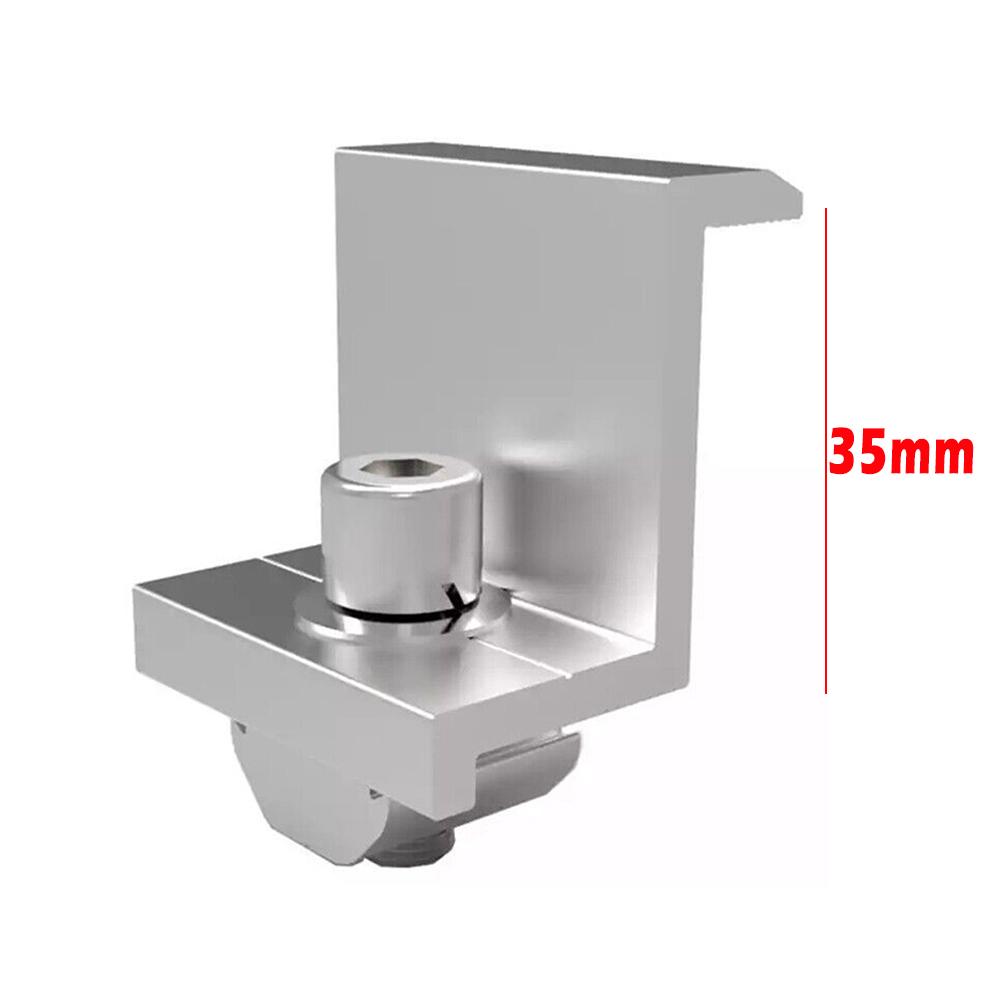

Details: *Material: Aluminum alloy *Color:silver Style: 2x rails + 2x middle clamp， 4x rails + 4x end clips Rail Size: 200mm Middle clip: for solar panel 30mm, for solar panel 35mm End clip: for solar panel 30mm, for solar panel 35mm Note：Middle clips and end clips purchase the corresponding size set according to the thickness of your solar panel

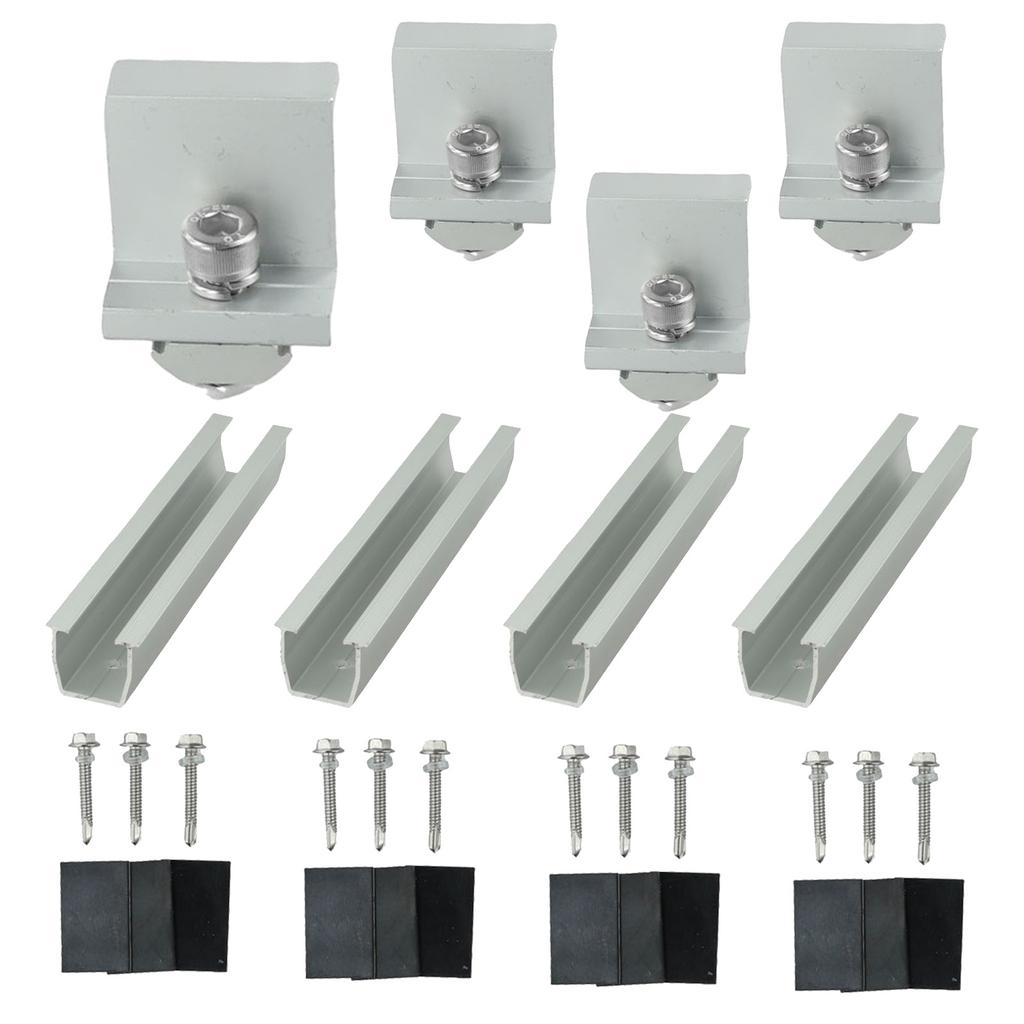

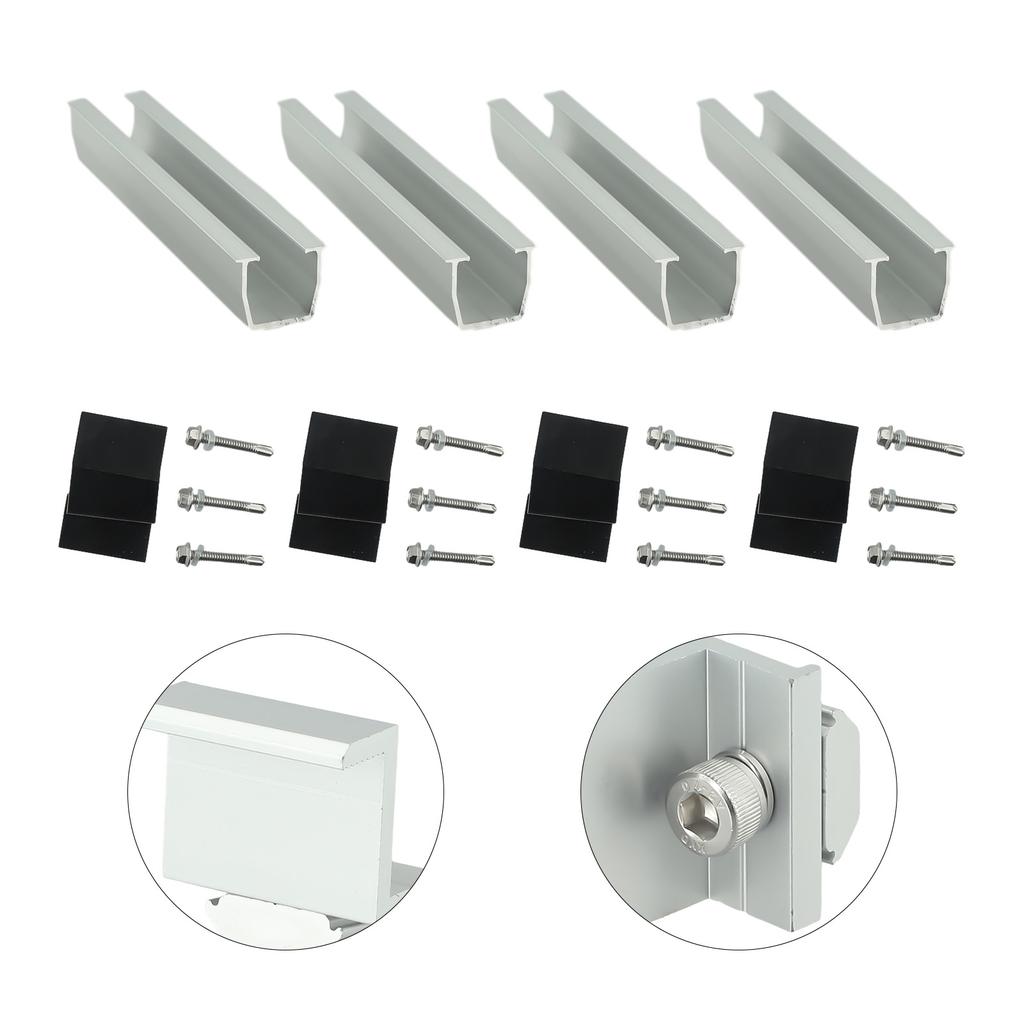

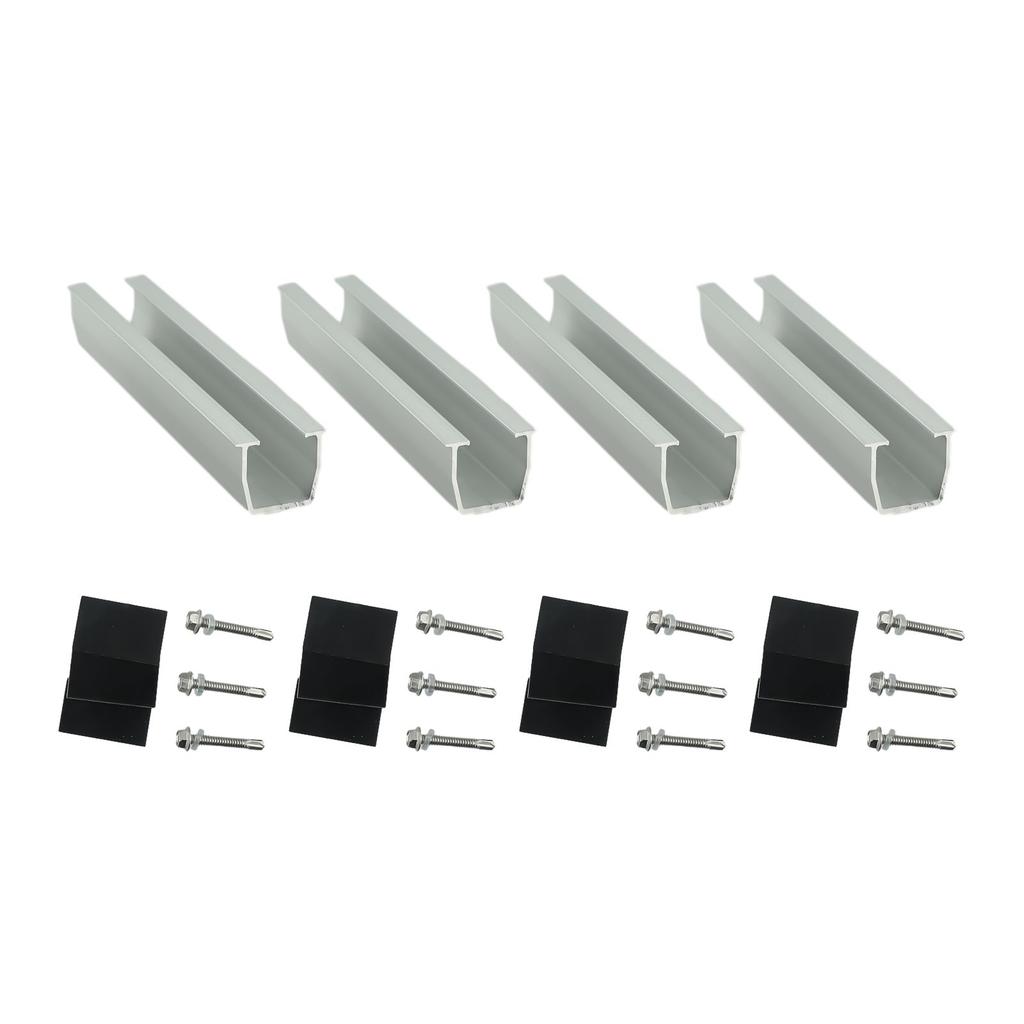

Package Contents: 2x Rails（with accessories Gasket+Screw）+ 2x middle clamp Or 4x Rails （with accessories Gasket+Screw）+ 4x end clamps
