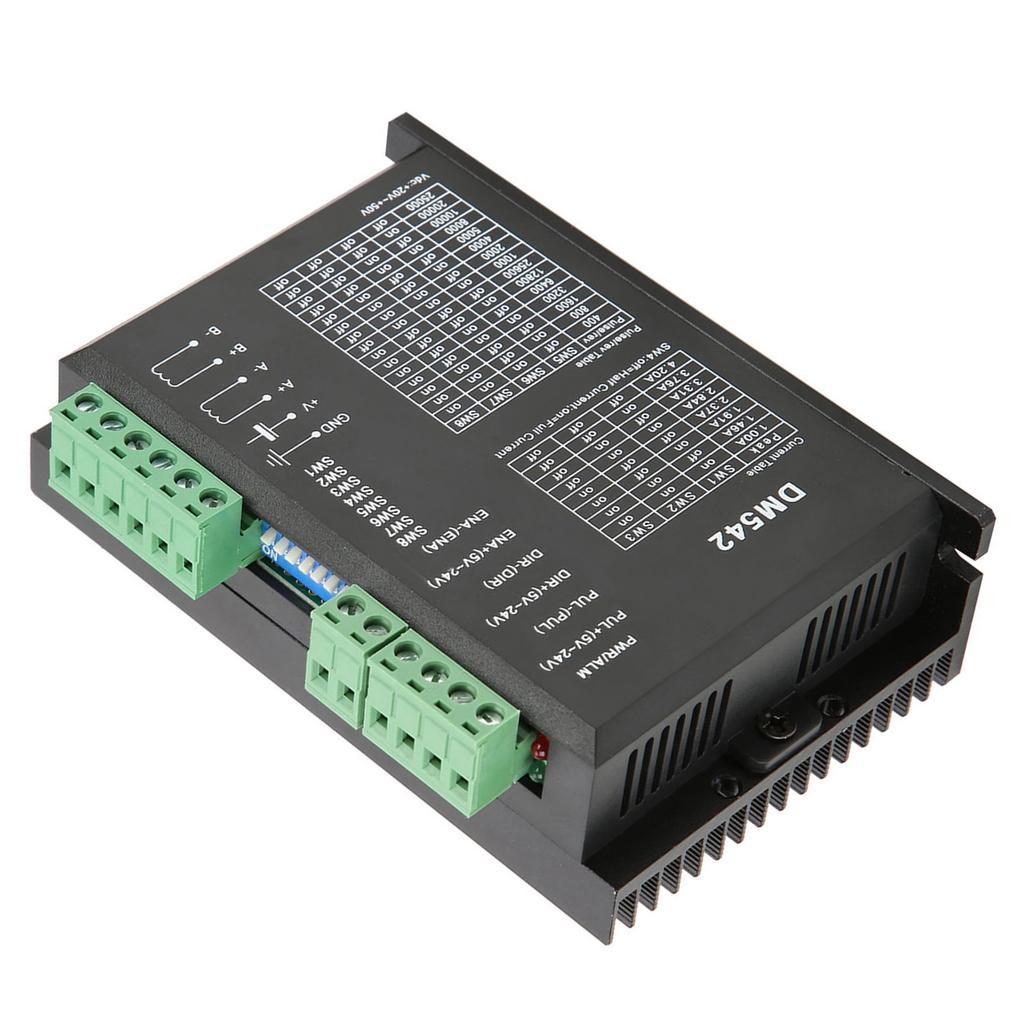

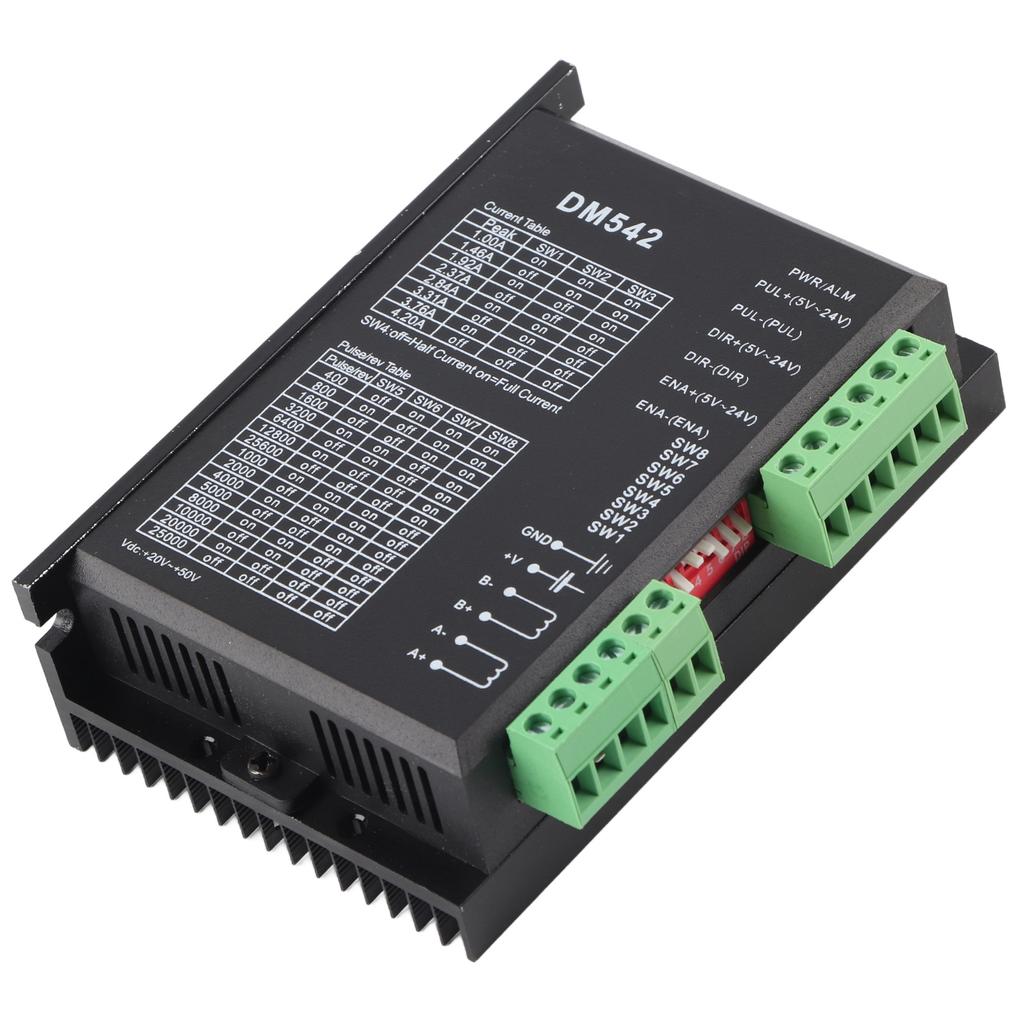

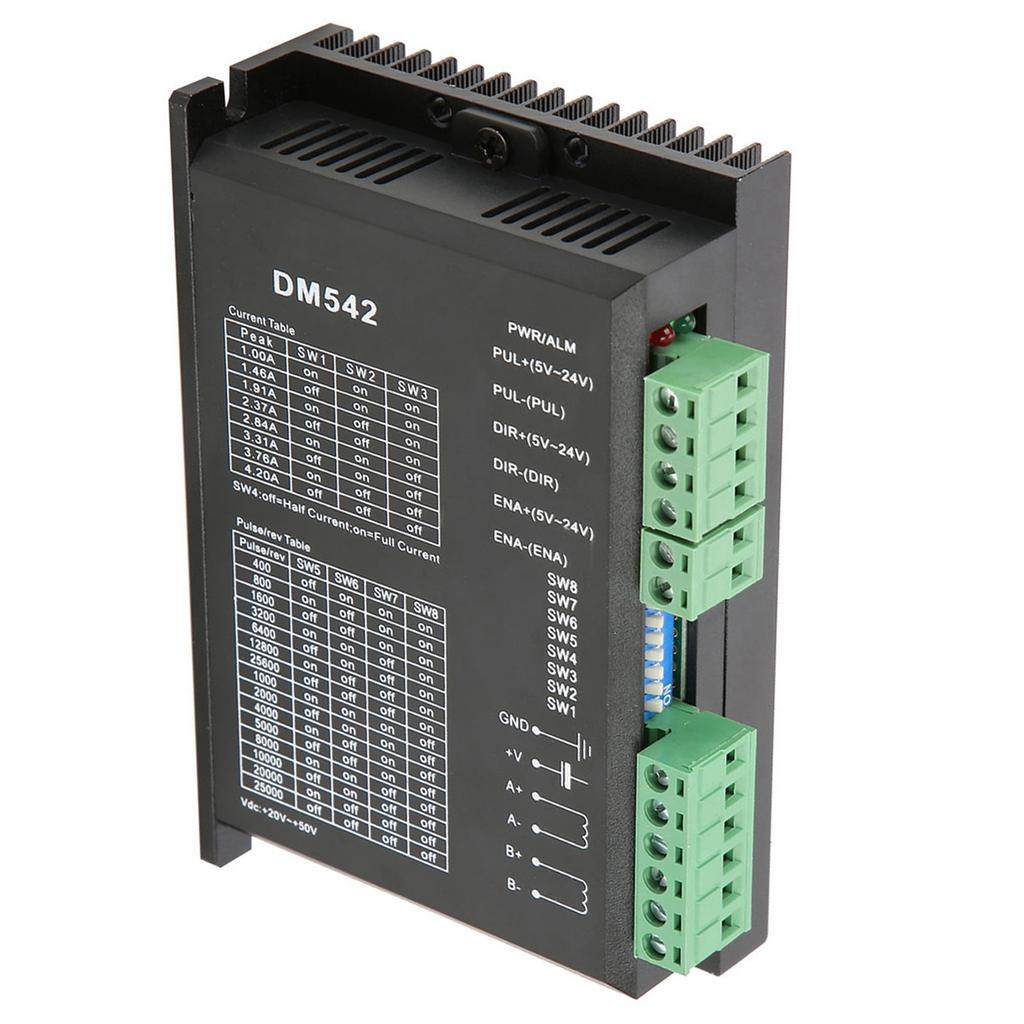

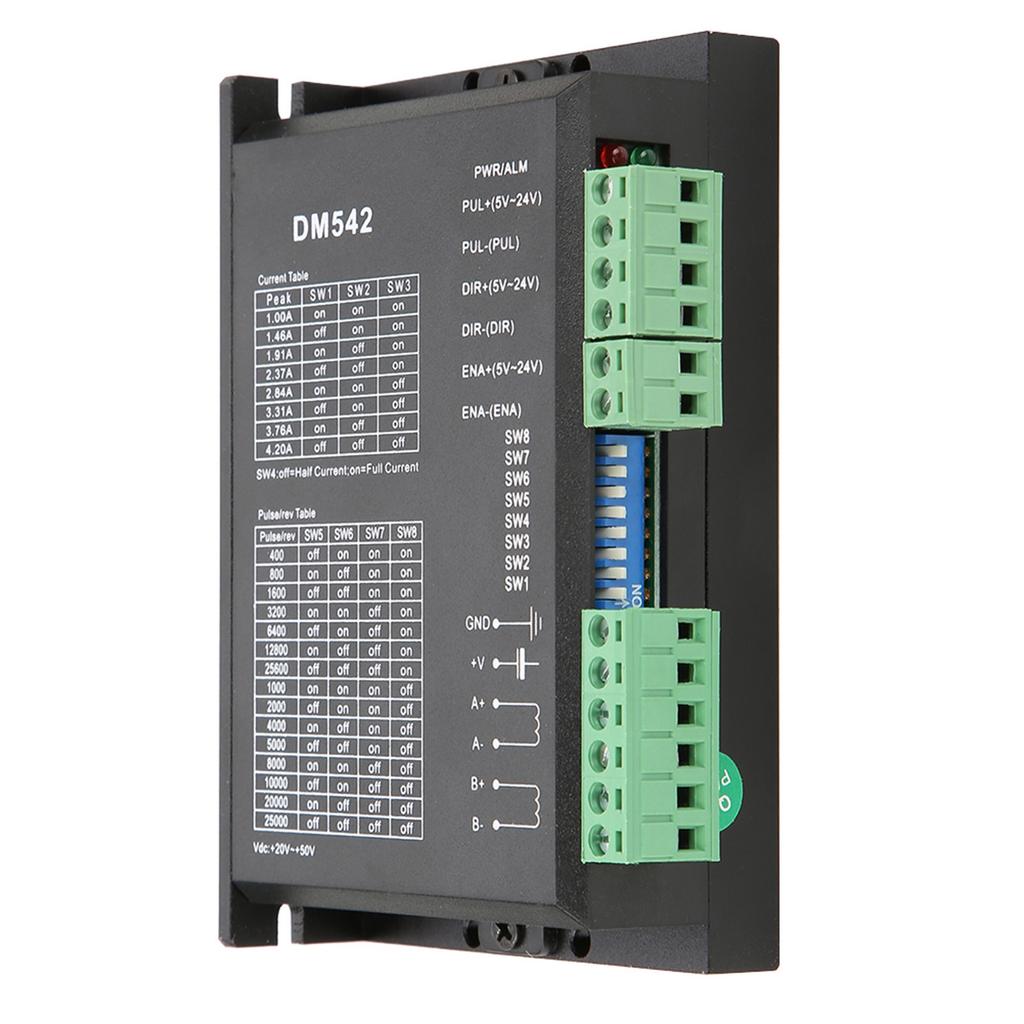

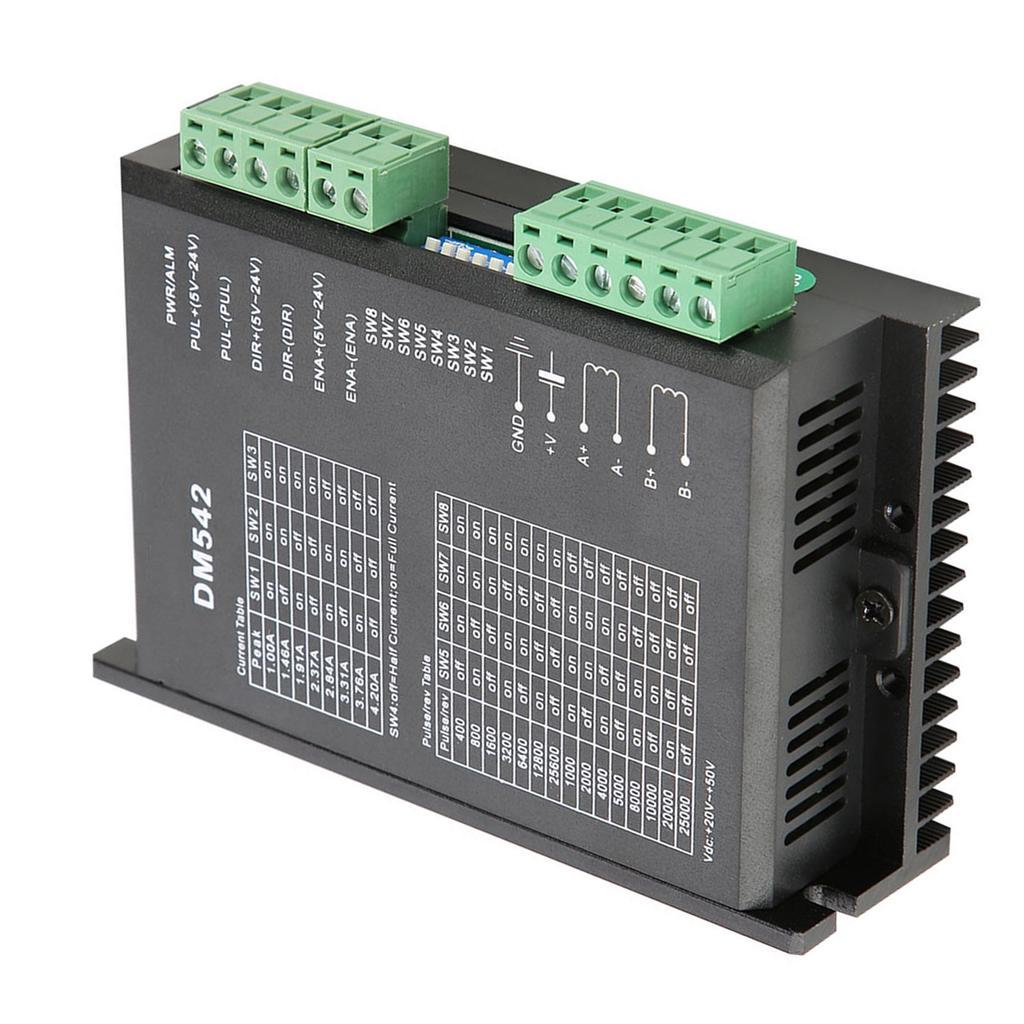

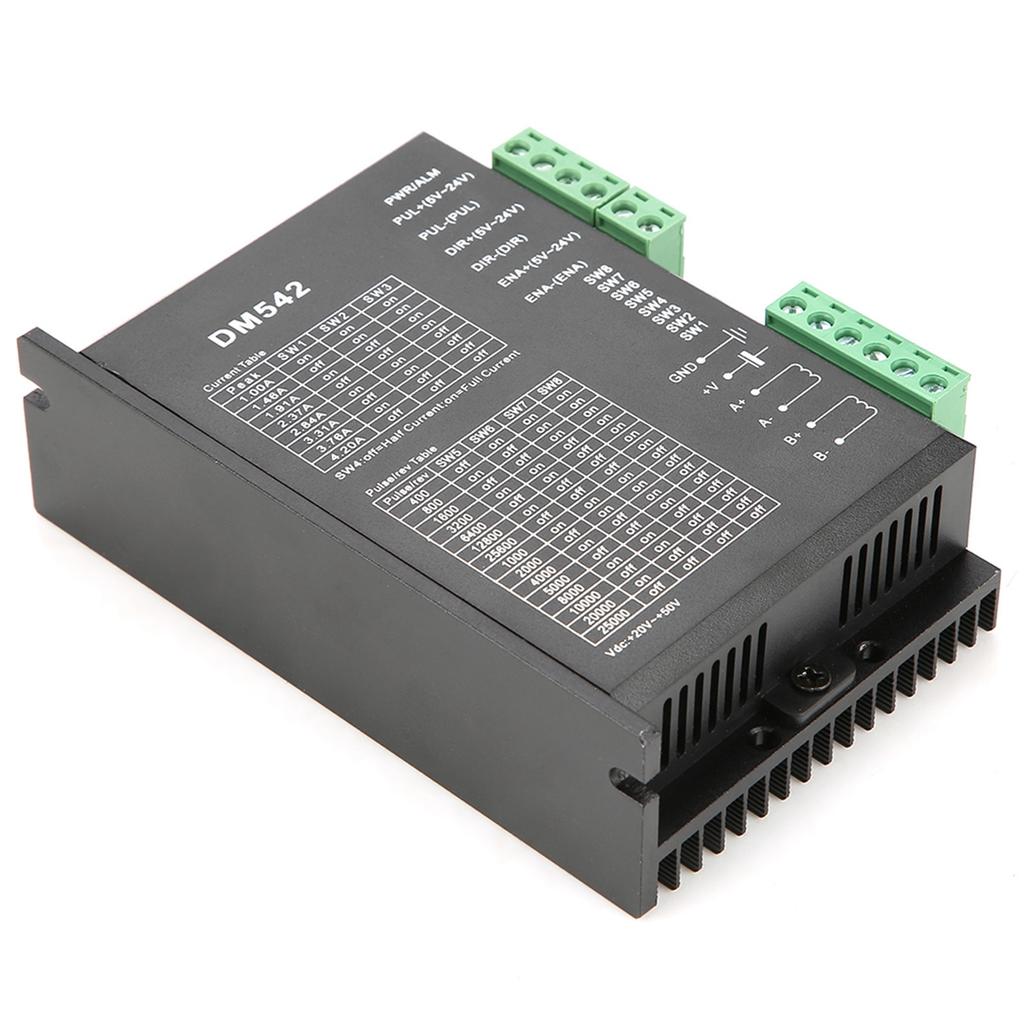

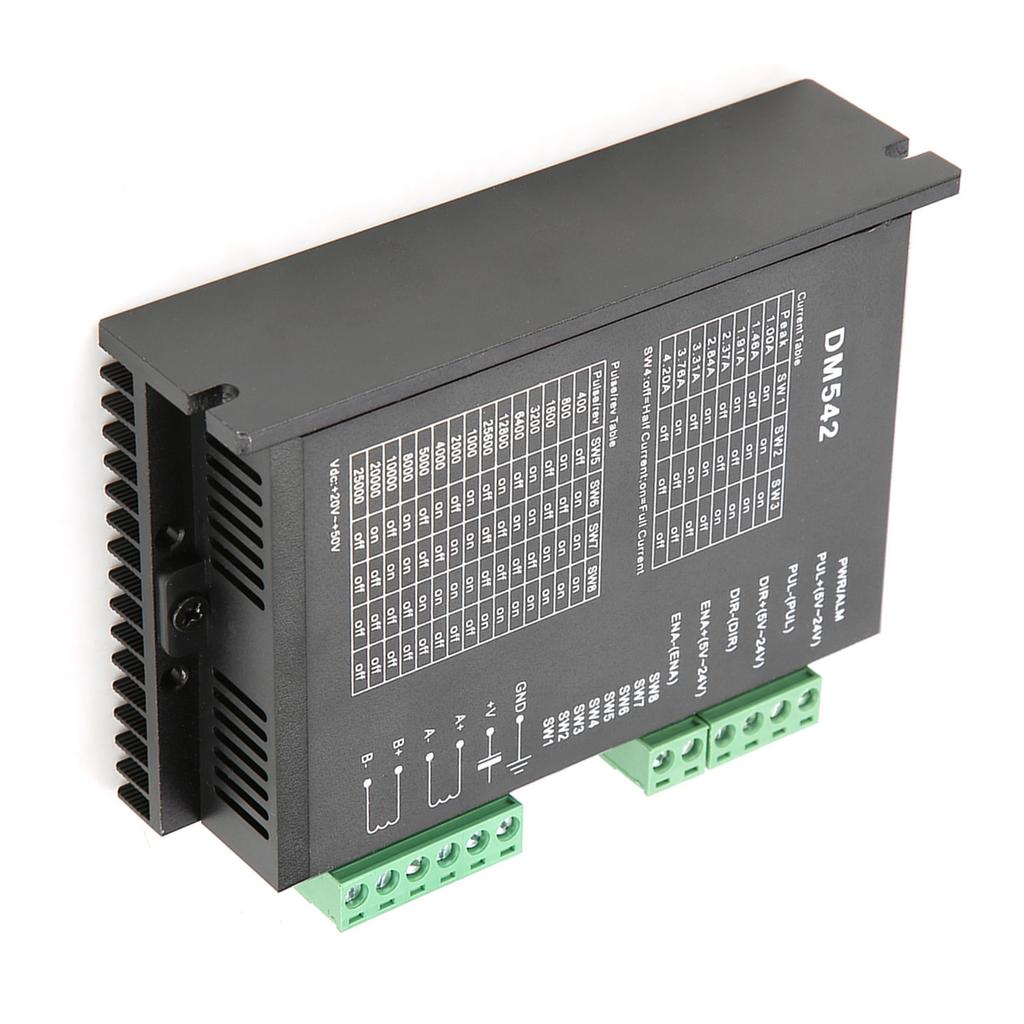

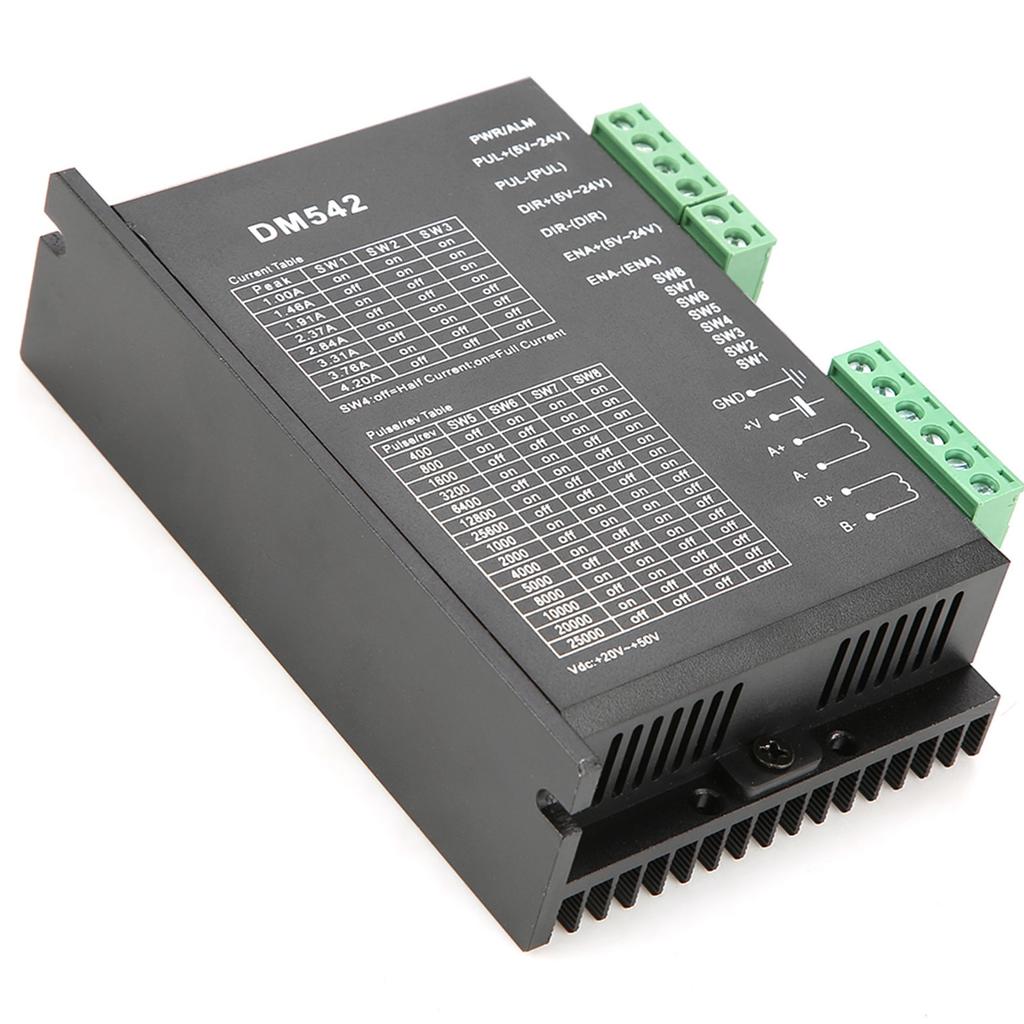

DM542 2 phase Stepper Motor Driver 57 86 Series Stepping Motor Driver 18 48VDC Peak 4.2A

The DM542 digital stepper motor driver adopts the latest 32 bit DSP technology, suitable for driving 57 and 86 series motors. It has excellent medium low speed performance and can meet the application needs of most medium and small equipment. Features: 1. Integrated with parameter self tuning function, which can automatically generate optimal operating parameters for different motors. 2. Can drive 4 wire 8 wire two phase stepper motor. 3. Stable running and low noise under medium low speed. 4. Precise current control greatly reduces the motor heat. 5. Optical isolation signal input, strong anti interference ability. 6. With over voltage, over current protection. Specification: Model: DM542 Input voltage: 18 48VDC, 24V(Typical) Output current: 1.0 4.2A Pulse response frequency: 200kHz(Maximum) Insulation resistance:

more than 500M

Ohm Subdivision range: 400 25600ppr Weight: Approx. 268g 9.4oz Package list: 1 x Steeper Motor Driver Note:

.
