.w3-container .w3-padding-left { font-size:160%; font-weight:normal; margin:20px 0px 15px 0px; } .w3-container p { margin:10px 0px 10px 0px; } .w3-container .w3-padding-left:first-child { margin-top:0px; } .w3-table { width:100%; } .w3-table td, th { padding: 6px 8px; padding-left: 8px; display: table-cell; text-align: left; vertical-align: top; background:#f2f2f2; } .w3-bordered tr { border: 1px solid #d0d0d0; } Product Description Multifunction digital meter byYATO YT-73081.
The digital meter is particularly useful for diagnosing and detecting faulty components in electrical installations.

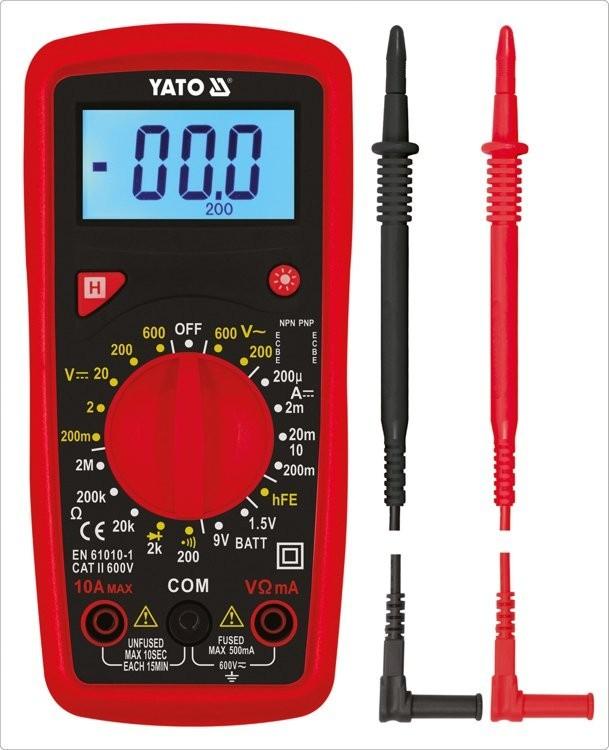

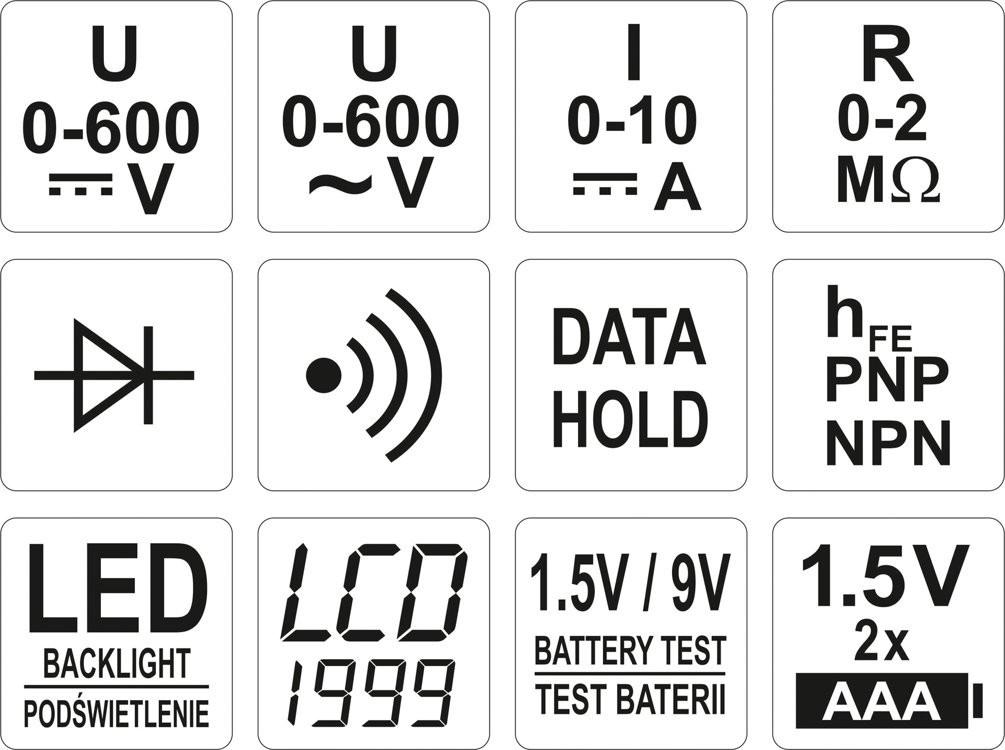

Supports measurement of: AC voltage: U a.c. 200 V, 600 V DC voltage: U d.c. 200 mV, 2 V, 20 V, 200 V, 600 V Battery test: 1.5 V, 9 V DC current: I d.c. 200 μA, 2 mA, 20 mA, 200 mA, 10 A Resistance: R 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ Diode test: IF 1 mA, UR 1.5 V Transistor test: hFE PNP, NPN The audible signal allows you to easily verify circuit continuity. MultimeterYATOL YT-73081has a displayLCDallowing you to display the resultmax 1999. Its unique advantage is the blue backlight, which makes reading measured parameters in dark rooms much easier. Furthermore, the DATA HOLD function allows you to keep the currently measured value on the display.
The meter is powered by two 1.5V (AAA) batteries. Thanks to the AUTO-POWER OFFfunction, the device automatically turns off after 15 minutes of inactivity, saving battery life and extending its life.
The device has overload protection and a low battery indicator.
The aesthetically pleasing rubber casingprimarily protects it from mechanical damage while increasing comfort of use. Additionally, a pull-out stand on the back allows you to position it for easier viewing of the display.The kit includes test leads
.
Technical dataIndex number YT-73081EAN5906083042577 Mark Yato Transistor hFe measurement PNP, NPN AC Voltage Measurement 0-600V DC Voltage Measurement 0-600V Resistance Measurement 0-2M OHM DC Current 0-10A Test Circuit Continuity YES Diode Test YES
