High-concerned chemical : None
Communication method : Wi-fi
Model Number : Smart switch module
Compatibility : All Compatible
Origin : Mainland China
State of Assembly : Ready-to-Go
Certification : CE
Name : Tuya WiFi Relay
Input voltage 1 : AC/DC 7V-32V
Input voltage 2 : AC 85-250V
Operating Humidity : 40% ~ 80% RH
working temperature : -20 degrees to +70 degrees
APP : Smart Life / Tuya Smart
Feature 1 : Work with Alexa
Model 1 : 12V wifi switch
Model 2 : 24V tuya relay
Model 3 : 220V tuya switch
NOTE : Does not support USB 5V
Tuya smart Switch Jog Inching Self-locking WIFI Wireless Smart Home Remote Control
This product is a wireless switch supports inching /self-locking mode. Users can add the device to the APP Smart life in order to remotely control connected home appliances or devices.
In self-locking mode, customers can remotely turn on/off connected devices immediately.
When in inching mode, customers can have two wiring ways to select, and you can set the inching time in APP .
WIFi control model, no need to program. No matter where you are, you only need to download a APP to connect the wifi and control the cloud.
RF mode , you can control the board with RF433 remote controller.
All wifi switch support 433MHz remote function.
Overview:

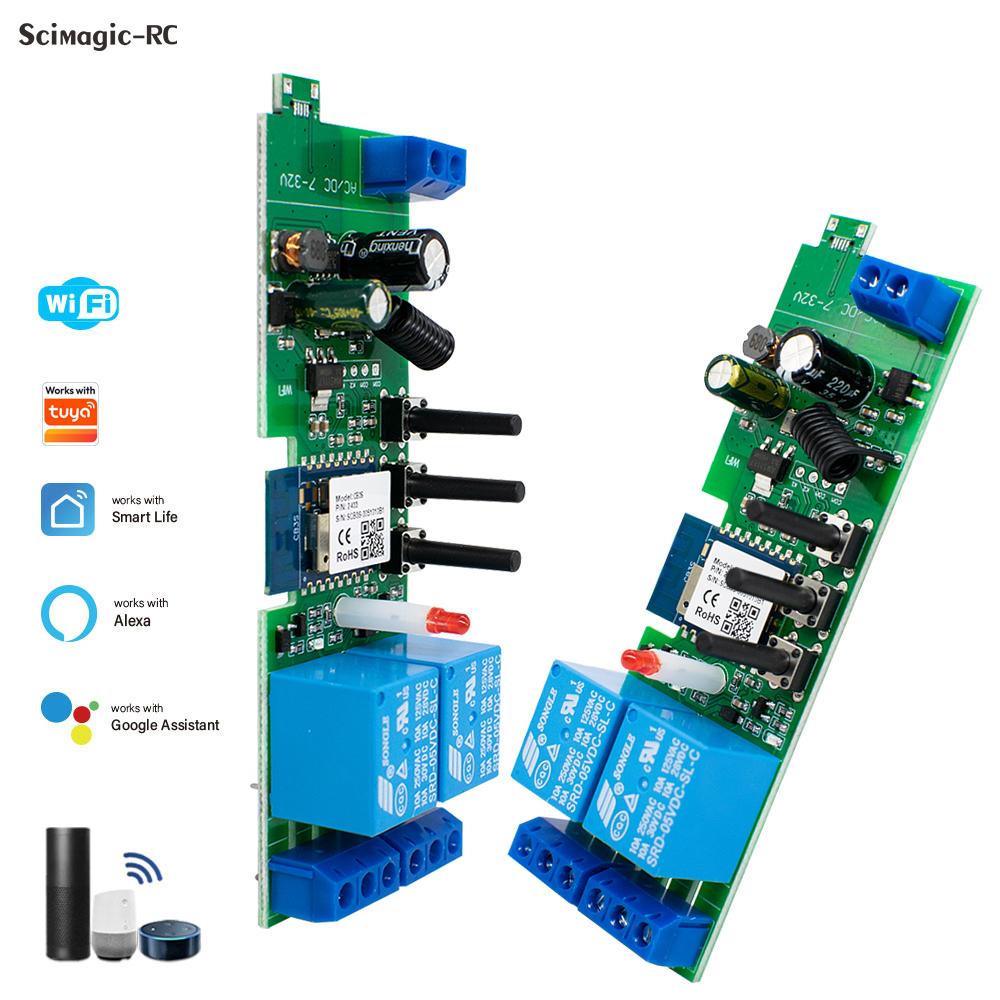

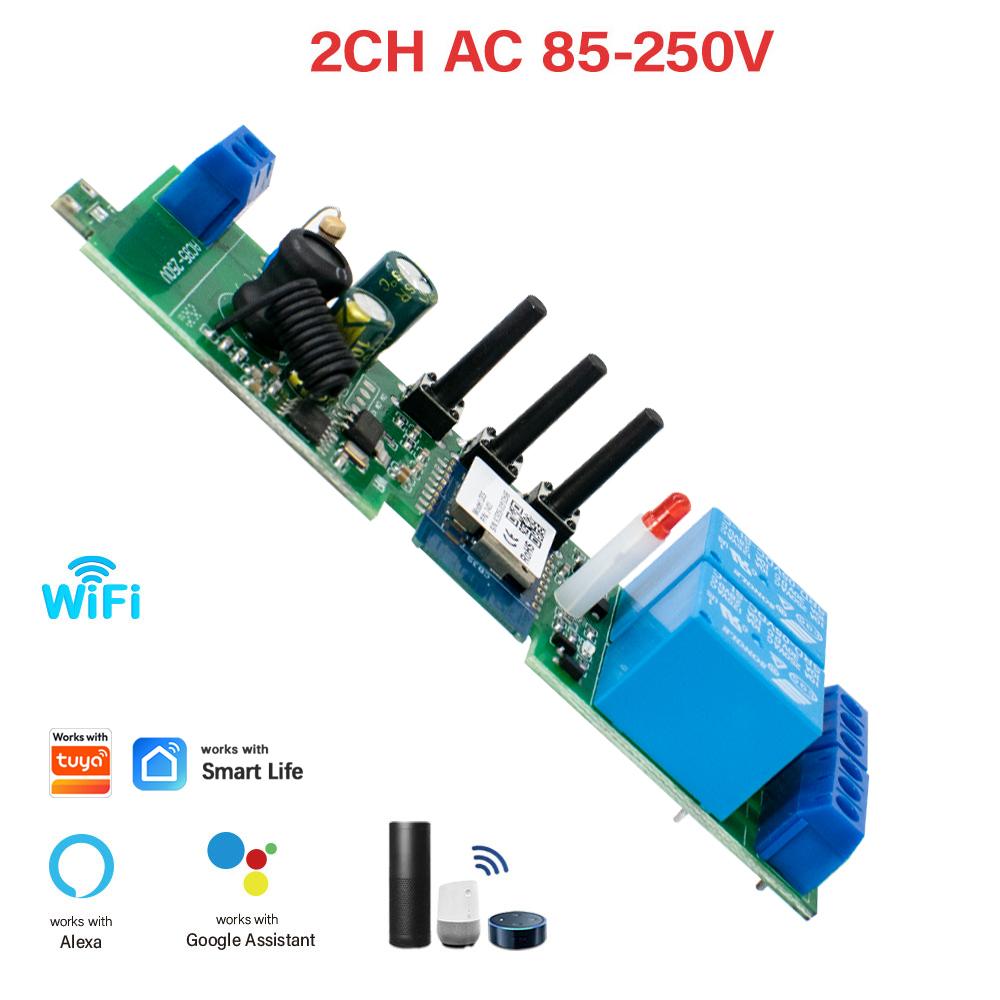

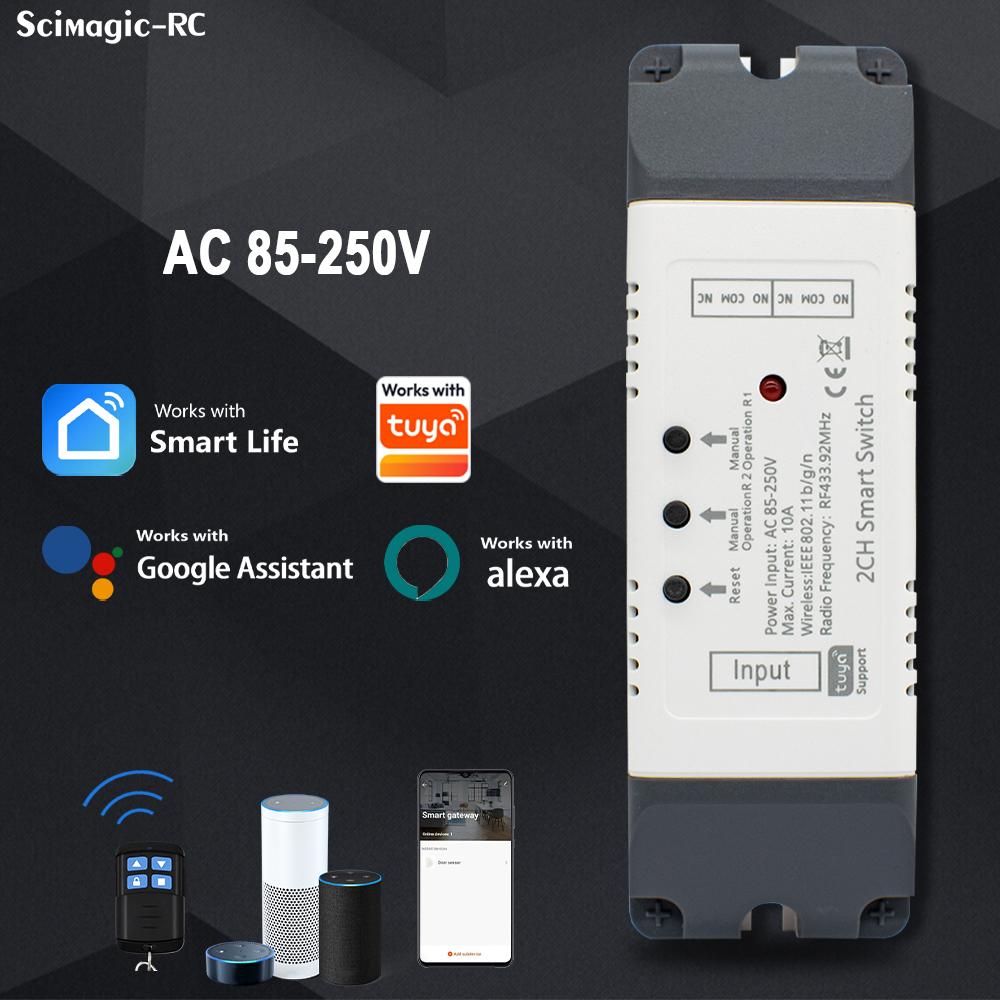

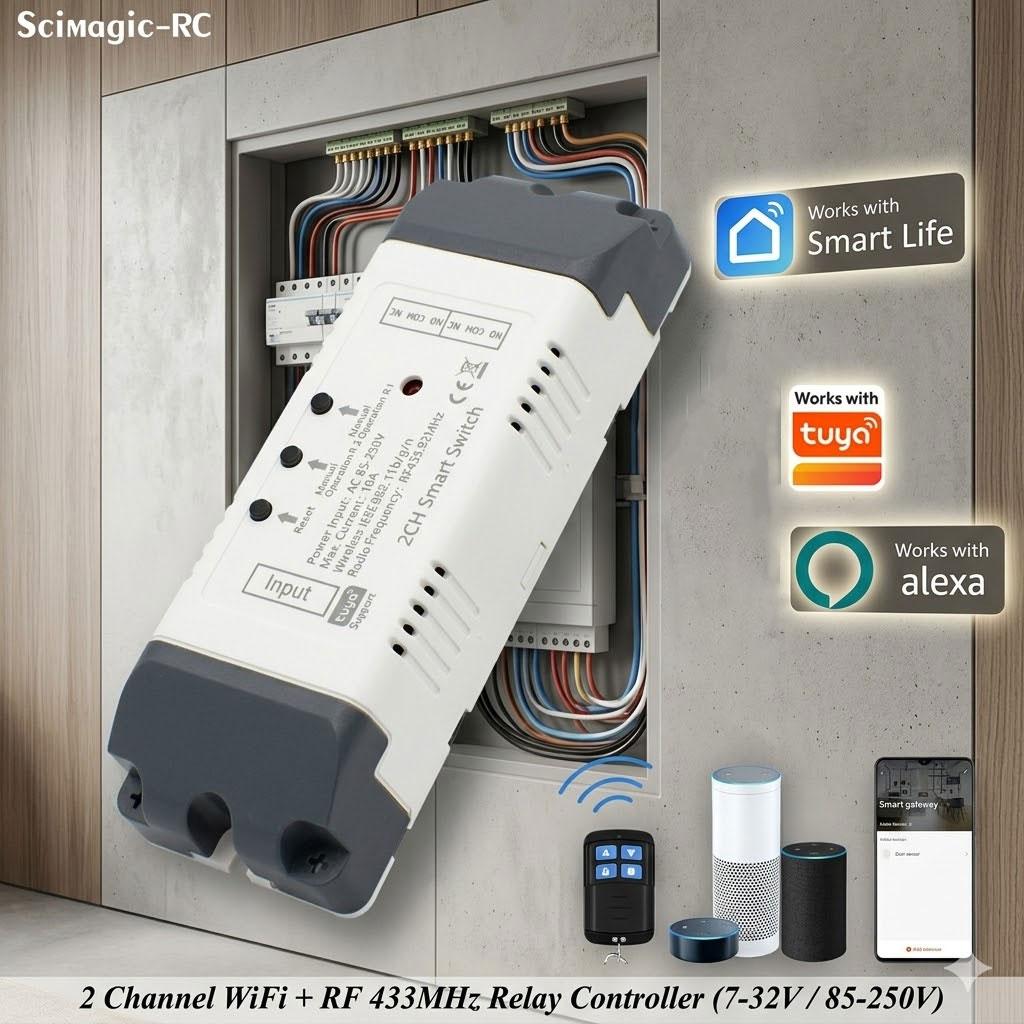

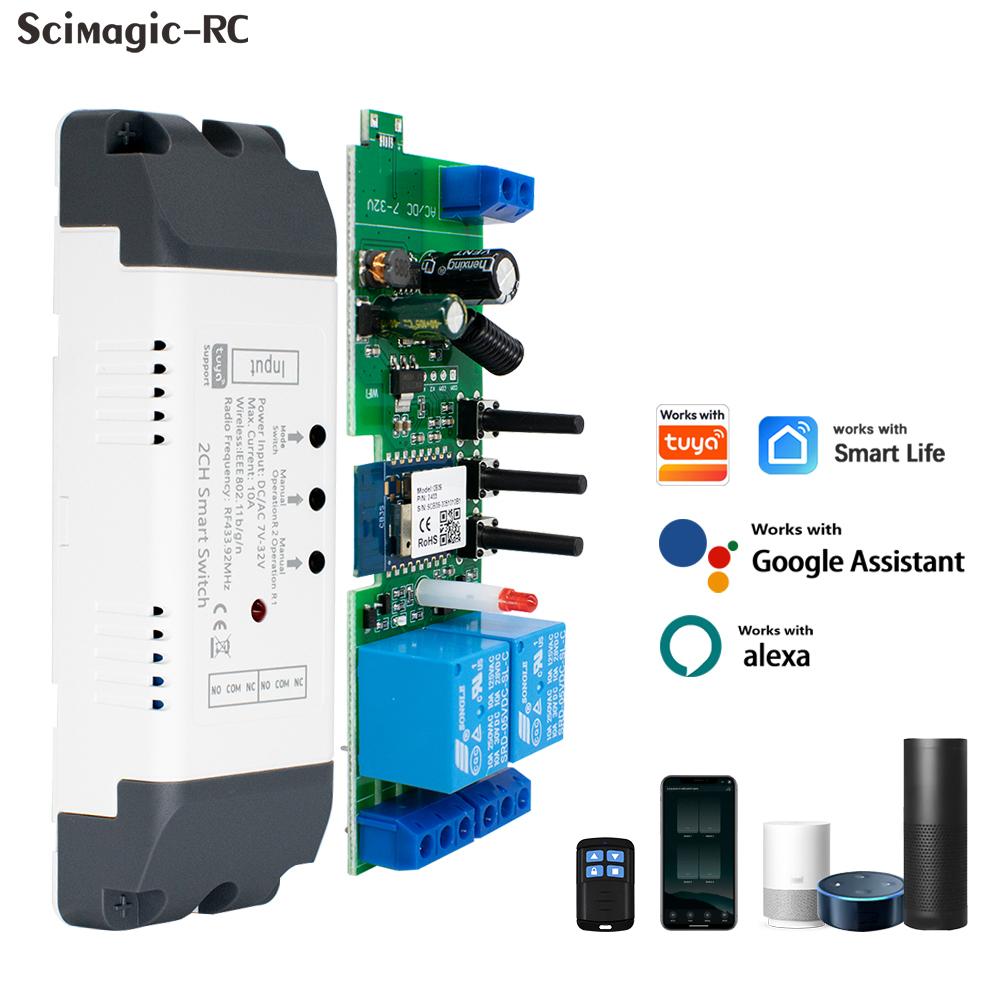

This product is a 2 channels universal WiFi wireless smart switch with RF 433MHz module, for your smart home system to remotely and automatically turn on/off home appliances and electronic devices by phone APP. It also can be controlled by RF remote controller indoors. It can connect and control two appliances on APP at the same time, and you can independently turn on/off each of the two gangs. It also supports timing turning on/off the appliances at a specified time, and share to others so that you can control your smart home together with your family. You can also voice control your home appliances by Alexa, and for Google Home/Nest, and enjoy intelligent life and make your home smarter.
Specifications:
Channels: 2.
Input voltage : DC/AC 7-32V ,AC 85-250V,
Output: Signal output only, no voltage output.
Max current : 2200W/10A.
WiFi standard : WiFi 2.4 ghz b/n/g.
Size : 100*35*20mm
The life of Relay Model is more than 1,000,00.
Default inching Function: Press the open relay by mobile phone, then cut off the pull-on imediately, you can set the inching time in APP , it has the timing-share function at the same time.
Self-locking when press the inching and locking button with the light on. Press open relay to pull-on, press close relay to cut off.
Special Reminder:
The old version supports USB5V input, while the new version does not support USB5V input.
We default to sending you a new version.
Features:
*App Support: Free iOS and for Android mobile App Smart Life / Tuya Smart.
*Sync Status: Real-time device status provided to App.
*Remote ON/OFF: Turn 4 electrical devices on/off remotely from anywhere.
*RF Remote control: Turn on/off by 433MHz RF Remote indoors,Only support 433MHz Learning code.
*3 Working Modes: Switch among interlock/self-locking/inching modes.
*Independent control: Control each gang separately in APP Tuya.
*Supports remotely turn on or off connected appliances, for example light, electric kettle, electric rice cooker, electric curtain, etc.
*Timing: Supports 8 enabled countdown/single/repeat timing tasks to turn on/off at specified time.
*DIN Rail Mounted: Great for industrial control.
*Voice Control: Compatible perfectly with Amazon Alexa, for Google Home, for Google Nest,IFTTT.
*Share Control: Control your smart home together with your family.
What can I use it for?
*Connect a light, remotely control the switch of the light.Connect a light, remotely control the switch of the light, and can also switch on and off regularly
19:00 On 21:00 Off
*Open your curtains regularly 7:00
*Change the water for the fish tank regularly
*Use mobile phone or voice control Garage door switch
*Control your heater remotely
*And your coffee machine
*Connect a water pump, remote control or timer switch
More functions waiting for you to discover. DIY
Noted :
Your have the correct wif password.
Your smart phone or tablet must have access to APP store or google play.
Your router is MAC-open.
Your smart phone or tablet has connected to a 2.4g wifi with internet.
Default inching time 1s , you can set inching time from 1s to 3600s in APP ( smart life / tuya smart).
Include:
1* wifi module
1* manual
433MHz Remote Control
Please note: The remote does not contain batteries.
The battery is 12V 23A.
Voltage: 180–260 V
