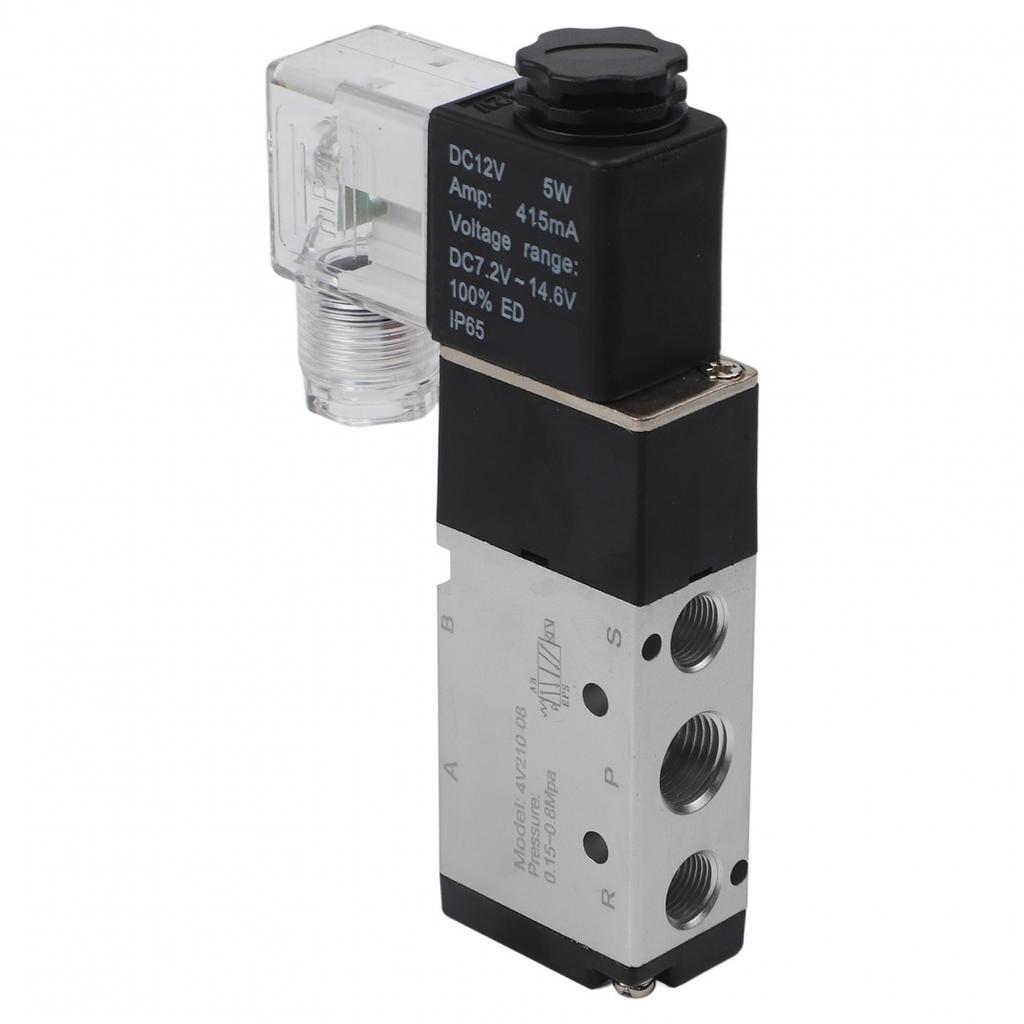

DC 12V Valve Pneumatic Valve Solenoid Valve Effective Cross-Sectional Area 16mm²

Features: * Small size, easy to disassemble and assemble. * The valve body is made of aluminum alloy, with strong pressure resistance, good sealing, safe and reliable use. * The inner hole is treated with special technology, with small friction resistance, low starting pressure and long service life. * Please pay attention to whether the air path direction and connection are correct during installation. Pay attention to prevention. It is for recommended to install a muffler at the for exhaust port. * The pneumatic solenoid valve is a single-control solenoid valve with a pilot valve core structure, good sealing and sensitive response.

Specifications: Part name: Solenoid valve Model: 4V210-08 Material: Metal + ABS Color: As shown in the figure Working pressure: 0 - 150 PSI / 0 - 990 kPa Vacuum: 0 - 29.5 inHg / 750 mmHg Thread diameter: Suitable for BSPT G1/4 Diameter: 6mm Working temperature: 0 - 60 °C / 32 to 140F Maximum pressure resistance: 1.2Mpa Working temperature: -5~50°C Power consumption: DC12V Current: 29mA Insulation and for protection level: Class F, IP65 Maximum operating for frequency: 4 Excitation time: 0.05 seconds Effective cross-sectional area: 16mm² (CV =0.89) Connector diameter: Inlet = outlet = 1/4 inch, for exhaust = 1/8 inch Size: 11.8*6.6*2.1 cm/4.6*2.6*0.8 inches (length*width*height) Position and number of ways: two-way, five-way

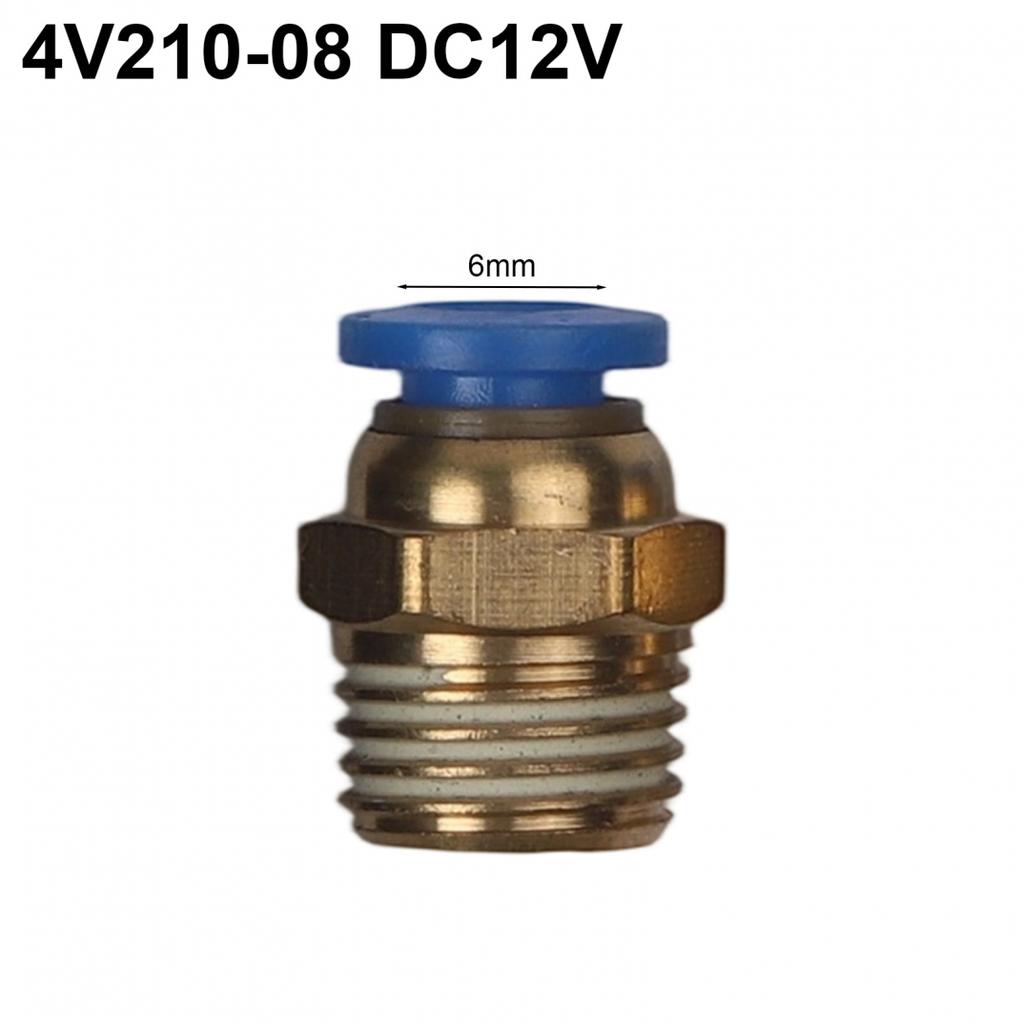

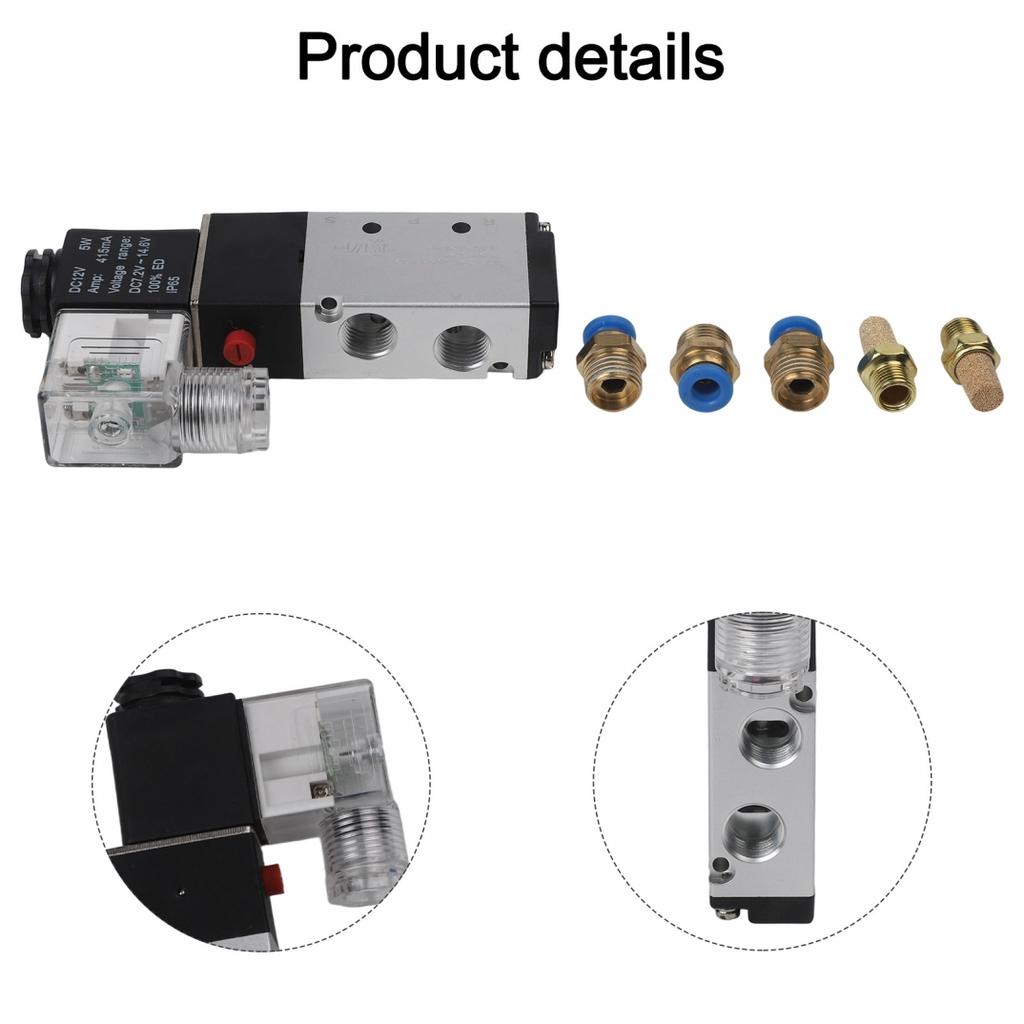

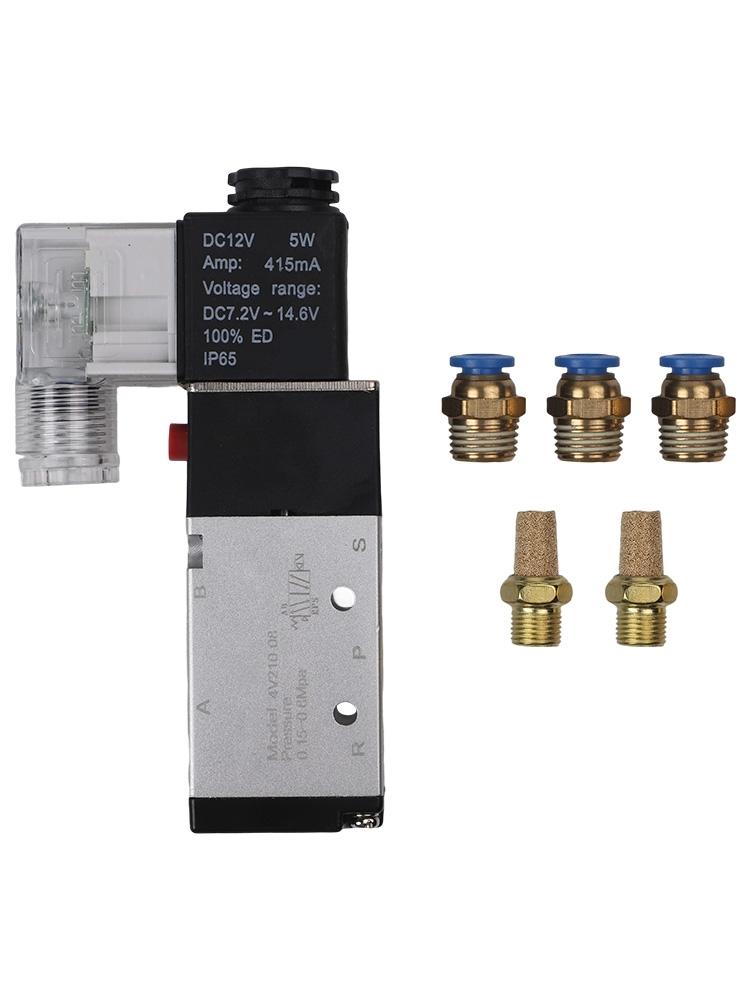

Package contents: 1 x solenoid valve 3 x connectors 2 x mufflers

Note: 1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2.Please allow slight manual measurement deviation for the data.
