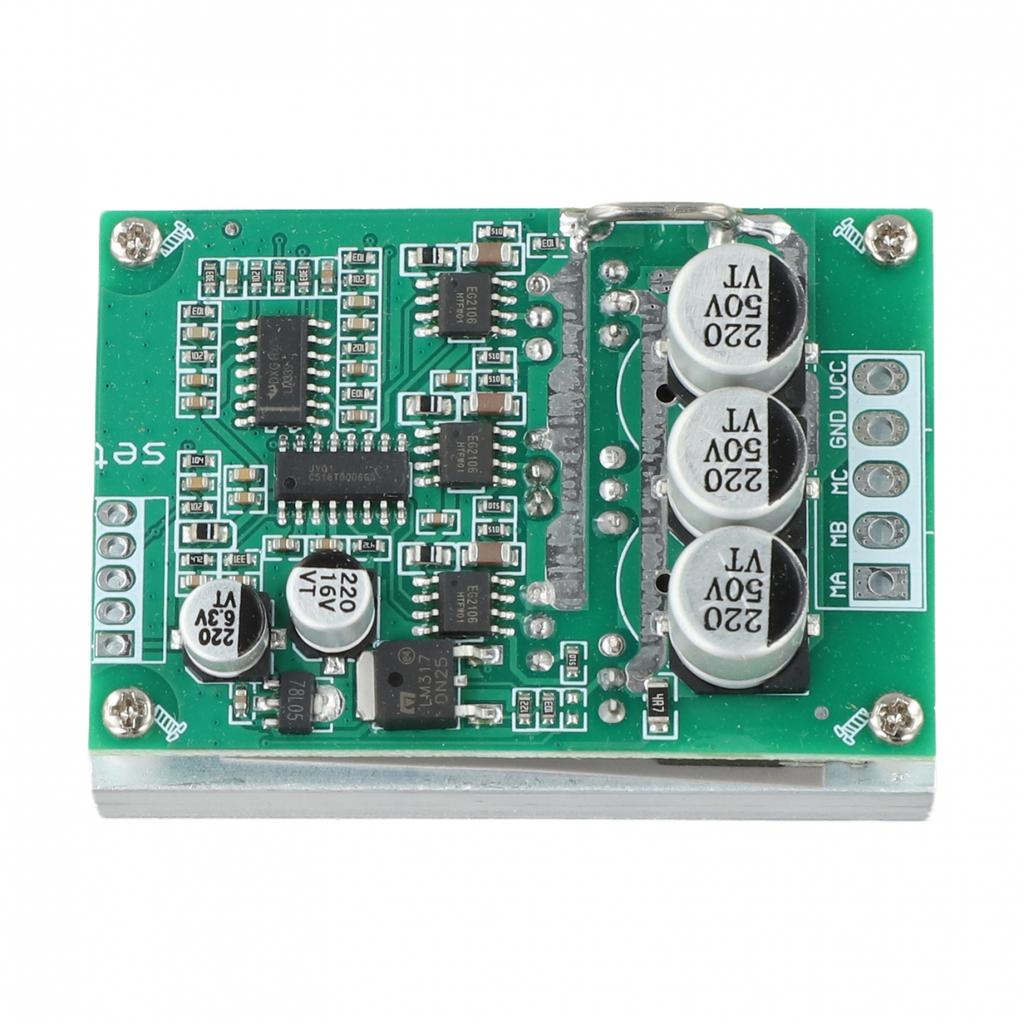

For PWM Motor Controller for BLDC Brushless Motor 500W DC12 36V Driver

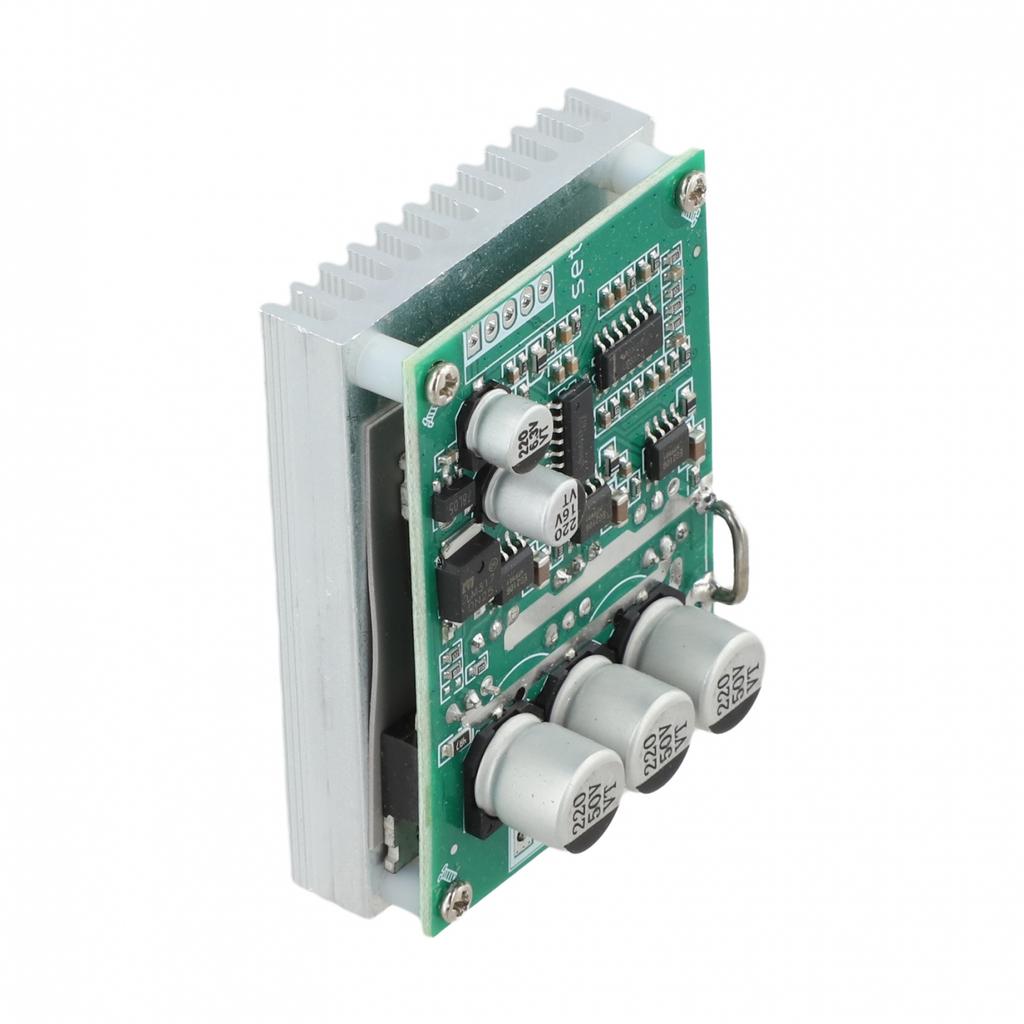

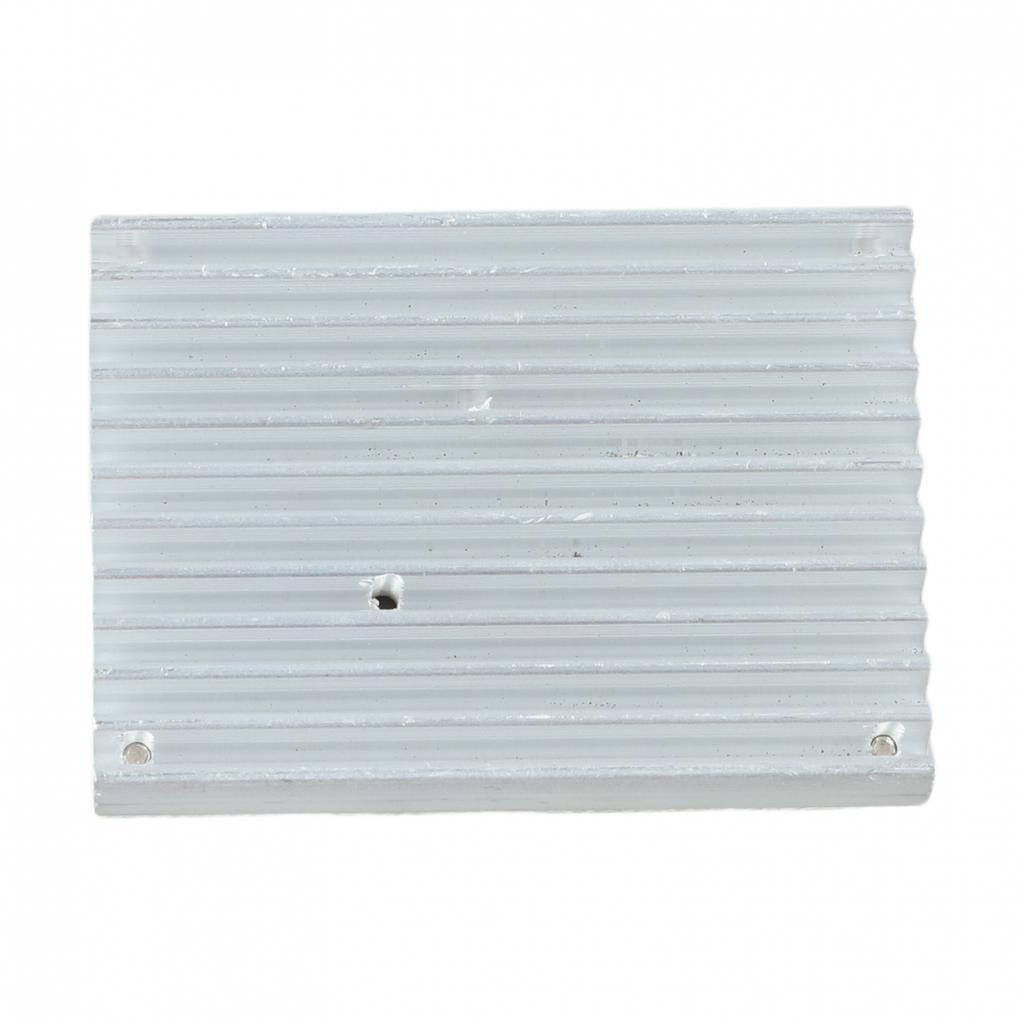

Features: * The driver supports forward and reverse rotation switching and features a potentiometer for control. The potentiometer is generally suitable for 10-50K, and can also be adjusted using a 5V for PWM signal. * Easy to use, with the driver board featuring an 18mm thick heat sink. * Compact and elegant appearance, with neatly arranged components. * Wide range of applications.

Specifications: Part Name: Motor Driver Board Material: PCB, Metal Color: As shown Size: Approx. 63*43mm Input Voltage: DC12-36V Maximum Current: 15A Maximum Power: 500W Notes: (see below) When testing the driver, it is to use the adjustable power supply in current-limiting mode to verify the actual no-load current to avoid caused by excessive power at abnormal times. Do not short-circuit the three output phases , W, or D, as this may damage the driver. When using high power, adjust the power supply based on the actual heat generated. If excessive heat is generated, a fan should be installed for forced cooling. The driver does not come with a socket or connecting cable; soldering is required. You must prepare the forward/reverse switch and potentiometer yourself. The soldering iron must be properly grounded to prevent induced current from damaging the driver.

Package Contents: 1 x Motor Driver Board

Note： 1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your and light brightness. 2.Please allow slight manual measurement deviation for the data.
