5S 15A 18.5V 21V Li-Ion Lithium Battery Charger Protection Board Bms 18650 Charger Module 18V 21V Cell Protection Circuit

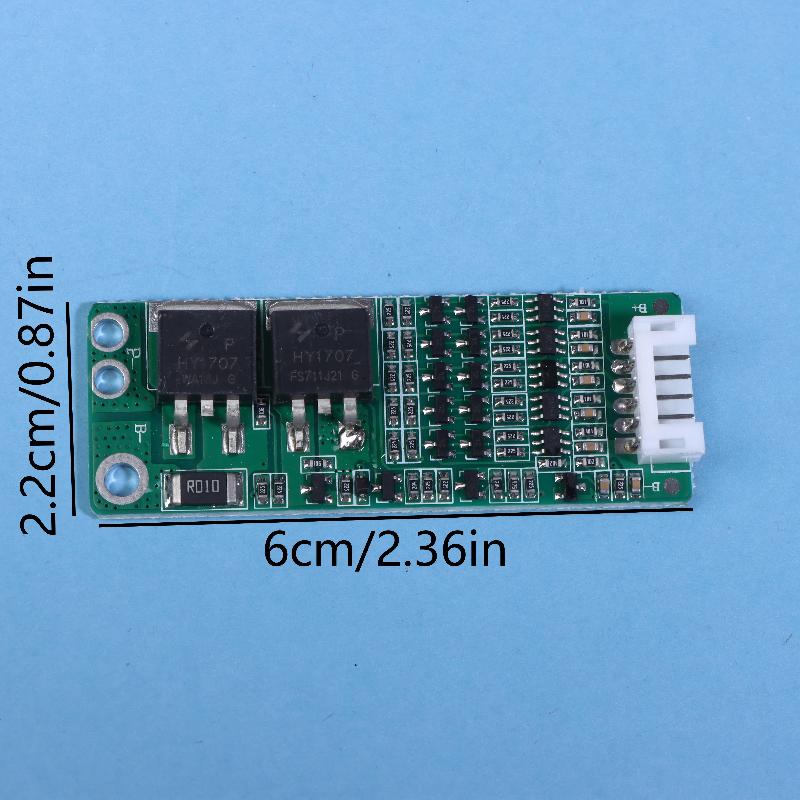

Description: 100 new and high quality Size: about 6*2.2cm/2.36*0.87in Color: as the picturetures Package Included: 1/2pcs Charging voltage: 21 V Charge MOS pressure value: 35 V Discharge MOS pressure value: 35 V Charging current: 56 A Continuous discharge current: 15 A Over current protection delay: 20/25/30mS Single section since the power consumption: 30uA Single section between the power consumption: 3uA Single section over charge detection voltage: 4.18- /4.22V Over charge recovery voltage 4.05- 4.15 V Over charge detection delay: 0.5/1.0/2.0S Single section over discharge detection voltage: 2.75-2.85 V Over discharge recovery voltage: 2.90-3.20 V Over discharge detection delay: 0.5-2.0S Short / over / over current protection recovery short circuit / over discharge / over current protection after removal of load auto recovery Short circuit protection delay 200/500/600uS The normal working state of B- to P- resistance: 5m omega  Continuous 15A current maximum temperature rise: 25 degree Working environment (humidity) relative humidity: Greater than or equal to 98 (long-term stability under the humidity) Working environment (temperature) -30 to 80 degree (in the lower temperature range of long-term stability) Notes: Due to manual measurement , there may be 5mm deviation exist,hope you can understand. There are slight difference between the picture and the item caused by light brightness,hope you can understand. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
