(Indicator Light): With temperature control output indicator light function, temperature control output starts indicator light, temperature control output stop indicator light off, temperature control output is delayed protecting indicator light flashing.
(Setting Function): With temperature setting function, support temperature return difference setting, minimum lower limit temperature setting, maximum upper limit temperature setting, delay starts setting, temperature correction setting, high temperature alarm value setting, high temperature alarm delay value setting.

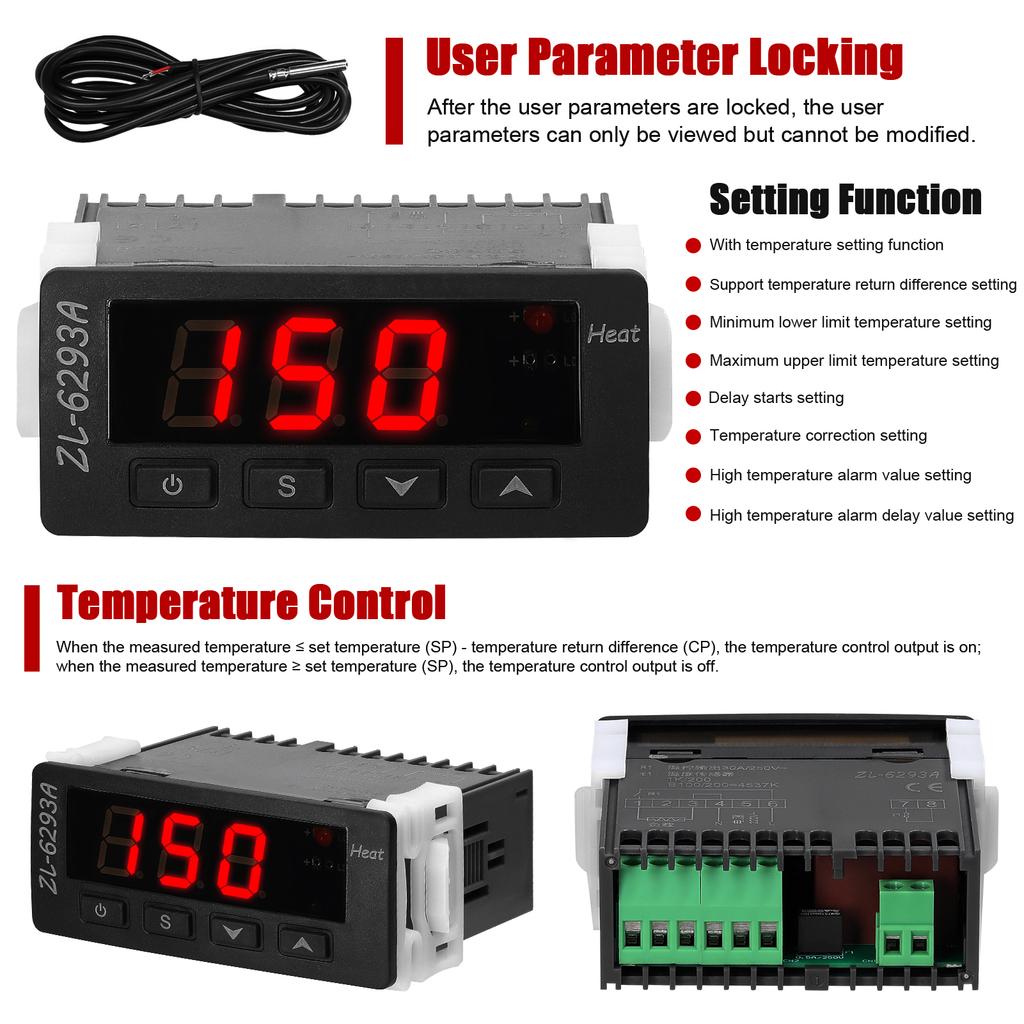

(User Parameter Locking): After the user parameters are locked, the user parameters can only be viewed but cannot be modified.

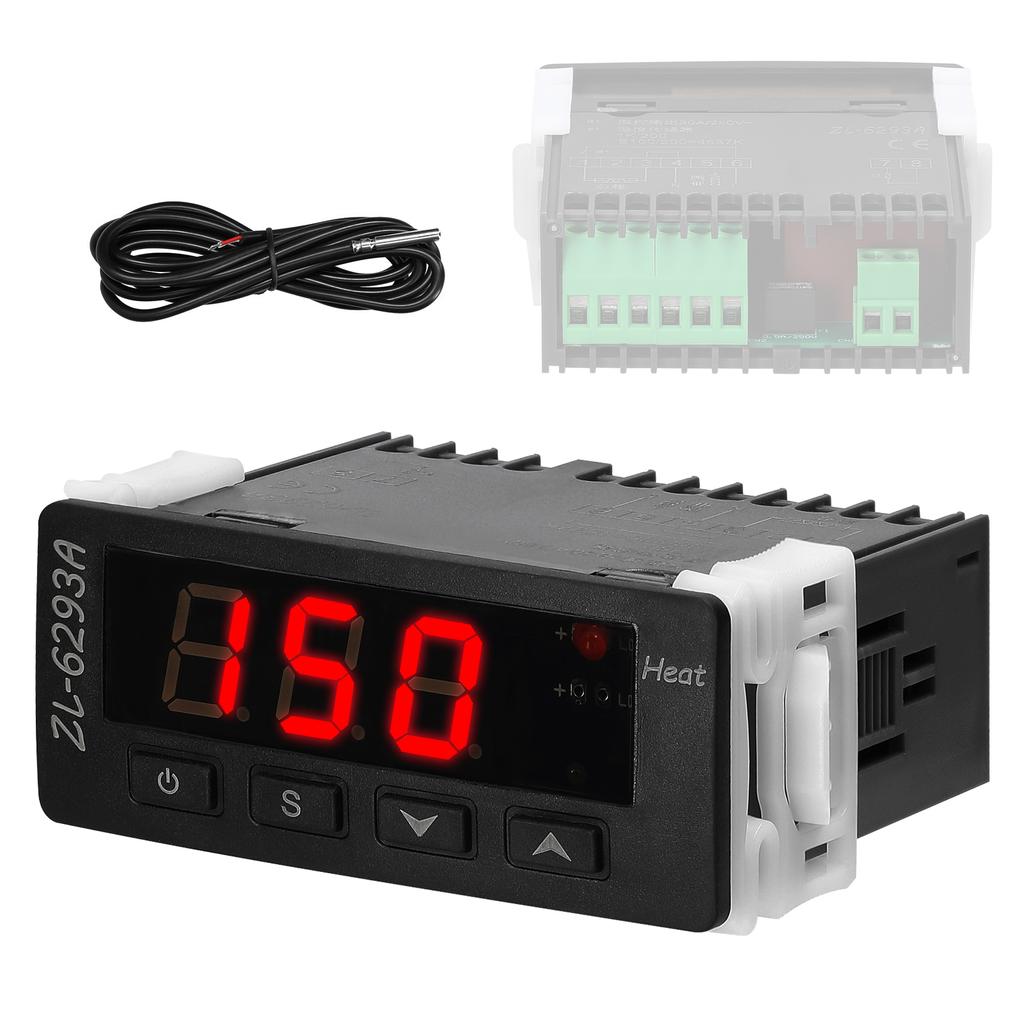

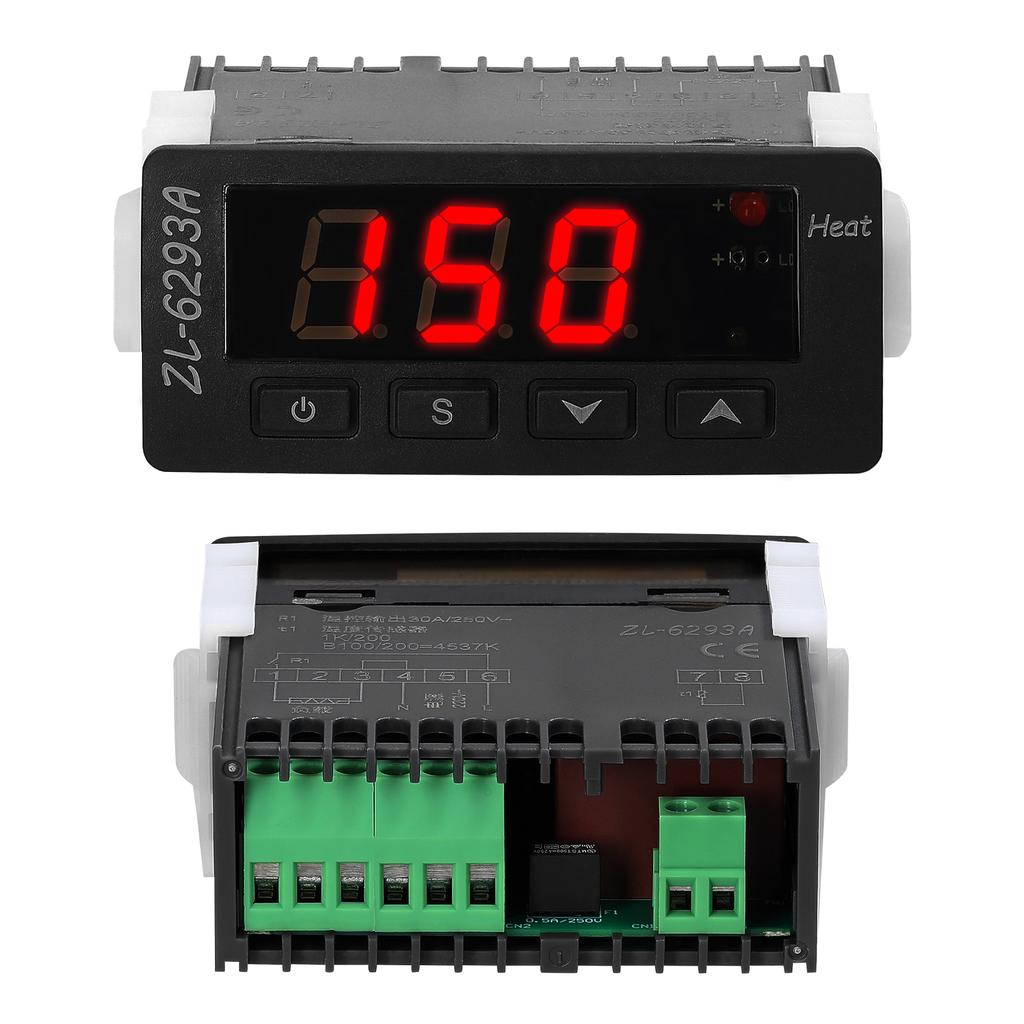

ZL-6293A intelligent temperature controller selects temperature sensor, with 30A control output, suitable for high temperature control , such as silicone rubber heating plate, oven, electric oven and so on. Multi-function design with temperature control output indicator function, temperature setting function, temperature control function, factory setting function.
Features:
(Indicator Light): With temperature control output indicator light function, temperature control output starts indicator light, temperature control output stop indicator light off, temperature control output is delayed protecting indicator light flashing.
(Setting Function): With temperature setting function, support temperature return difference setting, minimum lower limit temperature setting, maximum upper limit temperature setting, delay starts setting, temperature correction setting, high temperature alarm value setting, high temperature alarm delay value setting.
(User Parameter Locking): After the user parameters are locked, the user parameters can only be viewed but cannot be modified.
(Temperature Control): When the measured temperature less than set temperature ( ) - temperature return difference (CP), the temperature control output is on; when the measured temperature more than set temperature ( ), the temperature control output is off.
(Temperature Control Output Delayed Starts): After the system is powered on, the temperature control output should pass the PU parameter time before it can be started; during , after the temperature output is turned off, it should pass the PU time before it can be started again.
(Sensor Failure): Stops temperature control, and temperature control output off.
(High Temperature Alarm): When the measured temperature more than high temperature alarm temperature (Ht), after delaying the high temperature alarm delay time (Htd), the high temperature alarm is triggered and the temperature control output is turned off. When the measured humidity < high temperature alarm temperature (Ht), the high temperature alarm is automatically canceled; Note: During the high temperature alarm, the character Hi and the measured temperature are di layed alternately in the digital tube di lay.
(Temperature Calibration): When there is an error between the measured temperature value and the actual temperature, it can be calibrated by CA parameter, and the calibration ranges +Celsius-50 celsius .
(Wide Applications): With 30A control output, it is suitable for high temperature control , such as silicone rubber heating plate, oven, electric oven and so on.
ecifications:
Name: Iintelligent Temperature Controller
Material: PC+ABS
Voltage: 185-245VAC, 50-60Hz
Input: (R200 celsius =1K, B=4537K)
Output: 30ACelsius250VAC (resistance load)
Setting ranges: -50 celsius to 260 celsius
Working environment: -10 celsius to 45 celsius , 5-90% without dew
Protecting : IP65
Installation drilling: W71 * H29
Item size: 83 * 35 * 73mm Celsius 3.27 * 1.38 * 2.87in
Item weight: 195g Celsius 6.88ounce
Package size: 110 * 89 * 71mm Celsius 4.33 * 3.50 * 2.80in
Package weight: 225g Celsius 7.94ounce
Packing List:
1 * Iintelligent Temperature Controller
1 * Sensor
