Features:
1. Features Type-C power supply, high precision, strong stability, user-friendly operation, and rapid troubleshooting
2. Approaches the inductor under test: Indicator light illuminates for normal operation, extinguishes for abnormalities
3. Plug-and-play simplicity and portability: User-friendly operation with button controls; plug in and troubleshoot anytime

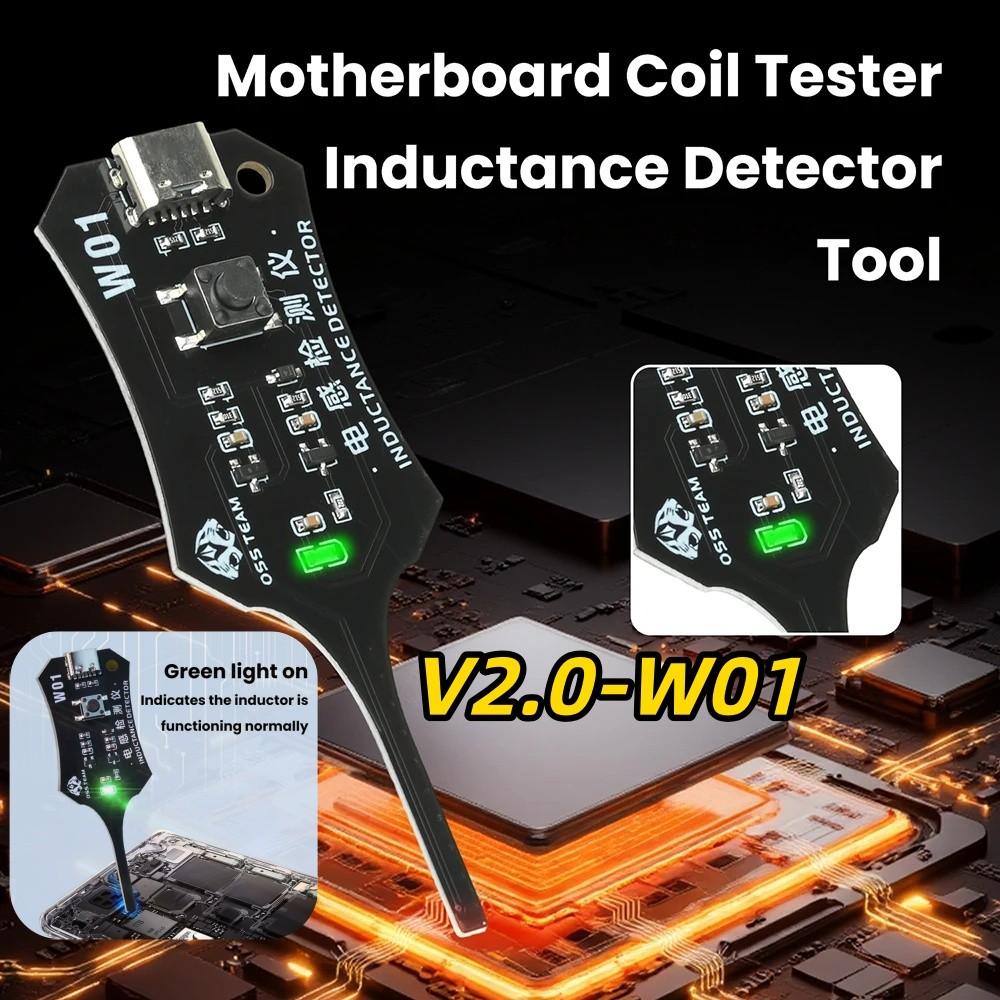

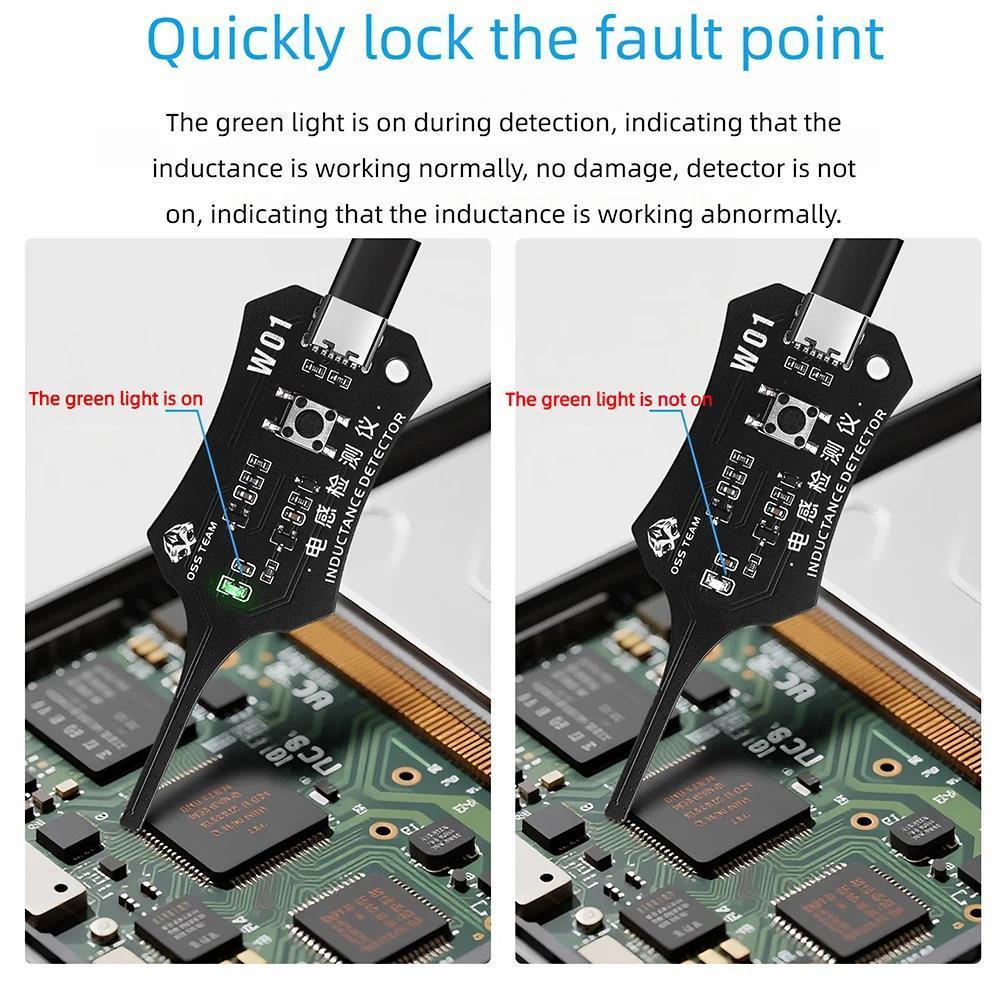

4. Green light directly displays fault status: Illuminates during testing to confirm inductor is functioning normally without damage
5. Mainboard coil tester for mobile phone component fault detection and diagnostic repair
Specifications:
Interface: Type C

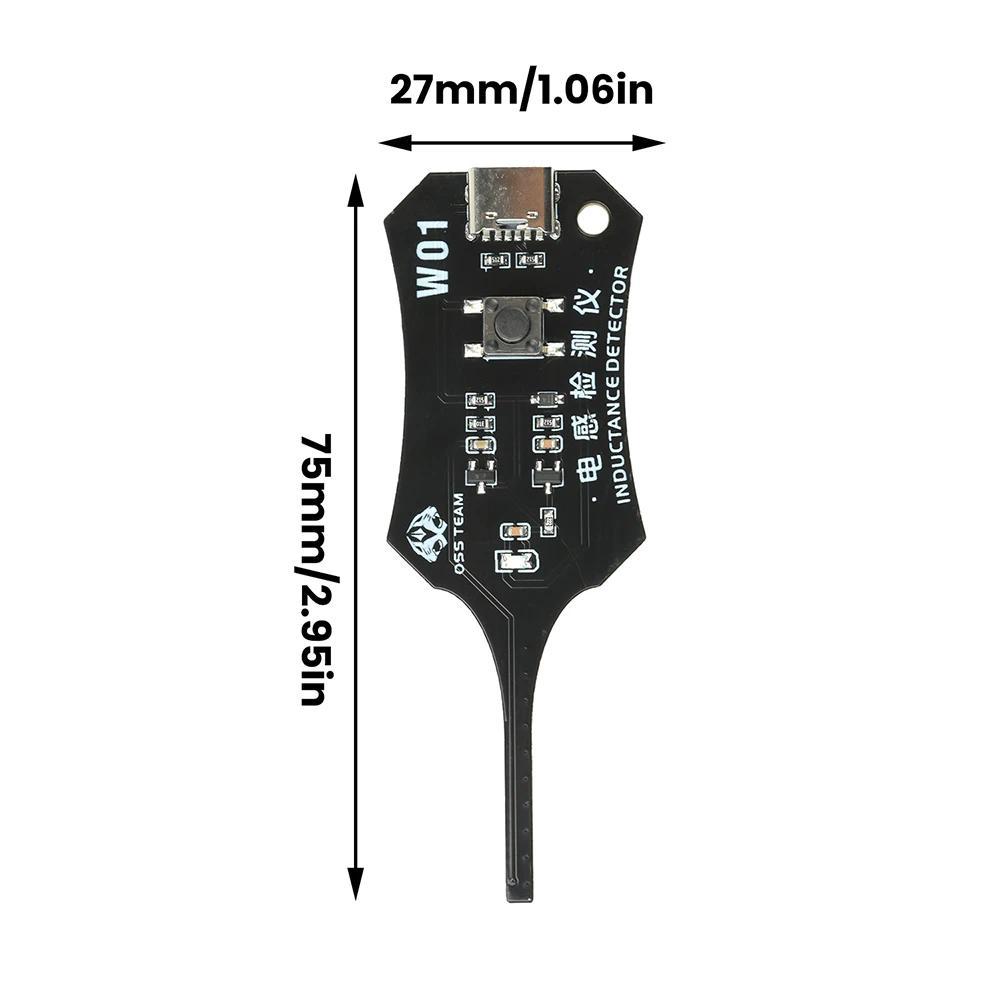

Product Dimensions: 75*27mm
Package include:

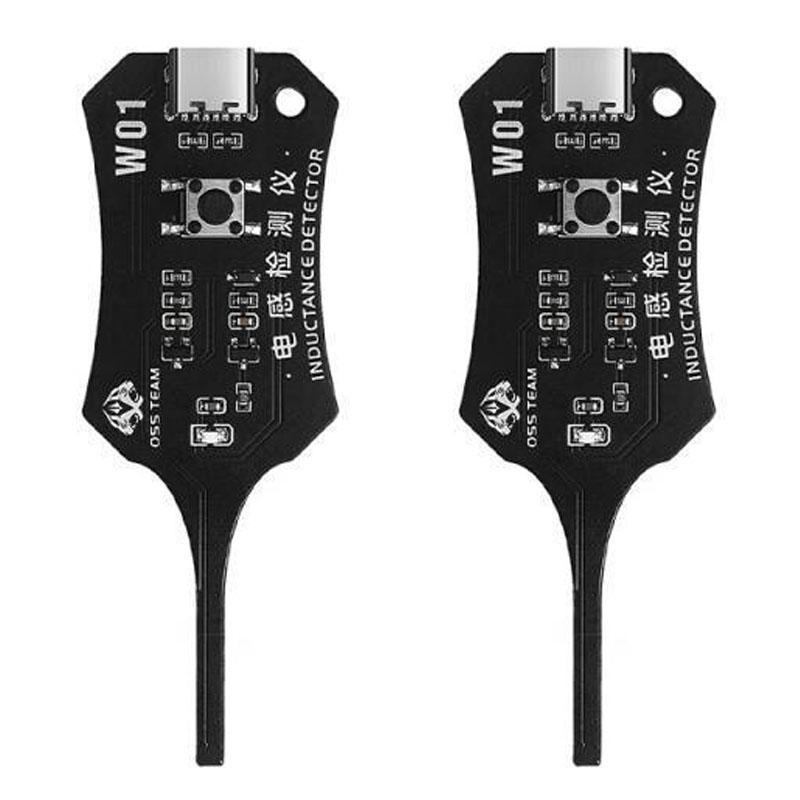

1/2/3* Inductance Tester
How to use:
1. Plug In charger lead

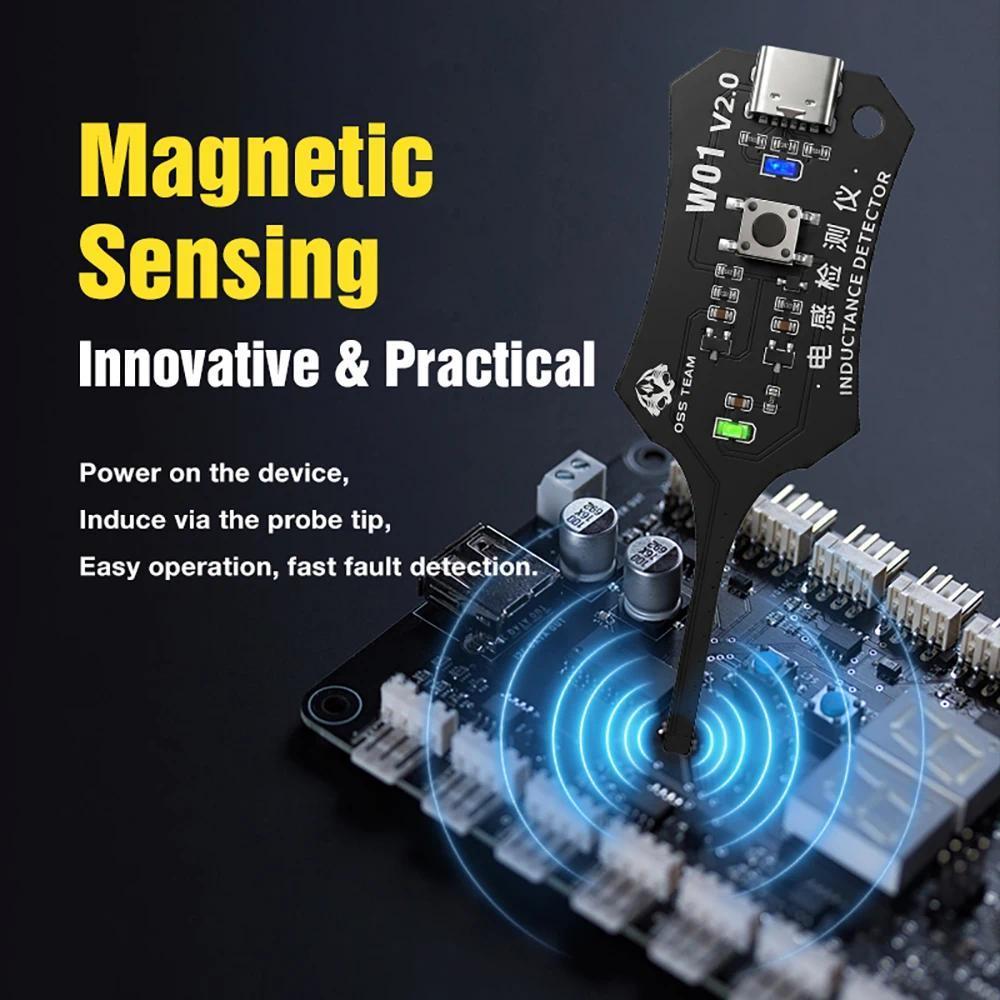

2. Press button, the sensing end is close to the inductance to be detected
3. When the indicator light is on, the inductance works normally.
4. When the indicator light is not on, it indicates that the inductanceworks abnormally.
The operation method is as follows:
- First, power the tester. At this time, the circuit board is not responding, and the tested circuit board needs to be powered on before testing.
- When testing the inductor, press and hold the switch, and place the front end of the small board close to the inductor (do not touch it, some inductors are not insulated).

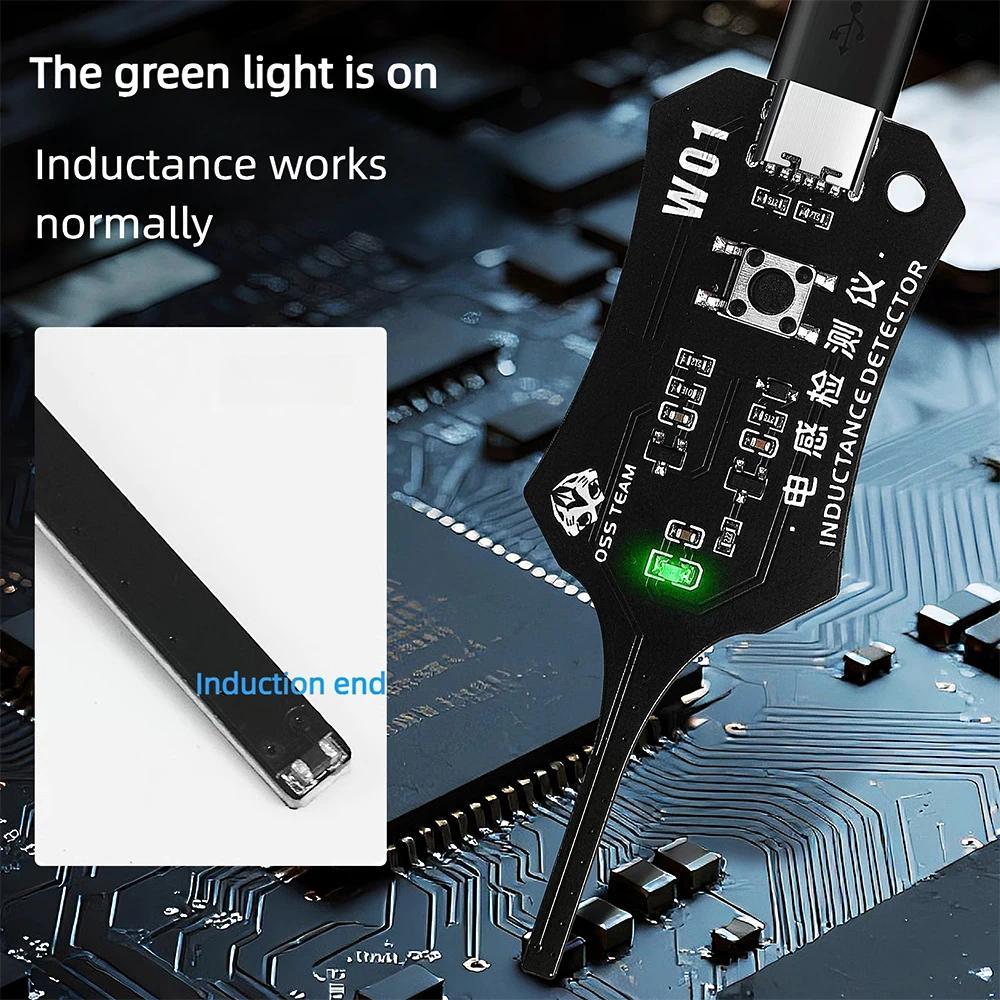

- The indicator light on the board will light up, indicating that the tested inductor is normal. If the light on the front end of the inductor is not on, it indicates that there is a problem with the inductor and it needs to be repaired.
Kindly Remind :
Please read these notes carefully before use :
1. Supported Components:This tool only tests coil-type inductors.It does NOT measure resistors,capacitors,diodes,or transistors.
2. Testing Method:Do not press the probe tightly against the component;simply bring it close to the inductor for accurate results.
3. Interference Note:The LED may light up when near metal heatsinks or shielding shells.This is electromagnetic interference and does not count as a valid test result.
Please use 5V voltage for power supply. Do not use voltage exceeding 5V for power supply, otherwise the test cannot be conducted
