●Special Notes: Each quick-connect terminal is reusable. This product comes with mounting screws (3 * 16mm) for easy attachment to formwork or plastic panels. Insert the bare wire portion of the cable into the bottom and do not expose it to the outside. The boost handle must be tilted vertically when wiring.
●Easy Operation: No tools are required for easy installation. Simply remove the wire cover (8-10mm), gently push the booster upwards to a 90° angle, plug in the cable, and turn off the booster's power. Installation is complete. Say goodbye to traditional strip connections and save time and effort.
●Applications: Wide range of usage scenarios including outdoor wiring, electrical and mechanical wiring, household wiring, decoration, and engineering power distribution. (Note: This connector can only be connected to two different electrodes of a power supply at a time. It cannot be connected to all three electrodes of a power supply simultaneously.)
●Wiring range: Input wires: 0.5-6.0mm², Output wires: 0.1-4mm². High-quality interface design makes wiring easy and quick, reducing safety hazards. Rated current: 32A, Rated voltage: 400V.
●Material: Copper conductor, strong conductivity. Built-in high-alloy nickel-chromium steel circlip securely clamps the wire, ensuring a firm connection and preventing it from coming loose. The shell is flame-retardant and high-temperature resistant, resistant to deformation and discoloration, and resistant to corrosion and aging.
Product Description:
Product name: Multi-stage compact cable connector
specification:
Rated current: 32A
Rated voltage: 400V
Wiring range:
Input wire: 0.5-6.0 mm² / AWG20-10
Outgoing wire: 0.1-4mm²/AWG28-10
Conductive material: Electrolytic copper tin plating
Clamp spring: High-alloy nickel-chromium steel
Strip length: 8-10mm
Shell: Flame-retardant plastic

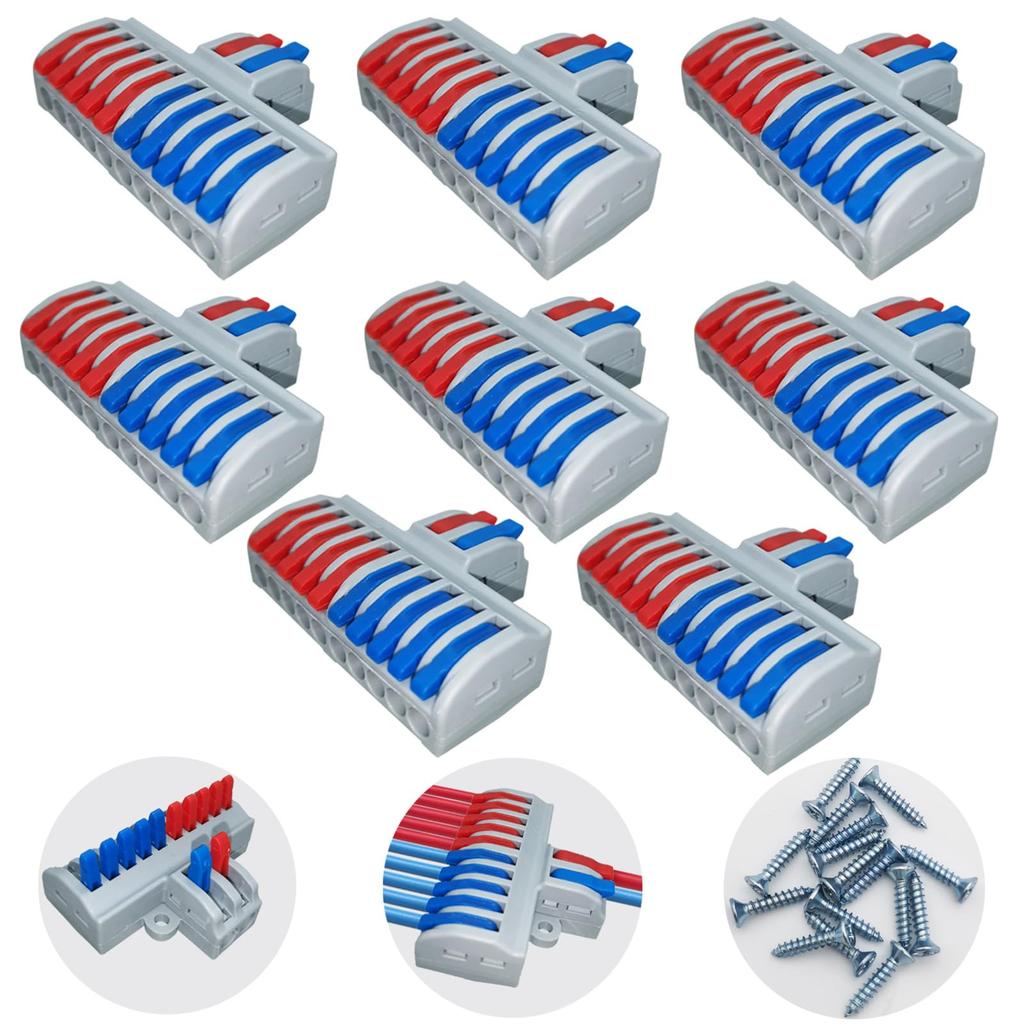

Packing list:
8 x Lever Connectors
1 x Plastic Storage Box, Easy to Store and Carry
16 pieces x screws (3*16mm)
Features:
The cable insertion holes allow for quick insertion of both soft and hard cables, making them convenient, simple, and reusable.
It adopts a booster design, making the wiring convenient, secure, and preventing loosening.
The connector has screw holes on both sides, allowing it to be easily attached to templates, plastic sheets, or other materials.
The shell is made of high-quality flame-retardant material, preventing problems beforehand and making wiring safer.
Hint:
This connector can only be connected to two different electrodes of a power supply (e.g., positive and negative) at the same time, and cannot be connected to all three electrodes of a power supply simultaneously.
After-sales service:
Our expert customer service team will resolve any after-sales issues.
Please do purchase it. However, there is a possibility of initial defects, so please contact our store first.
We will replace the item or issue a refund.
