T3230 Digital Cycle Timer Relay 1s-999h Dual LED Display DC 12V 24V AC 220V/110V Power ON OFF Delay for Industrial Control

T3230 Digital Cycle Timer Relay 1s-999h Dual LED Display DC 12V 24V AC 220V/110V Power ON OFF Delay for Industrial Control

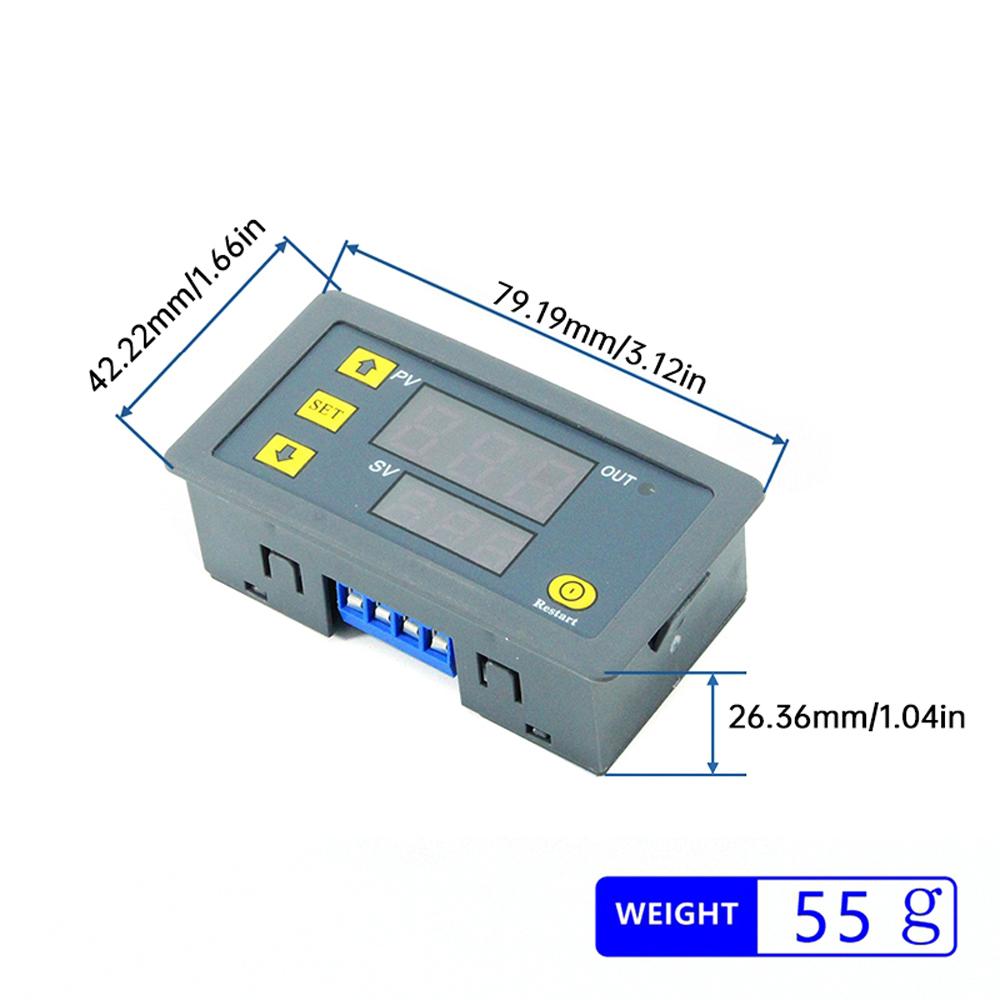

Features: 1. Wide Time Range: This digital cycle timer relay module offers a time range from 1 second to 999 hours. 2. Dual LED Display: The red and blue dual LED display module and touch-sensitive buttons allow for easy setting of delay time and operating mode. 3. Supports multiple operating modes, including timed, cycle, and periodic modes, meeting most needs. 4. Available with power-on delay (delayed action after power-up) or power-off delay (delayed reset after power-off). 5. Mounting Dimensions: 77 × 39.3 mm, flush-mountable, suitable for a variety of applications. Specifications: Product Name: T3230 Timer Range: 0-999 seconds, 0-999 minutes, 0-999 hours Power Supply Voltage: AC 110V-220V Output Type: Switching Contacts have no output. Relay Type: 1 normally open relay Timer Unit: Seconds/Minutes/Hours Timer Range: 0-999, minimum unit: 1 second Cycle Switch: Supported Delayed Power On: Supported Delayed Power Off: Supported Infinite Loop: Supported Power-off Save: Supported, only saves settings; power-on resets. Buzzer Alarm: None Dimensions: 79.5 × 42.1 × 27.8 mm Mounting Cutout: 77 × 39.3 mm LED Display: Dual red and blue display Package Included: Delay Relay *1
