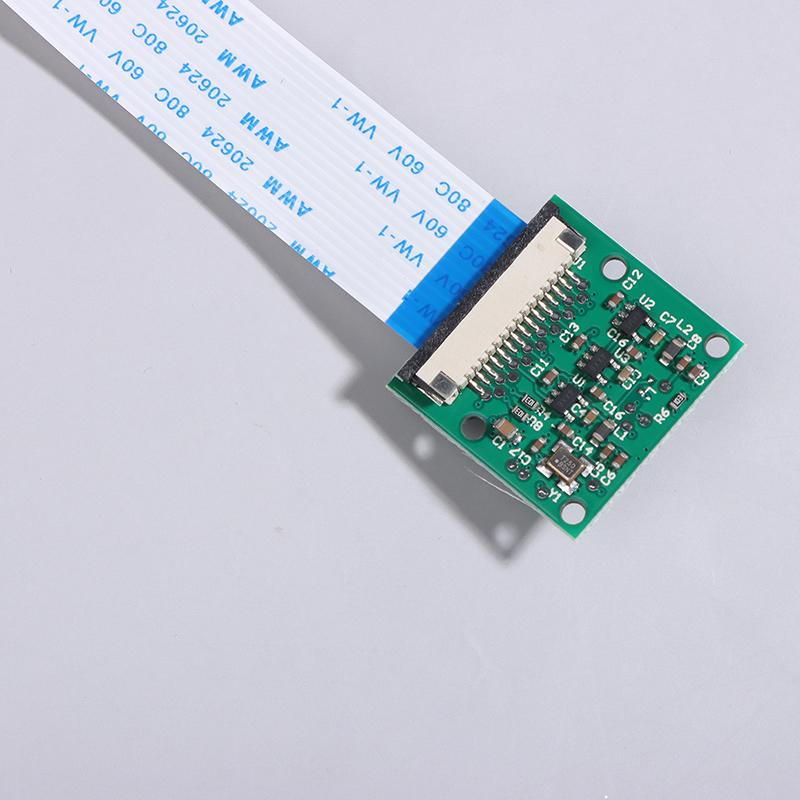

Raspberry Pi Camera Module 5MP 1080p With OV5647 Sensor Video Module For Raspberry Pi 2, Pi 3 3B+, Pi 4 , Pi Zero

Description: Software Usage: 1. The RPi firmware and raspi-config have been updated for the camera, please execute apt-get update; apt-get upgrade; 2. Select camera in raspi-config, start the camera driver in RPi firmware, and then restart 3. Use the command line programs raspivid and raspistill to operate the camera and capture video clips or images 4. The captured video clips need to be played with mplayer How to broadcast camera data through live webcast: Use the nc command (ncat - Concatenate and redirect sockets) to redirect the input data of the camera directly to the network port for output. parameter: Lens: 1/4 5M Aperture: 2.9 Focal length: 3.29 Field of view: 72.4 degrees Hardware connection: 1. Soft cable, 90-degree vertical connector, the one next to the HDMI port. When connecting, the contact side faces the HDMI interface. 2. Tear off the protective film on the lens before use 3. For bare boards, be careful of ESD damage and beware of static electricity! How to enable camera support in Raspbian: Start the Pi and log in. The default username is pi and the default password is raspberry. (Note: If you change the default settings, you will need to provide your own user/password details). Run the following command in the terminal to upgrade the Raspberry Pi firmware to the latest version: sudo apt-get update

Specification: Size:6.69*0.98in/17.0*2.5cm Color:As Shown In The Picture Package Included:1Pc

Notes: Due to differences in lighting and screen settings, the color of this item may vary slightly from the picture. Please allow slight size differences due to different manual measurements.
