Brand New and High Quality!

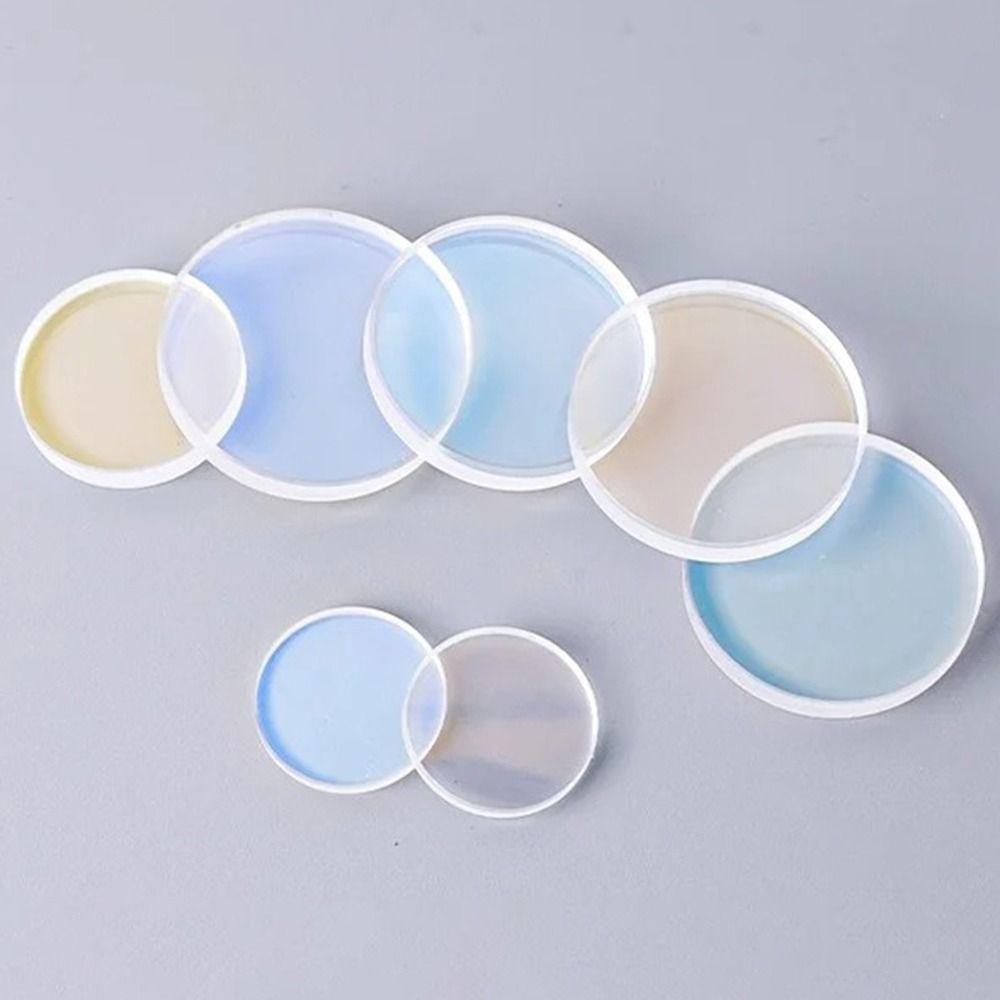

Name: Laser Protection Lens
Type: Laser Protection Lens
Material: Quartz Fused Silica
Color: Clear
Wavelength: 1064nm(900-1100nm)
Transmittance: >99.5%
Energy limit: less than or equal to 10KW

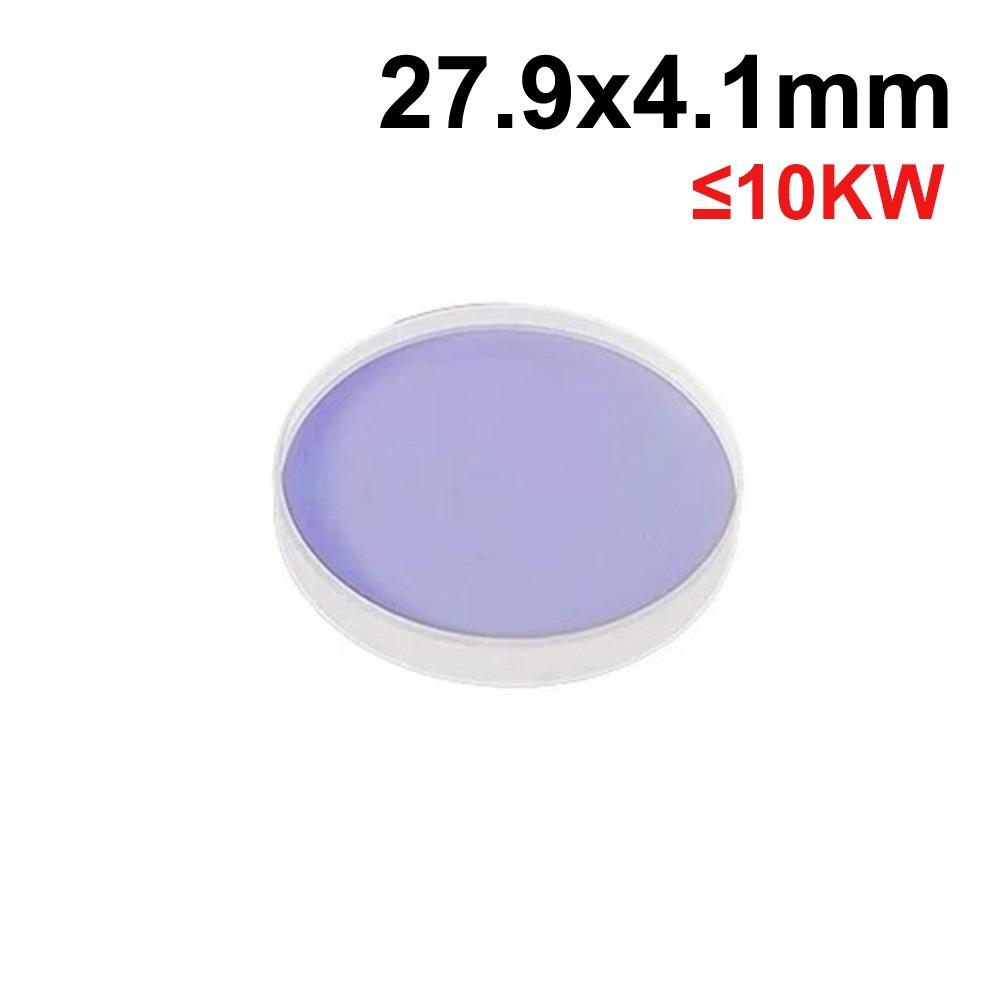

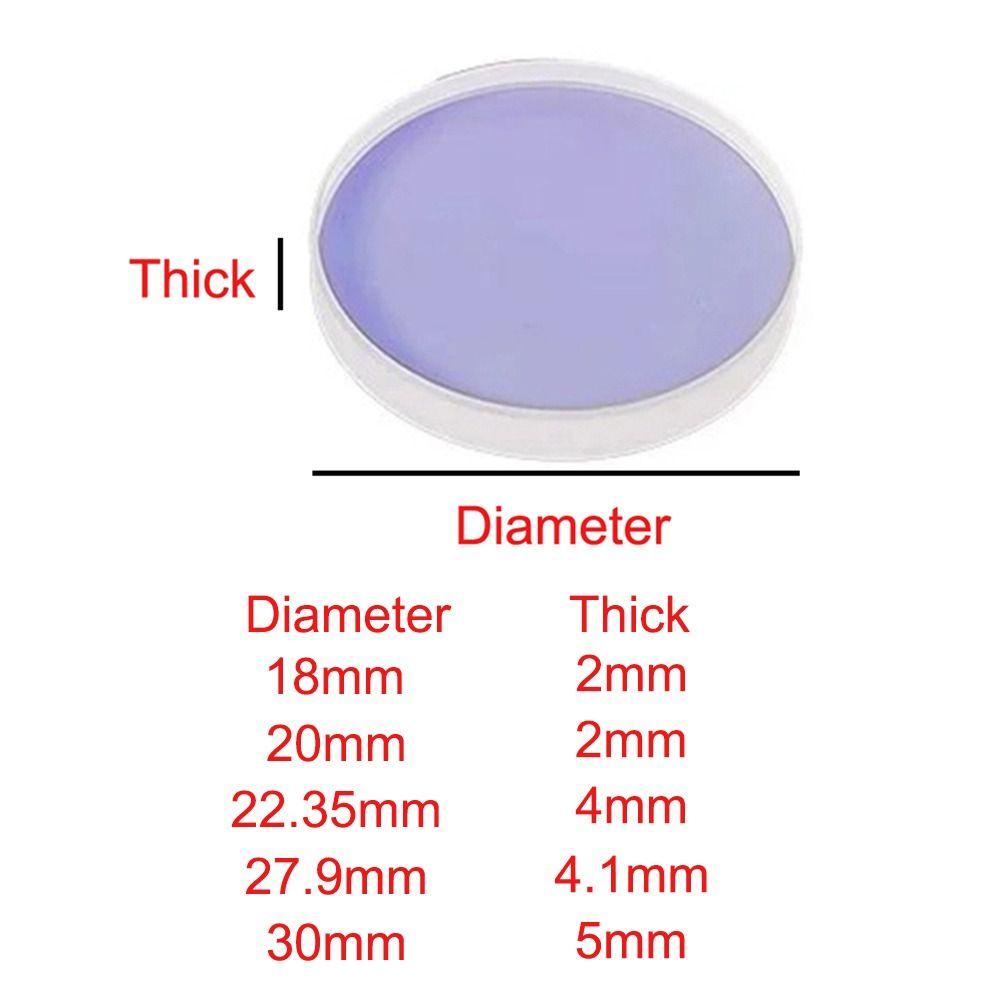

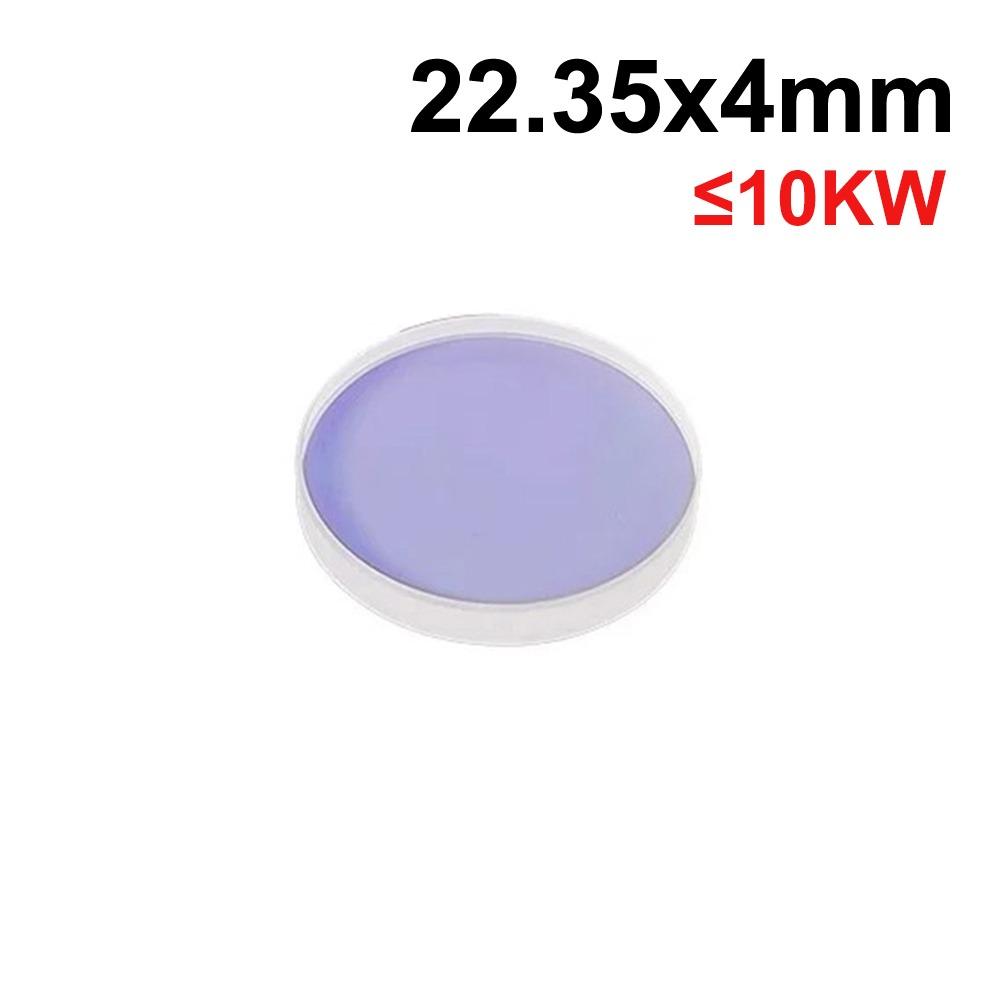

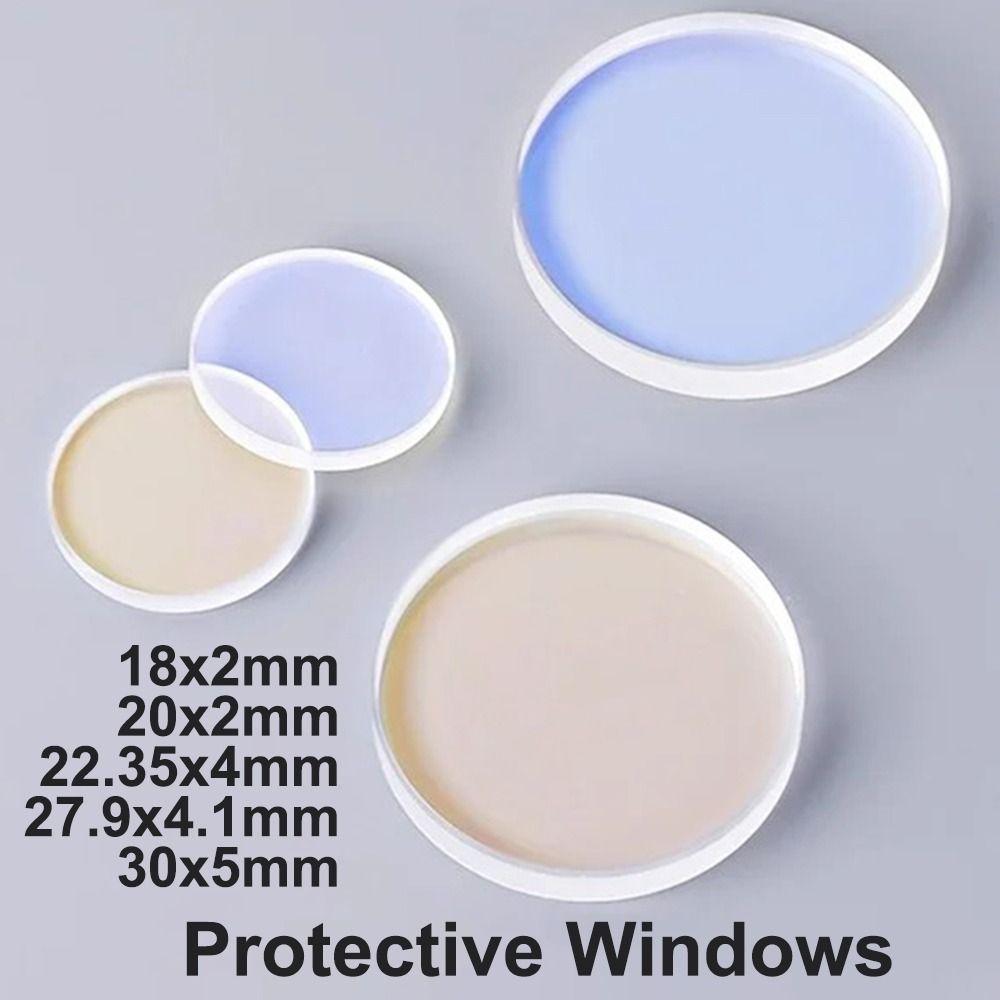

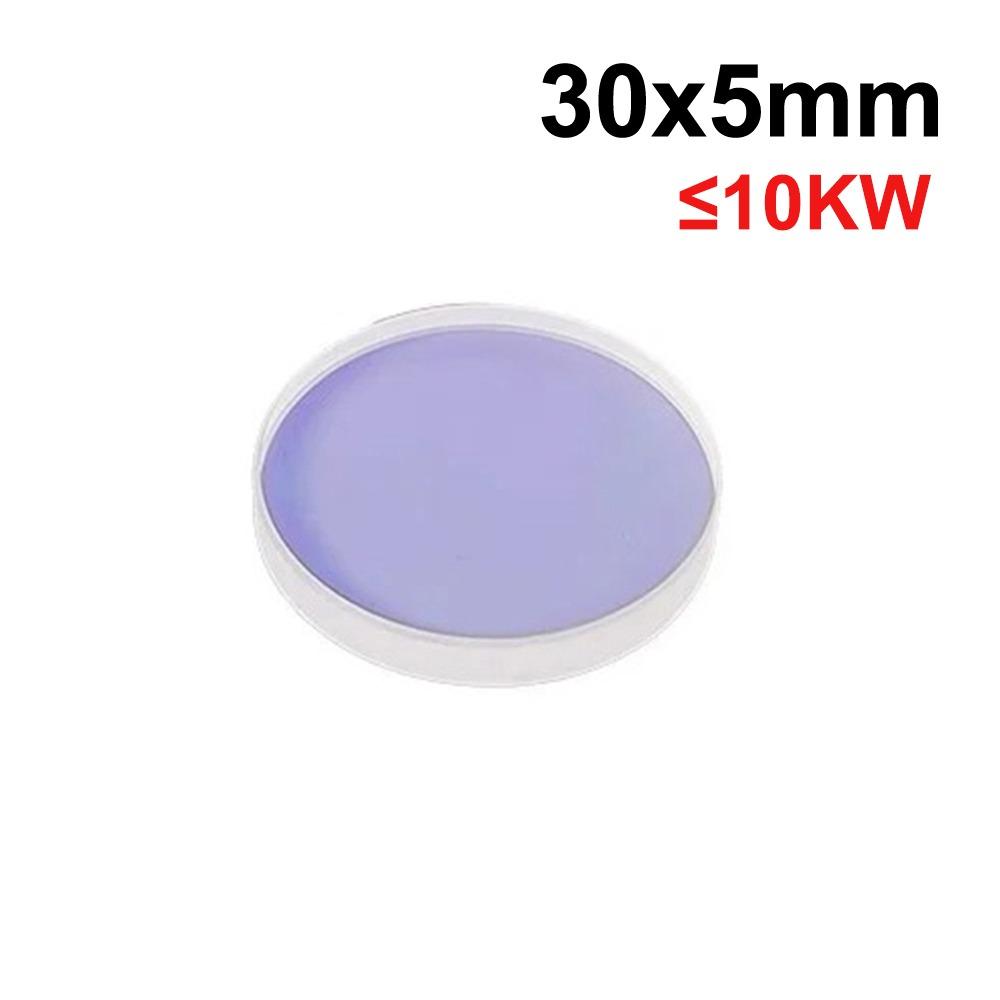

Size: 18x2mm(0.71x0.08in),20x2mm(0.79x0.08in),22.35x4mm(0.88x0.16in),27.9x4.1mm(1.10x0.16in),30x5mm(1.18x0.20in)
Application: Fiber YAG Laser Cutting Welding Machine
High-quality optical fiber protective lens, coated on both sides, with a wavelength range of 950-1100nm, made of JGS1 material. This protective window is used in the laser cutting head to protect the focusing lens from damage. Material use high quality JGS1 fused silica,high temperature resistance, strong light transmittance,stable performance and long life.Can withstand power: 0-10kw
Laser protective lens manufacturing process: using double-sided coating, transmittance>99.76%, effectively enhancing cutting speed and reducing losses caused by reflection.
Protective windows use high precision machining, tolerance ± 0.08mm(0.00in), 45 ° full angle protection, user-friendly design, safe and easy to replace, no harm to hands.
The function of laser protective lens is to prevent external dust and splashes from damaging the focusing collimator lens and optical system, while ensuring stable output of laser energy,extending the lifespan of the machine.
Package Include:
1x Laser Protection Lens
Notice:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-2 mm(0.04-0.08 in) differences due to manual measurement.
