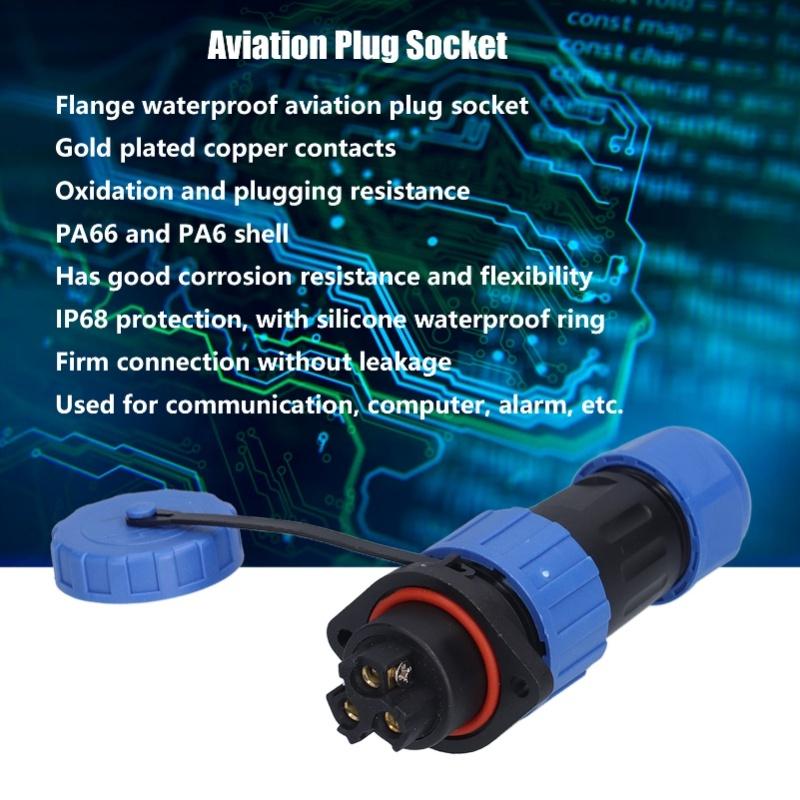

Features:
1.Screw Crimping: The waterproof aviation connector is flange design, using screw crimping method to install, which is simple and convenient.
2.Durable Shell: The shell is made of PA66 and PA6 materials, which is flexible and corrosion resistant, and will not crack due to low temperature.
3.IP68 Protection: The connector has IP68 protection and is equipped with silicone waterproof ring for good sealing.
4.Good Insulation: The insulator is made of thermoplastic PPS, can withstand high temperatures up to 220°C, which greatly extends the life of the connector.
5.Multiple Usages: Widely used in communications, instrumentation, computers, program controlled machines, alarms and electronic equipment, etc.
Specification:
Item Type: Waterproof Plug Socket
Material: PA66, PPS, silicone, copper
Uses: Widely used in communication equipment, instrumentation, computers, program controlled machines, alarms and electronic equipment, etc.
Shell Material: PA66, PA6
Insulator: Thermoplastic PPS (high temperature resistant 220℃)
Contact Material: Copper (gold plated)
Wiring Method: Screw crimping
Connection Method: Threaded connection
Head Size: Approx. 20mm / 0.8in
Insulation Resistance: 2000MΩ
Applicable Voltage: 250V
Shell Applicable Wire: Φ6-12mm²
Installation Hole Distance: Approx. 31mm / 1.2in
Mating Times: More than 500 times
Operating Temperature Range: -25℃ to 85℃
Tightness: Comply with IP68
Number of Cores
2 Pin
3 Pin
4 Pin
5 Pin
Contact Diameter
2.8mm
2.8mm
2.8mm
1.8mm
Copper Pin Applicable Cable
0.5-4mm²
0.5-4mm²
0.5-4mm²
0.5-2.5mm²
Applicable Current
25A
25A
25A
10A
Package List:
1 x Plug
1 x Socket
