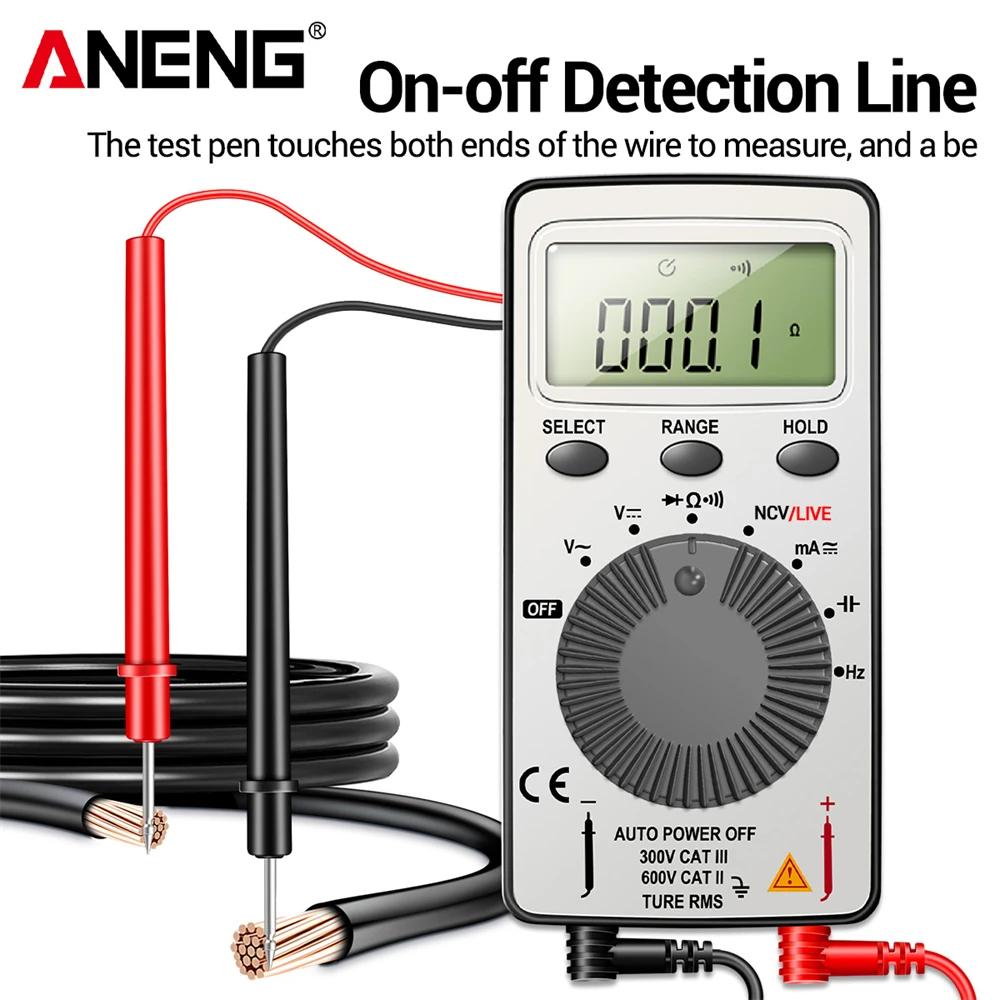

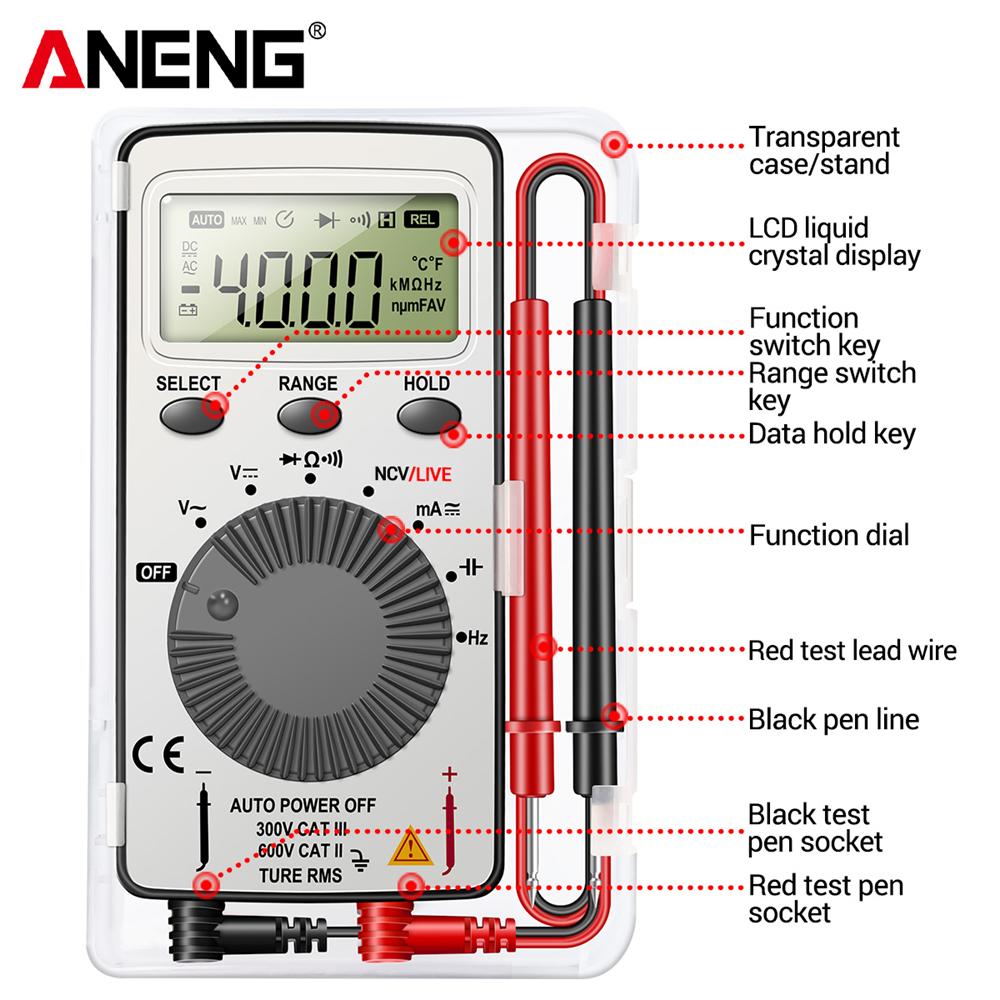

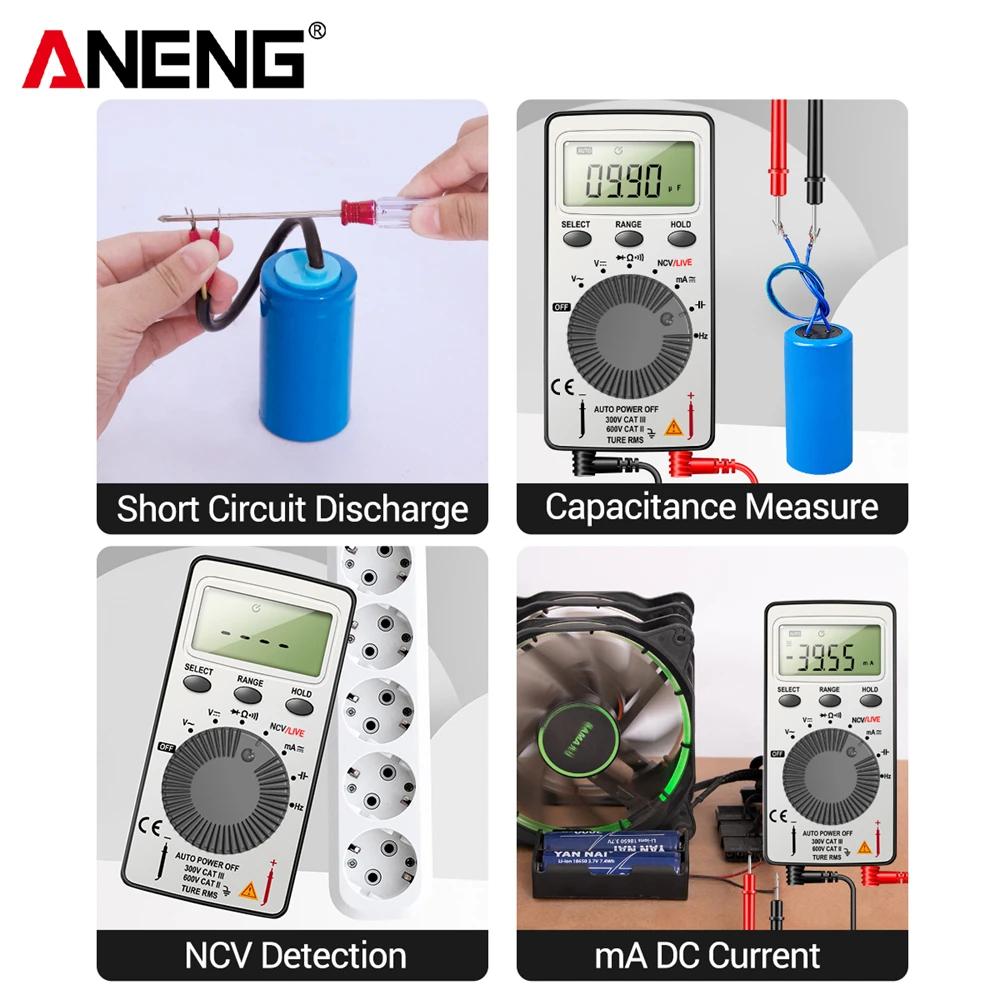

ANENG AN101 1999 Counts Mini Professional Digital Multimeter AC/DC Free Gift B18 Voltage Tester Automotive Current Tester Portable Electrician Tools
Specification:
Display: LCD, 1999 counts updates 2/sec
Polarity Indication: "-" displayed automatically
Over-range Indication: "OL" displayed
Range select: auto or manual
Battery Type: 3V x 2,2032 size (not included)
Operation Temperature: 0℃ to 40℃, less than 80%RH
Storage Temperature: -10℃ to 50℃, less than 85%RH
DC Voltage (Auto ranging):
Range, Resolution & Accuracy
200mV, 0.1mV, ±(0.8% of rdg + 5dgts)
2V, 1mV, ±(0.5% of rdg + 2dgts)
20V, 10mV
200V, 100mV
600V, 1V, ±(1.0% of rdg + 5dgts)
Input Impedance: 10MΩ
Overload Protection: 600V DC/AC rms
Max. Input Voltage: 600V DC
AC Voltage (Auto ranging):
Range, Resolution & Accuracy
2V, 1mV, ±(1.2% of rdg + 3dgts)
20V, 10mV
200V, 100mV
600V, 1V, ±(1.2% of rdg + 8dgts)
Input Impedance: 10MΩ
Frequency Range: 40Hz ~ 400Hz
Overload Protection: 600V DC/AC rms
Response: Average, calibrated in rms of sine wave
Max. Input voltage: 600V AC rms
DC Current:
Range, Resolution & Accuracy
200µA, 0.1µA, ±(0.8% of rdg + 5dgts)
2000µA, 1µA
20mA, 10µA
200mA, 100µA
Overload Protection: F0.5A/600V fuse
Max. Input Current: 500mA
Voltage Drop: 200µA and 20mA ranges: 20mV
2000µA and 200mA ranges: 200mV
AC Current:
Range, Resolution & Accuracy
200µA, 0.1µA, ±(1.0% of rdg + 5dgts)
2000µA, 1µA
20mA, 10µA
200mA, 100µA
Overload Protection: F0.5A/600V fuse
Max. Input Current: 500mA
Voltage Drop: 200µA and 20mA ranges: 20mV
2000µA and 200mA ranges: 200mV
Frequency Range: 40Hz ~ 400Hz
Response: Average, calibrated in rms of sine wave

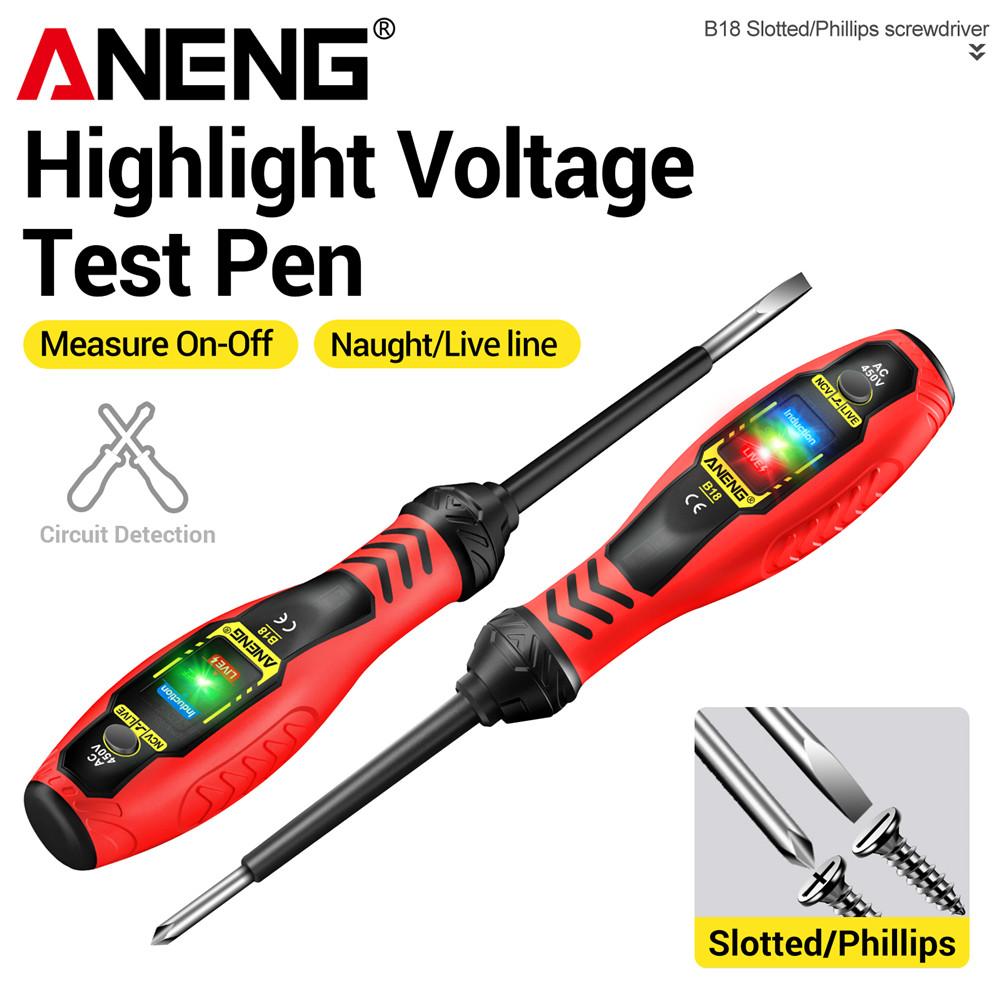

B18 Parameters Technical Indicators
Indicator light prompt
Red Light：High Voltage，
Green Light：Low Voltage，
Blue Light：Induction
Alarm method：Indicator light on + beep alarm
AC 450V：Yes
On-Off：Yes
NCV voltage induction：Yes
Live Naught Recognition：Yes
Three-color LED indicator：Yes
Phillips/Slotted screwdriver：Yes
Insulated glued handle：Yes
Package included:(Without Battery)
AN101 Multimeter *1
B18 Test pencil *1
Note:
Please allow 0-1cm errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
