Feature:
1. Copper Core Terminal: The winch adopts copper core terminal, which is not easy to corrode compared with iron terminal, has good conductivity, low resistance and low heat generation
2. Strong Steel Wire Rope: The steel wire rope is wound in multiple strands, which is strong enough, wear resistant and durable

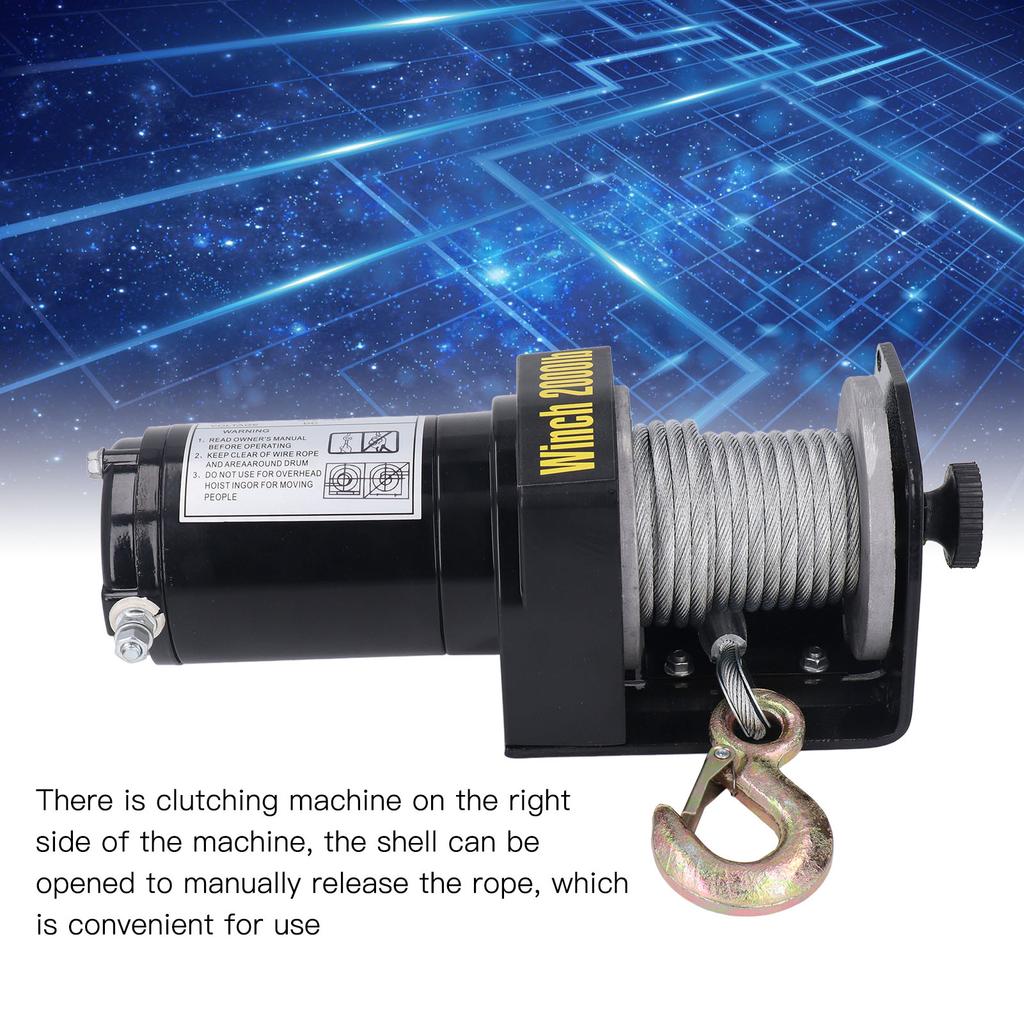

3. Convenient Usage: There is clutching machine on the right side of the machine, the shell can be opened to manually release the rope, which is convenient for use
4. Alloy Steel Hook: The alloy steel hook is quenched at high temperature, which has strong tensile strength, and the external is not easy to rust, the buckle design prevents the hook from slipping off hook
5. Large Pulling Force: The trailer electric winch has a large pulling force, with a rated pulling force of 2000lb
Specification:
Item Type: Electric Winch Kit
Material: Alloy steel, stainless steel, copper
Technical Parameter:
Rated Tension: Approx.907kg/2000lb
Motor: 0.7kw/1.0hp
Gear Ratio: 150 to 1
Transmission Mode: Planetary transmission
Wire Rope Diameter: Approx.4mm/0.2in
Wire Rope Length: Approx.6m/19.7ft
Reel Size (Diameter x Length): Approx.31.5x72mm/1.24x2.8in
Braking Device: Automatic brake
Size(Length x Width x Height): Approx. 286x100x105mm/11.3x4x4.1in
Tension
Speed
Current
0Approx. 3.2m/10.5ft per minute8A
Approx. 227kg/500lbApprox. 2.8m/9.2ft per minute30A
Approx. 454kg/1000lbApprox. 2.2m/7.2ft per minute60A
Approx. 680kg/1500lbApprox. 1.6m/5.2ft per minute90A
Approx. 907kg/2000lbApprox. 0.9m/2.9ft per minute120A
LayerRated TensionWire Rope Length on Reel
1Approx. 907kg/2000lbApprox. 1.8m/5.9ft
2Approx. 740kg/1630lbApprox. 2.5m/8.2ft
3Approx. 627kg/1380lbApprox. 4.0m/13.1ft
4Approx. 540kg/1190lbApprox. 6.5m/21.3ft
5Approx. 477kg/1050lbApprox. 9.2m/30.0ft
Package List:
1 xElectric Winch
1 x Controller
2 x Screw
2 x Nut
2 x Washer
1 x Manual
Note:
1. Observe the working environment, do not use in wet places, and do not get wet. Do not use this power tool in flammable gases and liquids.
2. Keep away from children, do not let children operate machines, tools or connecting lines.
3. Dress correctly, do not wear loose clothing and jewelry that can easily get caught. It is recommended to wear protective, non conductive clothing and slip proof shoes, wear protective hat to hide long hair during operation.
4. Do not operate tools while taking alcohol and drugs.
5. Keep your body and hands away from the fairlead during operation.
6. Do not lift objects vertically, the winch can only be used horizontally.
7. On the winch reel, the wire rope winding shall not be less than 5 turns. The wire rope end fasteners cannot bear the full load.
8. Pull the connecting wire meter to move the machine, the rope will be broken.
9. Use the rope with gloves, do not let the rope slide in your hands.
10. Do not over install, more than half of the load capacity, we recommend using the optional pulley to double the wire rope.
11. The machine motor must be running when operating, if the motor is turned off and a relatively large winch is operated, the battery will start the motor relatively weakly.
12. Use nylon sling, do not hung the wire rope upside down, it will damage the wire rope.
13. Do not use a winch to lift or move people.
14. Don not pull from extreme angles all the time, this will cause the wire rope to build up on the end of the reel.
15. If there is a load on the winch, do not release the clutching machine.
