Feature:
1. Characteristic: ABS housing, fine workmanship, good toughness and waterproof performance, provide better protection for the internal circuit, making it more durable.
2. Useful Tool: Able to compatible with 36V and 48V voltage, intelligent electric quantity display, truly reflect battery quantity, real time record electric quantity consumption, clear with cycling mileage.
3. Easily View: During riding, you can easily view the data displayed on the LCD meter, such as remaining battery, current speed, mileage and other parameters.
4. Suitable Situation: Widely used, suitable for 22.2mm/0.9in handlebars, perfect accessories for electric bicycles, scooters and other vehicles; External 3 way button is easy to operate.
5. Multi Functions: The meter can also display the real time speed, Km/Mi, electric quantity, fault code and mileage, and also able to control the headlight, backlight brightness, gears.
Specification:
Item Type: Electric Bike Lcd Display
Material: Abs+ Acrylic
Application: For 22.2mm/0.9in Diameter Handlebar, JN Controller And Pasion Electric Bicycle Motor Kit
Product Size: Approx.95x60mm/3.7x2.4in
Line Length: 158cm/62.2in(Including Joint)
Weight: Approx.271g/9.6oz
Voltage: 36V 48V
Interface: Common Interface
Function:
1. Bidirectional Communication Protocol, Simple Operation Of External Three-Way Button;
2. Real Time Speed Display;
3. Km/Mi Display;
4. Intelligent Electric Quantity Display;
5. Headlight Control;
6. Backlight Brightness Level 3 Adjustment;
7. 5 Gear Control;
8. Mileage Display;
9. Fault Code Display;
10. Assisted Implementation Mode 6km/H
11. Parameters Setting.
Instructions
Description Of Connecting Wires To The Controller Connector:
Red: Instrument Power Cable
Blue: Power Control Cable Of The Controller
Black: Instrument Ground Cable
Green: Data Receiving Line Of The Meter
Yellow: Data Transmission Line Of Meter
How to Use:
Installation instructions:Fix the LCD display part and the button on the handlebar of the electric vehicle and adjust to the appropriate view angle. To connect the instrument connector and the controller connector with the power off. Turn on the power, the electric vehicle and the instrument start normal normal running, the instrument installation is completed.Operation instructions: Long press M for 3 seconds when the instrument is off, instrument will display and start to work, and turn on the power supply of the controller. Long press the M button for 3 seconds in the power on state to turn off the power of the instrument and the controller. If you do not ride for 10 minutes (the time can be set by the user) and do not operate the instrument, the instrument will automatically turn off the power. In the power off state, the meter and controller power consumption is close to 0.
Package List:

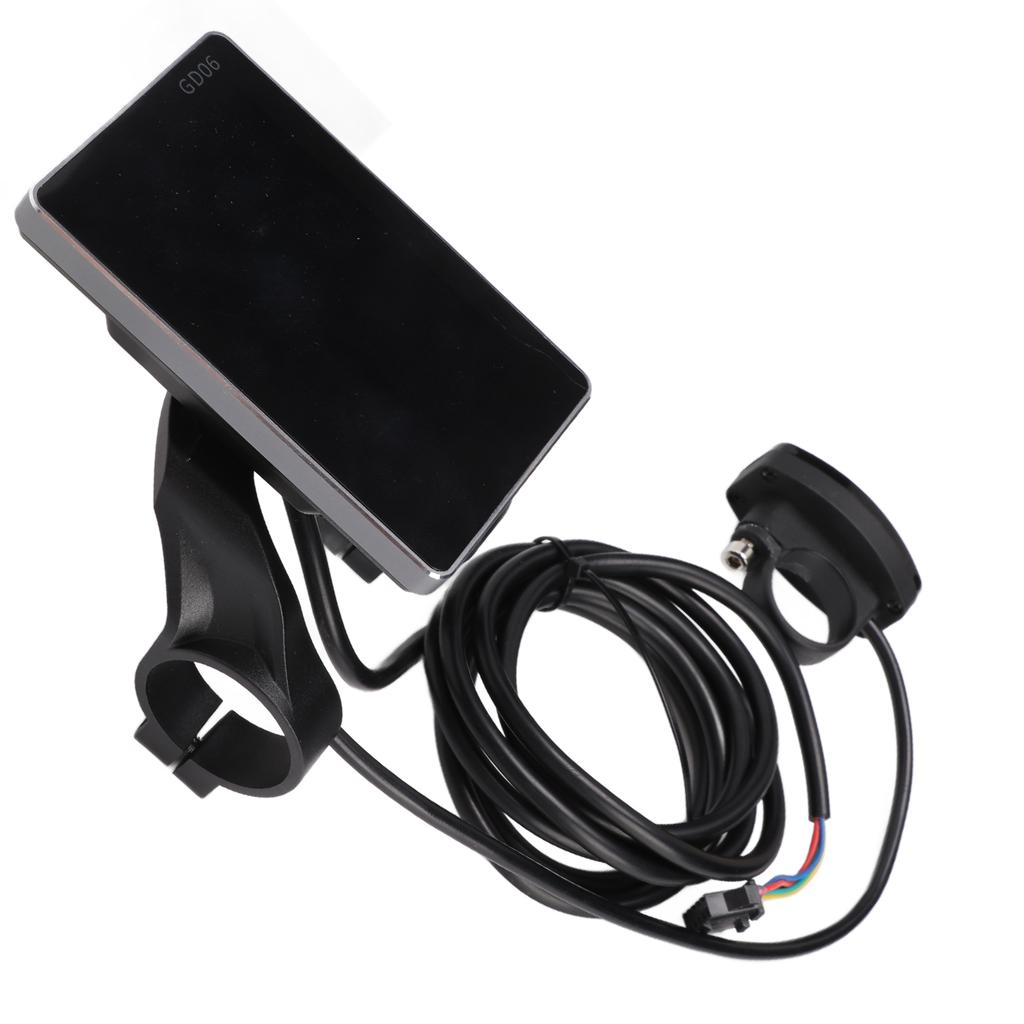

1 x GD06 LCD Display
2 x Washer
1 x Manual
Note:
1. Please use with these products which has the same communication protocol.2. Please allow 1‑3cm error due to manual measurement. Thanks for your understanding.
3. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
