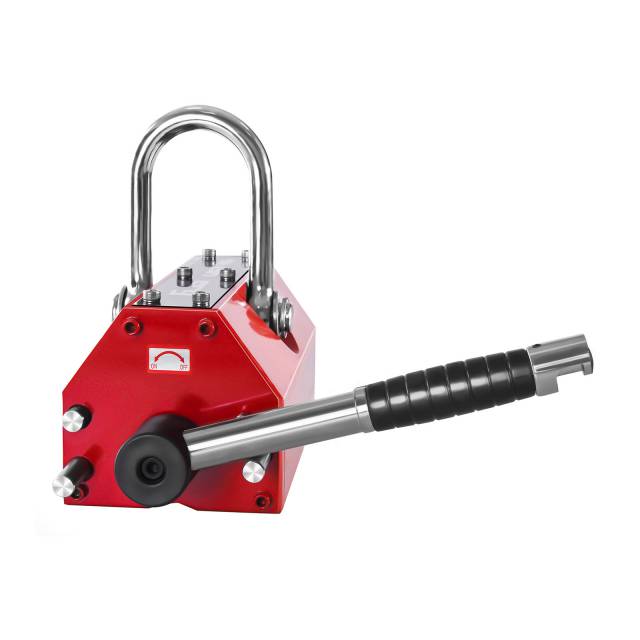

Manual magnetic lifting device for sheets and profiles up to 300 kg
Manufacturer's name SBS-ML 300
The Steinberg Systems SBS-ML 300 magnetic lifter is designed for lifting iron and steel objects. It is ideal for the engineering, metallurgical, and shipbuilding industries, as well as automotive repair shops and construction companies.

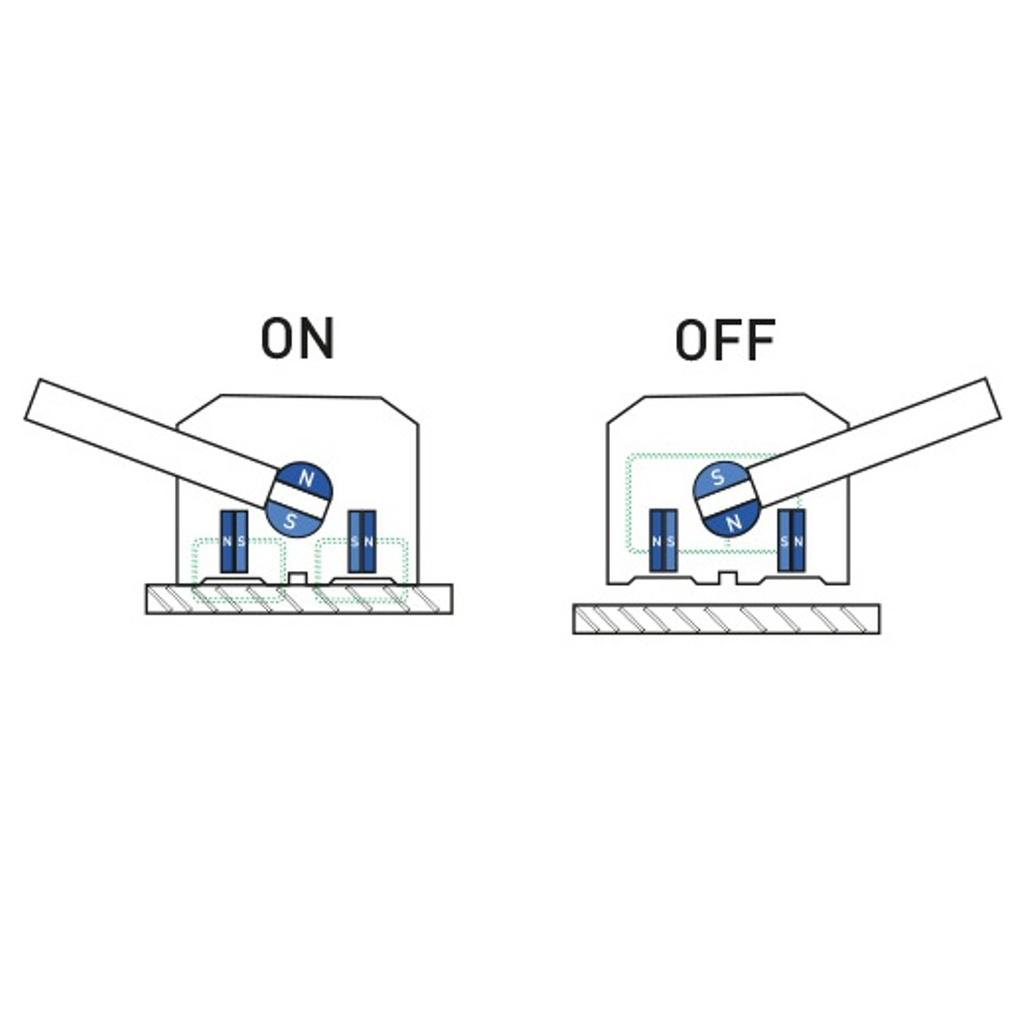

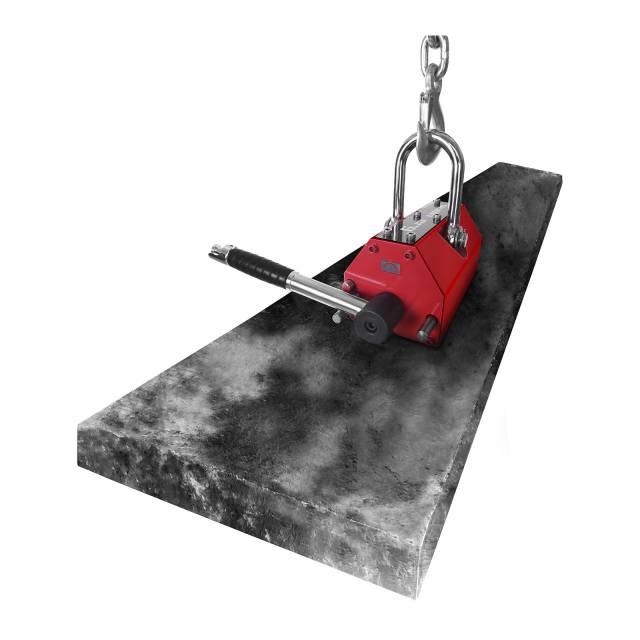

The magnetic lifting device allows you to lift sheet metal and profiled elements. The device uses sintered neodymium magnets, making it very easy to use. A stationary and a movable magnet are located inside the lifting device. When properly positioned, they introduce a magnetic field into the lifted structure. The SBS-ML 300 magnetic lifting device is characterized by safe operation. It requires no power source, so it generates no costs. It is equipped with a shackle for hanging the device, e.g., from a crane.
Features and functions:
neodymium magnets
permissible load 300kg
breaking load 900kg
safe and simple operation
hand lever
zero operating costs
Technical parameters:
- - Model - SBS-ML 300
- - Catalog number - 3202
- - Item condition - New
- - Permissible load - 300 kg
- - Breaking load - 900 kg
- - Max load for vertical lifting and rounded surfaces - 100 kg
- - Operating temperature range - from -40 to 80 degrees C
- - Color - - - Shut-off mechanism - Mechanical lever
- - Dimensions (LxWxH) - 20.6 x 9.4 x 9.3 cm
- - Weight - 9 kg
- - Shipping dimensions (LxWxH) - 25.5 x 18 x 22 cm
- - Shipping weight - 9.9 kg
Included in the set:
SBS-ML 300 magnetic lifter
PL manual
Our devices have a CE declaration of conformity required by the Sanitary and Epidemiological Station.
