[FOR MOTOR] Cooperate with the travel switch to realize the CW and CCW of the motor, so that the travel is within a fixed range.
[TRIGGER ALARM] Combine the power button with the vibration sensor to trigger the alarm, that is, automatically trigger the alarm and stop manually.
[2 BOTTON CONTROL] 2 button switch relay module, suitable for various situations where 2 buttons are used to control on and off respectively.
[HIGH LEVEL] High level trigger input mode, can be used to extend the weak current signal to control the strong current equipment.
[WITH INDICATORS] The red light is on, it means the power of the module is on, and the green light is on, it means the relay is processing the pull in state.
[GOOD PROTECTION] The relay module has power supply reverse connection protection, and the module will not be damaged when the power supply is reversed.

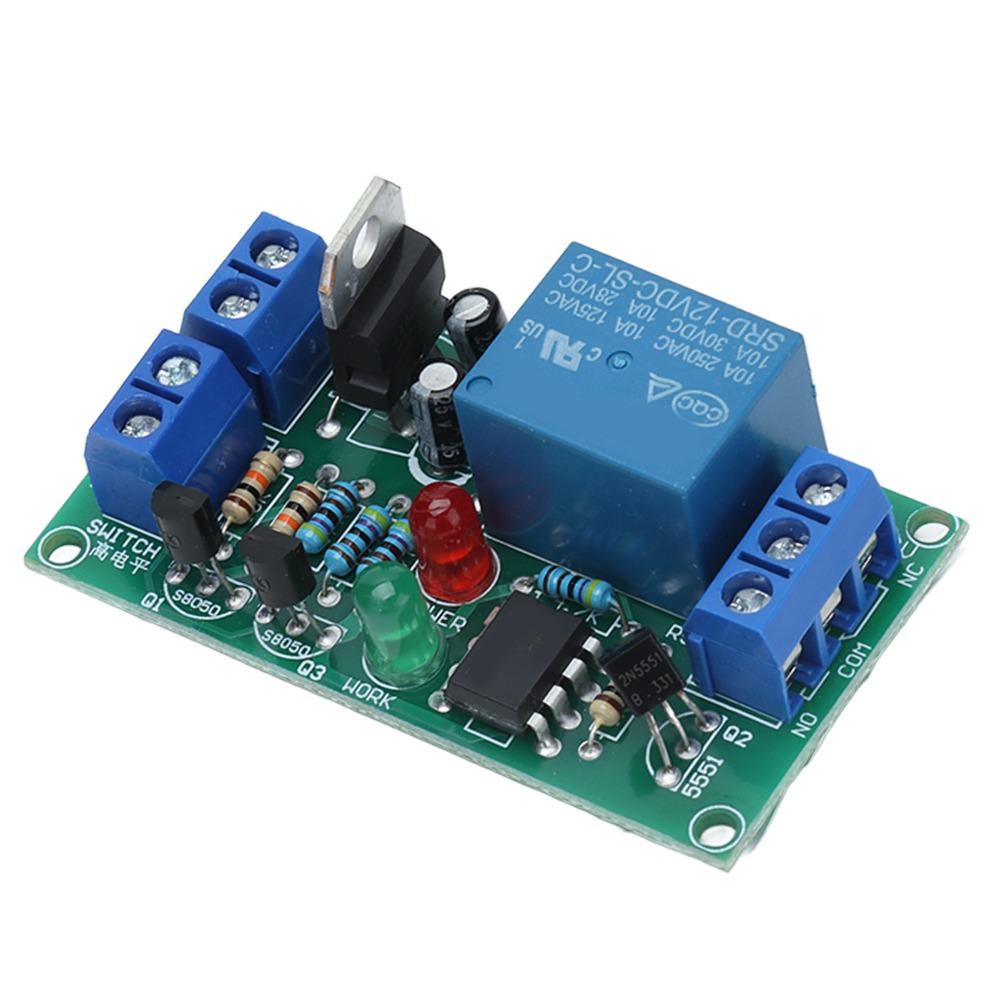

Specification
Item Type: 12V Relay Module
Working Voltage: 12V DC (10V-15V)
Quiescent Current: 2mA (with power indicator light), 0.5mA (without indicator light)
Working Current: 45mA at 12V
Input Mode: High level trigger, that is, above 2.0V is considered to be connected. The switching signal voltage range is up to 30V.
Anti Interference: The interference time of the input switch is 20ms, that is, when the switch is less than 20ms, it is considered as an interference signal and will be ignored.
Output Mode: Relay contact, no electricity (dry contact)
COM: Public
NO: Normally open, that is, the module is disconnected from COM when it is not connected to power (or closed).
NC: Normally closed, that is, the module is connected to COM when it is not connected to power (or closed).
Output Capacity: Maximum 10A 250V AC, or 10A 30VDC
The resistive load control capacity under 220V voltage is 2200W, and the motor load is recommended to be used below 1200W.
Module Size: Approx. 58 x 32mm / 2.3 x 1.3in, Height: Approx. 18mm / 0.7in
Mounting Hole: Approx. 54 x 28mm / 2.1 x 1.1in, Aperture: Approx. 2.6mm / 0.1in
Color: As picture shown

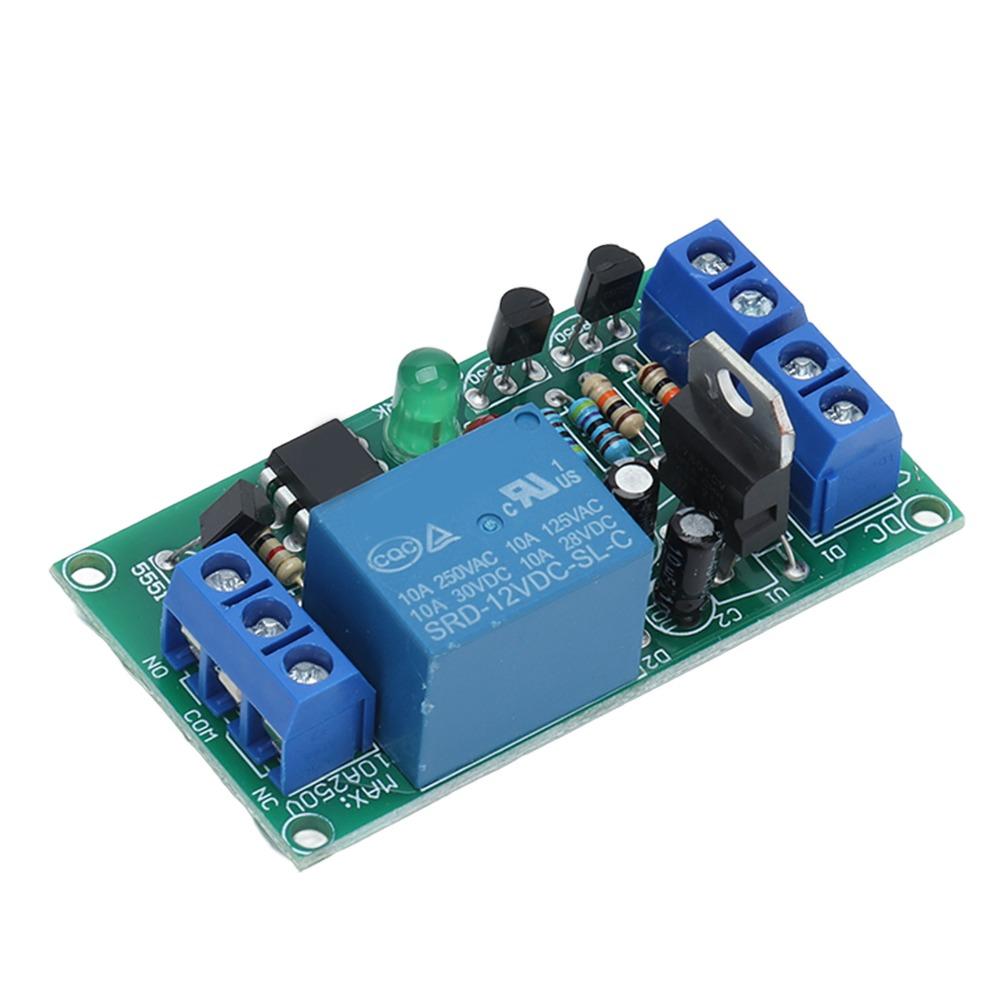

Terminal Description:
V+COM: The positive input of the module power supply, which is also the common line of the 2 switches.
V-: The negative input of the module power supply.
ON: Power on button, press the relay will immediately pull in, and keep pulling in (until the OFF button is pressed).
OFF: Shut down button, press the relay to disconnect immediately
Package List
1 x Relay Module
Note
1. Low voltage will affect the load capacity. For example, a 12V module can carry 10A at 12V, but it can only carry 8A when it drops to 10V.
2. When the voltage is too high, the relay heats up and the parts are easy to age. The maximum voltage should not exceed 30% of the nominal voltage.
