Feature:
1. Phone Call: With this fixed wireless terminal, you can make local call, domestic call and international call by connecting with a common wired desktop phone and install a GSM SIM card.
2. Wide Application: This GSM desktop caller is suitable for remote area, mountains, telemarketing, public shop, office, factory, removable places such as ships, trains, and long distance buses.
3. Easy Installation: This GSM ID dialer uses GSM mobile phone SIM card, which is easy to install and operate, with strong signal reception capability and stable performance.
4. Antipodal Signal: This GSM fixed wireless terminal has antipodal signal which can be connected to fare register or computer fare register.
5. Powerful Signal Reception: This GSM caller features powerful signal reception and easy setting, and it can be operated at the same way as ordinary landline telephone.
Specification:

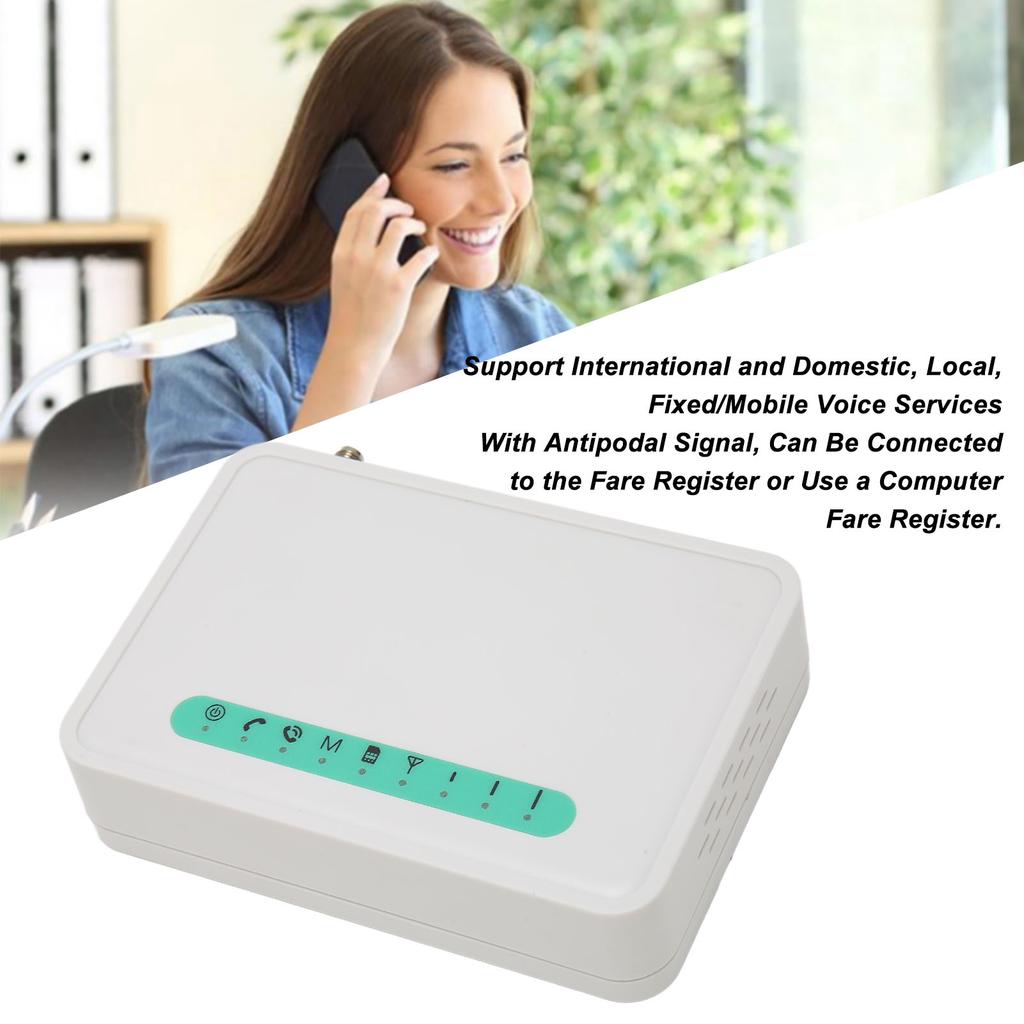

Item Type: Fixed Wireless Terminal
Material: ABS
Installation: Use GSM Mobile Phone SIM Card Without Ground Wireline Investment. Easy Installation
Voice Services: Support International and Domestic, Local, Fixed/Mobile Voice Services
Operation: Do Not Change the Original Dialing Habits, and the Operation Habits of Ordinary Telephone Landlines Are the Same
Antipodal Signal: With Antipodal Signal, Can Be Connected to the Fare Register or Use a Computer Fare Register.
Watchdog: Inbuilt Watchdog Circuit on Duty. Automatically Detects the Running Status of the Device, and Restarts Automatically when a Fault Occurs
No Error: DTMF Transmission Mode, the Caller ID Error is 0
IP Function: Automatic IP Function, Multiple Groups of IP Settings
Calling Party: Calling Party IP Prefix of Fixed Long Distance Calling, Such As 17951, 17911, and 193, etc.
Permission Setting: Permission Setting of Incoming Call of International, National, and Local Calls
Code Preset: Preset Local Area Code, Local Number Segment, and Forbidden Number or Number Segment
Encryption Settings: Such As PIN, PUK Encryption Machine Card Locking Function
LED Lights: Display Signal, Standby State, Working State and Other Information
Caller ID: Supported
Interface Type: RJ11
TDD: B38/B40/B41
WCDMA: B1/B8
GSM: B3/B8
EC25 AF:
LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71
WCDMA: B2/B4/B5
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
Visual Function: None
Application Scope: Wireless Access, Security
Number Storage Function: Supported
Recording Function: None
Network Parameters GSM: GSM:1900/1800/900/850M
Signal Sensitivity: Transmit Power: Antenna Power: >1.5db
Power Supply: 5V 1A
Equipment Power: RJ11 Dial Tone Frequency: 450HZ
RJ11 Feed Current: 20MA to 40mA
RJ11 Reversed Polarity: Supported
RJ11 Call: DTMF
Working Environment Temperature: Minus 20℃ to 50℃
Operating Environment Relative Humidity: 10 to 90%
Product Size: Approx. 12 x 8.5cm / 4.7 x 3.3in ( Manual Measurement, Slight Error May Exist )
How to Use:
1. The first important step of antenna installation is to select the appropriate position for antenna installation. You can use your cell phone to search for the area with strongest signal, then place the antenna.2. Insert the SIM card and ensure that the terminal is powered off and the AC adapter is pulled out: Insert the SIM card only when the terminal is powered off and the AC adapter is pulled out.
Package List:
1 xFixed Wireless Terminal
1 x Power Plug
1 x Antenna
1 x Antenna Receiver
1 x Phone Line
1 x User Manual
