Feature:
1. 540 Brushed motor, high torsion and strong magnetic force with two‑way bearing.
2. Direct wiring soldering terminal provide flexible welding options for easy use.
3. Rotor precisely balanced with smoothness for reliability and maximum RPM.
4. The lithium battery designed with low voltage protection, high temperature protection, throttle signal loss protection and other multiple protection functions.
5. Copper winding maximizes efficiency. Carbon brush is durable and replaceable.
6. High quality materials, waterproof and dustproof, durable, long service life.
Specification:
Condition: 100% Brand New
Item Type: RC Motor ESC
Material: Aluminum alloy + plastic + metal
Color: Black red
Motor:
Length: Approx. 53mm / 2.09in
Diameter: Approx. 36mm / 1.42in
Axle Length: Approx. 12mm / 0.47in
Axle Diameter: Approx. 3.17mm / 0.12in
Operating Voltage: 7.2-7.4V
Maximum Voltage: 12V
Voltage 7.2V No-load speed: 35T 12000RPM / 45T 10000RPM / 55T 8000RPM (run after 1 minute test)
ESC Model: Brush-X60

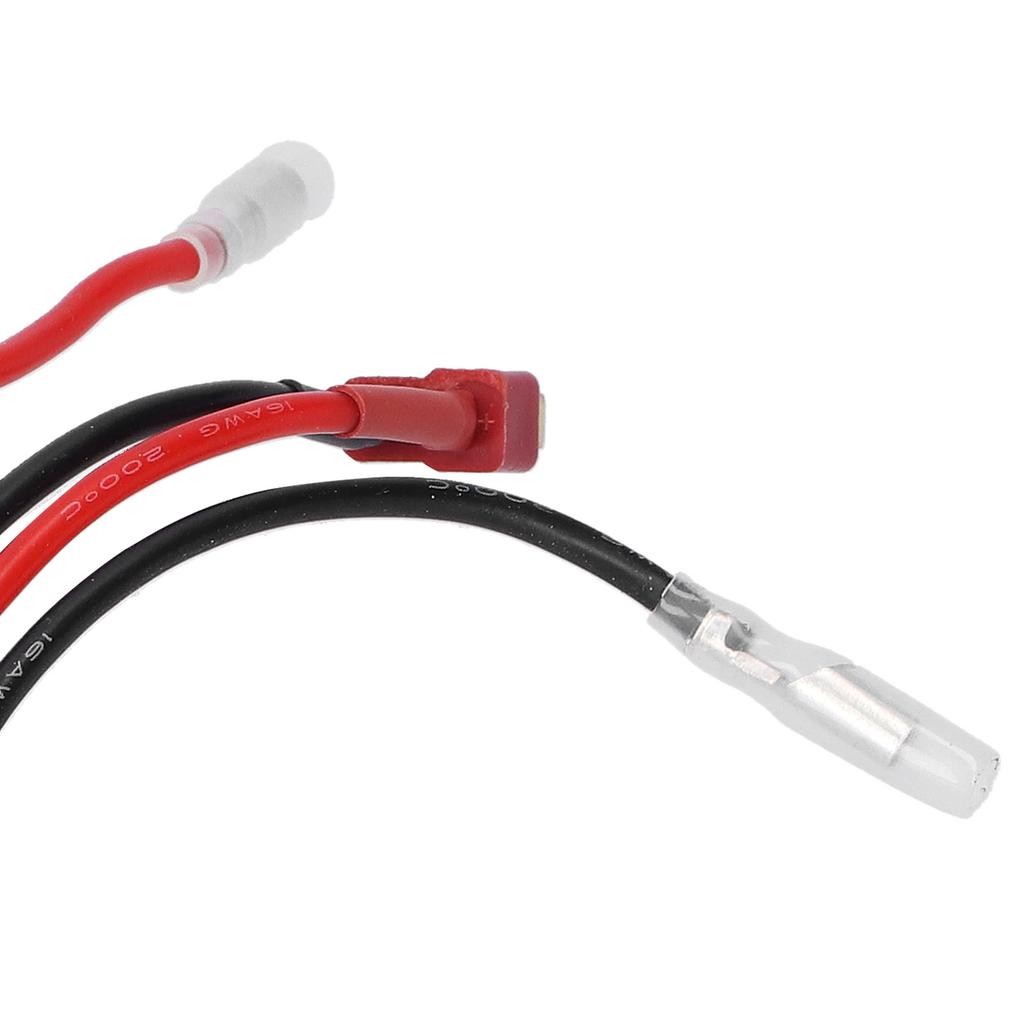

Plug: T plug
Forward Continuous Current/ Maximum Current: 60A / 360A
Reverse Continuous Current/ Maximum Current: 30A / 180A
Voltage Range: 2-3S Lipo or 5-9 NiMH
Engine Restrictions:
2S Lipo or 6 NiMH: 540 or 550 Motor size: ≥12T or RPM < 3000@7.2V
3S Lipo or 9 NiMH: 540 or 550 Motor size: ≥18T or RPM Resistance: Fwd0.001 Ω, Rev0.002 Ω
BEC Output: 2A / 6V (linear regulator switch)
Size: Approx. 43 x 29 x 26mm / 1.7 x 1.1 x 1in
Running Model: Two-way/climbing
Applicable Vehicles: for 1/10 RV, SUV, Short-Course Truck, truck, climbing truck, tank, etc.
Fitment:
Fit for hsp
Fit for redcat
Fit for traxxas
Fit for tamiya
Fit for hpi
Fit for axial
Package List:
1 x 540 Brushed Motor
1 x 360A ESC
1 x Manual
Note:
1. Please allow 1‑3mm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
3. This product does not have the protection function of reverse connection of ESC. If reverse connection of power supply may cause irreversible damage to ESC and battery instantly, please pay special attention to battery polarity when using.
4. If the motor steering is wrong, please switch the two motor lines.The motor line is not divided into positive and negative poles.
