Feature:
1. Long-Lasting Build: Made with heat-resistant copper wiring and premium silicon steel sheet, reducing energy loss and extending motor lifespan even under heavy use.
2. Powerful & Efficient Design: Engineered for high-speed flight, this brushless motor provides strong thrust and smooth operation, ensuring reliable performance for aerial applications.
3. Improved Cooling System: Detachable construction and vented front cover enhance airflow, preventing overheating and maintaining consistent power output.
4. Precision Engineering: High-grade bearings and a lightweight steel shaft ensure minimal friction, delivering smooth rotation and reduced wear over time.
5. Wide Propeller Compatibility: The M5 shaft fits most propellers, and the included locking nut secures attachments firmly in place.
Specification:

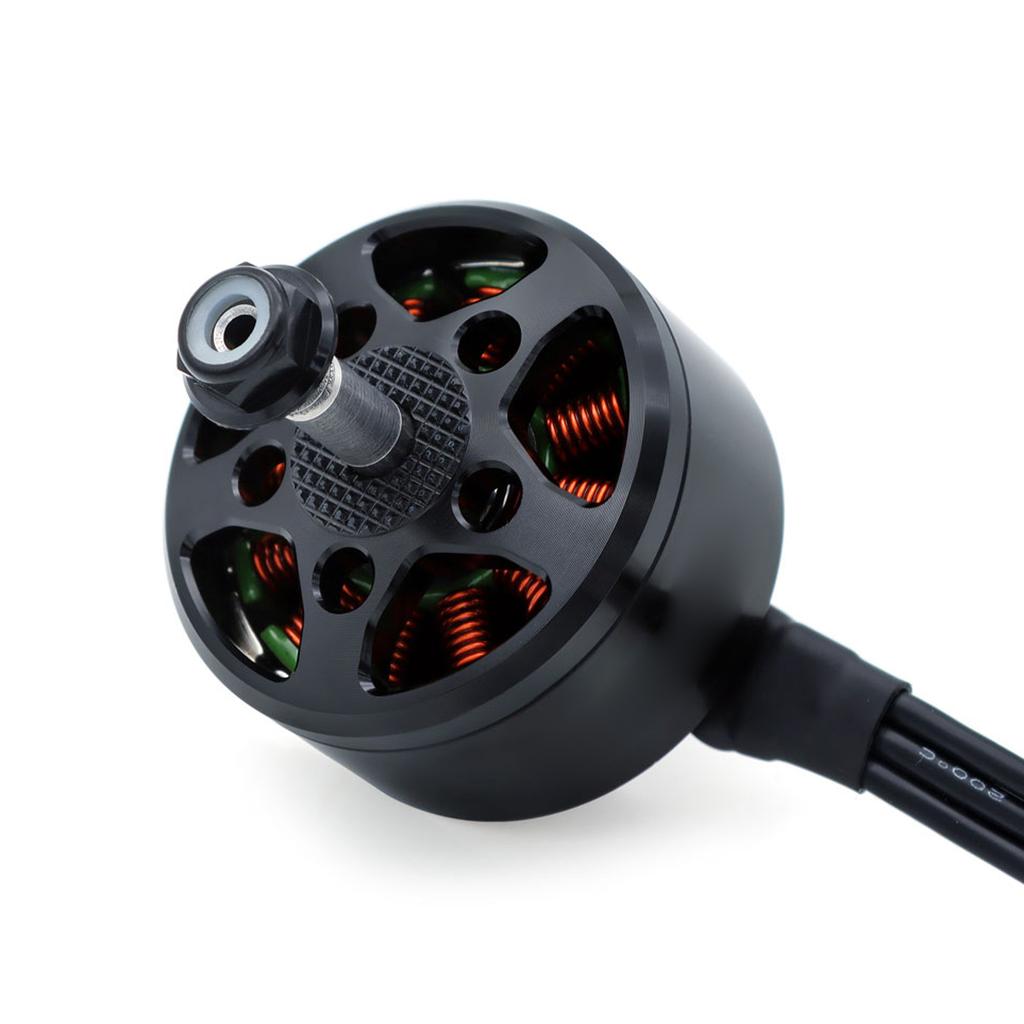

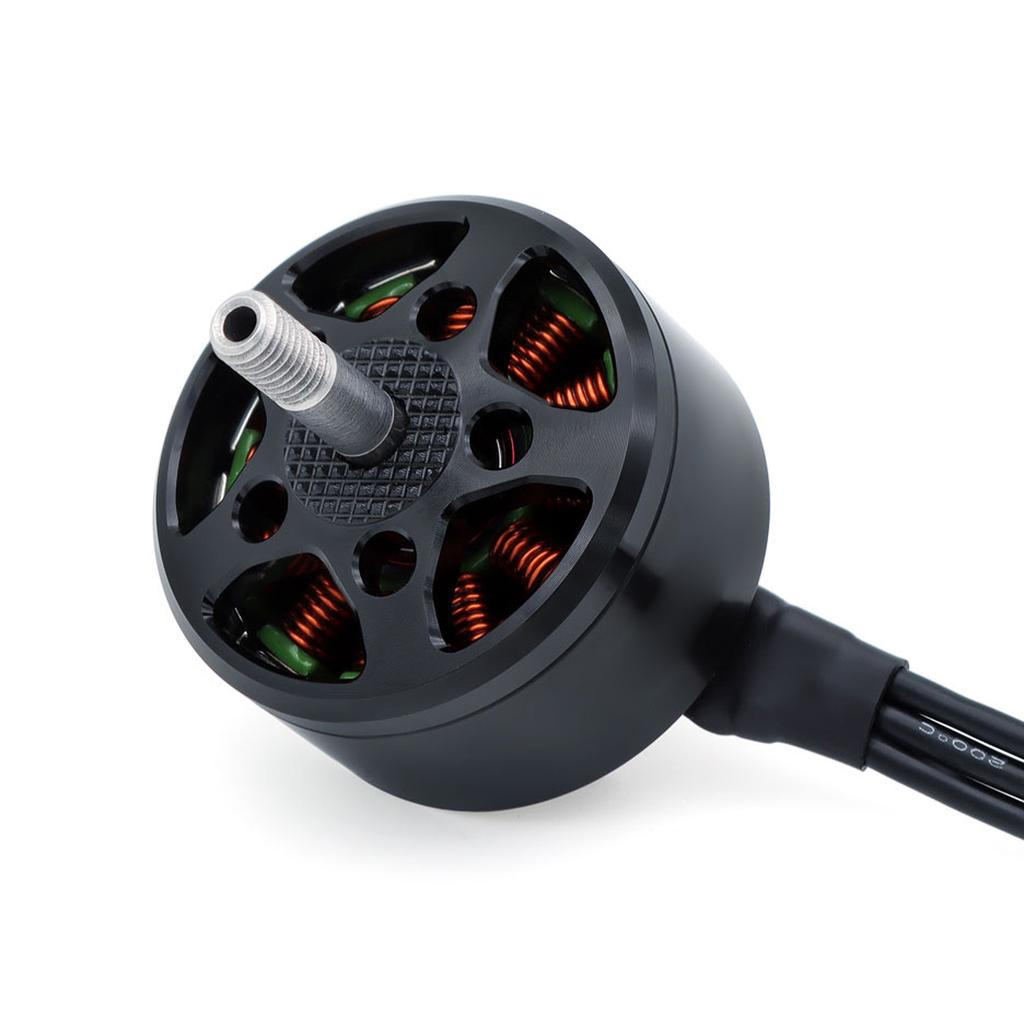

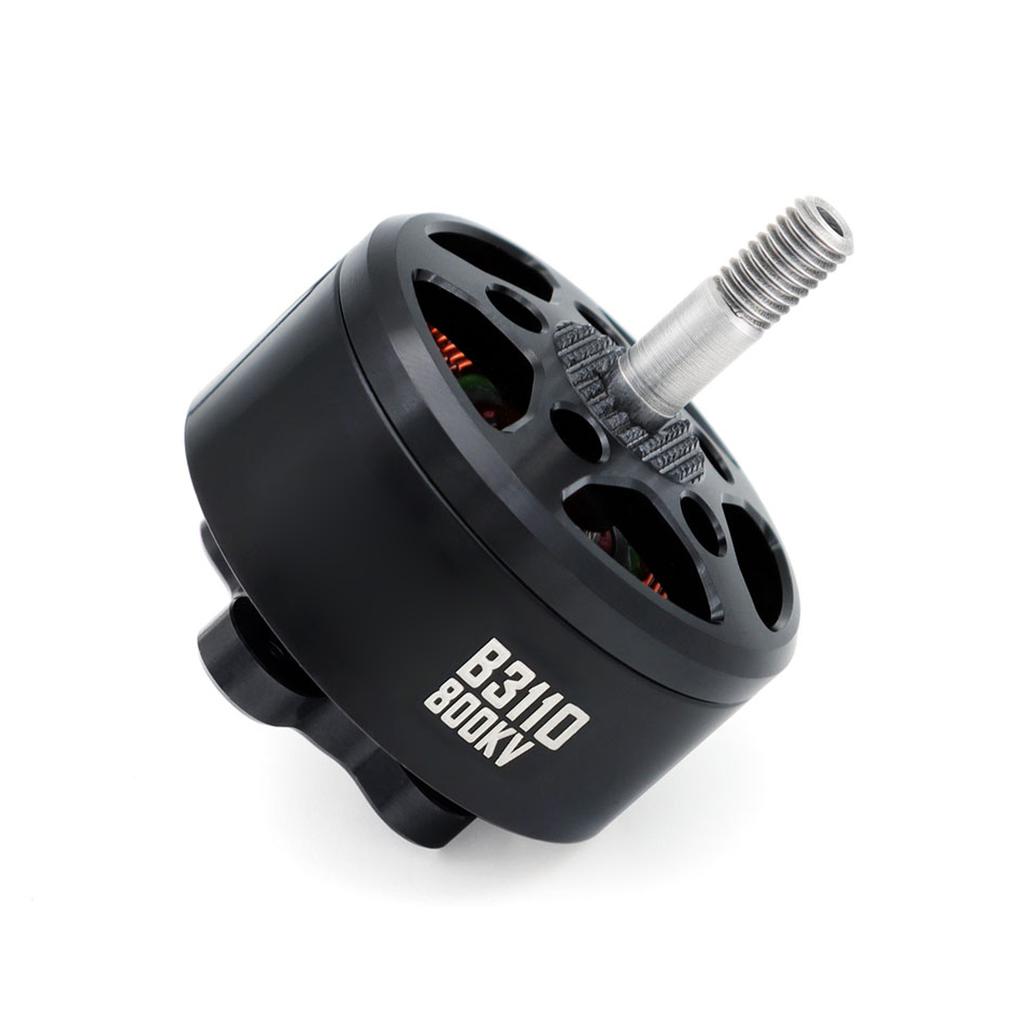

Item Type: Brushless Motor
Material: Metal
800KV: Maximum Power: 1584W, Maximum Current: 48A, No-load Current: 0.5A, Poles: 14
1280KV: Maximum Power: 1700W, Maximum Current: 75A, No-load Current: 0.7A, Poles: 14
1580KV: Maximum Power: 1550W, Maximum Current: 64A, No-load Current: 0.9A, Poles: 14
Package Size: Approx. 5*5*4cm/1.97*1.97*1.57in
Package Weight: 99g/0.22lb
How to Use:
Remove the damaged motor from the aircraft and replace it with a new one.
Package List:
1 x Motor
4 x Screws
1 x Lock Nut
1 x Washer
Note:
The motor installation location should be away from flammable and corrosive materials, with good ventilation, clean environment, suitable temperature, and not exposed to direct sunlight or rain.
