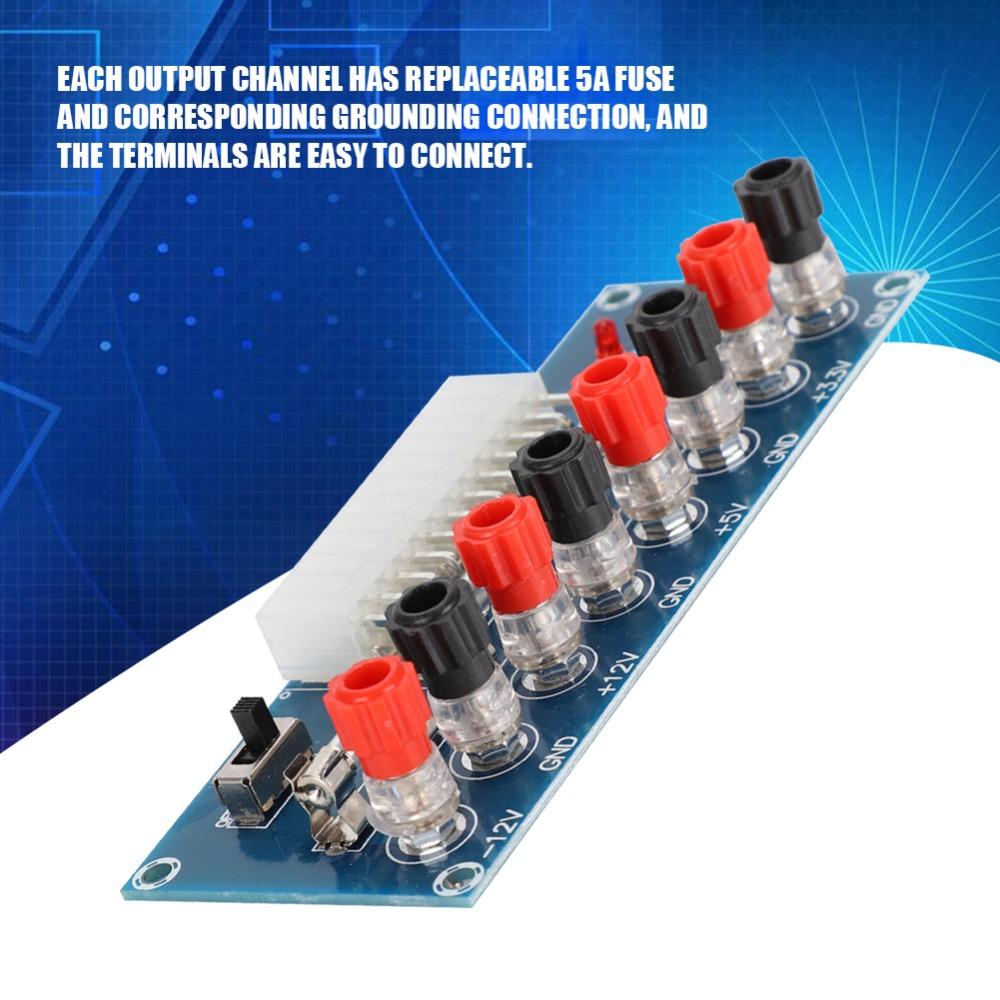

24 Pin Compatible with ATX Power Supply 3.3V 5V 12V Power Switch XH-M229 Chassis Power Supply

Label:Yes 3.Each output channel has replaceable 5A fuse and corresponding grounding connection, and the terminals are easy to connect. 2.Fast access to the typical voltage required, including 3.3V, 5V, 12V and -12V. PCB plastic gasket design to avoid short circuit. 1.Designed to use your power supply to create a desktop power supply with four-channel voltages that can run almost any embedded electronic project. 4.On board standard 24 pin compatible with ATX port, power indicator and power switch are ideal for easy control of DIY low voltage power supply for developing physical computing projects (embedded systems). 5.The output terminal can pass the maximum current. With output protection fuses, four groups correspond to four outputs.

Specification: Item Type: Adapter Plate Material: ABS Color:As shown in the figure Size:128*48mm(5.04*1.89in) Compatible Port: Compatible With ATX (Compatible Part with BTX Type) Password: 24 Pins Switch: Yes Number of Output Groups: Four Different Sets of Voltages

Package list: 1 x Adapter Plate

Notes: 1. The actual product color may deviate from the photo due to light. 2. There may be a slight deviation in the measurement of product.
