Feature:
1. The digital LCR meter is controlled by a 32-bit ARM microprocessor with high performance, stable performance and accurate measurement.
2. The main and secondary parameters are displayed at the same time, which provides convenience for your mobile LCR measurement.
3. With 2.8in TFT LCD, color touch screen design, high brightness, clear and intuitive data display.
4. AT826 hand-held LCR digital meter has a measurement frequency of up to 100 kHz, a constant internal resistance of 100_source, a measurement level of 1 Vrms, and a measurement accuracy of up to 0.2%.
5. Low power design and high density SMD assembly process, USB communication (USB-HID), compatible with SCPI instruction set.
6. The interface between Chinese and English can be switched quickly, which is the highest configuration of handheld LCR digital meter at present.
7. According to the nominal value of automatic range selection, using 7.4V, 1500mAh rechargeable lithium battery, more convenient operation.
Specification:
Condition: 100% Brand New
Item Type: LCR Meter
Material: ABS, Metal
Type: AT826
Model AT826
Measurement Parameter L, C, R, Z
Monitoring Parameter D, Q, θ(Deg), θ(Rad), ESR
Basic Accuracy 0.20%
Test Frequency 100Hz, 120Hz, 1kHz, 10kHz, 100kHz
Display Range L: 0.01μH-9999H
D, Q: 0.0001-9999
C: 0.01pF-9999μF
R, Z: 0.0001Ω-99.99MΩ
θ(Deg): -179.99°-179.99°
θ(Rad): -3.1416 – 3.1416
Output Impedance 100Ω
Range Automatic and Manual
Maximum Reading Main Parameter 5 Digits, Subparameter 5 Digit Display
Signal Level 0.6Vrms
Test Speed 4 Times / Sec, 1.5 Times / Sec
Comparators 1 Group Record Comparison Of Main Parameters
Calibration Full-Scale Open Circuit And Short-Circuit Sweep Clear
Interface Built-In Mini-USB Interface (USB-HID)
Other 2.8in True Color 16M Color TFT-LCD Display
Touch Screen
Data Retention Function
USB Communication, Compatible with SCPI Instruction Set
Chinese and English Switching
Backlight Adjustment
Automatic Shut-Down
Power Requirement Input: 100-240V-50/60Hz 0.35A Output: 9V 1A DC 7.4V, Li, 1500mAh Rechargeable Battery
Size and Weight 90x190x31mm / 3.5x7.5x1.2in, 400g / 14.1oz
Accessory ATL501C: Four-Terminal Kelvin Test Clip
ATL909: DC Power Adapter

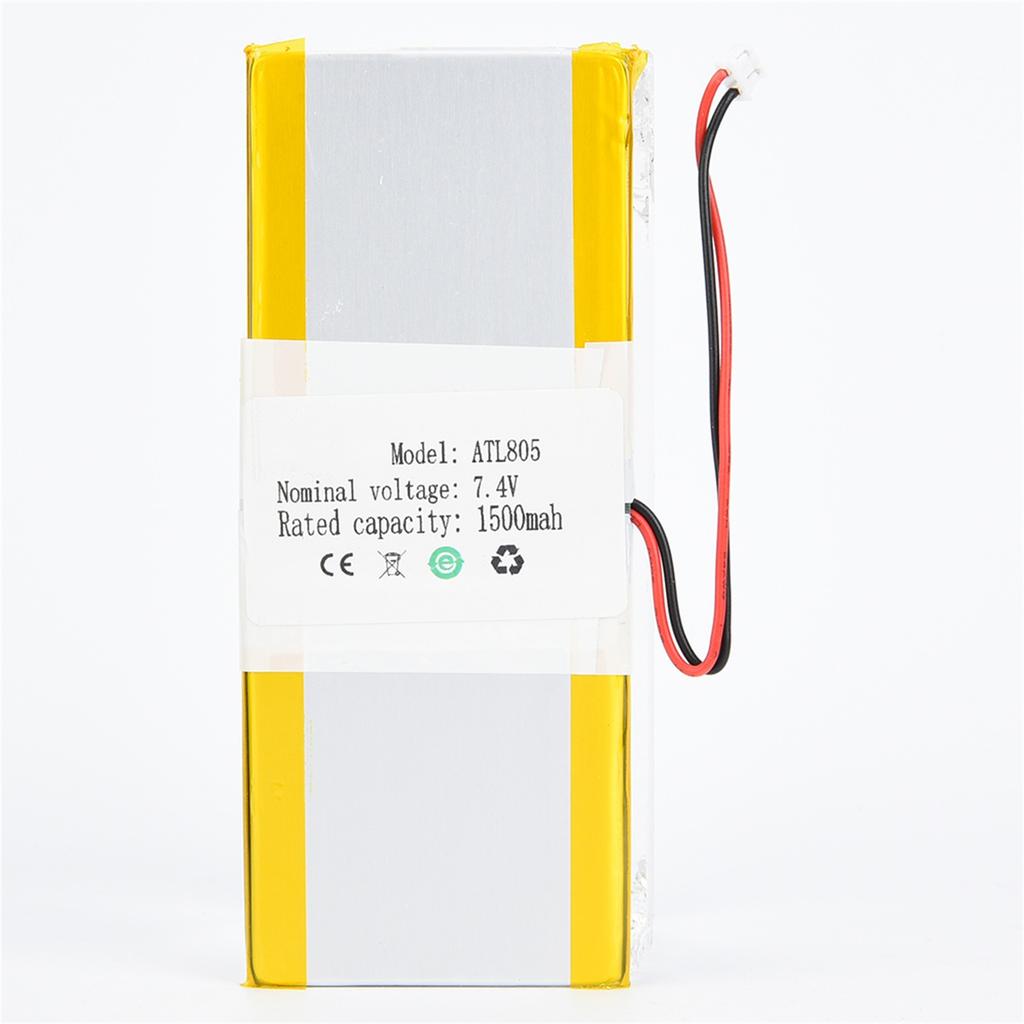

ATL805: Lithium Battery
ATL508B: Tweezers
Package List:
1 x LCR Meter
1 x Four-Terminal Kelvin Test Clip
1 x DC Power Adapter
1 x Lithium Battery
1 x Tweezers
1 x Short Circuit Bar
1 x Mini-USB Communication Cable

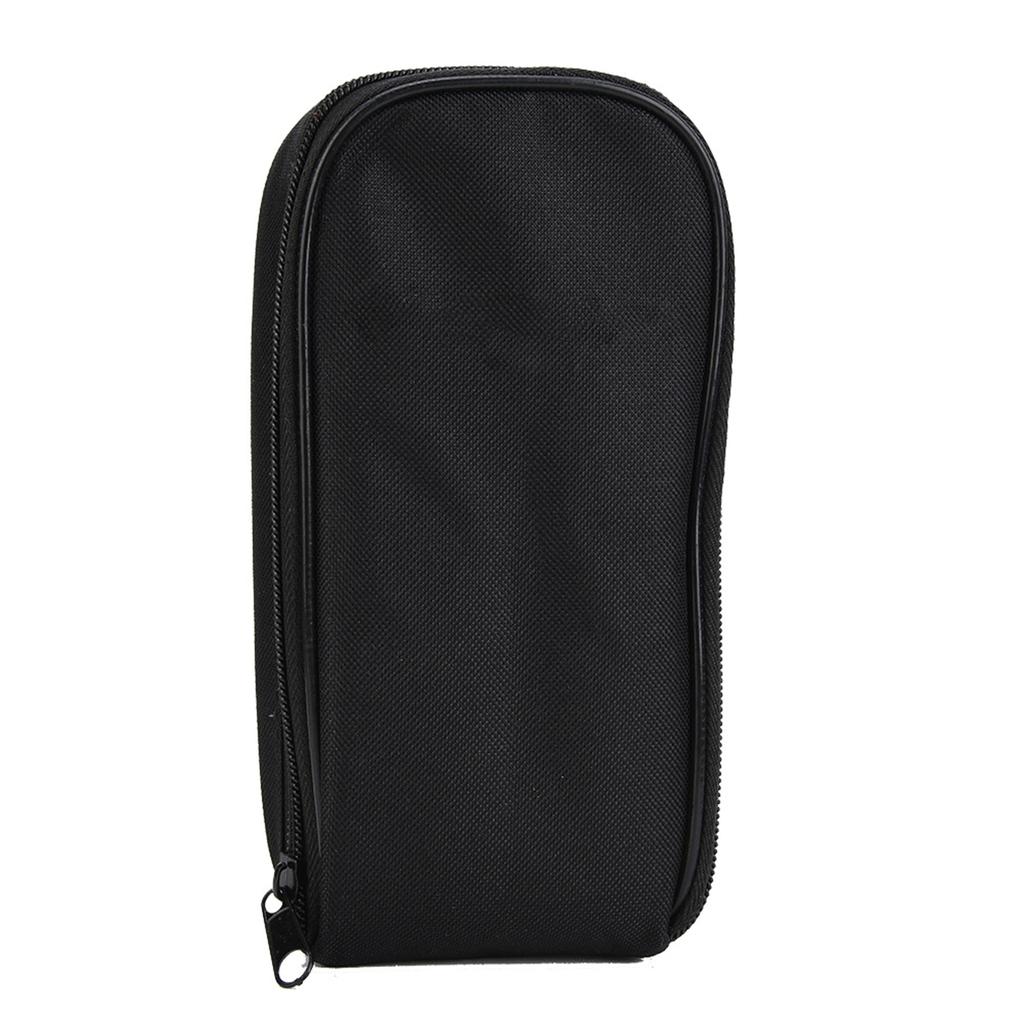

1 x Strorage Bag
1 x English Manual
