Bafang 48V 500W 17.5AH electric kit (Cassette)
A complete kit with a 17.5Ah battery and a wheel of your choice: "26", "27.5", "28", "29" with a power of 500W, which will allow you to easily and quickly convert your current bike into an e-bike.
Technical data:
• Kit power: 500W
• Maximum speed: approx. 45 km/h
• Maximum torque: 50 N.m
• Battery: 17.5 Ah (Samsung cells)
• Distance: 65-105 km
• Engine model: G020.500
• Engine weight: 4 kg
• Voltage: 48V
• Mounting location:Rear wheel
• Mounting: On a cassette (if your bike has a freewheel, you can replace the freewheel with a cassette)
1-YEAR warranty on the set from the manufacturer
Service and conversion of bicycles throughout Poland
item-6">
set
Electric drive set with a powerful engine 500W on the rear wheel is a mechanism that has proven itself in many of our bikes. This frictionless and reliable motor allows you to accelerate up to 45 km/h effortlessly and conquer hills. The rear-mounted motor and battery provide an ideal center of gravity, which you'll appreciate on more challenging terrain. Great control over the bike will ensure you have fun in hilly areas.

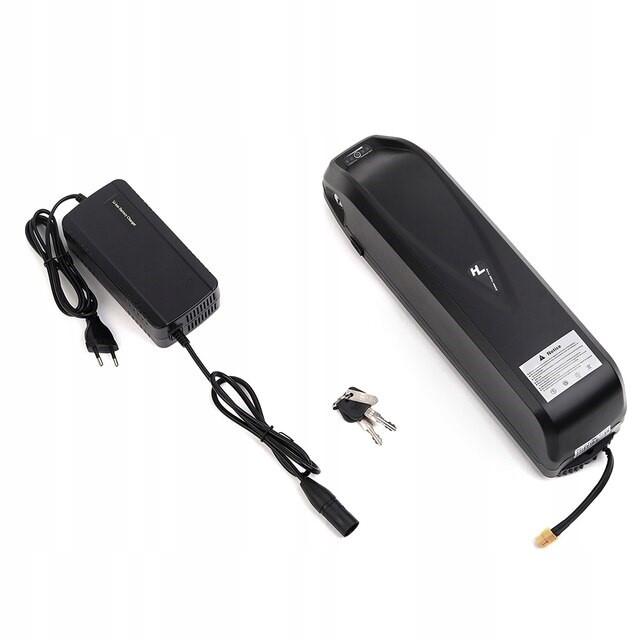

battery
Dimensions 36.6 x 9.1 x 11 cm
Lithium-ion batteryon Samsung cells included with a capacity of17.5Ah allows you to coverfrom 65 to even 105 km on a single charge. The battery is housed in a special container that not only protects it from external factors or accidental damage, but also allows for quick installation on the bike. Simply slide the battery into the rail that's already been mounted in the frame. The battery is also equipped with aUSB port, which you can use to charge your smartphone or other devices.
LCD (optional)
Using the easy-to-use LCD display, you can make the necessary settings, configure the assistance and maximum speed, and, above all, constantly monitor the battery status. The intelligent system monitors your driving style and indicates the battery level proportional to the power used.
TYPE 1 (500C)
Compact display with wide screen
• Number of PAS: 3/5/9
• Screen size: 2.2″
• USB port: None
TYPE 2 (DM03)
Display with convenient mounting method
• Number of PAS: 3/5/9
• Size Screen Size:1.3″
• USB Port: None
TYPE 3 (DZ40)
Minimalist Side Display
• Pad Quantity:5
• Screen Size:1.9″
• USB Port: None
throttle grip
You can use the support in two ways - the first is the automatic start of the engine while pedaling thanks to a motion sensor placed on the crank, and the second is the throttle grip, which also allows you to use the drive to its full extent.
can be adapted to any bike
TO CHOOSE FROM:
Brake levers
They have contactors that activate the engine switch when pressed, which increases riding comfort and safety.
Brake sensor
The sensor is usually used when the original brake levers are integrated with the gear shifters on the bicycle or in the case of hydraulic brakes. The electronic brake sensor is placed on the brake lever and when braking, the handle moves, which is detected by the Hall sensor and disconnects the motor in a fraction of a second.
PAS Sensor: 3 Types
We usually use Type 2.
In the order comment, please indicate:
1. wheel size ("26", "27.5", "28", "29");
2. LCD TYPE: 1, 2, 3 TYPE;
3. Brake TYPE: brake lever OR brake sensor;
4. PAS: 1, 2, 3 TYPE;
Included:
1. 48V 500W motor braided into the rear wheel rim;
2. 17.5Ah battery with charger and keys;
3. Wiring with LCD display and throttle;
4. Brake levers with current cut-off or braking sensors;
5. Controller (controller);
6. Controller box;
7. PAS sensor;
8. Lamp.
Warranty and Service
The comprehensive warranty and service for Ultimate Action batteries is 1 year. We operate throughout Poland.
Bike Conversion
We offer additional conversion and service services for electric bikes throughout Poland.

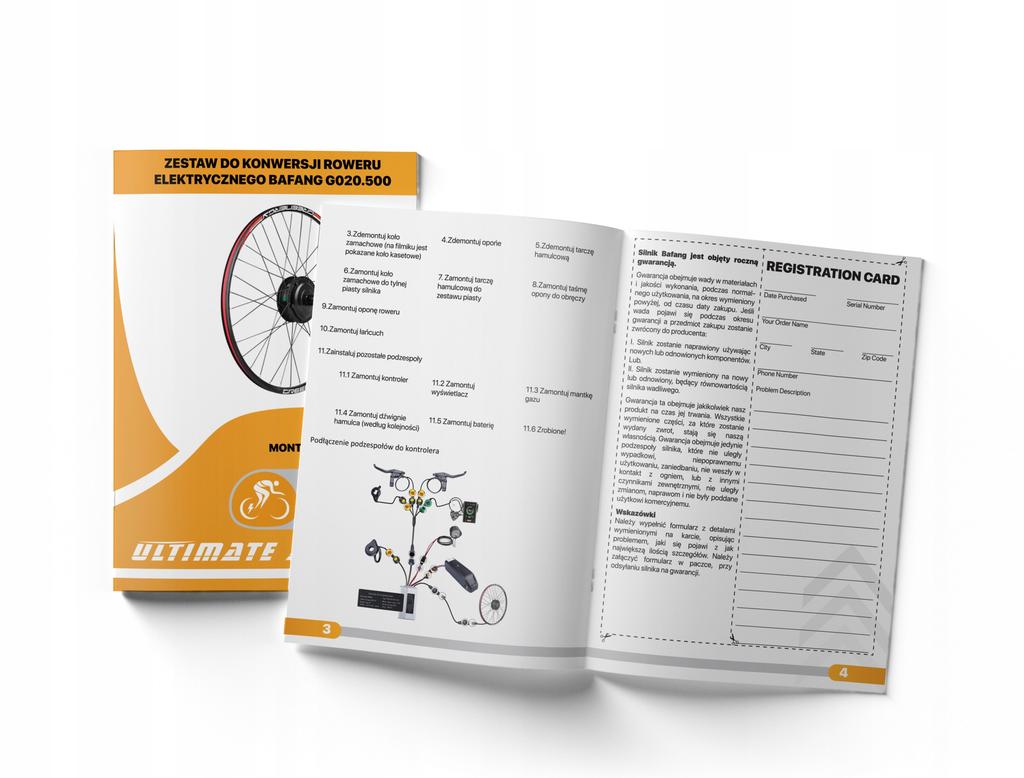

User manual and warranty card
The set includes an instruction manual containing the main information on the correct use, operation and installation of the Bafang electric kit, display and additional parts.
