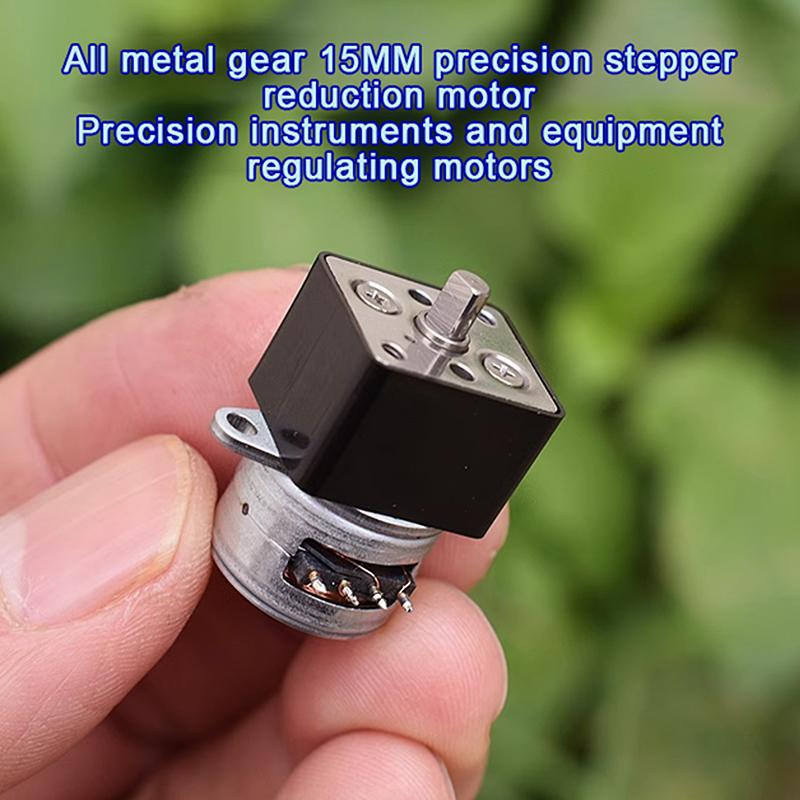

15By Mini 15Mm 2-Phase 4-Wire Gear Stepper Motor Micro Full Metal Gearbox Gear Stepping Motor Diy Accessories

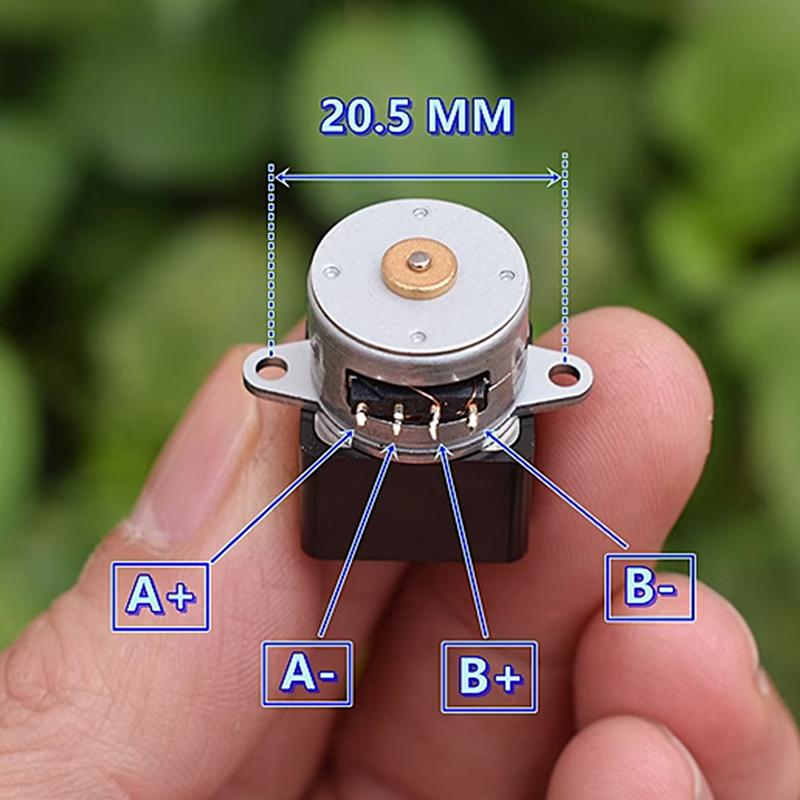

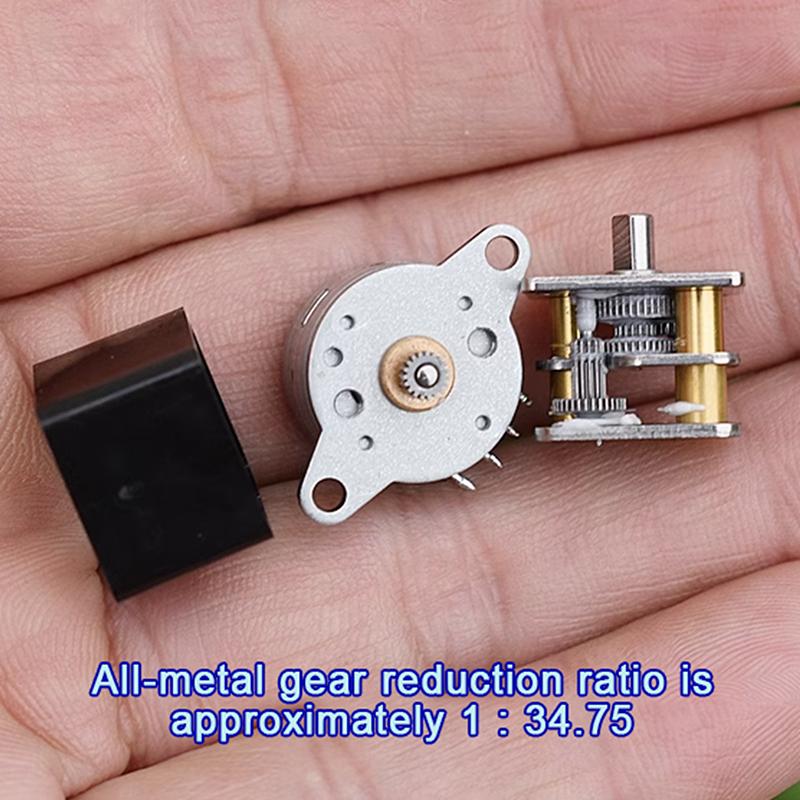

Micro stepper reducer motor, all metal gear reducer, with a reduction ratio of approximately 1:34.75. approximately 695 pulse signals output shaft rotation of 360 degrees, using a 15mm 2-phase 4-wire stepper motor (which requires an external driver to operate). This type of miniature stepper motor is commonly used in monitoring equipment, communication equipment, and precision instruments. Attention: The stepper motor requires an external stepper motor driver to operate normally. If it is directly connected to power, it cannot operate. This motor is a 2-phase 4-wire stepper motor. Specifications: New and high quality! Material: Metal Color: As the pictures show Size:As the pictures show Step angle: motor is 18 degree; output shaft is about 0.52 degree Motor type: 2-phase 4-wire stepper motor Phase resistance: 19.7 ohms (6V short circuit current 280mA) Package quantity:1Pc Note: Please allow 2-3 differences due to manual measurement. The above dimensions are for reference only. As different computers display different colors, thank you for your understanding, the actual product color may be slightly different from the image.

Note: 1.Due to manual measurement, please allow an error of 1-2cm. Please make sure you don't mind before bidding. 2.Due to the differences between different monitors, the picture may not reflect the actual color of the project. Thank you! The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
